Product Introduction

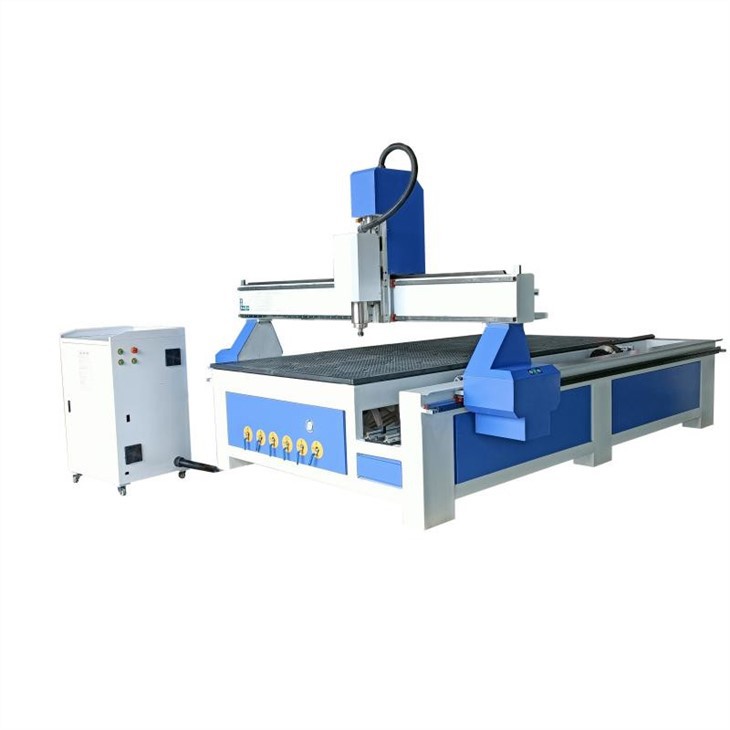

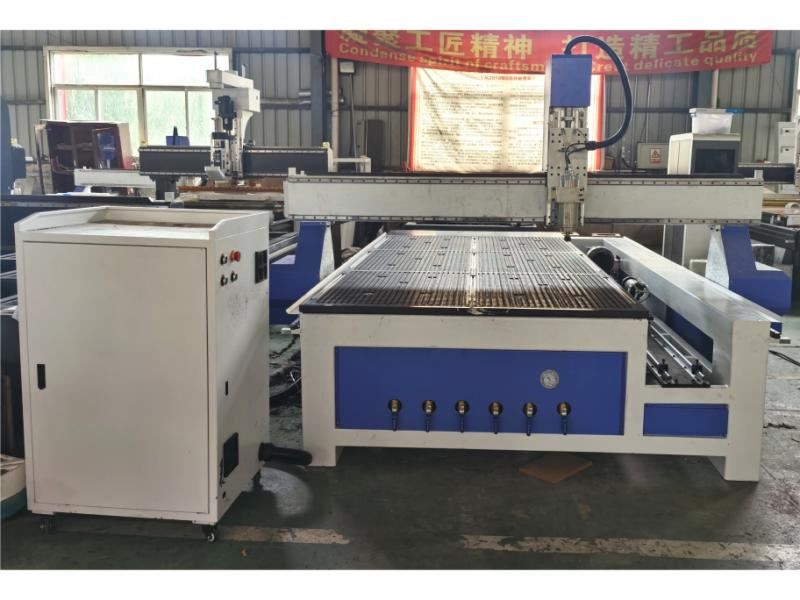

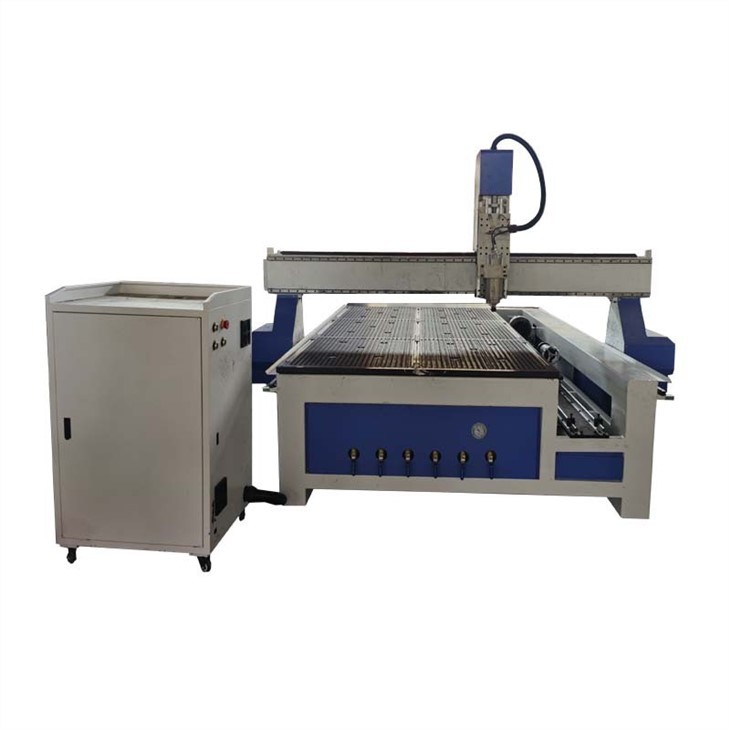

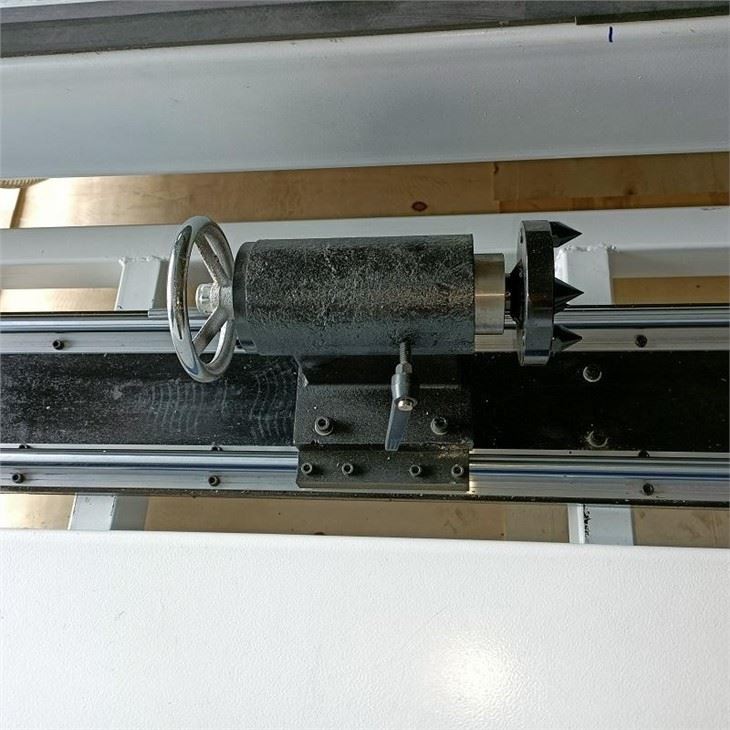

<Machine Photo>
<Machine specifications>
Product Name | GD-3D-300-1500 Three dimensional engraving machine |
Working Area | 1300*2500mm |
Frame | Welded structure |

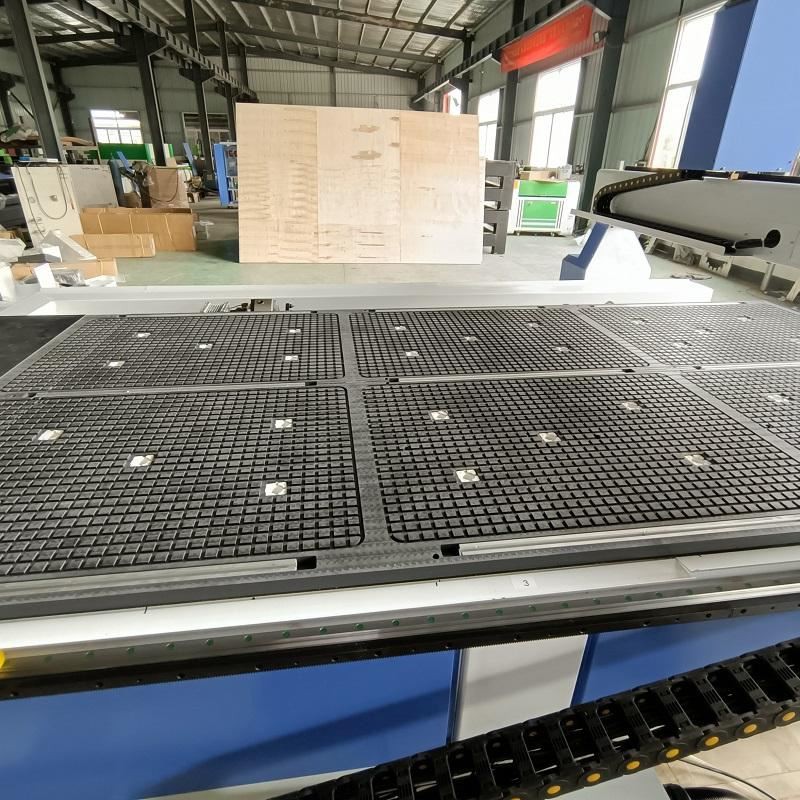

Table Surface | TAIWAN HIWIN Square Guide Rails 20/25mm |
Z Structure | Ball Screw |
Spindle power | 2.2/3.5/4.5KW |
Driver motor | Stepper /Servo |
Inverter | Fuling or Sunfar |
Control system | Mach3 System (Optional: DSP) |
Software Compatibly | Artcam/Artengraver/Type3/V9/JD paint |

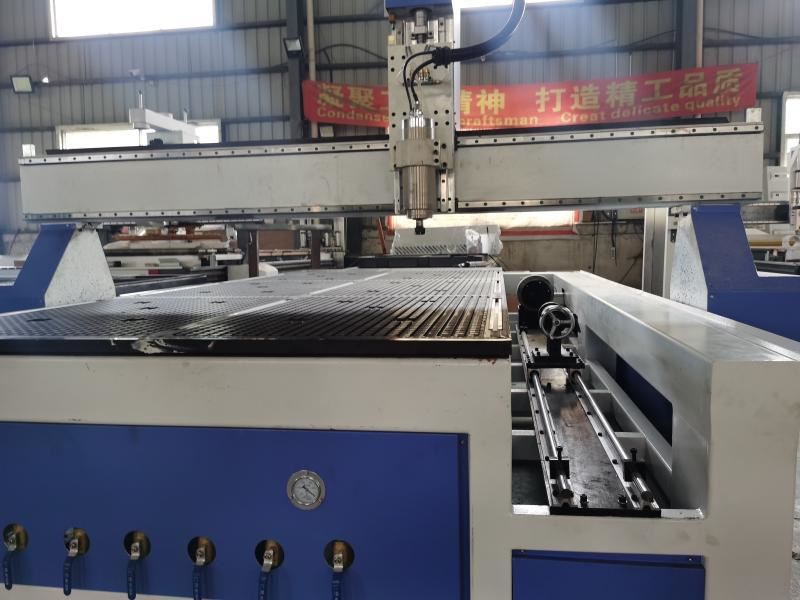

<Machine Detail>

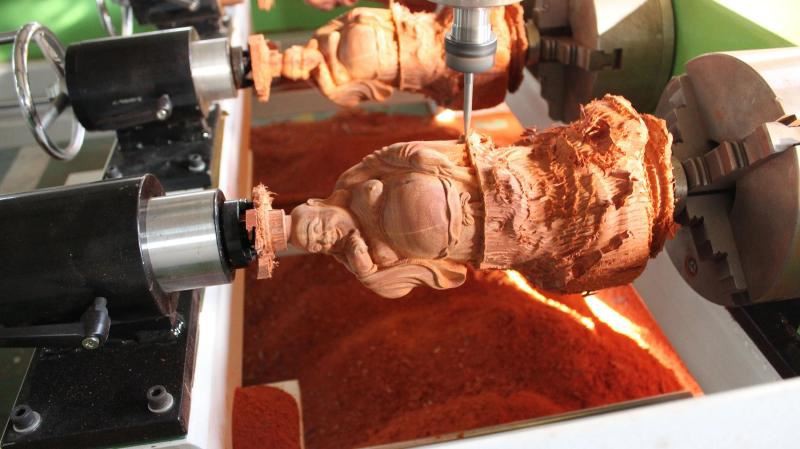

1.The model IS called: cylinder engraving machine, long column engraving machine, Rome cylinder engraving machine, cylindrical relief engraving machine
2.The machine body is made of thick walled steel tube. As the machine provides a rigid and stable processing platform and all the parts before the bed process has to eliminate stress. With imported guide rail, screw.
3.The USB transmission of Embedded DSP numerical control system, can realize breakpoint glyph, power-off memory function, the standard flash memory, completely offline operation, NC studio operating system can also be used.
4.High speed process, high efficiency, Travelling speed can be 1000mm/min. Longmen mobile. Long lifetime ,no deformation,Precision can be assured.
<Application samples>
1)Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
2) Wooden products: voice box, game cabinets, computer tables, sewing machines table, instruments.
3) Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.
4) Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.
