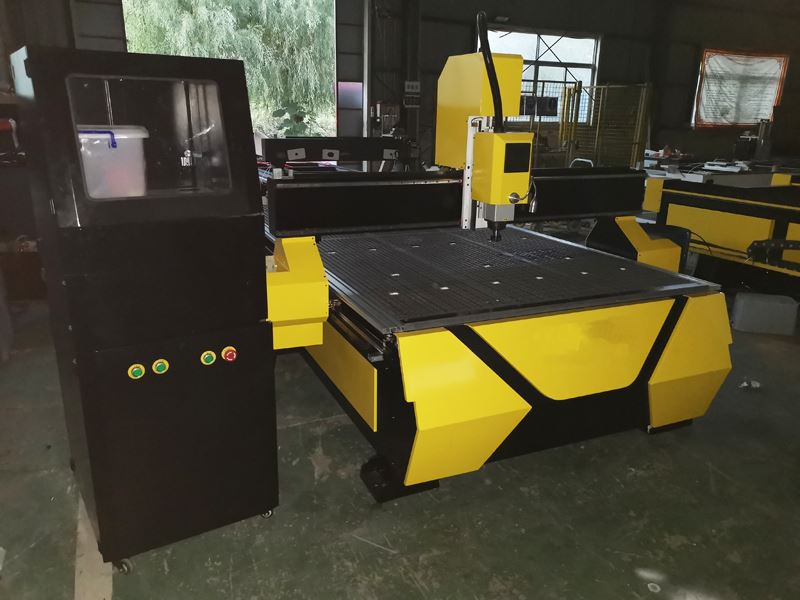

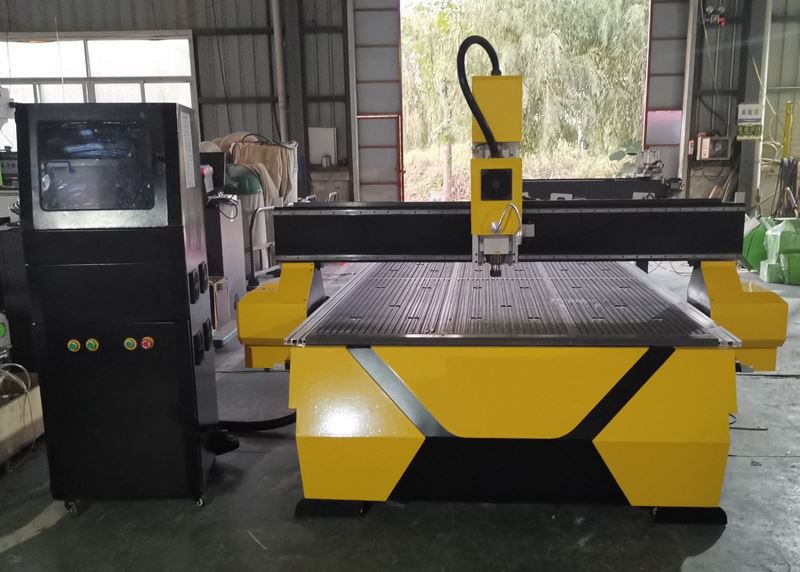

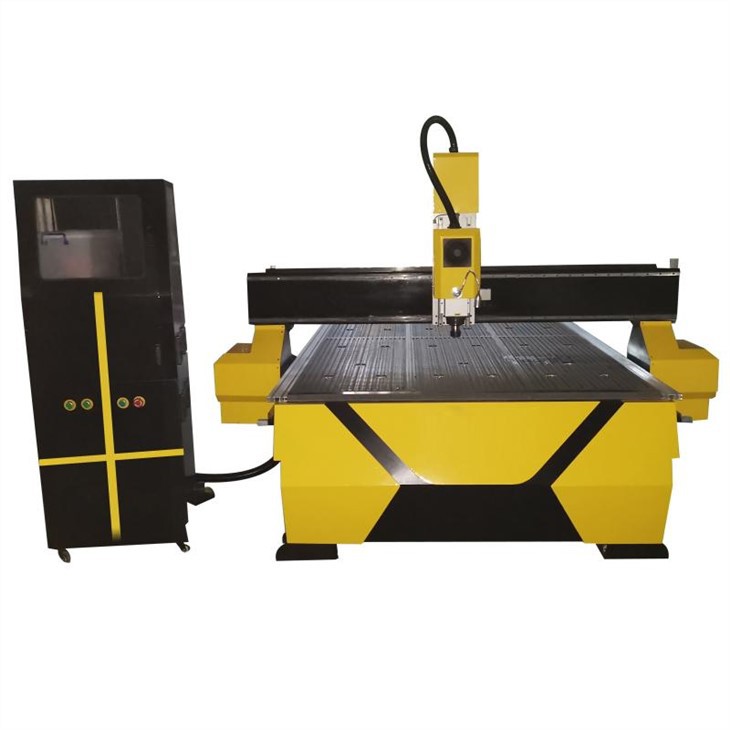

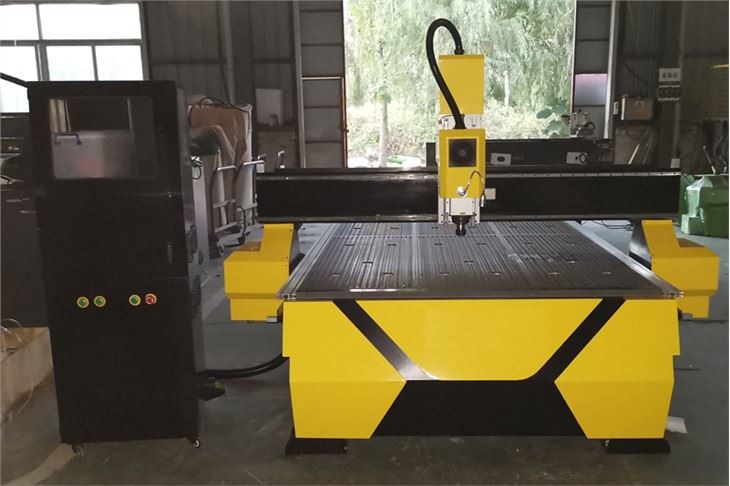

Production Pictures
Production Features
High efficiency:Good performance spindle motor work well,fast speed and high effeciency finished engraving and cutting in short time.
High engraving speed:Adopting high speed drive stepper (or Servo) motor and drive,Y axis using a dual motor drive,high precision rack drive,with the strong cutting of the spindle to make engraving speed faster.
Stable operation:Adopts imported linear square guide rail,double row and four ball slider,loading capacity,smooth operation,high precision,long service life,imported ball screw and high precision,the knife accurate.
Production Application
Woodworking industry:wooden door(such as cabinet door,non-paint door etc.) panel furniture,3D stencil technology,wave board processing,MDF,Solid wood furniture,sculpture,wood art murals sculpture,non paint carved and all kinds od man-made sheet open material production.
Advertising industry:characters cutting,plate making,manufacture by PVC,crystal board,acrylic,led neon lamp groove shape,literally shaped hole cutting,plastic lamp mold cutting.
Production Samples
Production Parameters
| Model | GD-1325 |
| Working Area | 1300*2500*200 mm(can be customized) |
| Spindle | 3.2 kw,/4.5kw 24000 rpm, Air cooling(Optional) |
| Table | Vacuum Suction |
| Transmission | Rack and pinion for x.y, ball screw for z |
| Guideway | HIWIN square linear guideway |
| Resolution | 0.01 mm |
| Traveling speed | 35m/min |
| Working Speed | 30 m/min |
| Driver | China stepping motors and leadshin driver |
| Code | G Code, HPGL Code |
| Power Supply | AC380V/50Hz |
| Control System | NC Studio / DSP/Weihong/Syntec |
| Software |
JD/TYPE3/Artcam/Castmate/UG/CAD/CAM,etc |
Production Specifications

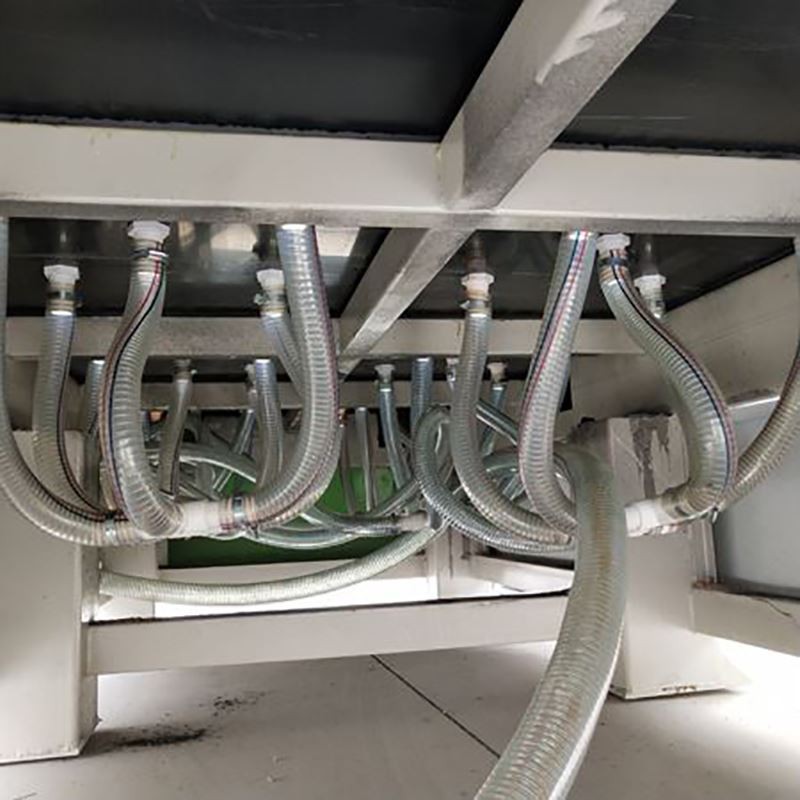

Clear pipes in the Back of the Vacuum table.

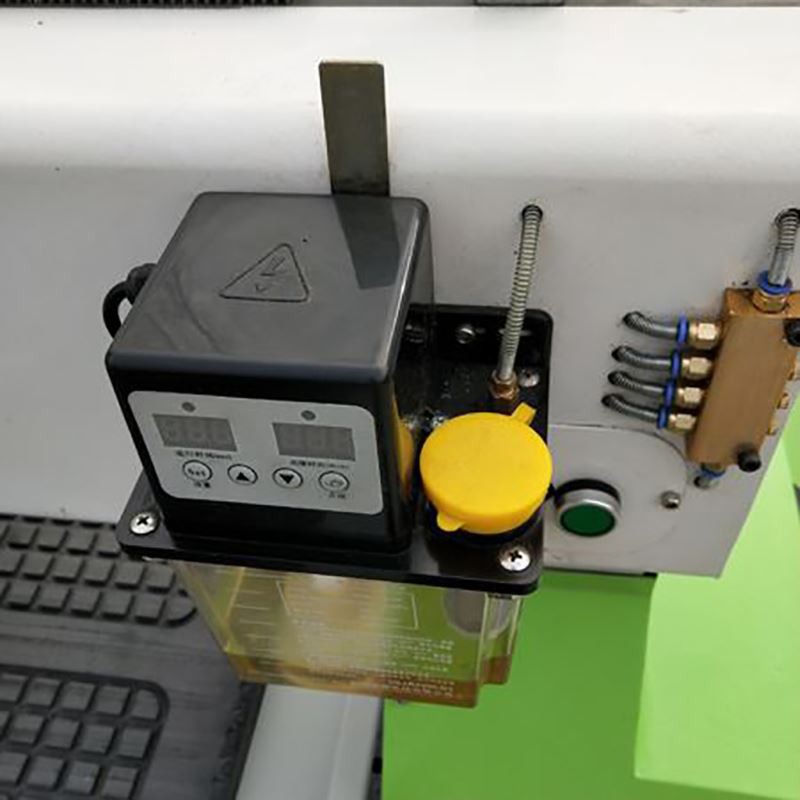

Auto lubrication system with button to lubrication the guide rail and ball screw then to extend the service life of the machine.
NC sutudio controller,easy operate. Weihong NK105,Rich Auto,Syntec for optional.

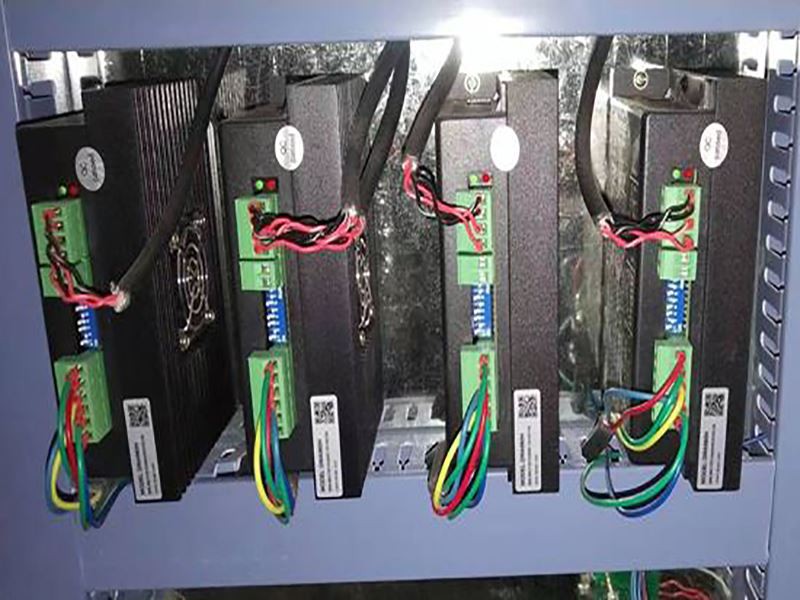

High Performance Leashine Driver

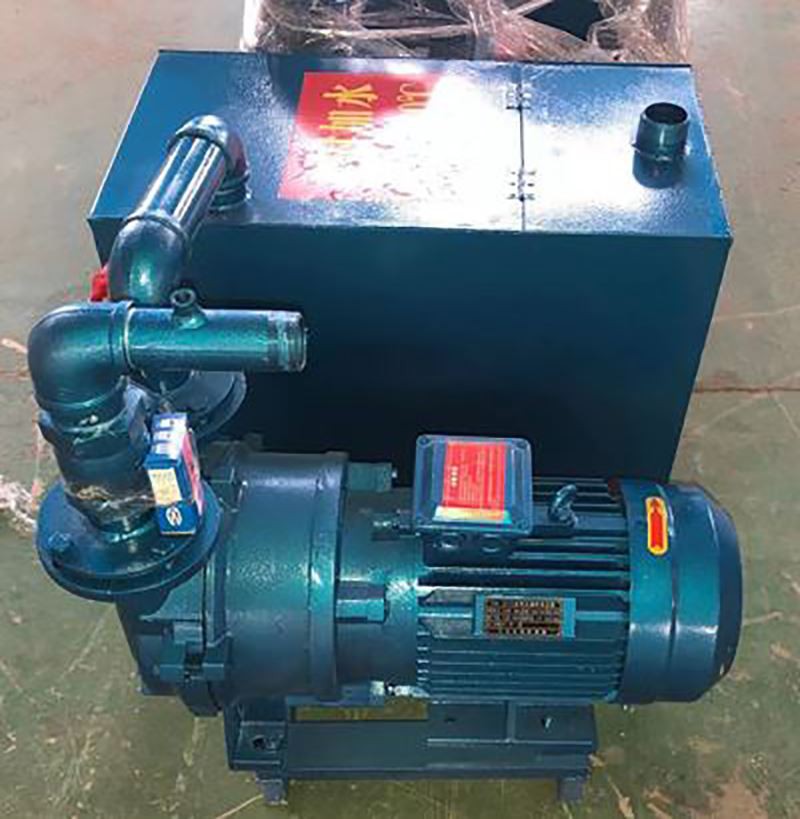

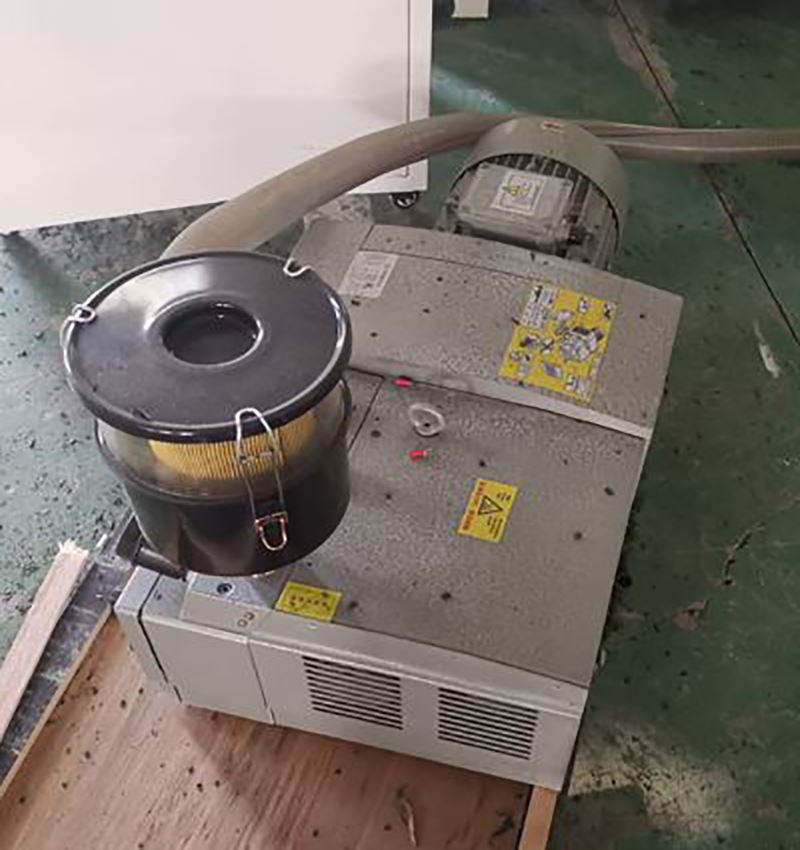

Two kinds of vacuum pump for optional.

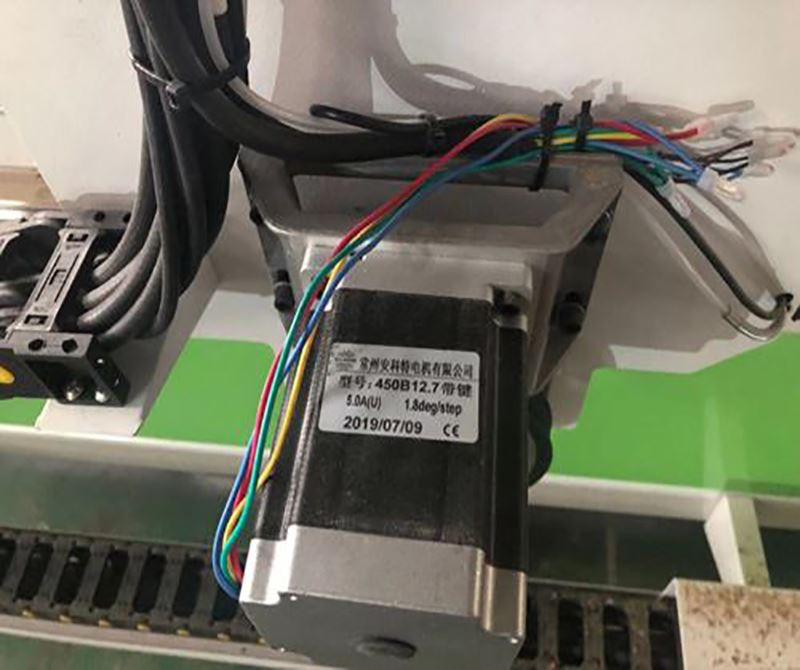

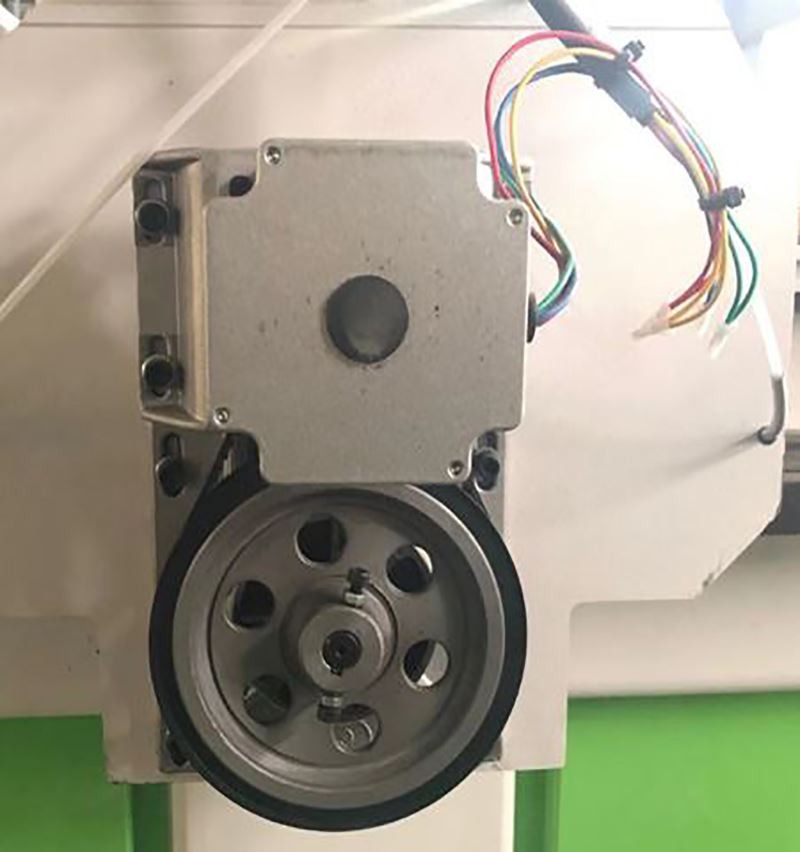

High Quality motor With high quality belt and gear

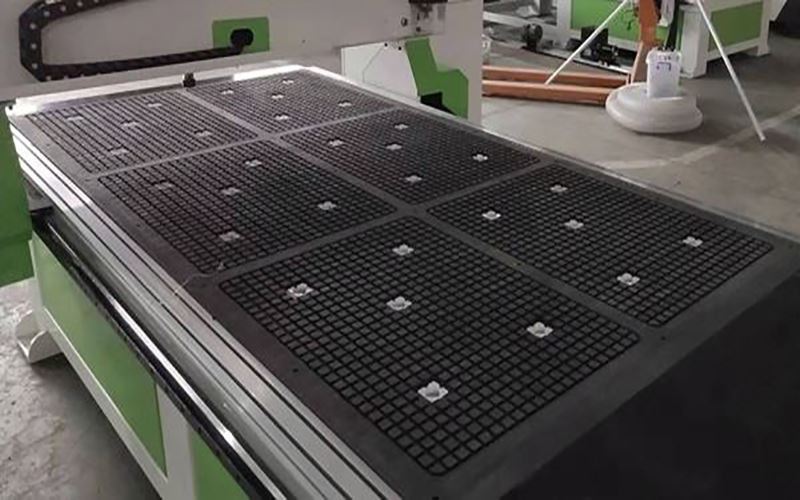

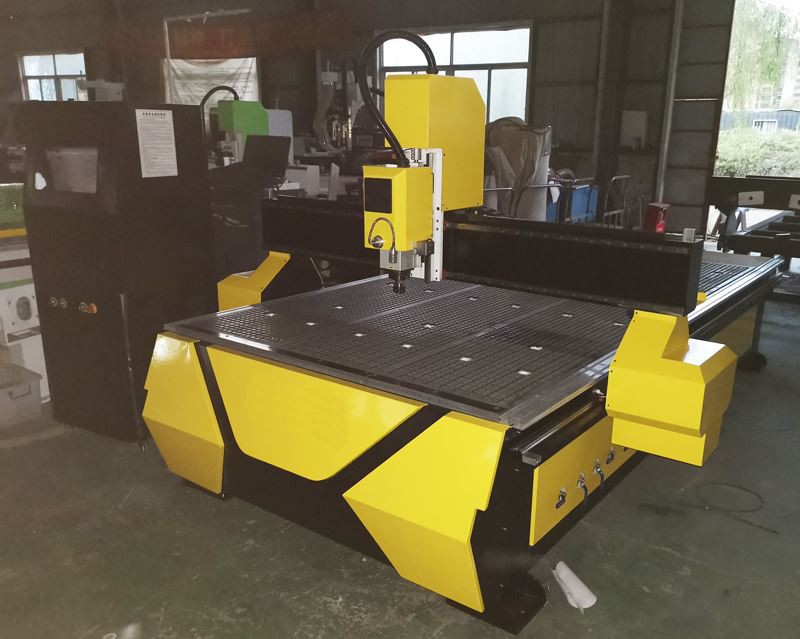

Big area vacuum table

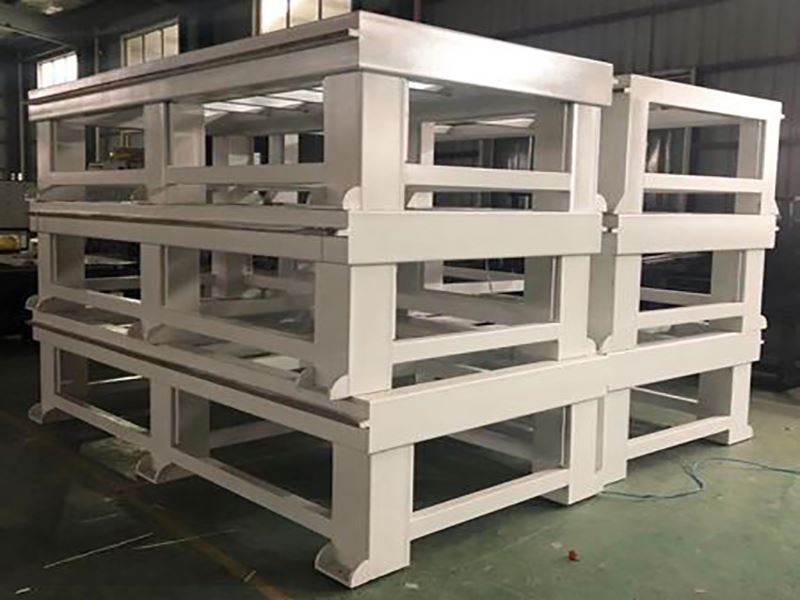

Strong Machine Body
About us
Packing & Delivery
FAQ
1.Q:This is the first time I buy the machine, is it easy to operate?
A:We can provide the operation manual or video for guiding. If it is hard for you learning, we can also help you by "Team viewer"online, with telephone or Skype explain.
2.Q:Are you trading company or manufacturer?
A: We are factory.
3.Q:Can I visit your factory?
A:Yes! We greatly welcome customers to visit our factory!
4.Q:What is your MOQ?
A:Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you
Our Service
*. 1 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
*. Lifetime maintenance free of charge.
*. Free training course at our plant.
*. We will provide the consumable parts at an cost price when you need replacement.
*. 24 hours on line service each day, free technical support.
*. Machine has been adjusted before delivery.
*. We accept the ODM,OEM
