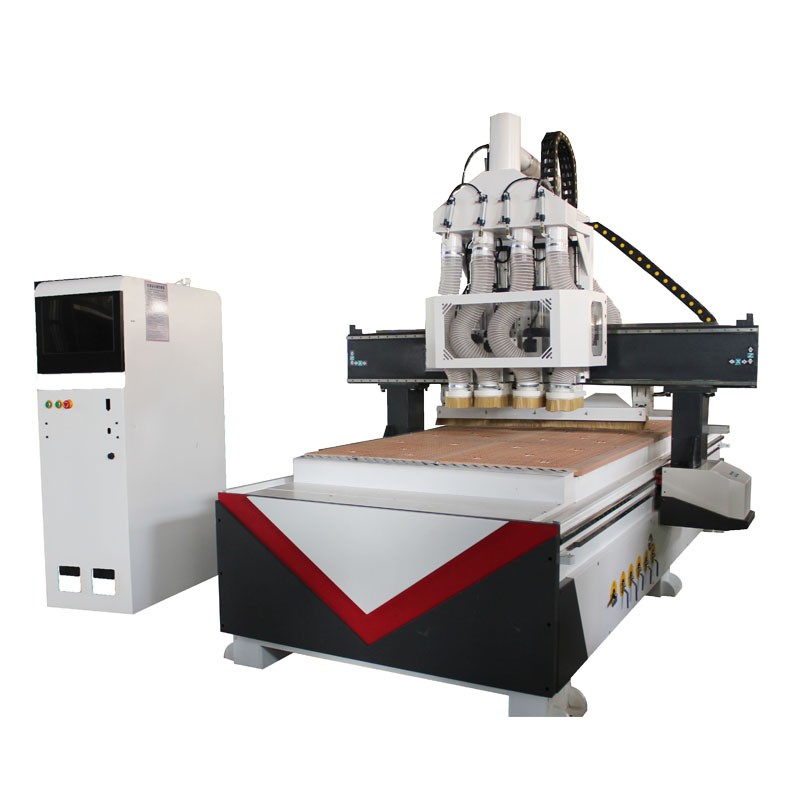

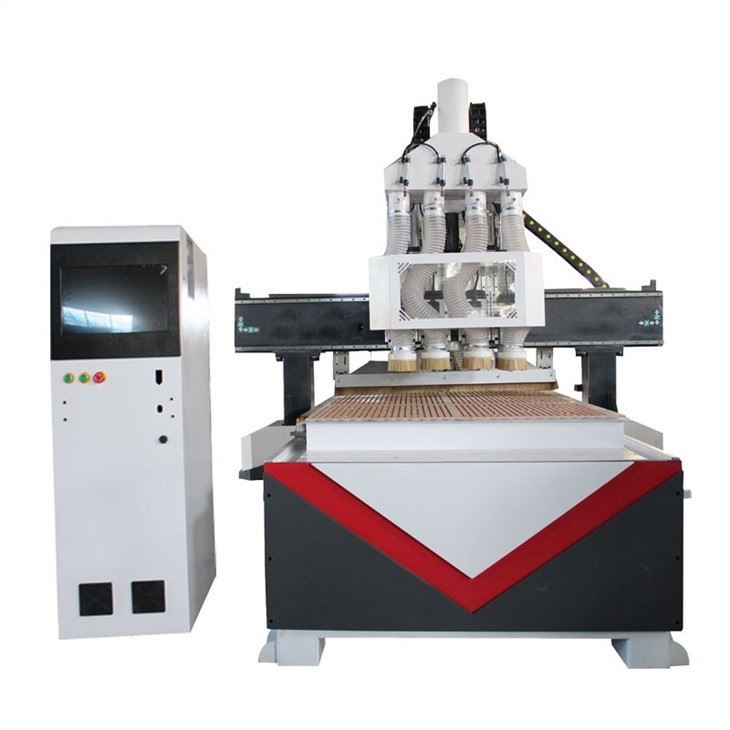

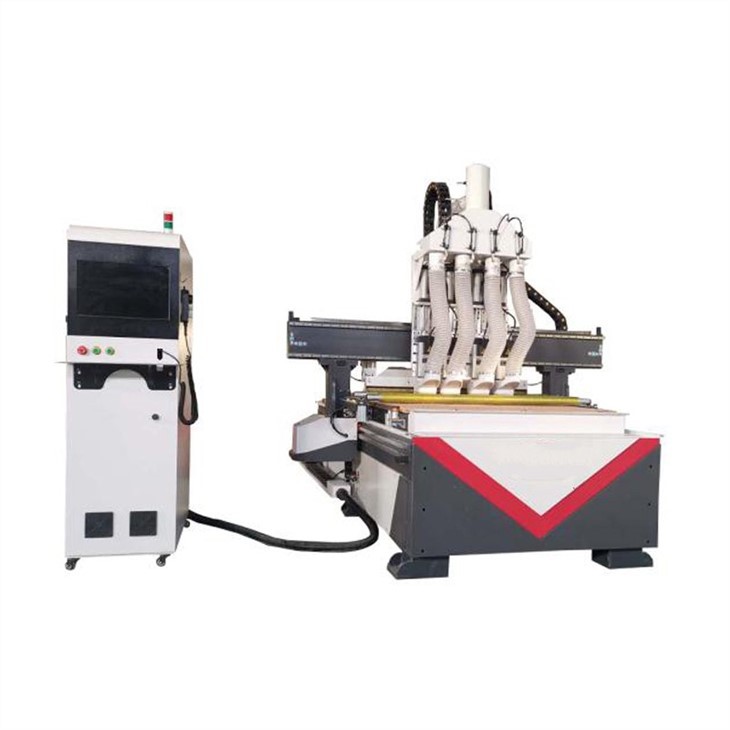

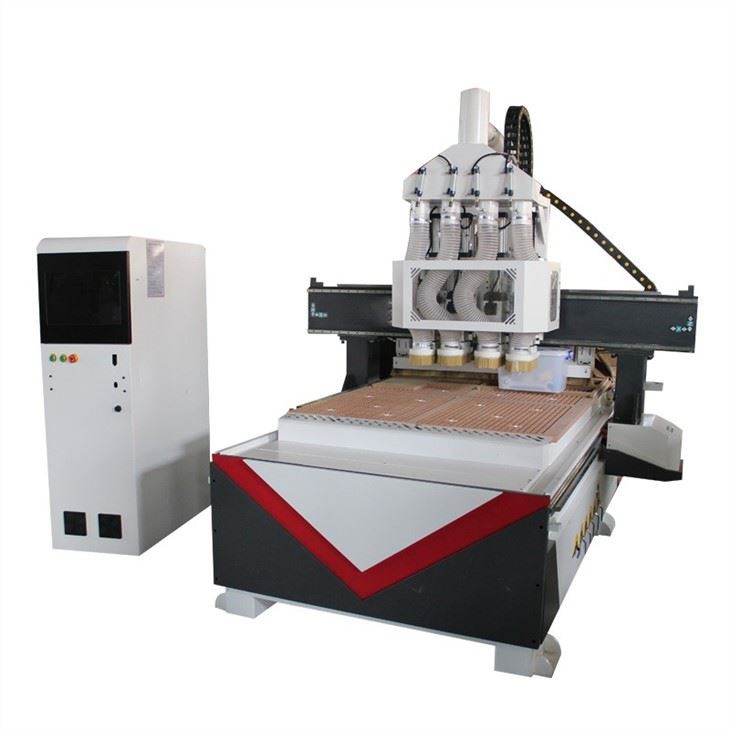

Automatic wood router cnc nesting machine
Product Descrption
Features
• working speed can up to 35m/min.
• double motors and drivers for Y axis,make sure high speed and powerful strength.
• imported linear square guide rail,two-row four-column sliding track:bearing heavy,making the working steadily,and high precision.
• compatibility software: support type3,artcam,artcut,wentai or other software that generated by CAD /CAM.
• Breakpoint memory, can continue to work afte power off breaking knife or power off
• Intelligent anti-transgress-process protection system:prevent machine from crashing when the design zone is beyond the process zone.
Technical Parameters
|
Model |
GD- 1300*2500mm |
|
Working Area |
1300*2500*200mm |
|
XYZ Working Acuuracy |
±0.05mm |
|
XYZ Repeatiblity Accuracy |
±0.05mm |
|
Lathe Structure |
Steel Pipe Welding Lathe Bed |
|
XY Structure |
Taiwan HIWIN 25mm Square Guide Rail & helical Gear Rack |
|
Z Structure |
Taiwan HIWIN 25mm Square Guide Rail & Taiwan TBI Ball Screw |
|
Table Surface |
Vacuum Table with T slot |
|
Gantry Structure |
Welded |
|
Max.Air travelling Speed |
≥60000mm/min |
|
Max. Working Speed |
≥30000mm/min |
|
Spindle and Power |
4.5KW*2 and 6KW*2 HQD Air Cooling spindle. |
|
Spindle Speed |
0-24000RPM |
|
Inverter |
Fuling Inverter |
|
Motors |
1.5kw Leadshine Servo motors |
|
Drive Mode |
1.5kw Leadshine Servo motors |
|
Transmission |
Germany helical rack gear ,1.5mm |
|
Reducer |
Japan Shimpo reducer |
|
Double bag Dust collector |
Attached |
|
Air cylinder Positioning pop-ups |
Attached |
|
Working Voltage |
380V |
|
Command |
G Code, *uoo, *mmg, *plt |
|
Operating System |
Taiwan Syntech |
|
Oiling system |
Automaic |
|
Working tools |
tools will be sent for free |
|
High precision Tool sensor |
Attached |
|
Soft ware |
Polyboard attached |
Machine Detailed Pictures

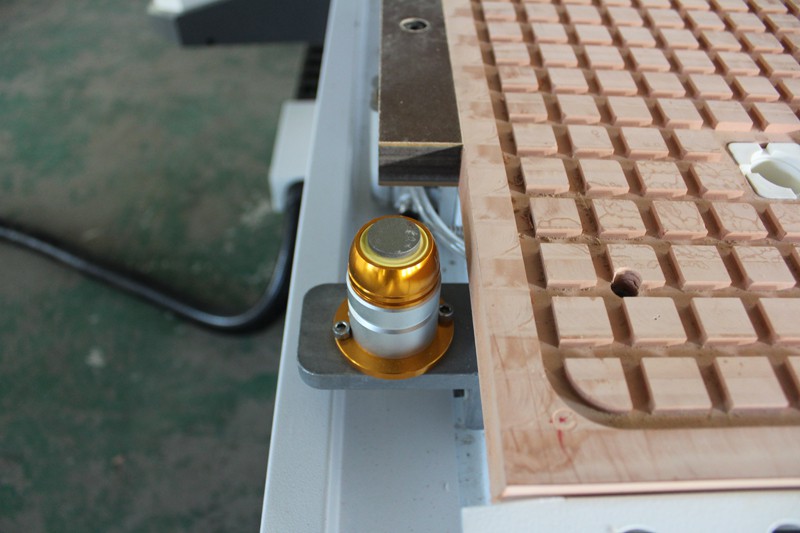

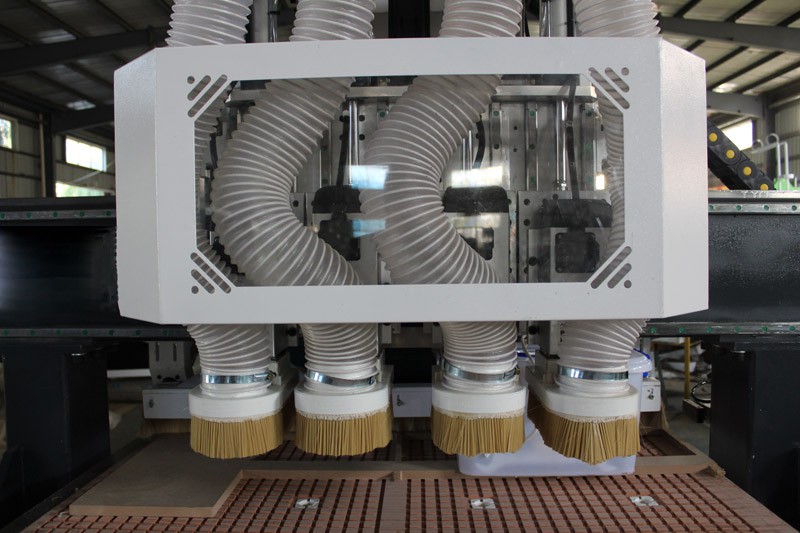

4.5kw*2+6kw*2 air cooled spindle Tool sensor

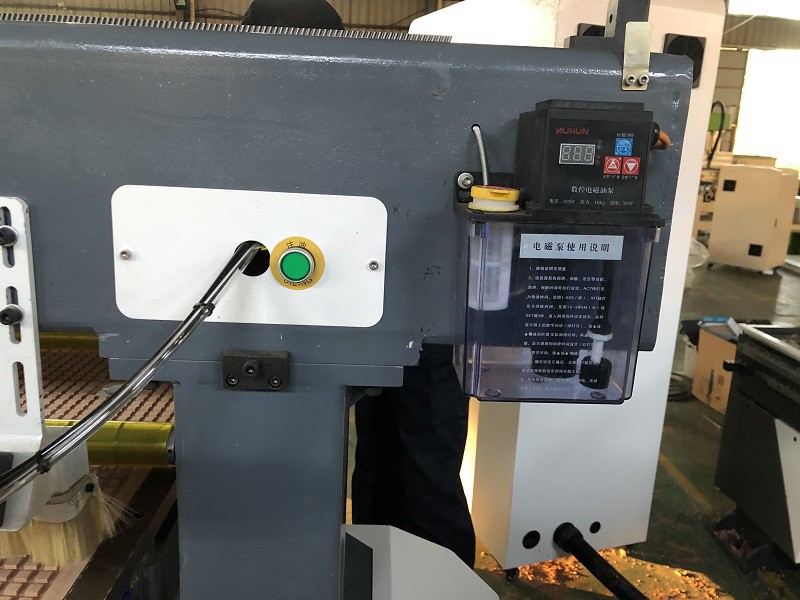

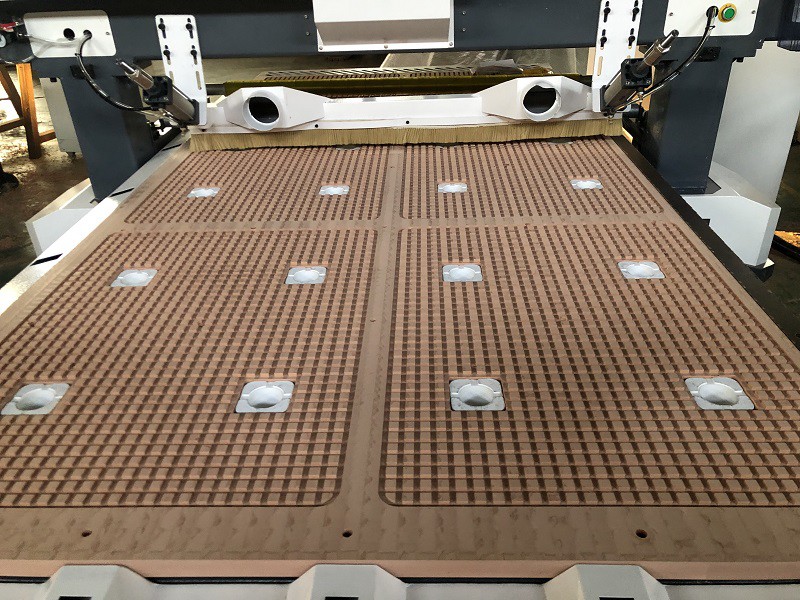

Vacuum adsorption table Auto oil lubricating system

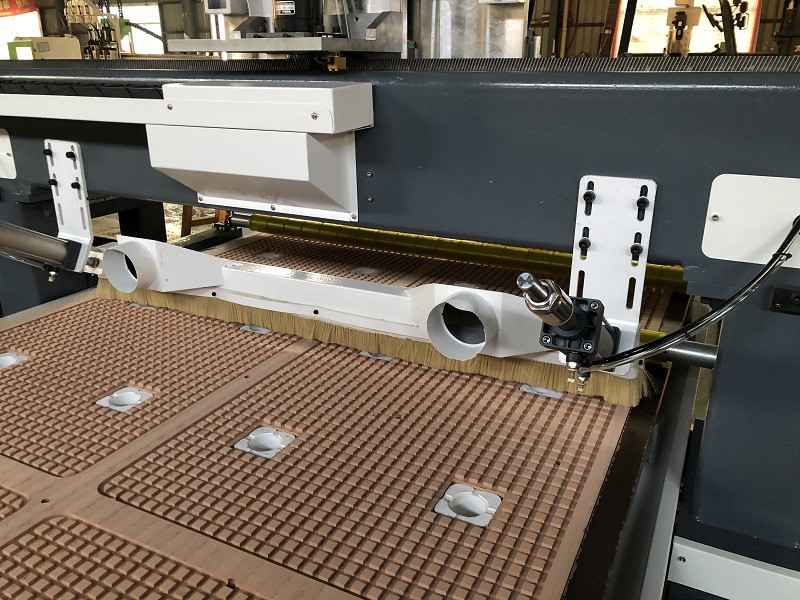

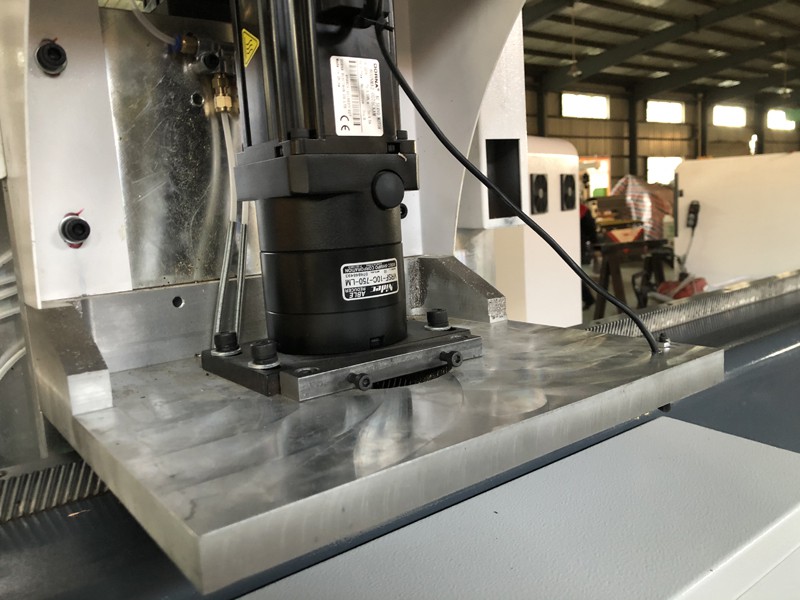

Servo driver with Imported reducer Feeding roller to push material
Application
Automatic wood router cnc nesting machine is suitable for wood, MDF, plywood etc engraving, cutting and milling. It is also suitable for stone, marble, soft metal etc.many kinds of materials processing.
It is used for Wooden door and furniture decoration industry; Wooden crafts processing; Instrument industry and many other industries.
Packing & Shipping
Packing: Strong wooden package
Shipping: 20-30 working days after get deposit

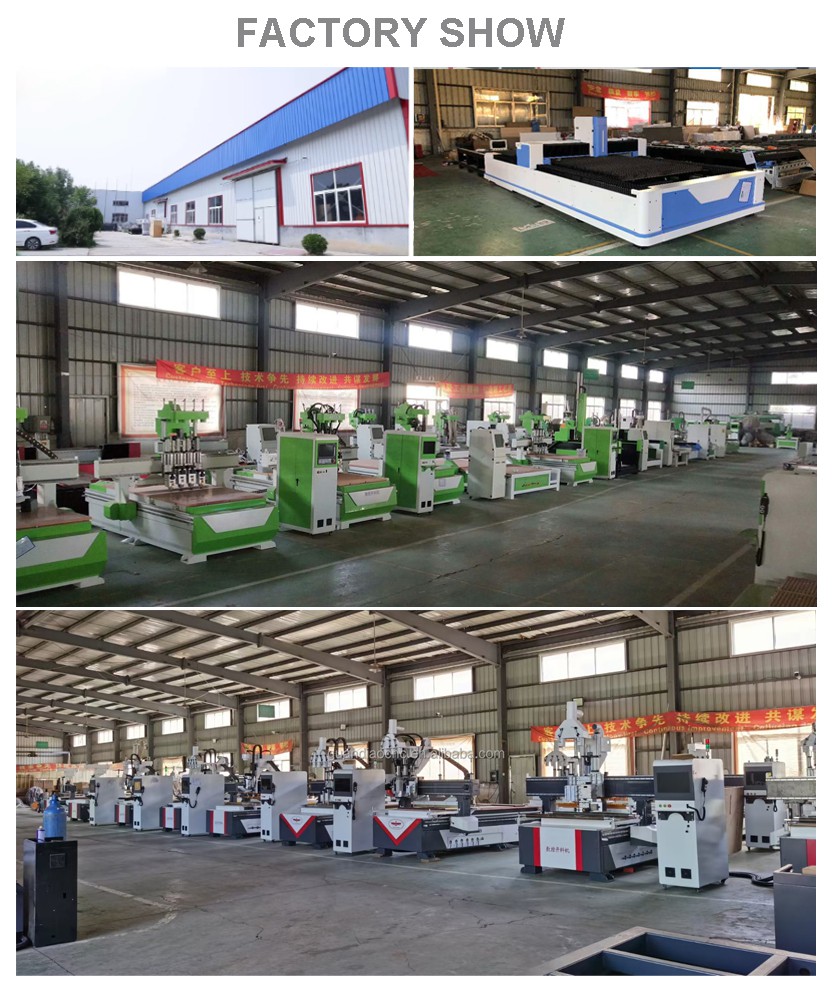

Company Information
Shandong Guandiao CNC Equipment Co., Ltd is located in Jinan,Shandong,China. Our company was established in 2008.
We are professional CNC router machine, laser cutting&engraving machine and plasma cutting machine manufacturer. Our machine mainly used for advertising, woodworking, steel cutting and stone processing industries.
After serval years' development, GUANDIAO products are used by over 50,000 companies, schools , government offices in more than 30 countries. For instance, countries and area like USA, England, France, Germany, Canada, Russia, India, Southeast Asia, Middle East and so on.
