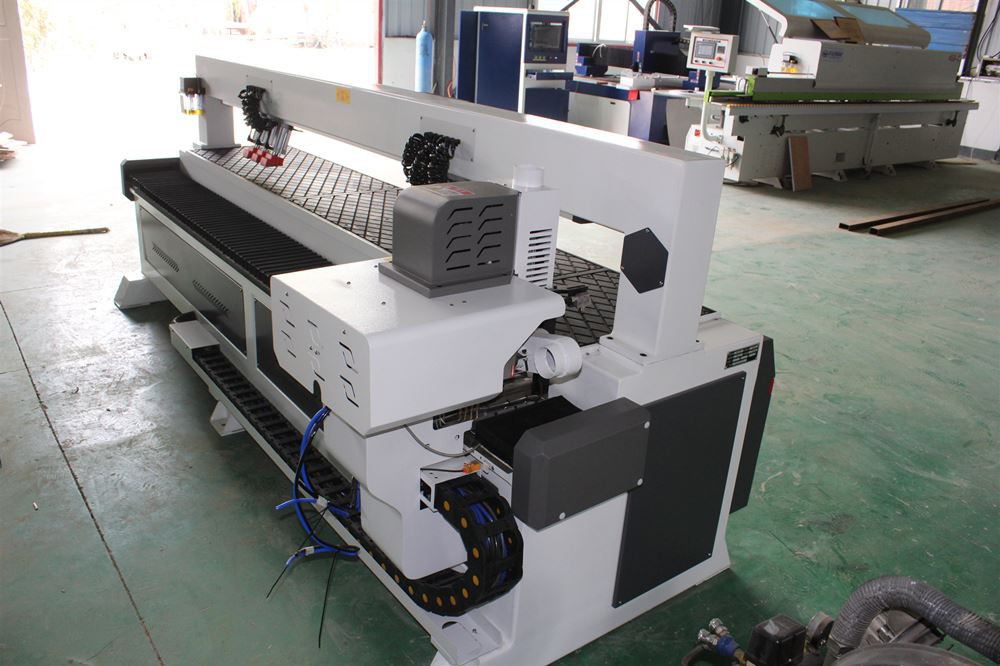

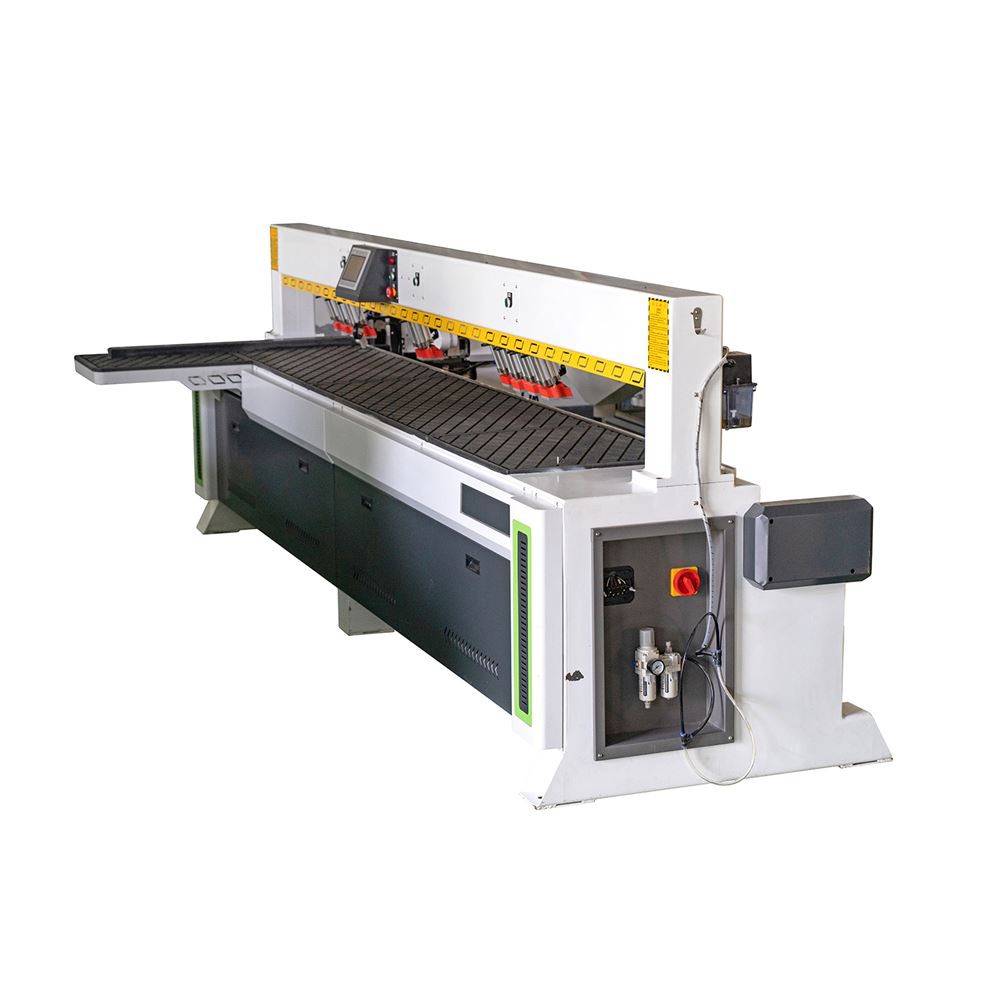

Production Introduction
Machine size:3550*1770*1400mm
Minimum workpiece length and width:100*50mm

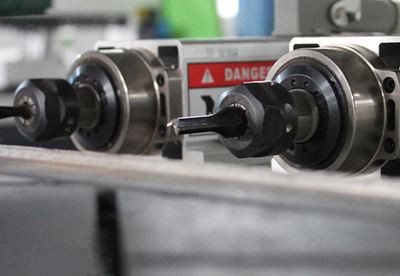

3.5 KW Spindle
3.7KW Fuling inverter

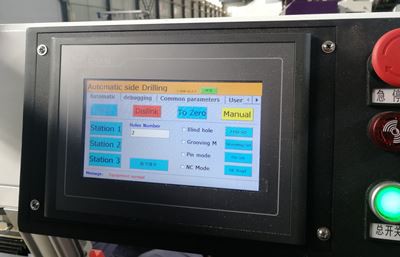

Touchwin controller (touching panel)
Automatic positioning

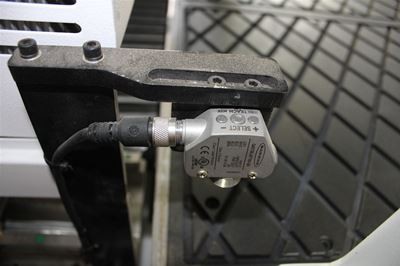

American original Banner Laser displacement sensor
Servo motor driver
Y movement: Rack and pinion, gear drive/Taiwan
Z movement: Pneumatic cylinder
Dedicated positioning device

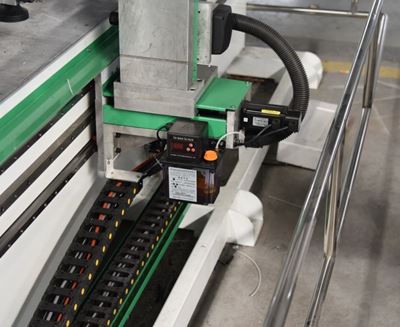

oil lubrication system
| Model | Laser Induced Drilling Side Hole Cnc Machine |
| Spindle | 2*HQD 2.2kw Air Cooling |
| Guide | 25mm Guid rail |
| Frequency Converter | 3.7KW Superstar inverter |
| Drive Motor | Servo MOTOR |
| Run Instruction | TG765-XT-C |
| Machine bed | Positioning alloy plate, cylinder rubber pressing foot |
| LaserInfrared Ray | American Bonner Laser Probe |
| Weight | 1000kg |
| Packing size | 3900*1200*1350mm |
Production details
use the newest control system,ensure machine fast working speed and accuracy

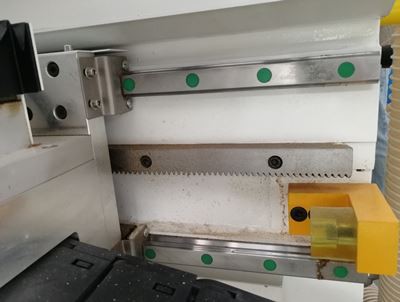

linear guide, double guide rail design,small resistance, high accuracy

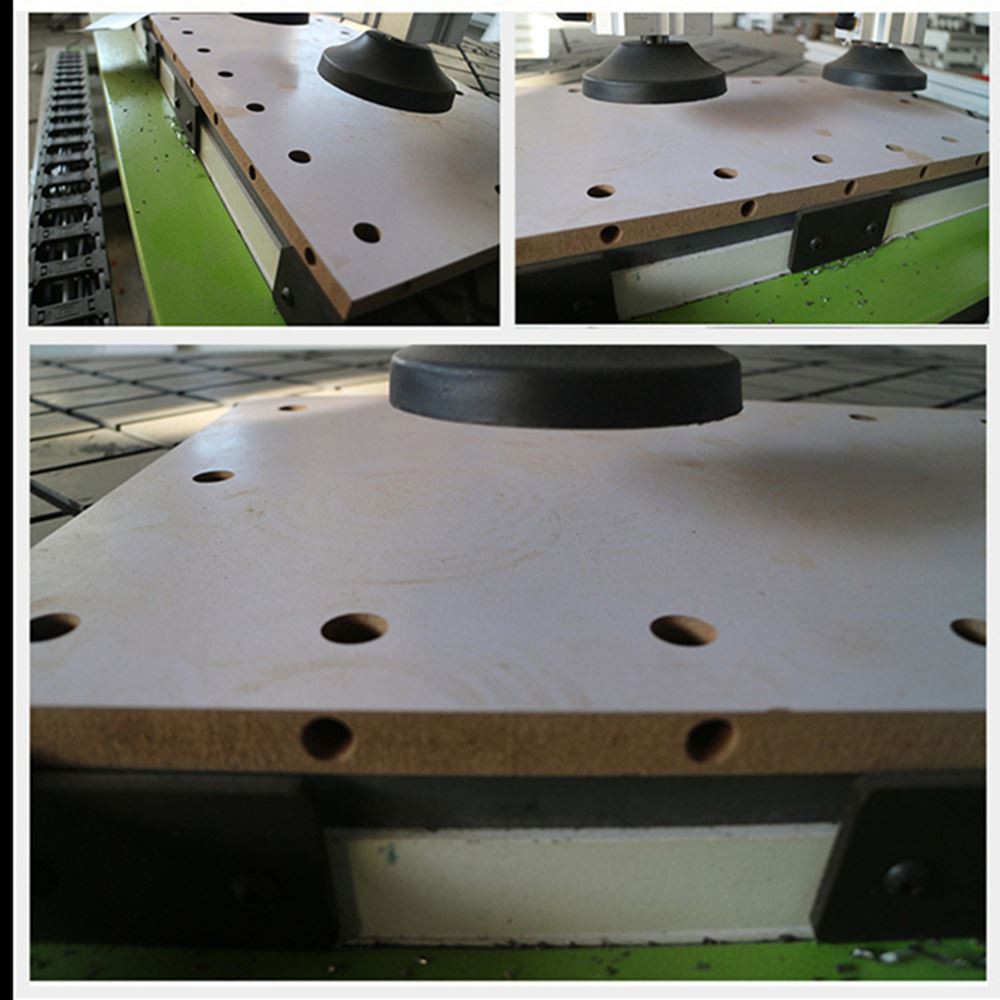

Samples
