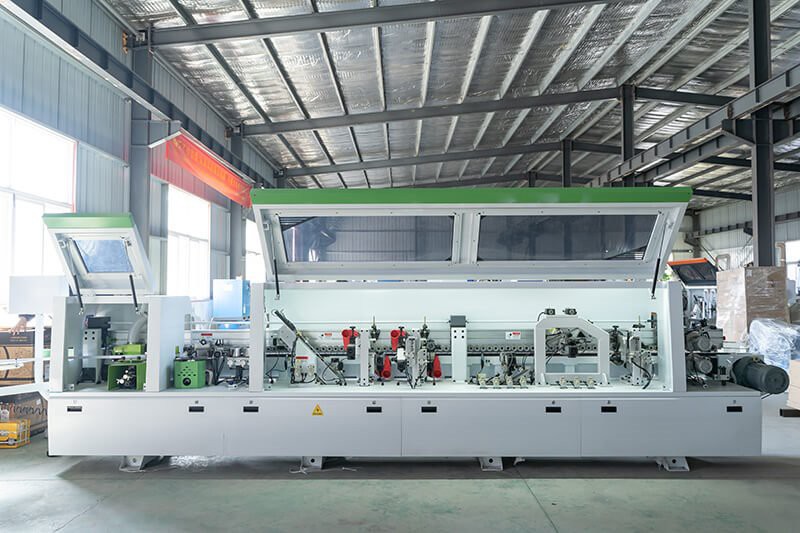

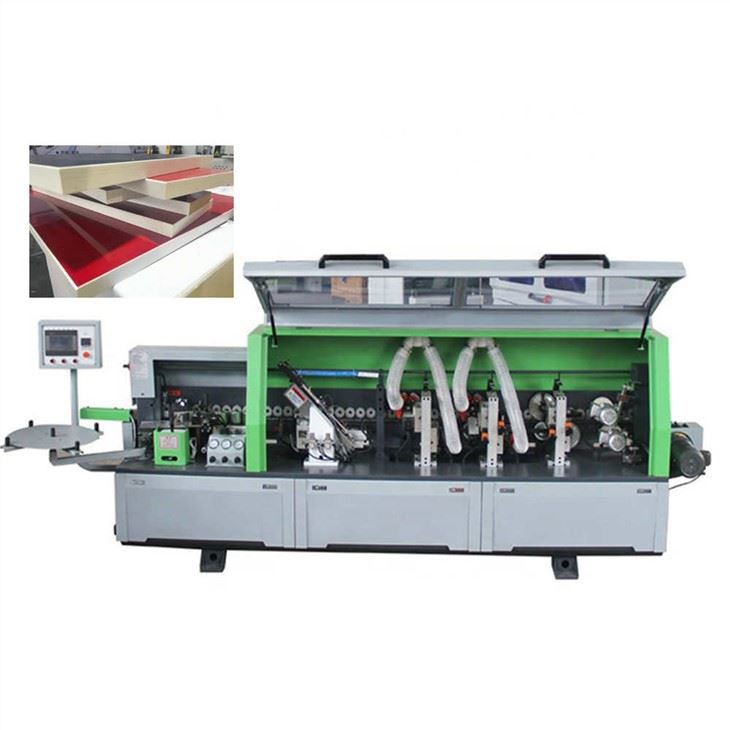

Production Introduction
Our Advantages 1. Adopt imported motor and high quality electrical component. 2. Product serialization and diversification is easy for the customer to choose. 3. High precision and work efficiency. 4. Automatic and precise gluing procedure as well as integrated double finish. 5. High strength frame structure, durable. 6. Glue evenly, conveying stability. 7. The machine is equipped with hand lubricator to reduce wear. |
|
Mode | GD2400 |
|
Size | 4200*900*1600 | |
Weight | 1300kg | |
Total power | 8.5kw | |
Width of banding | 12-60mm | |
Edge thickness | 0.4-3mm | |
work thickness | 10-55mm | |
Minimum length of sheet | 80mm | |
Minimum width of sheet | 80mm | |
Plate transport speed | 18m/min | |
Air Pressure | 0.6MPa-0.8Mpa | |
Heating power of rubber box | 1.8Kw | |
Rubber box transmission power | 0.55Kw | |
Homogeneous motor power | 0.37Kw*2 12000r/min.200Hz | |
Rough repair motor power | 0.75Kw*2 18000r/min.300Hz | |
Finishing motor power | 0.75Kw*2 18000r/min.300Hz | |
Polishing motor power | 0.18Kw*2 | |
Plate preheating power | 0.3Kw | |
Conveyor motor wattage | 1.5Kw |

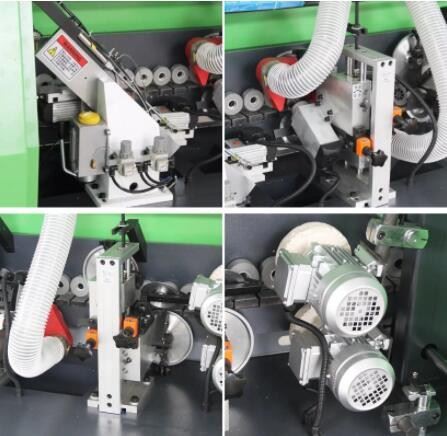

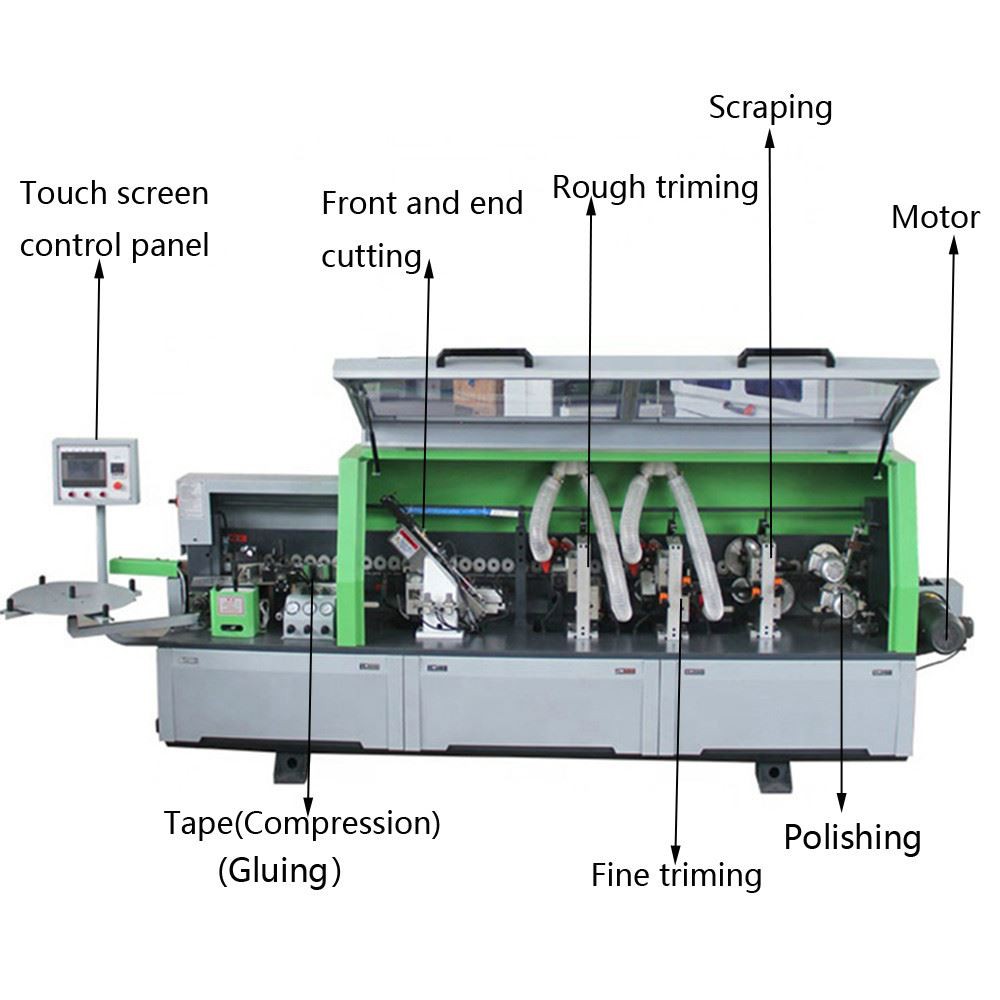

Product Details

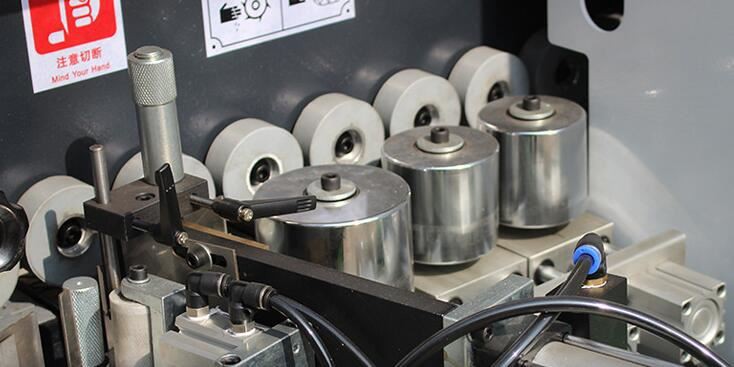

| Taping At the same time, the steel pressure pulley compresses the edge banding belt and the plate to make the adhesion more firm, and there is no glue mark on the plate. |

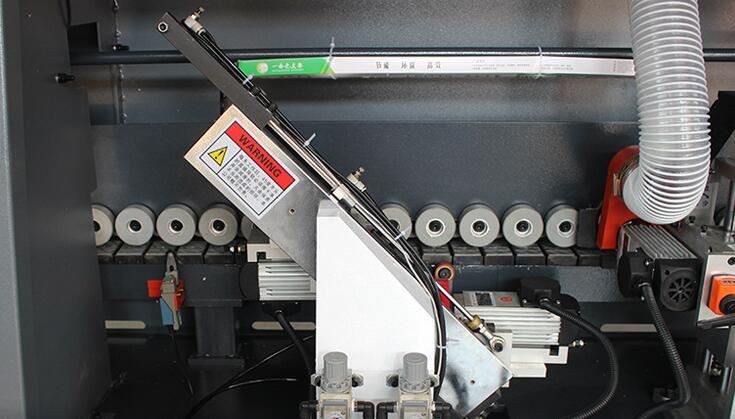

| End cutting Through the profiling automatic tracking and high-frequency high-speed motor structure, the cutting section is smooth and smooth. In addition, it has the protection function of end to end collision, which enhances the stability of end to end collision. |

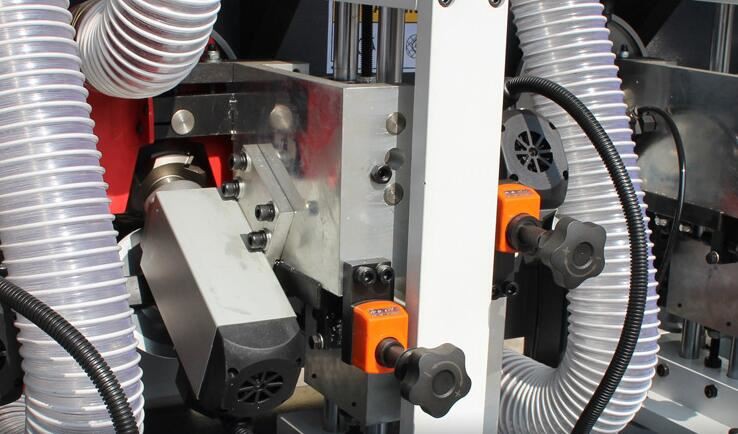

| Rough trimming The rough trimming cutter is a flat cutter, which is used to repair the surplus edge material in the upper and lower parts of the edge banding strip. The high frequency and high speed motor is used to realize the rapid cutting, so that the upper and lower parts of the edge banding strip are flat and smooth. |

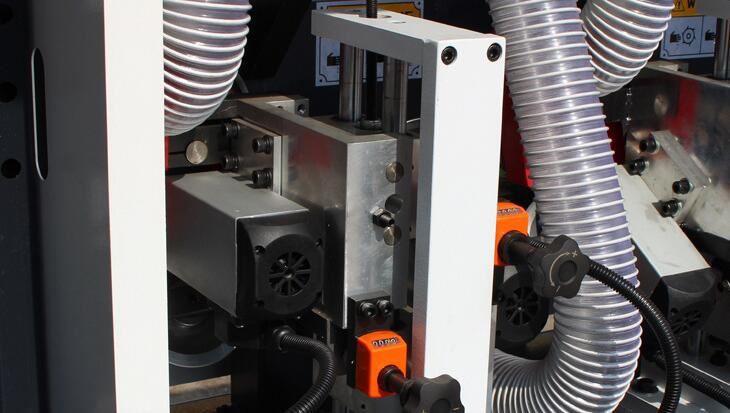

| Fine trimming The finishing cutter is R2 oblique cutter, which leaves 5-6 wire margin for edge scraping. It adopts profiling automatic tracking and high-frequency motor to realize fast cutting, and R2 oblique cutter can trim radian. |
Company Introduction

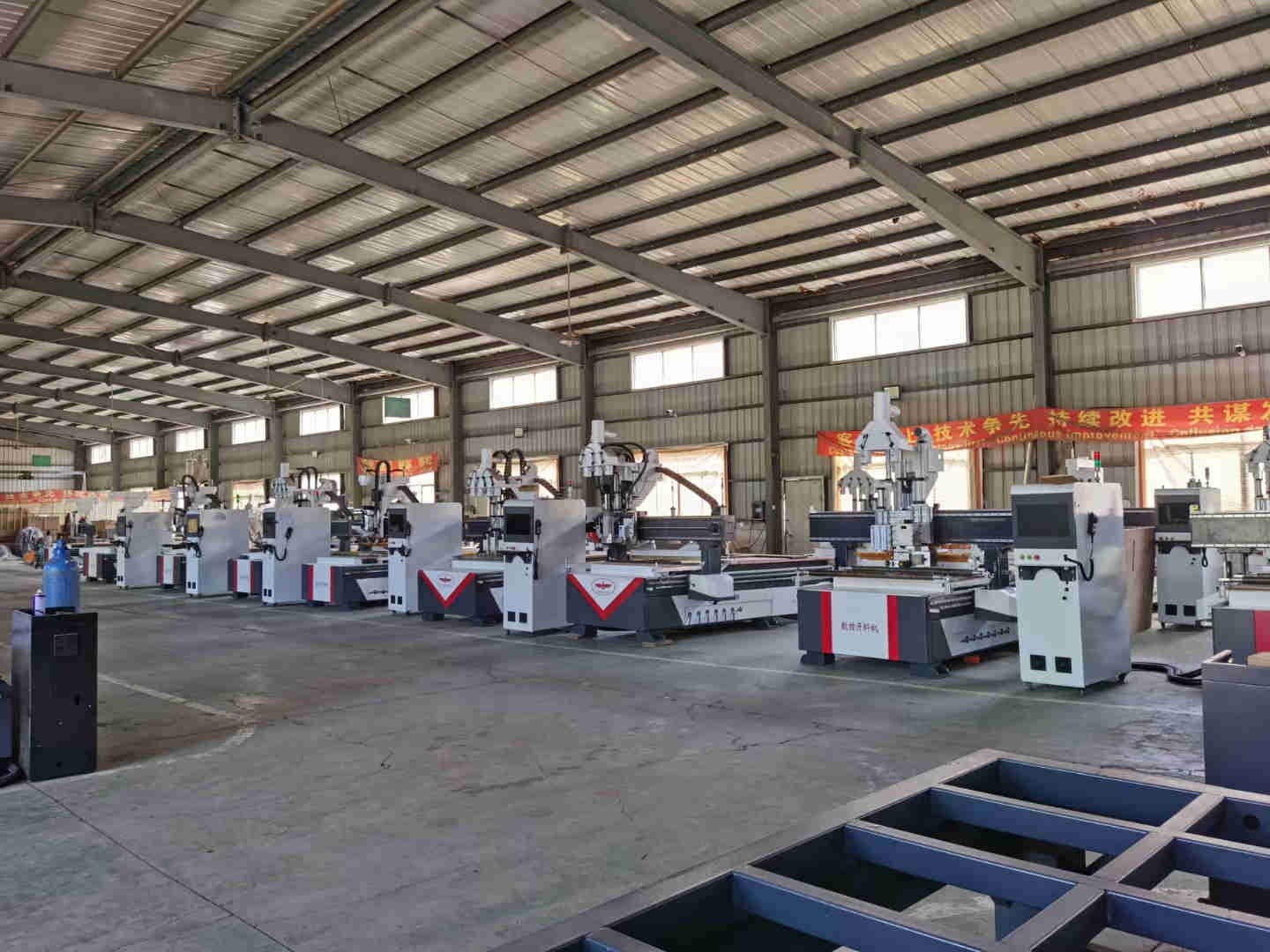

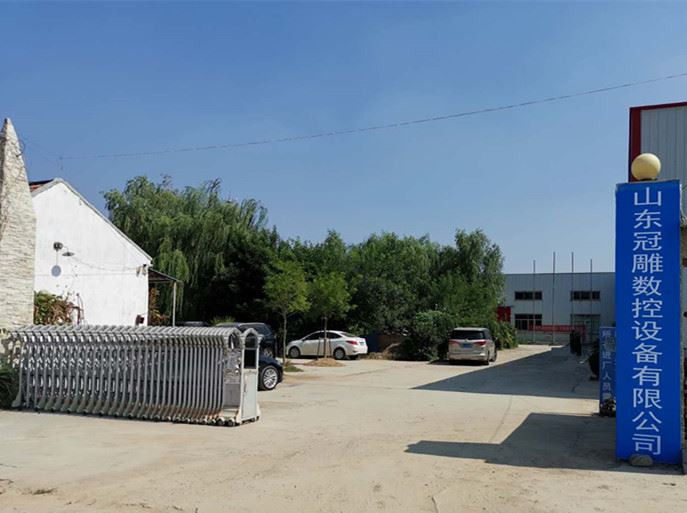

Shandong Guandiao CNC Equipment Co.,Ltd. is a manufacturer based on woodworking machinery and equipment with high-tech products as direction.Our main products are automatic edge banding machine, woodworking engraving machine, metal engraving machine, drill row and so on. | |
|
|
Packaging and transportation
|
|
FAQ
1.Our Payment Way?
L/C and T/T or other ways
2.Delivery Time?
30 days after down payment.We have our own forwarder and we have long term cooperation with each other and have closely relationship with each other,so there is no problem in shipment.
3.Our Warranty?
(1) One year guarantee from the delivery date of this machine under the normal operation of one shift per day.
(2) We will be responsible for the maintenance of damaged part which is under normal situation during warranty period, and all the round-trip courier
(3)24 hour technical support by email or calling
(4)User-friendly English manual for machine using and maintaining
4.Our services?
(1)One-stop service, meet needs of the customers from individuals to international companies.
(2)OEM service accepted.
(3)Separate trading office: Trading with 30 experienced sales offering full scale service.
(4)After sale Service: experienced and knowledgeable team of technical support ,provide engineer oversea service.
