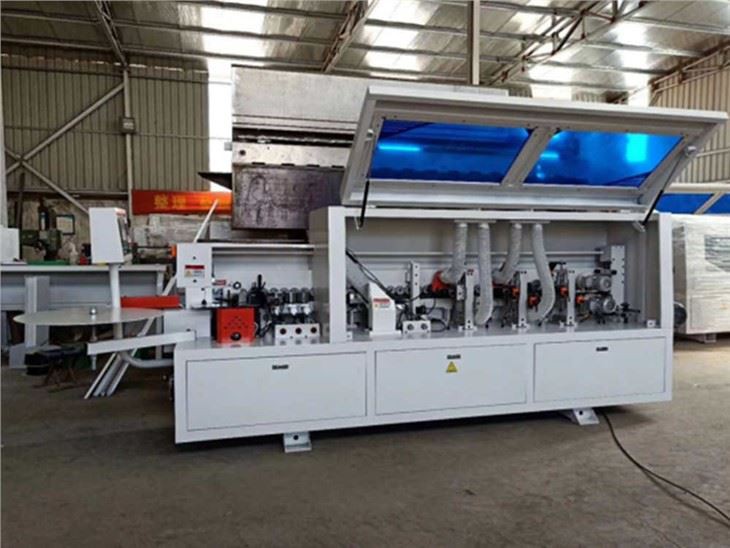

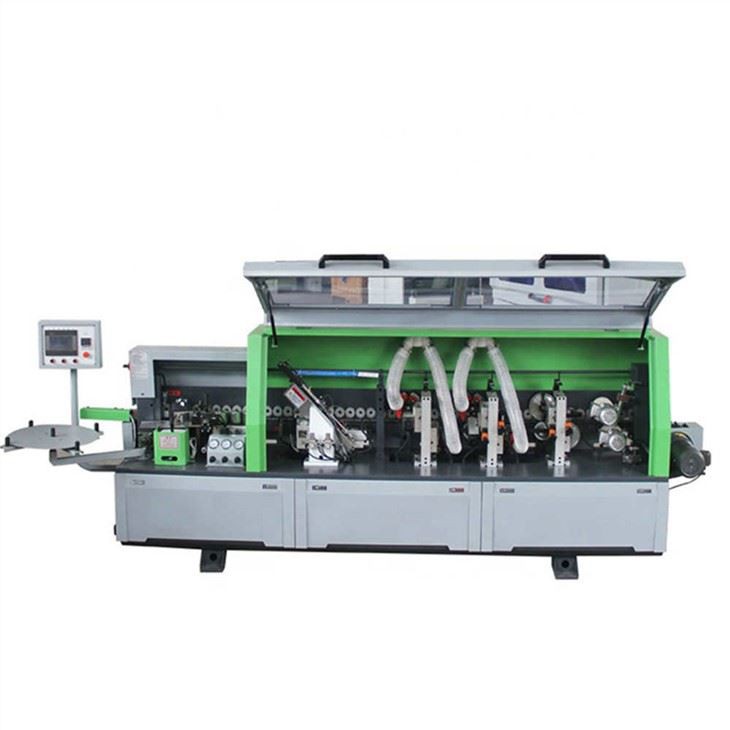

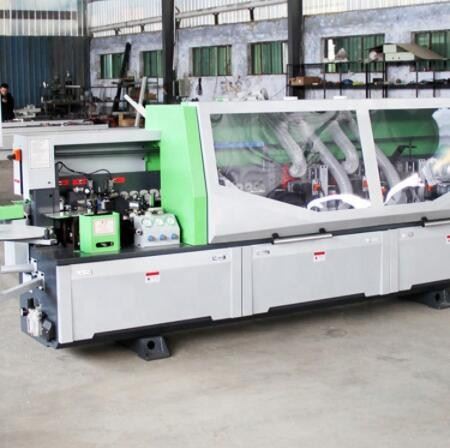

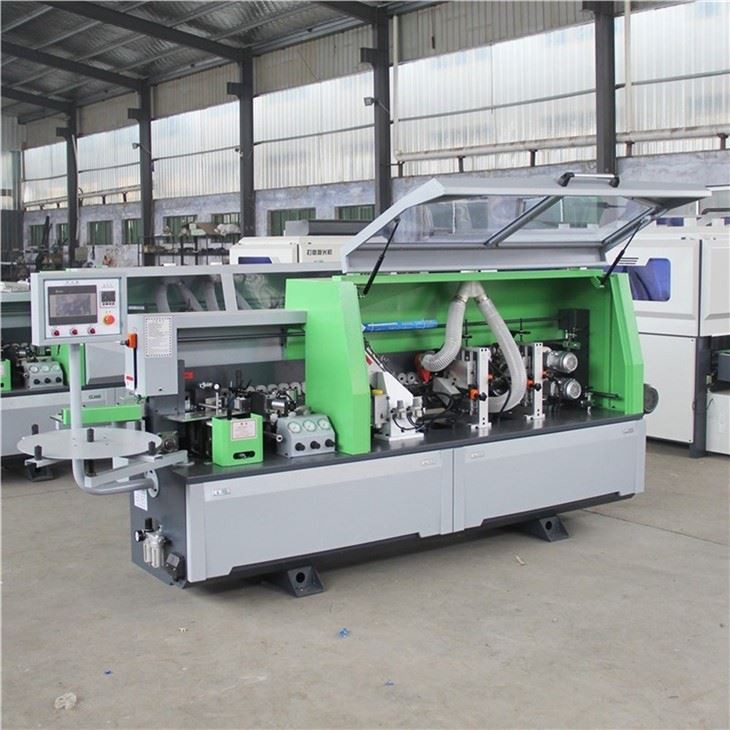

Production Introduction
Mode | GD2400 |
|
Size | 4200*900*1600 | |
Weight | 1300kg | |
Total power | 8.5kw | |
Width of banding | 12-60mm | |
Edge thickness | 0.4-3mm | |
work thickness | 10-55mm | |
Minimum length of sheet | 80mm | |
Minimum width of sheet | 80mm | |
Plate transport speed | 18m/min | |
Air Pressure | 0.6MPa-0.8Mpa | |
Heating power of rubber box | 1.8Kw | |
Rubber box transmission power | 0.55Kw | |
Homogeneous motor power | 0.37Kw*2 12000r/min.200Hz | |
Rough repair motor power | 0.75Kw*2 18000r/min.300Hz | |
Finishing motor power | 0.75Kw*2 18000r/min.300Hz | |
Polishing motor power | 0.18Kw*2 | |
Plate preheating power | 0.3Kw | |
Conveyor motor wattage | 1.5Kw |

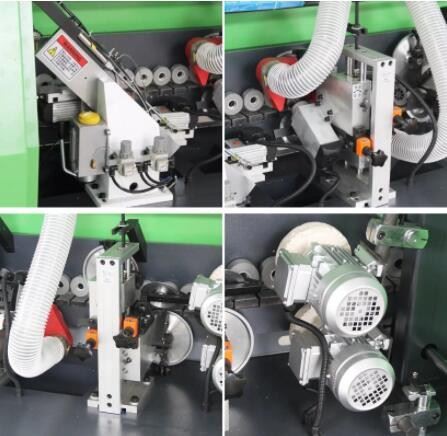

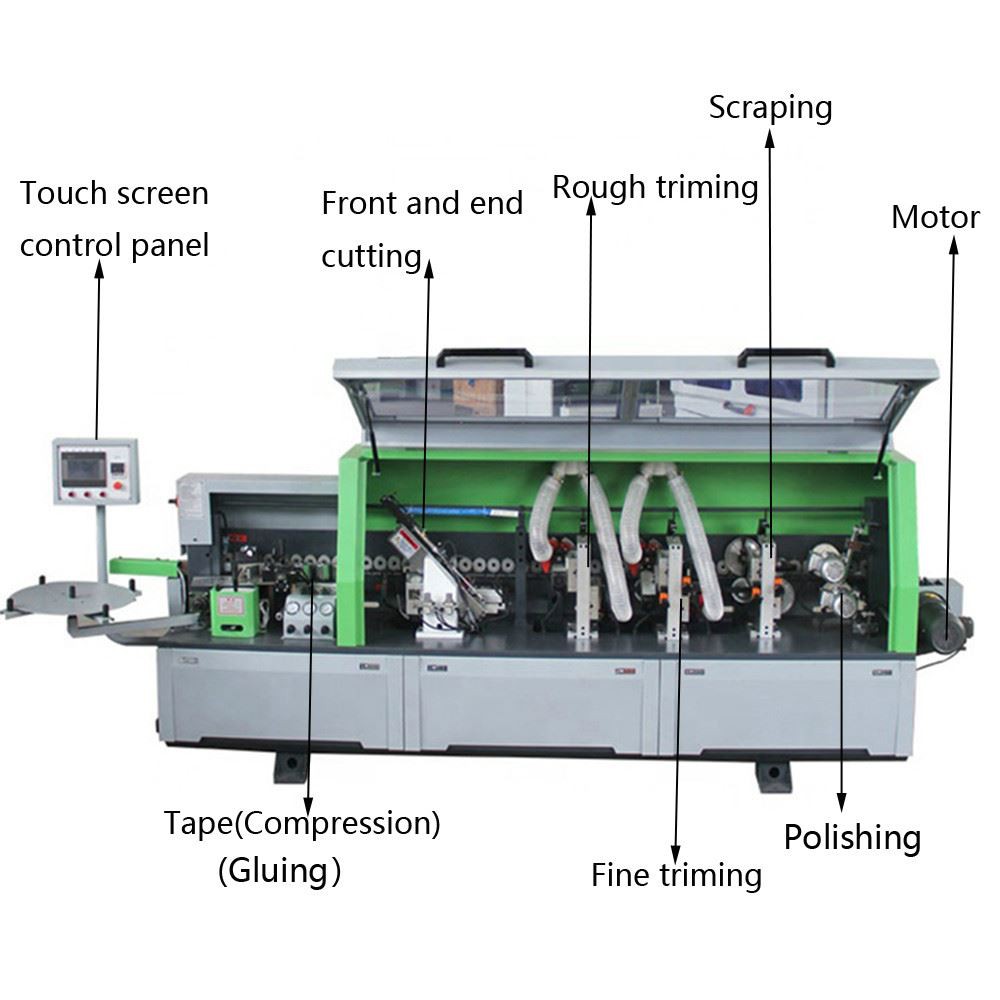

Product details

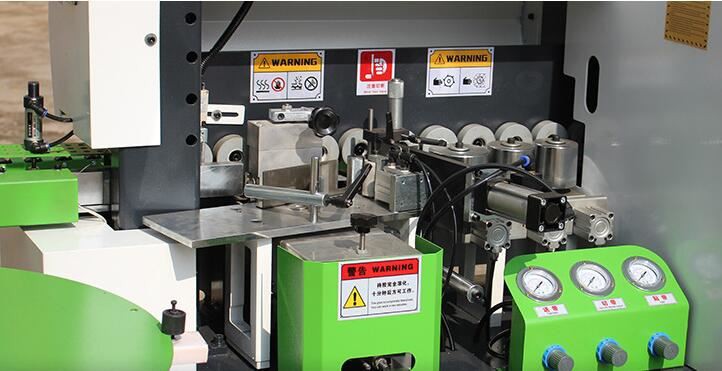

| Preheat gelatinization |

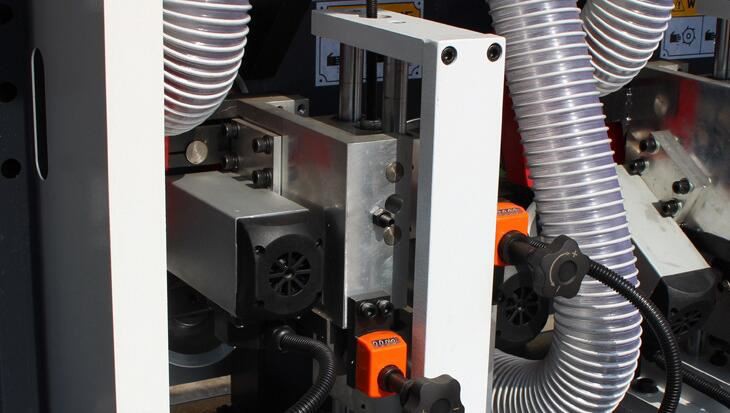

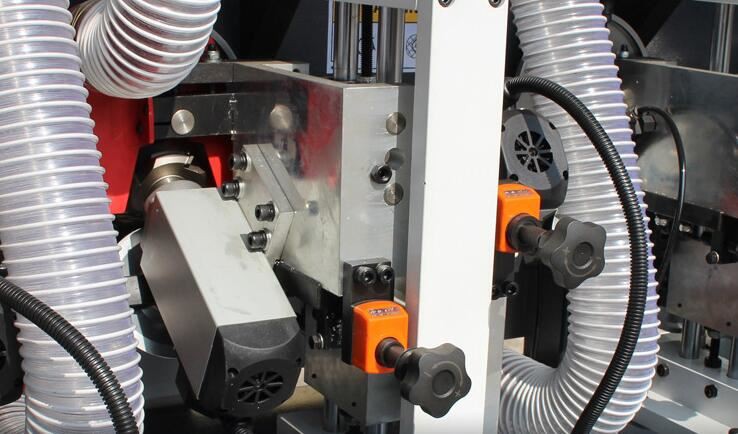

| Rough trimming |

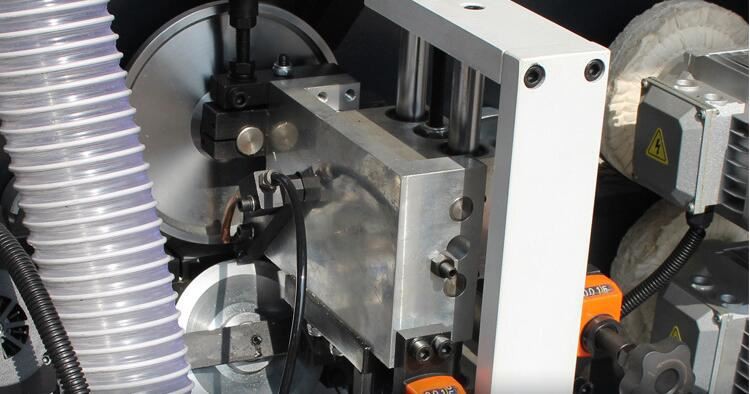

| Fine trimming |
| Scraping |

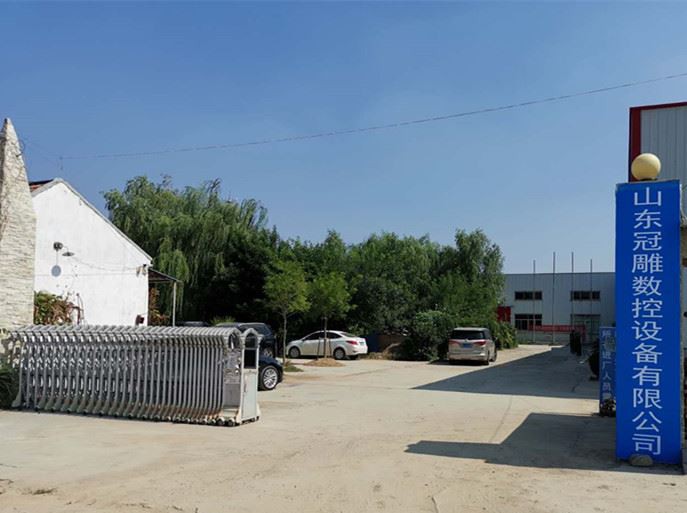

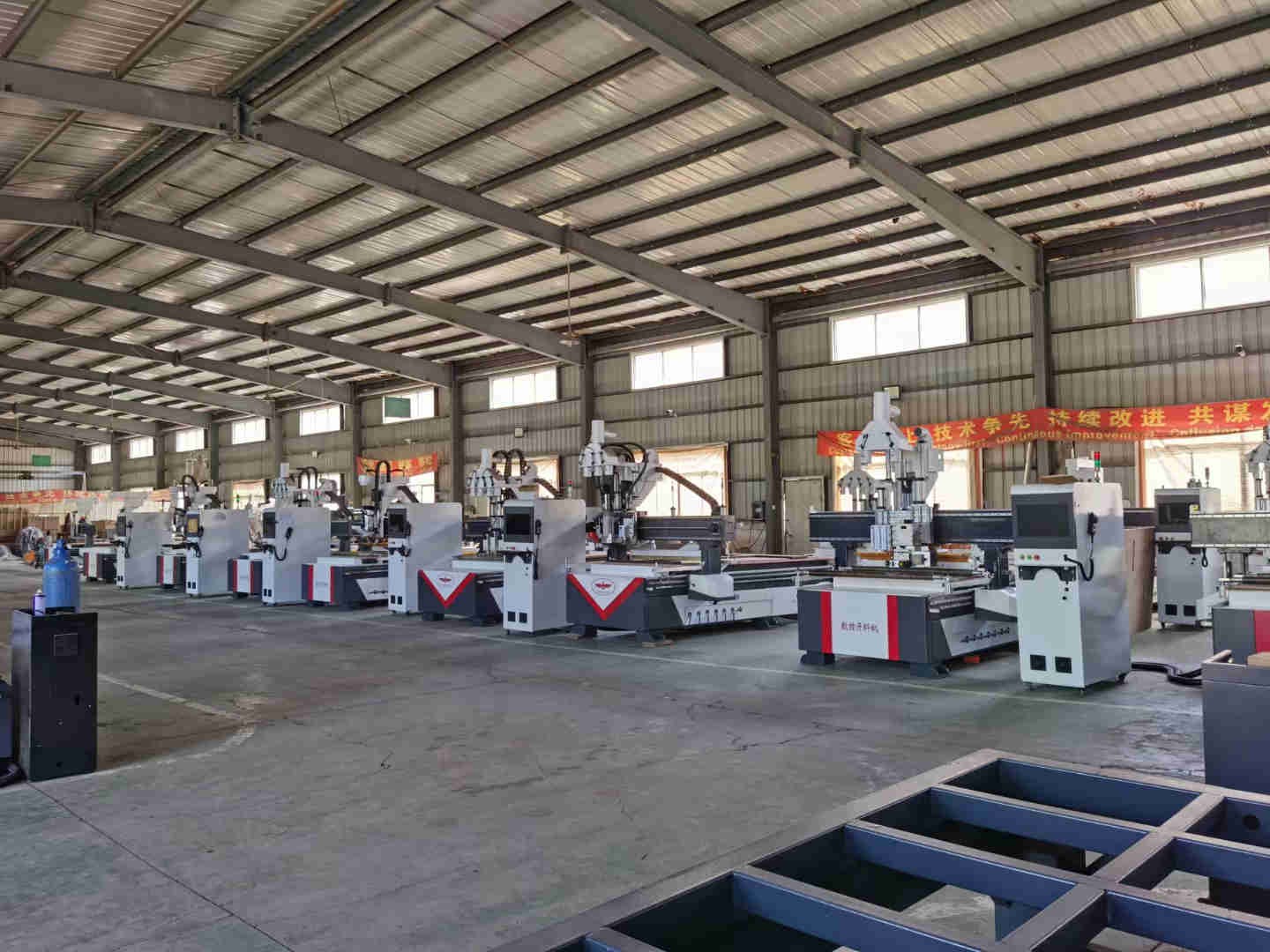

Company Introduction
|
|
Packing & Transportation
|
|
FAQ
Q1: Are you a manufacturer?
A1:yes. We have many years manufacturer and export exprience.
Q2.About the MOQ
A2.1 set, and we are OEM,
I will give you the competitive price better than market.
Q3.May I buy a sample?
A3. Of course ,sample order is welcome.
Q4.How can I place a order?
A4.Just give me your nice inquiry,I will do my best to assist you.
Q5. If I want cheaper quality, can you produce?
A5.Yes, just send us your quality details, such as the material, what cheaper parts instead etc, we will do that as your request and calculate the price.
Q6. If I order big quantity, what's the good price?
A6.Please send the details enquiry to us, such as the Item Number, Quantity for each item, Quality request, Logo, Payment Terms, Transport method, Discharge place etc. We will make the accurate quotation to you as soon as possible.
