Wood Automatic Edge Banding Machine
We're well-known as one of the leading wood automatic edge banding machine manufacturers in China for over 15 years. We warmly welcome you to wholesale high quality wood automatic edge banding machine at competitive price from our factory. For more information, contact us now.
暂无分享


Product Information

Product Description



Machine Features



1. Full-automatic edge banding machine function include glue,head together,rough repair,refine,Scraping edgeand polishing.

2. Have good shape,reasonable layout,has sound arrester,dust collector and overload protection.

3.The main parts of the machine adopt steel plate by laser cutting,one time welded together,the body is firm and undeformed.

4. Can increase or decrease

component structure according to actual demand.







Technical Parameter



Brand Name

GUANDIAO



Voltage

380V

Dimension(L*W*H)

2400*8800*1500mm

Power (kW)

5.5KW

Weight (KG)

1400kg

Application

Plywood Veneer Production

Keywords

Kdt Edge Banding Machine

Steel material

Rolled Steel

Color

Customer's Requirement

Feed speed

15-23m/min

Working methods

CNC Automatic

Motor power

5.5kw

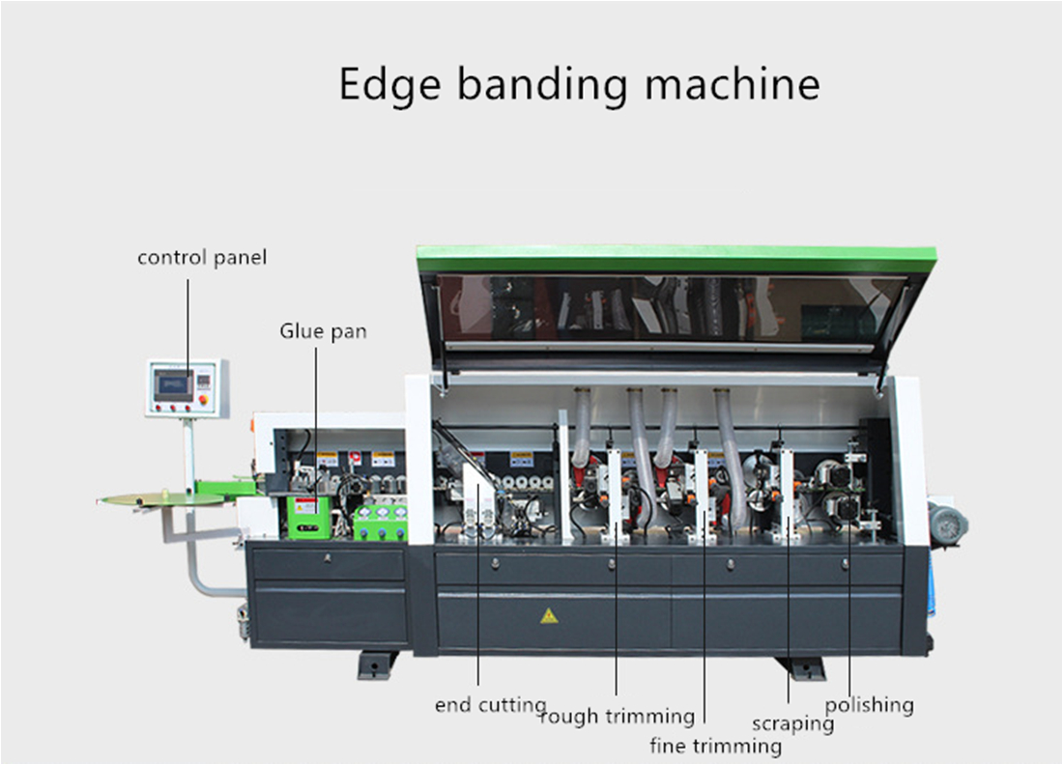

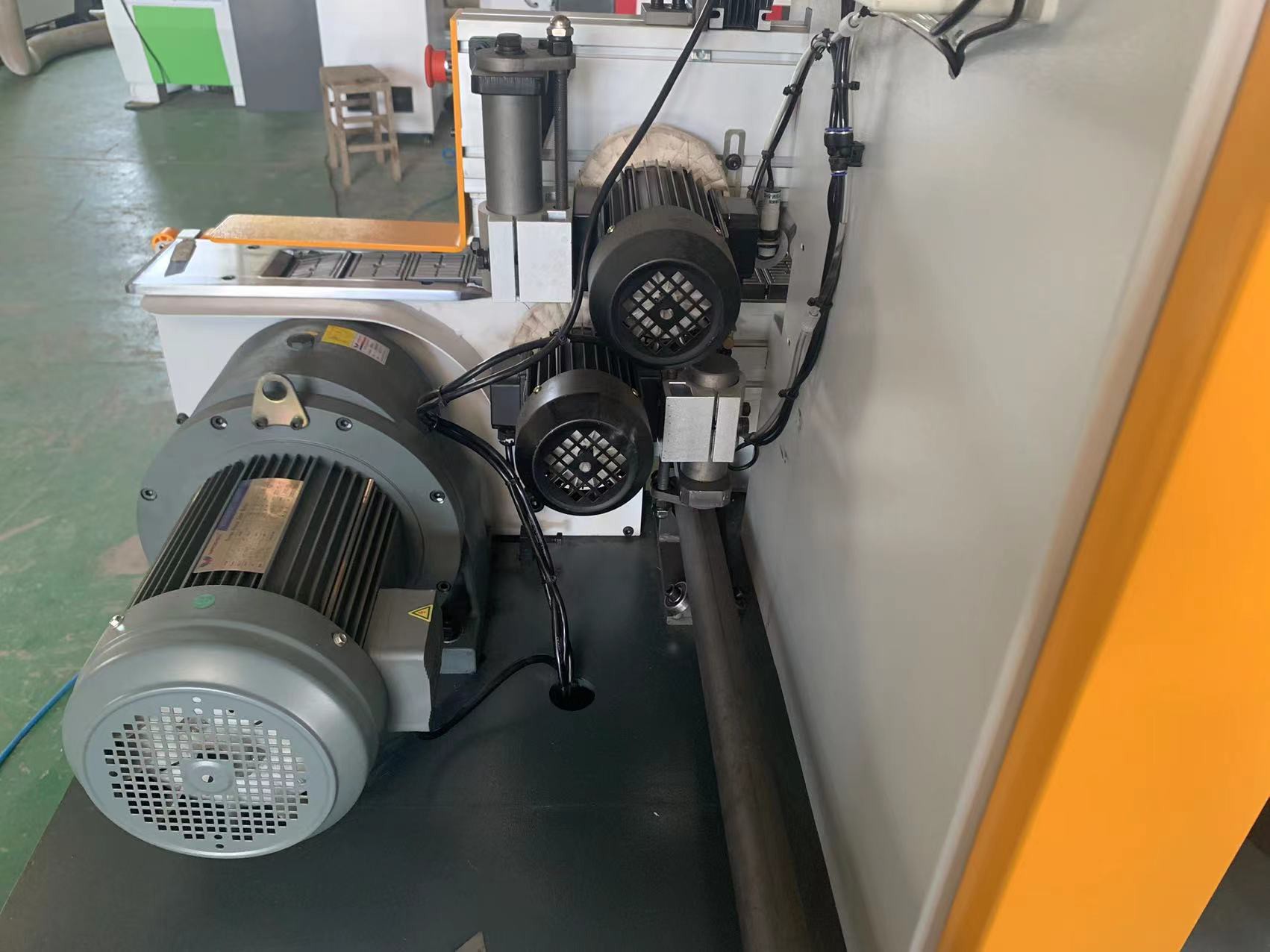

Machine Details

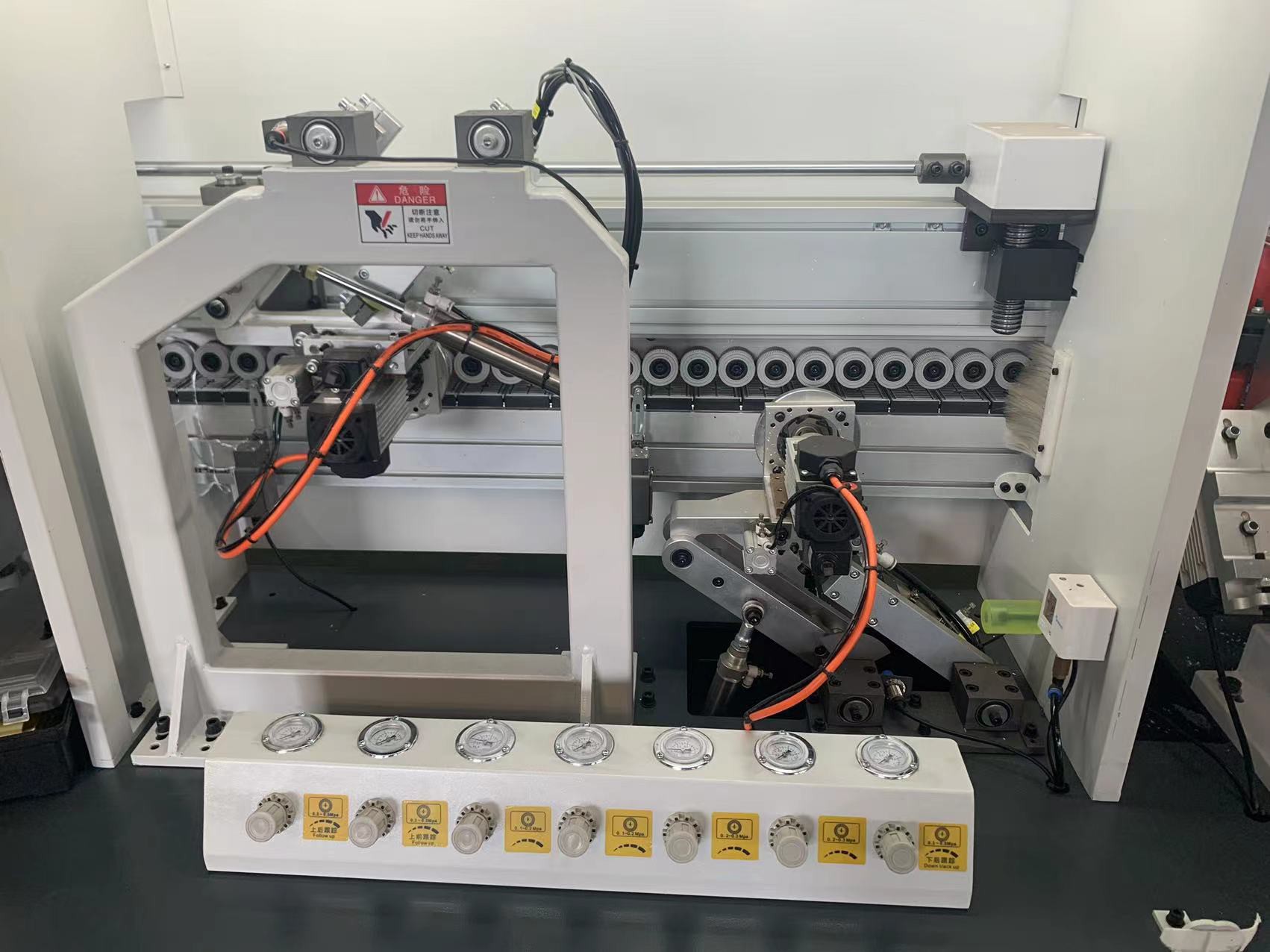

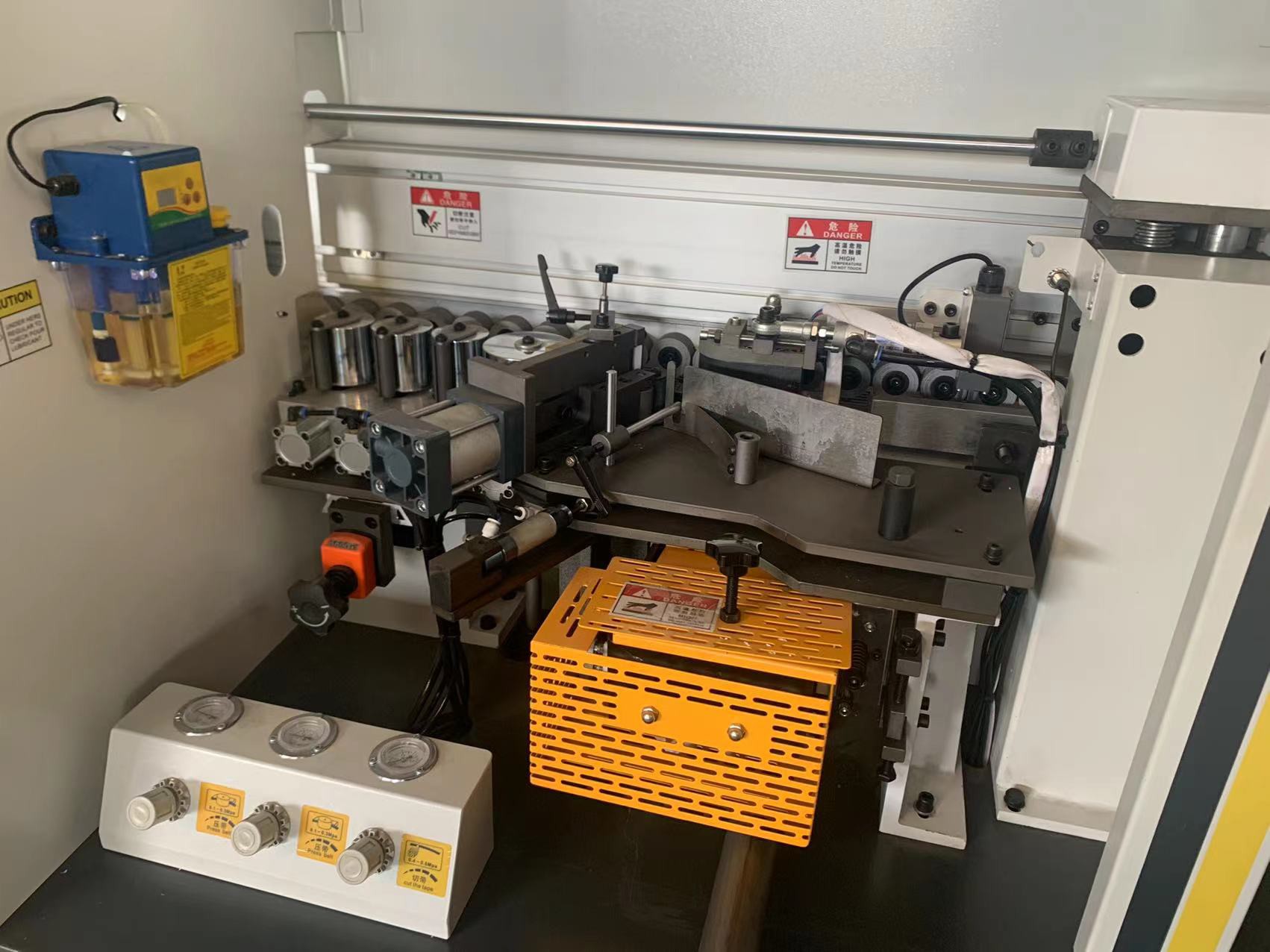

Gluing and pressing End cutting

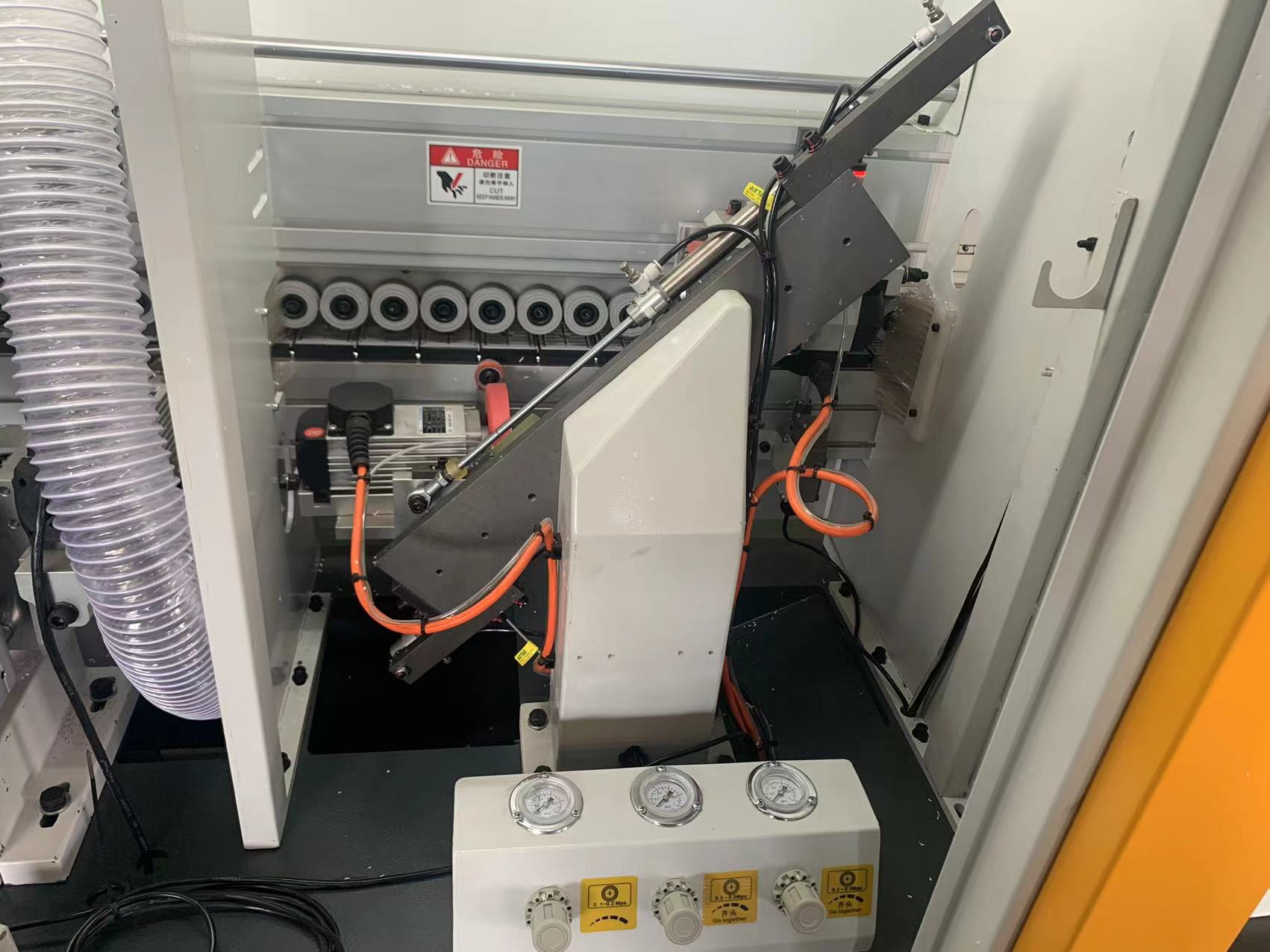

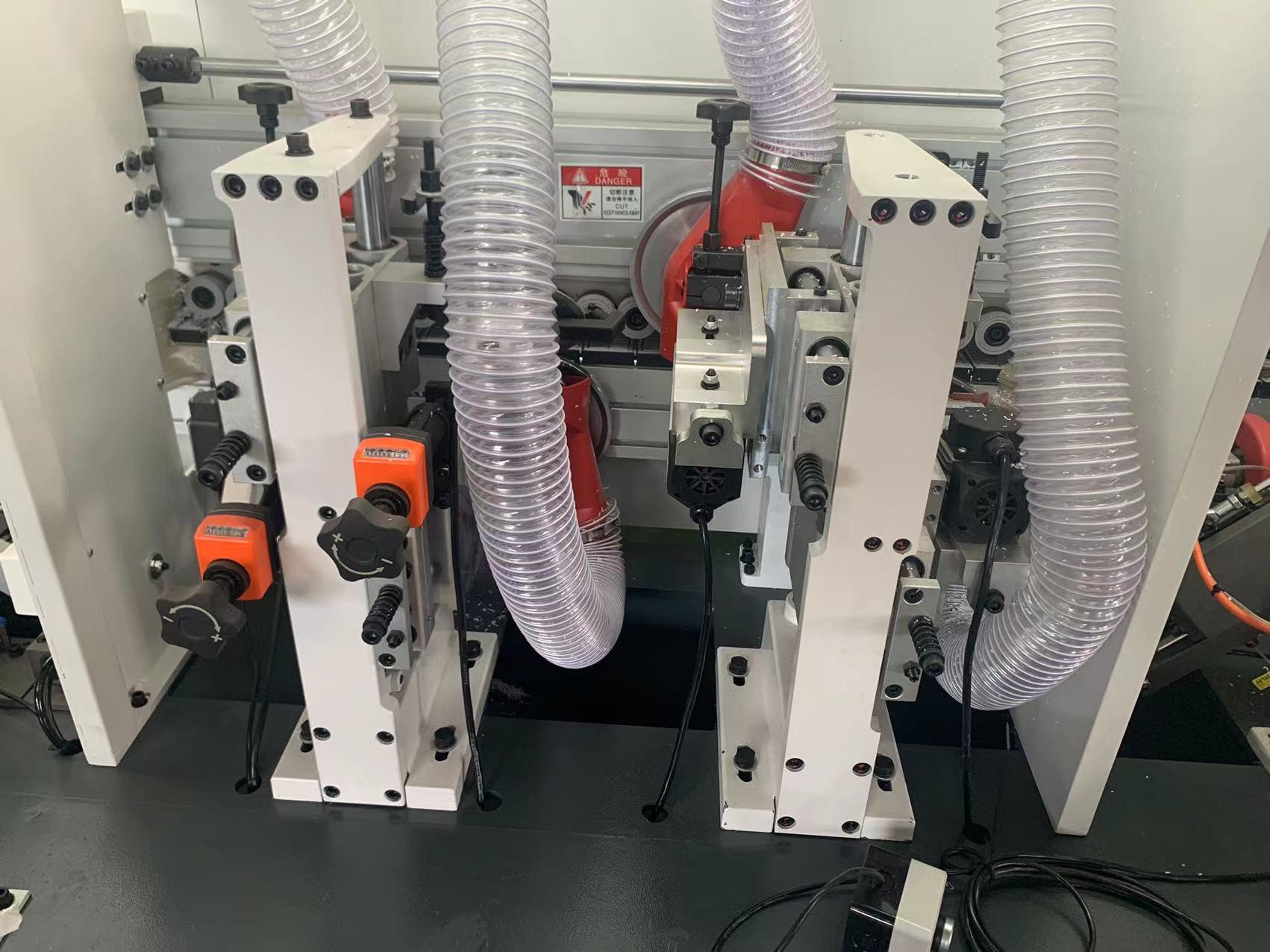

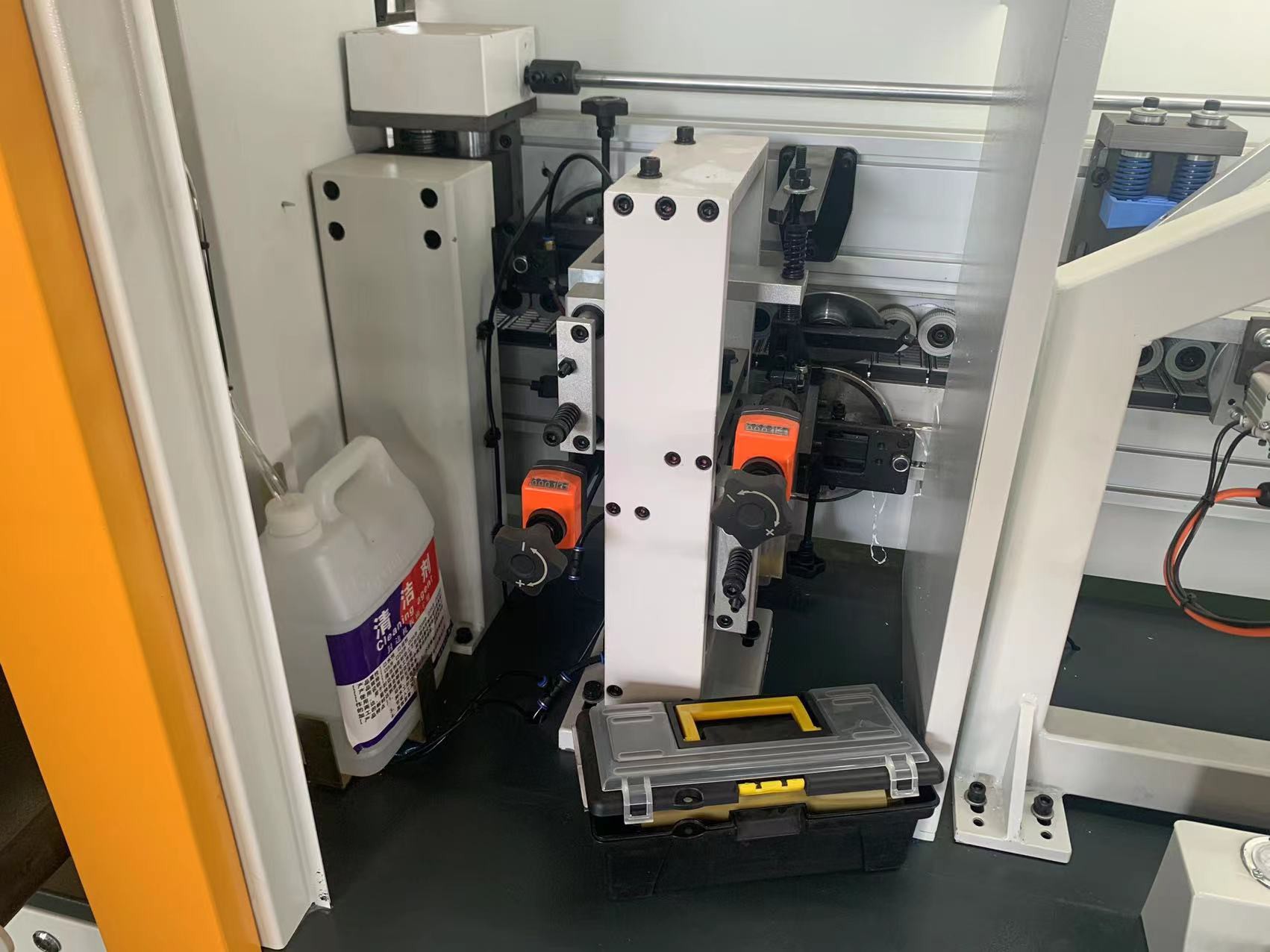

Rough and fine triming Corner triming
Scraping Buffing / Polishing









Application

Wood Automatic Edge Banding Machine is mainly used for straight edge banding of solid wood, chipboard, laminated wood board, medium density fiberboard, etc. It can make the side of the workplace more smooth, durable and beautiful.



The main advantages of the curved line edge banding machine are that the bonding is firm, fast, light and efficient. elements such as the working environment and operating methods.
When choosing an edgeband, attention should be paid to factors such as width, thickness, material, toughness, and surface treatment. Hot melt adhesive should pay attention to the difference between high, medium and low temperature adhesives, match the type of edge banding, and scientifically set the heating control temperature, as well as the flowability and solidification delay of the sol.
The selection of the substrate also has the requirements of quality, temperature, parallelism and perpendicularity of the cut surface. The indoor temperature and dust concentration of the working environment also need to be considered. During operation, the speed, pressure, balance, Continuity, etc. will affect the edge sealing effect.







Packing & Shipping

The wooden box is sealed and packaged for safe transportation and effectively prevent bumps.
Because the machinery is relatively heavy, shipping is generally chosen.
Shipping and payment methods can be negotiated with customer service.

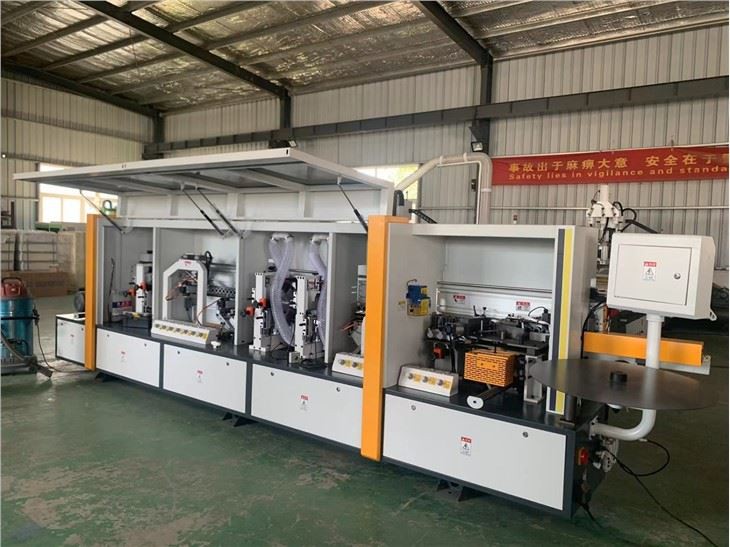

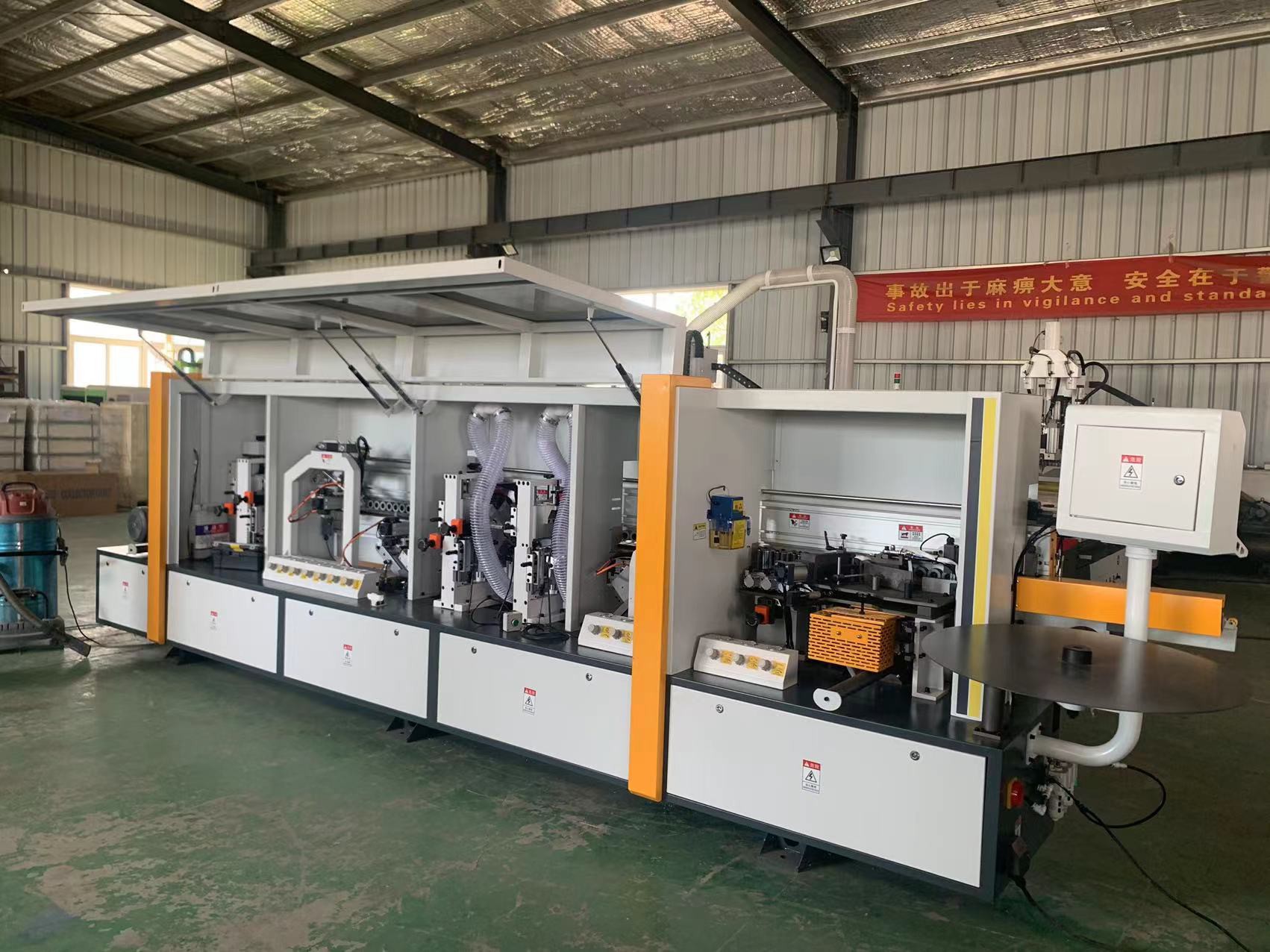

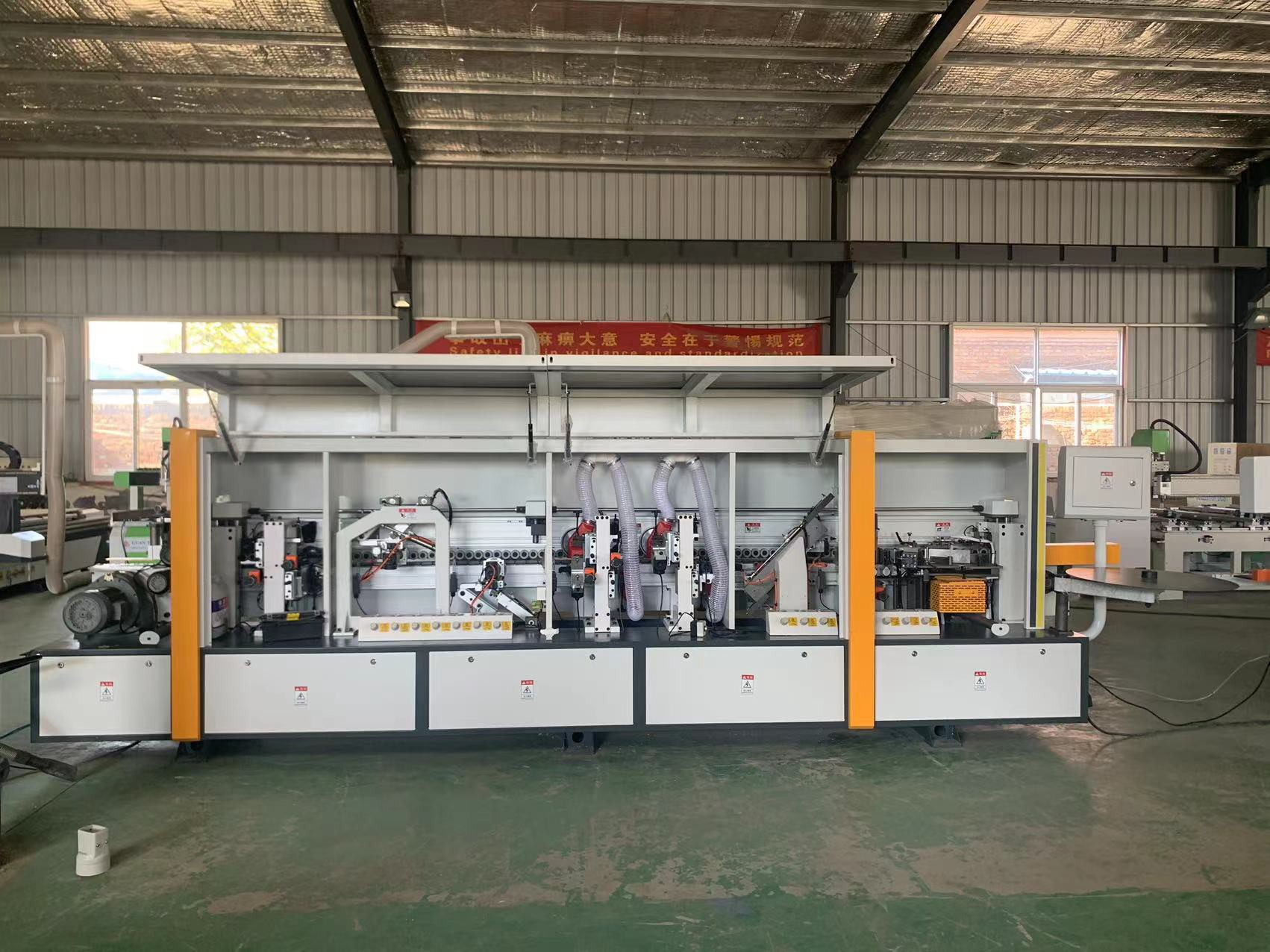

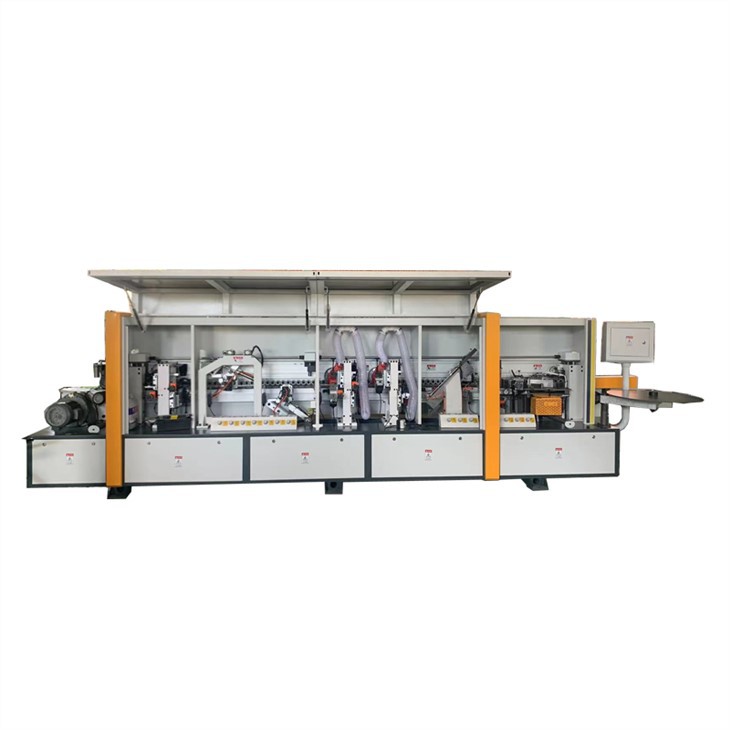

Full auto edge banding machine
