Product Description
 |
 |
Technical Parameter
|
Parameters |
|||
|
Model |
GD-868 |
Machine Features
* 8 Functions: Pre-milling--Gluing--End Cutting--Rough Trimming--Fine Trimming--Corner Rounding--Scraping--Buffing * The conveyor speed can be adjusted from 13-25m/min * With pre-milling function ,better work effect * With automatic oil feeder. * In the machine is mounted lights. * corner rounding system |
|
|
Panel Thickness |
10-60mm |
||
|
Edge Band Thickness |
0.3-3mm |
||
|
Panel Width |
≥60mm |
||
|
Panel Length |
≥150mm |
||
|
Feeding Speed |
15-23m/min |
||
|
Working Pressure |
0.6Mpa |
||
|
Voltage |
380V/50HZ/3PH |
||
|
Pre-milling Motor |
2.2KW * 2 |
||
|
Gluing Motor |
0.75KW 50HZ 1400RPM |
||
|
End Cutting Motor |
0.37KW * 2 200HZ 12000RPM |
||
|
Trimming Motor |
0.75KW * 4 200HZ 12000RPM |
||
|
Corner Trimming Motor |
0.37KW * 2 200HZ 12000RPM |
||
|
Buffing Motor |
0.37KW * 2 50HZ 1400RPM |
||
|
Conveyor Motor |
3.7KW |
||
|
Glue Pot Heating Power |
2.4KW |
||
|
Lighting Power |
0.05KW |
||
|
Lifting Motor |
0.25KW |
||
|
Total Power |
16.62KW |
||
|
Dimension |
7350*800*1620mm |
||
|
Wooden Case Package |
7450*900*1720mm |
||

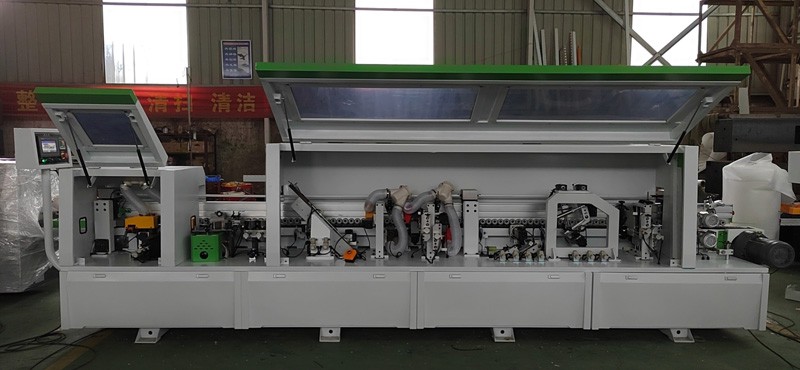

Machine Details

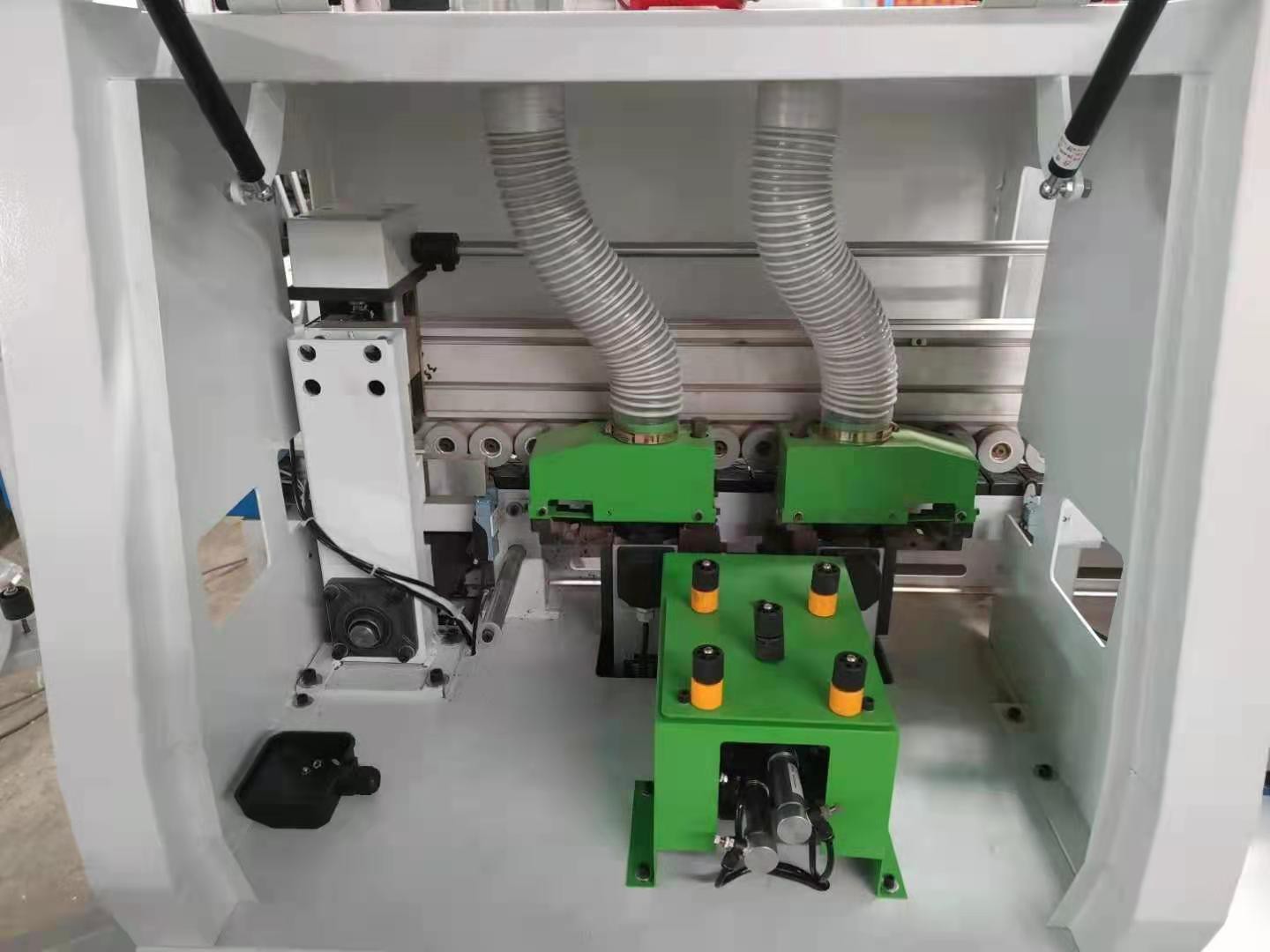

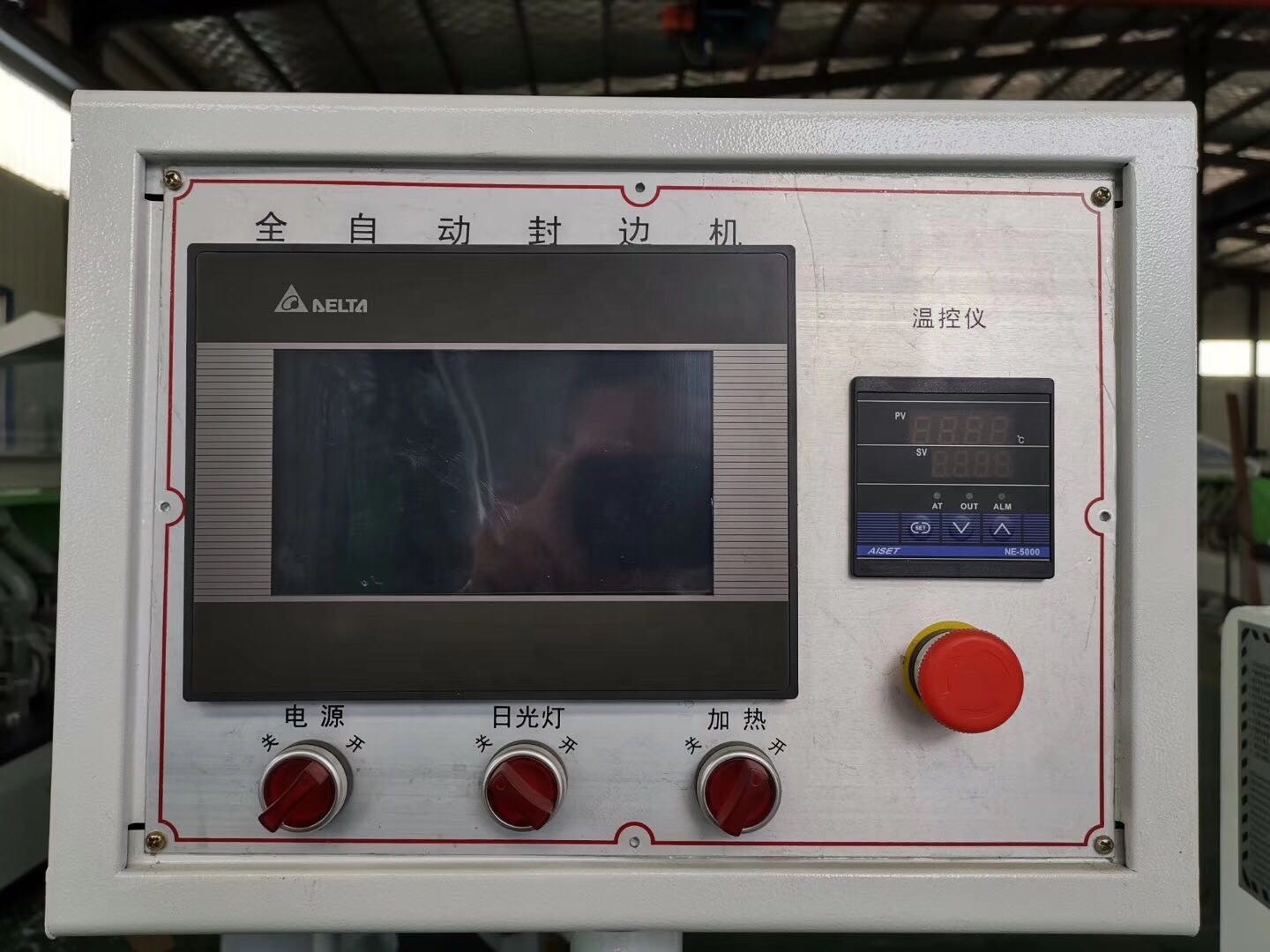

Delta control cabinet Pre-milling

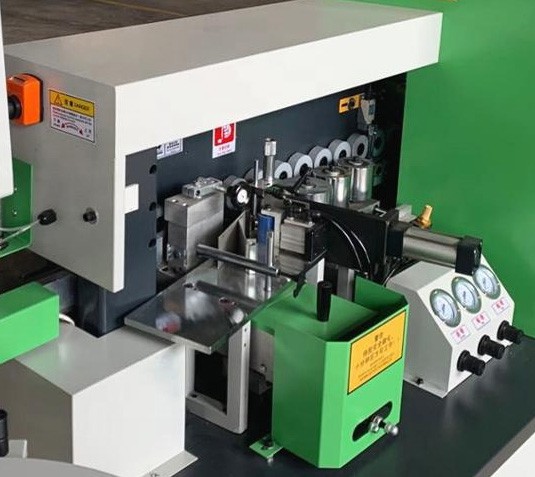

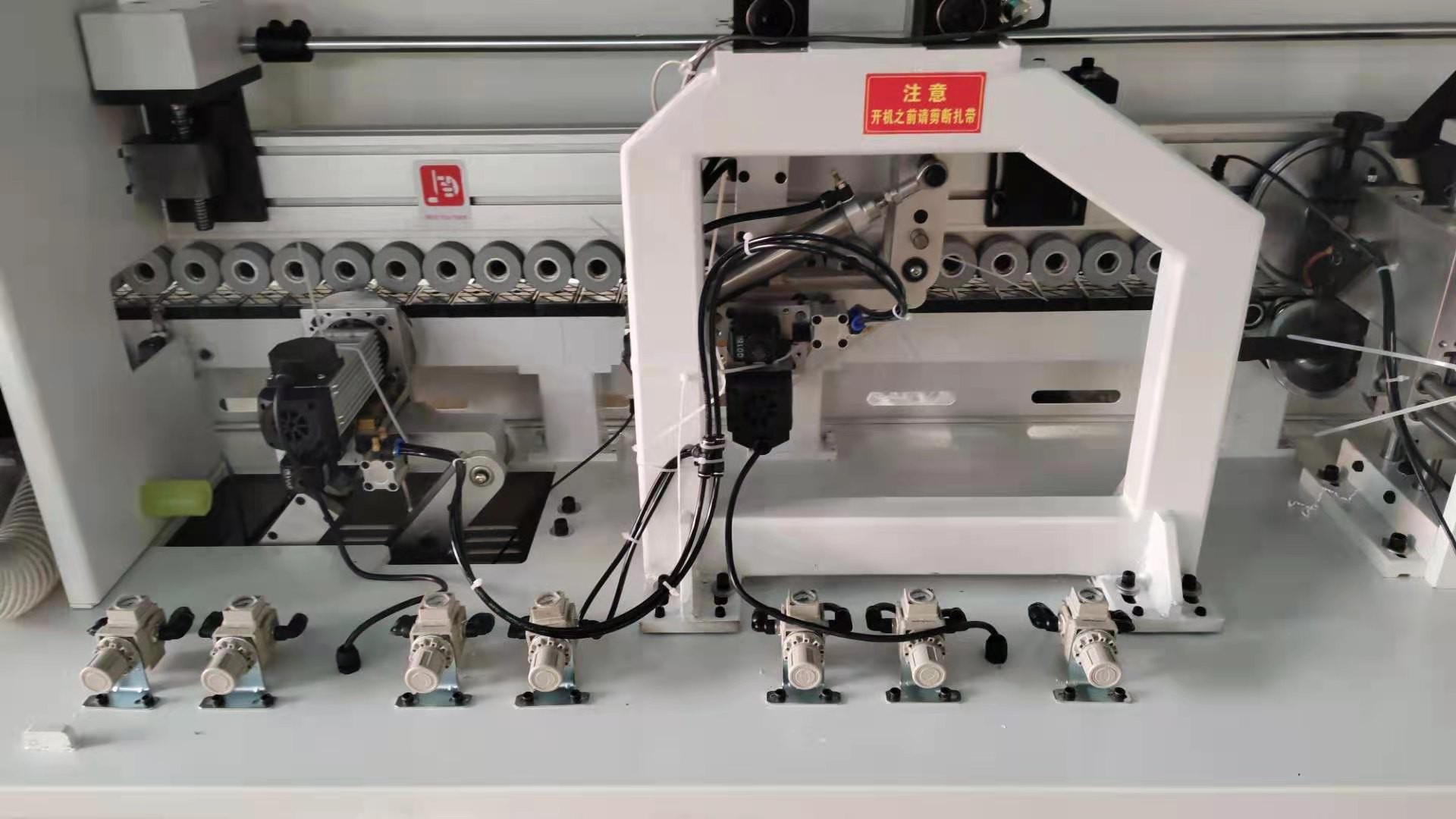

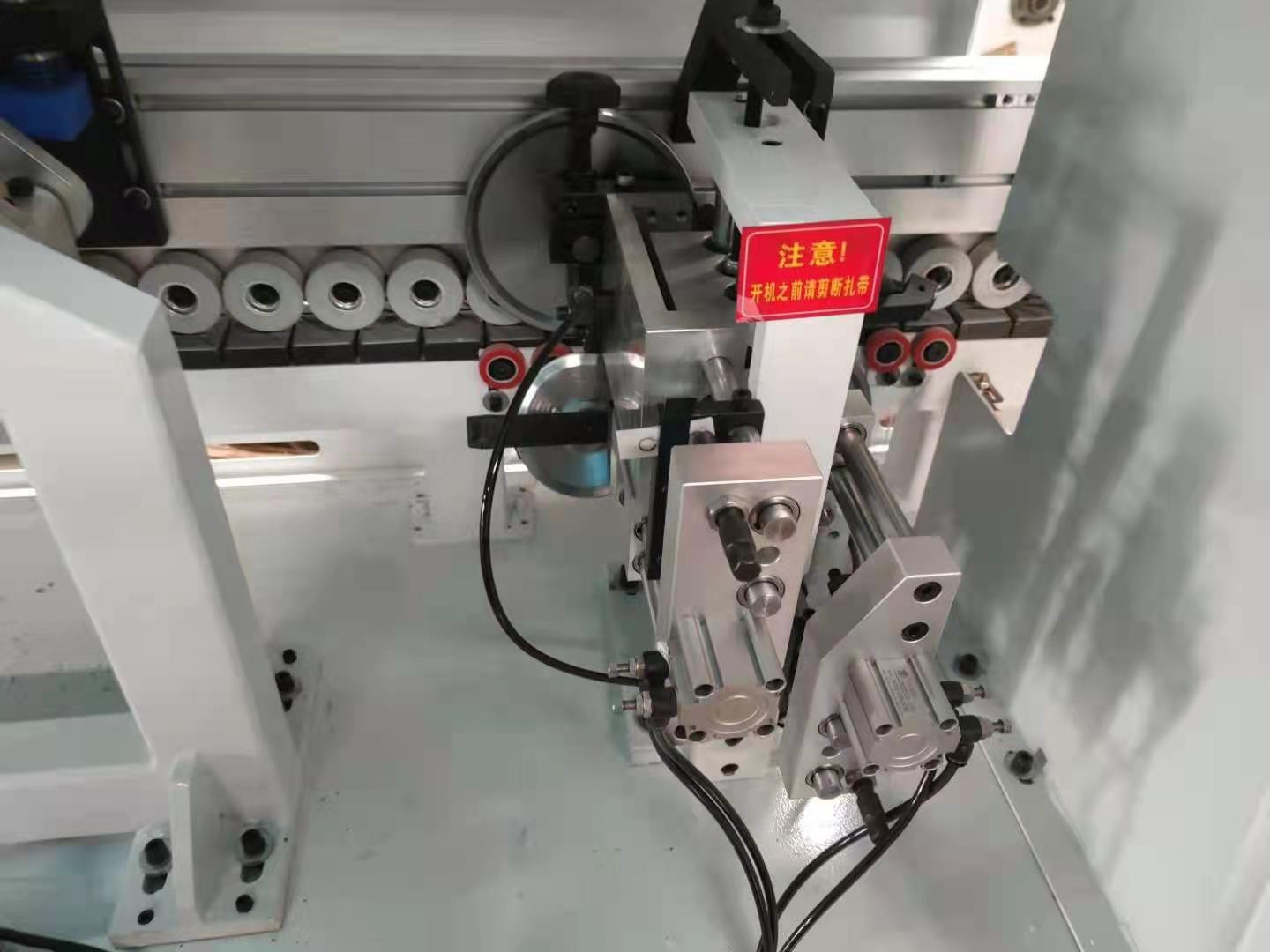

Gluing and pressing End cutting

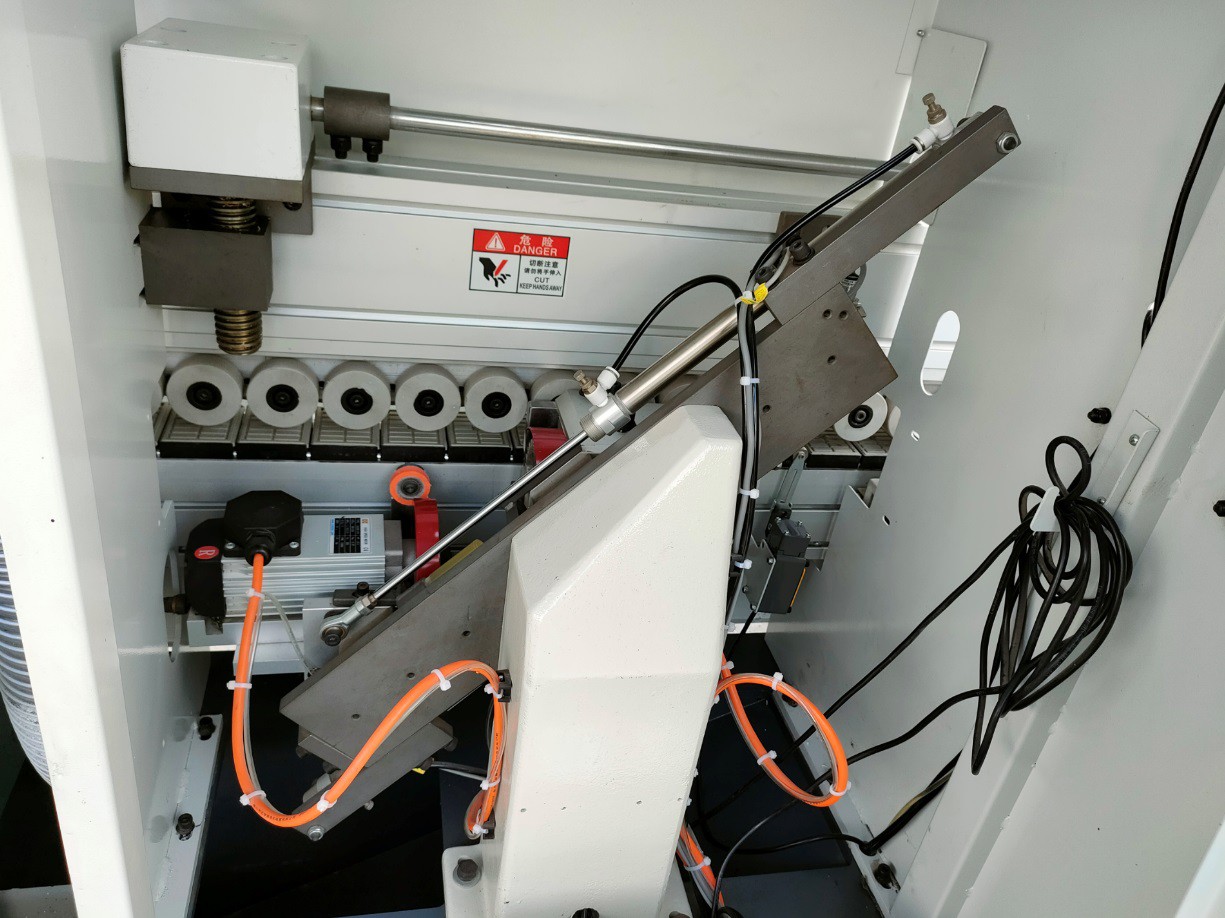

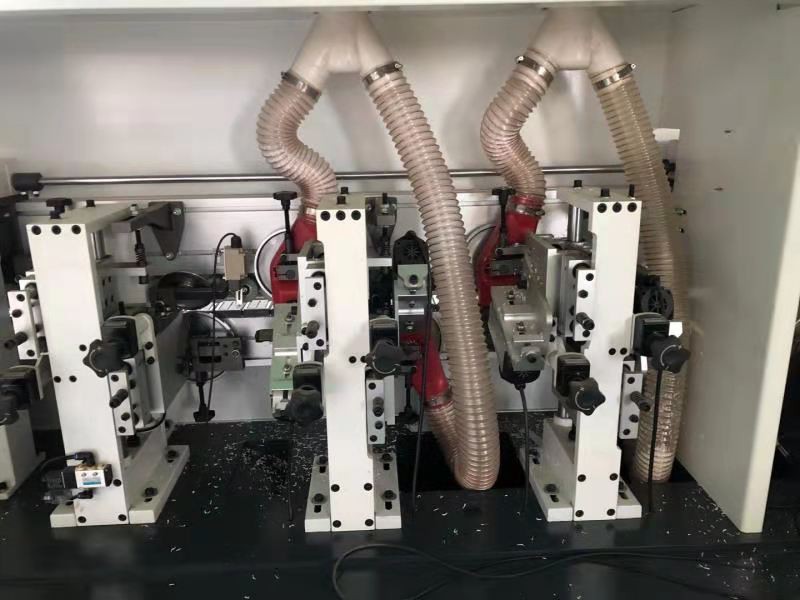

Rough and fine triming Corner triming

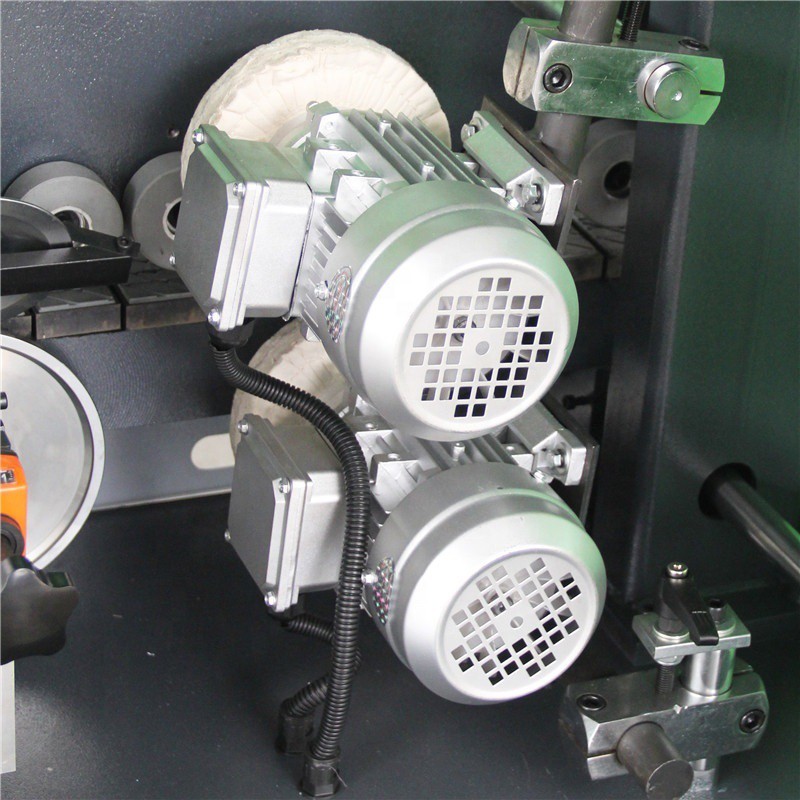

Scraping Buffing / Polishing
Application
