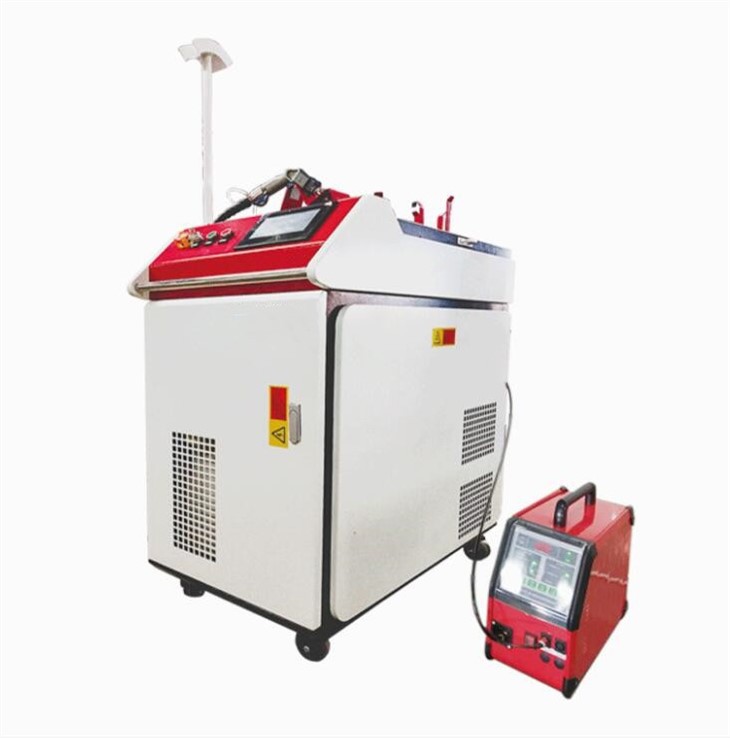

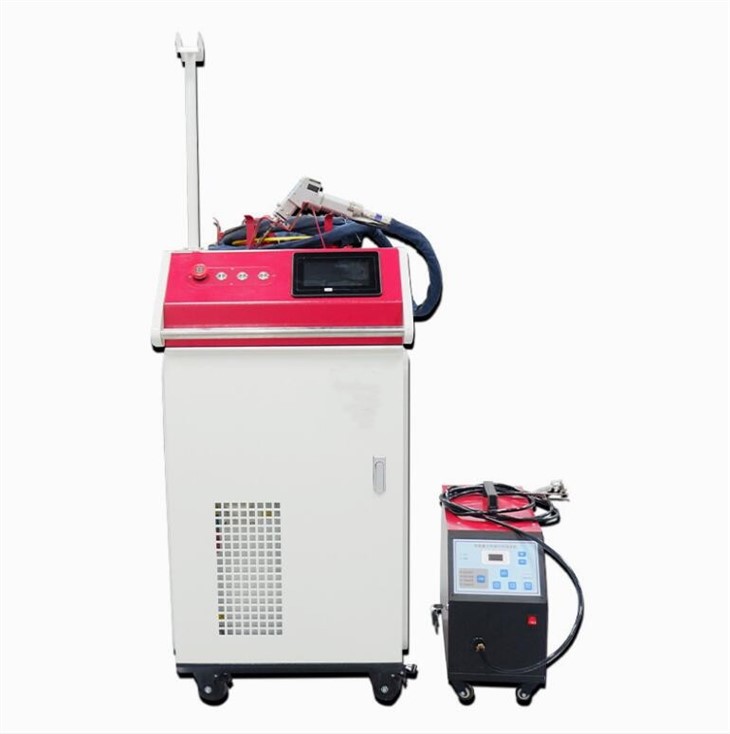

Handheld Cnc Fiber Laser Welding Machine
New Design Handheld Fiber Laser Welding Machine
Laser welding uses high-energy laser pulses to locally heat the material in a small area.
The energy of the laser radiation diffuses into the material through heat conduction, and the material is melted to form a specific molten pool. It is a new type of welding method, mainly for the welding of thin-walled materials and precision parts, which can realize spot welding, butt welding,stack welding, sealing welding, etc.
The welding speed is fast, no treatment is needed after welding, and the quality of the weld is high. , can be precisely controlled, small focus spot, high positioning accuracy, easy to automate
Advantages of handheld welding machine
1.Hand-held laser welding machine, fixed optical path, flexible and convenient, long-distance laser welding
2.Hand-held welding head is light and flexible, meeting a variety of angles, welding in multiple positions
3.Infrared positioning, the welding position is more accurate, ensuring a more beautiful weld
4.Fast welding speed, easy operation, reduced time and cost
5.Laser welding depth is large, welding is strong, suitable for all kinds of complicated welding.
Product Features
1. Fast welding speed, 2-10 times faster than traditional welding
2. Smooth and even weld seam, no bubbles, large welding depth, no grinding
3. Solid welding, no deformation, no blackening
4. Can be used according to the processing needs of spot welding, butt welding, stack welding and other modes
5.Automatic fillet welding, less welding consumables
Specification
Parameter | ||||
Laser source | Raycus/JPT | |||
Laser power | 1000W、1500W、2000w | |||
Laser wave length | 1070 NM | |||
Uptime | 24 hours | |||
Operate mode | continuation/ modulate | |||
Welding speed range | 0~120 mm/s | |||
Laser pulse width | 0.1-20ms | |||
Cooling chiller | Industrial water chiller | |||
Humidity range of working environment | < 70% No condensation | |||
Working environment temperature range | 15~35 ℃ | |||
Welding thickness recommendations | 0.5-3mm | |||
Welding gap requirements | ≤0.5mm | |||
Working voltage | 220v | |||
Dimensions | 1140*670*1400 mm | |||

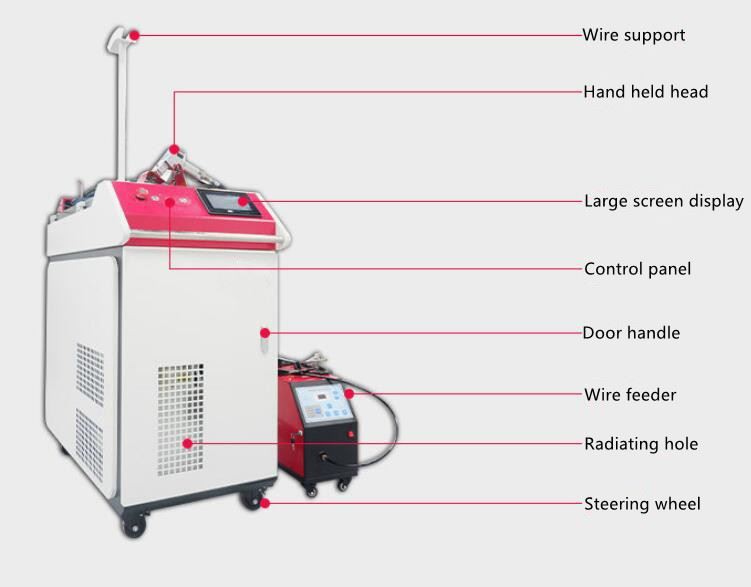

Details image

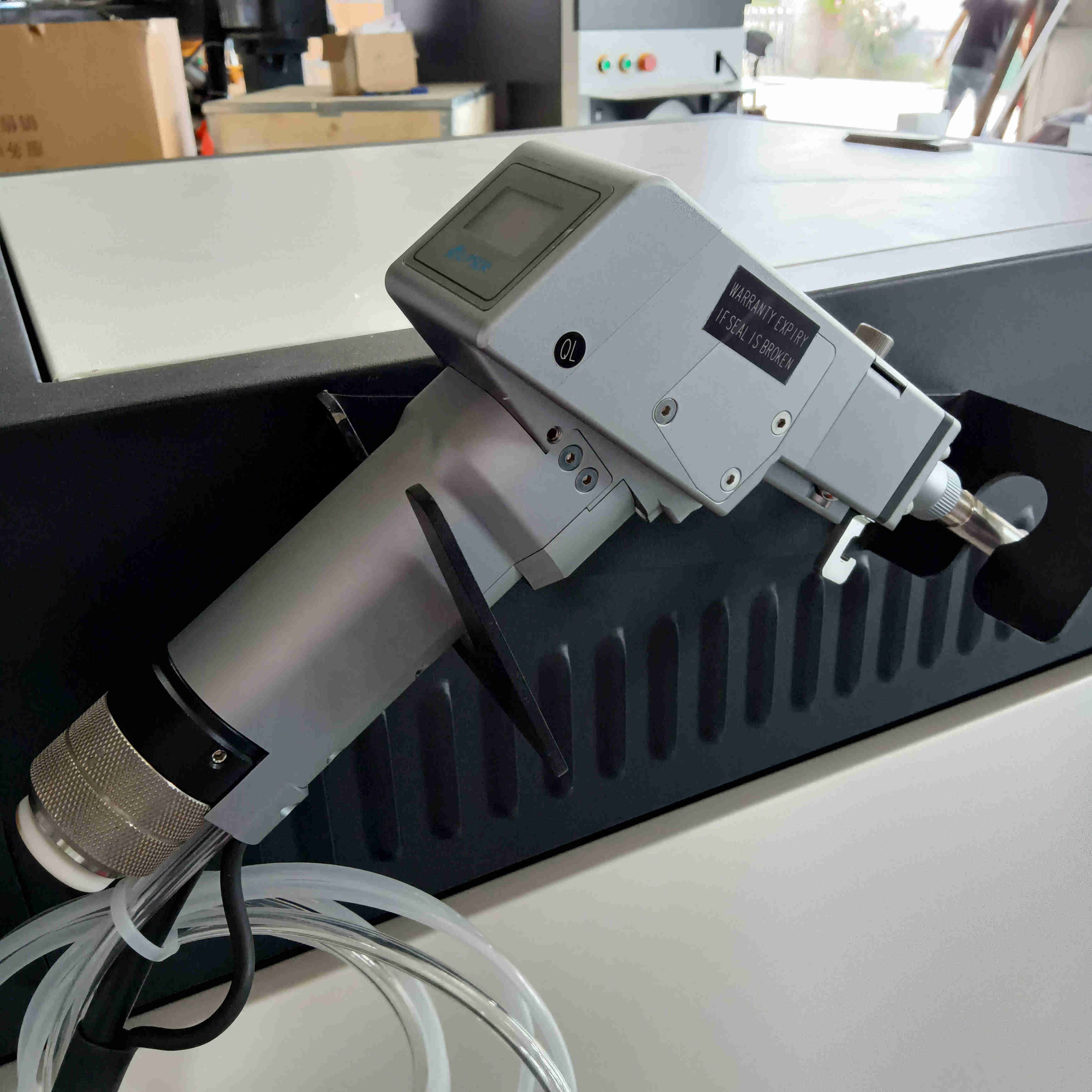

Handheld Welding Torch Pure copper material welding nozzle,overall light and flexible, integrated gasprotection system, automatic wirefeeding, long service life. |

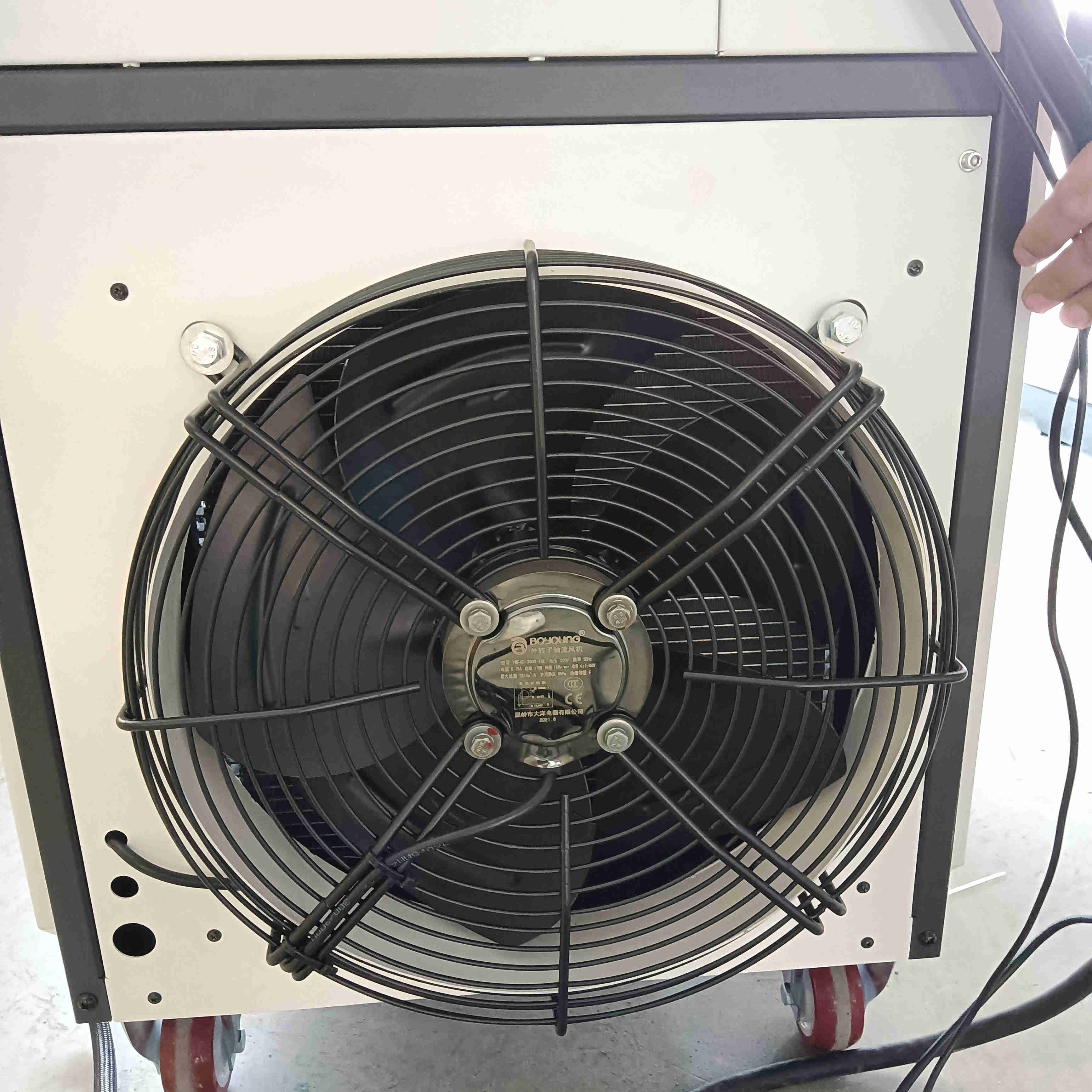

Built-in water cooler Constant temperature chiller, dust-proof,anti-condensation, rapid cooling, to ensure constant temperature operation of equipment. |

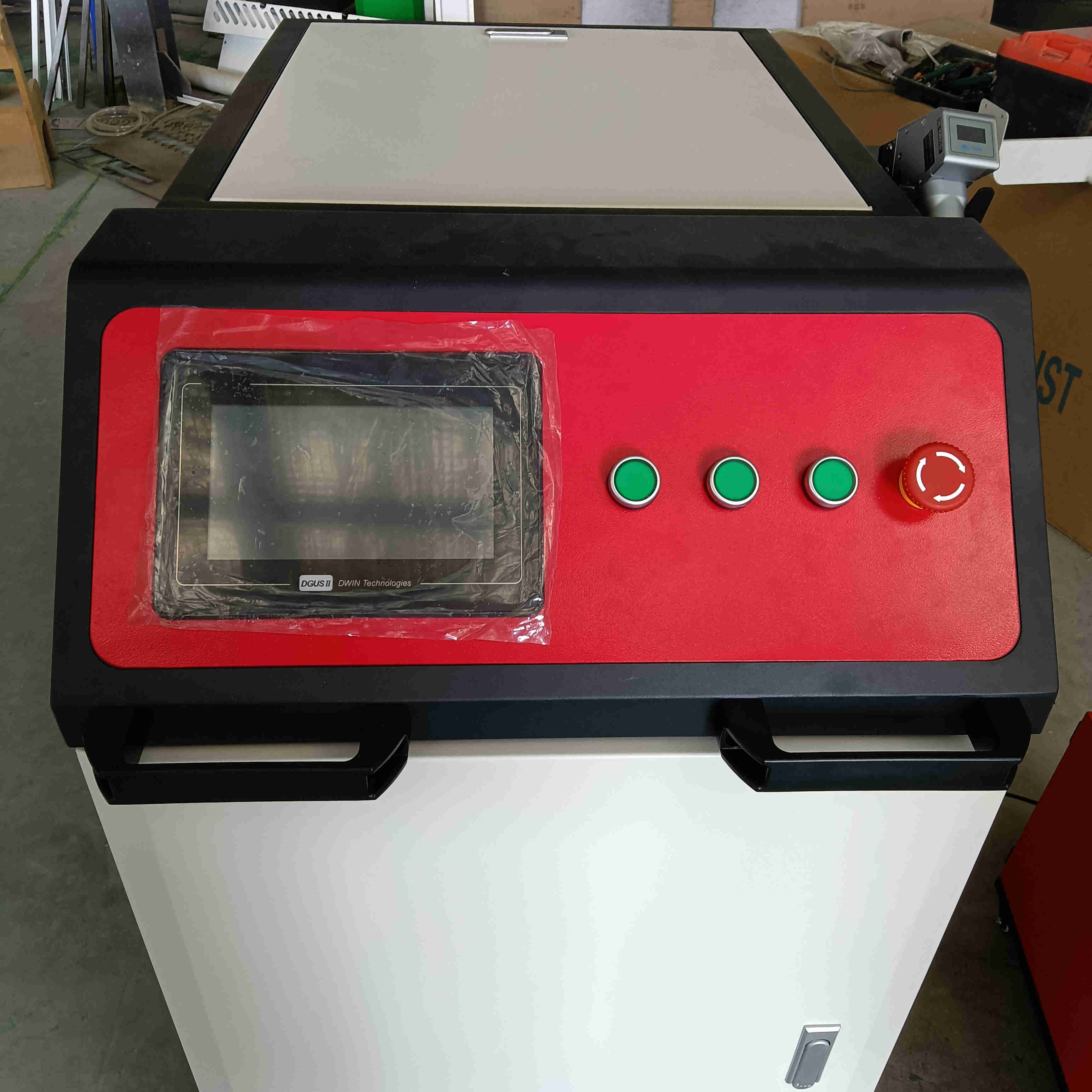

Specialized welding systems Multiple parameter modes, large adjustmentrange, support for multi-language switching,stronger weld adjustability. |
Advanced sheet metal cabinet |
About machine style, we have different machine style, if you have any other requirements, we also support, customize your own solutions

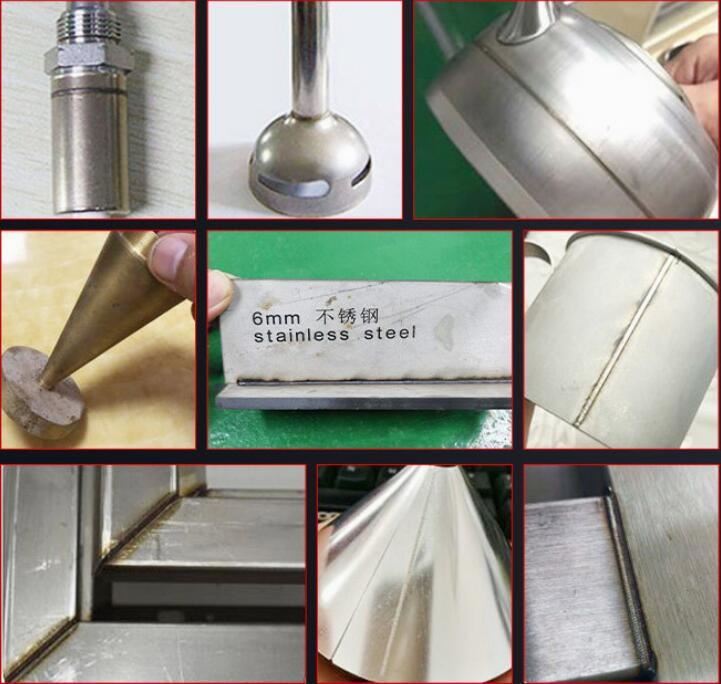

Application Area
It can be used in titanium， nickel，tin，copper, aluminum, and other metals and alloy materials, and can realize precision welding between the same metal and dissimilar metals.
Welding Thickness
1. 1000w/1kw handheld laser welder can weld 0.5-3mm steel;
2. 1500w/1.5kw fiber laser welder is used to weld 0.5-4mm steel;
3. 2000w/2kw laser welder can weld 0.5-5mm steel,0.5-4mm aluminum.
The above data is based on the triangular light spot. Due to the difference of the plate and labor, please refer to the actual welding.
Welding Material Parameter for your reference, different materials, different welding parameters, limited by the section, directly display a part.
Company profile

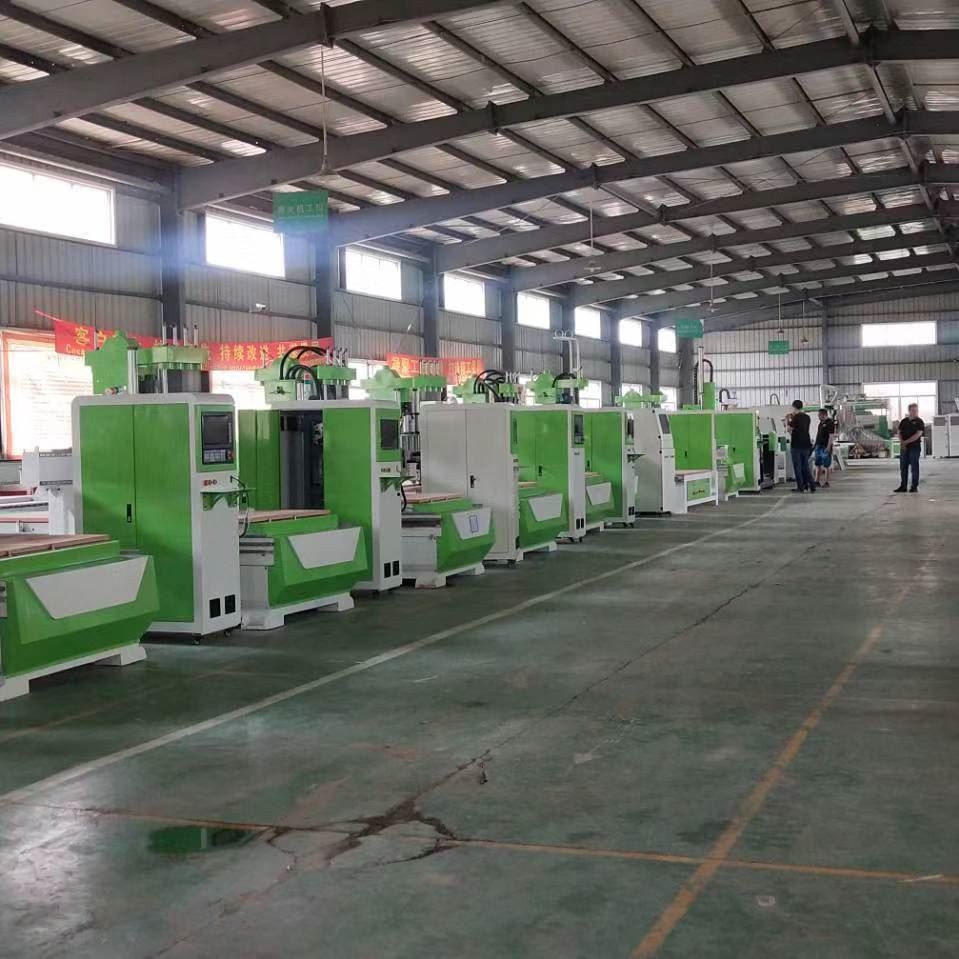

* About Shandong Guandiao CNC Equipment Co., Ltd.
With excellent product quality, product design that meets user's needs and high-quality after-sales service, GUANDIAO CNC has made great progress and won many awards. Its products serve more than 80 countries and regions, and have been chosen by more than 50 top 500 enterprises . At the same time, GUANDIAO has been awarded as a national high-tech enterprise and a demonstration base for the promotion of large scientific and technological achievements in Central China. Its products have won a number of national patent certifications.
Packing & Shipping
FAQ
1. This laser weld machine also need others?
It only need nitrogen gas as protective gas.and also can use argon.but nitrogen is more cheaper than argon.
2.Does need professional technical to operate this machine?
No. this machine operate is very easy. everyone can operate it . it only need about 10mins can learn it.
3.What is consumables life?
For nozzles and protective lens, both can use about 30 days.
4.It need wire or not ?
We have both model.one is without wire feeder , it use for material section is vertical.such as fiber laser cutting workpiece. The other is with wire feeder.It use for material have a little gap.and it can increase welding strength and penetration.
5.What type of welding wire is needed ?
Using gas shielded welding wire, diameter:0.8mm,1.0mm and 1.2mm.
6.If i buy machine without wire feeder, can add wire feeder later?
No. because the laser head and controller are all different.
