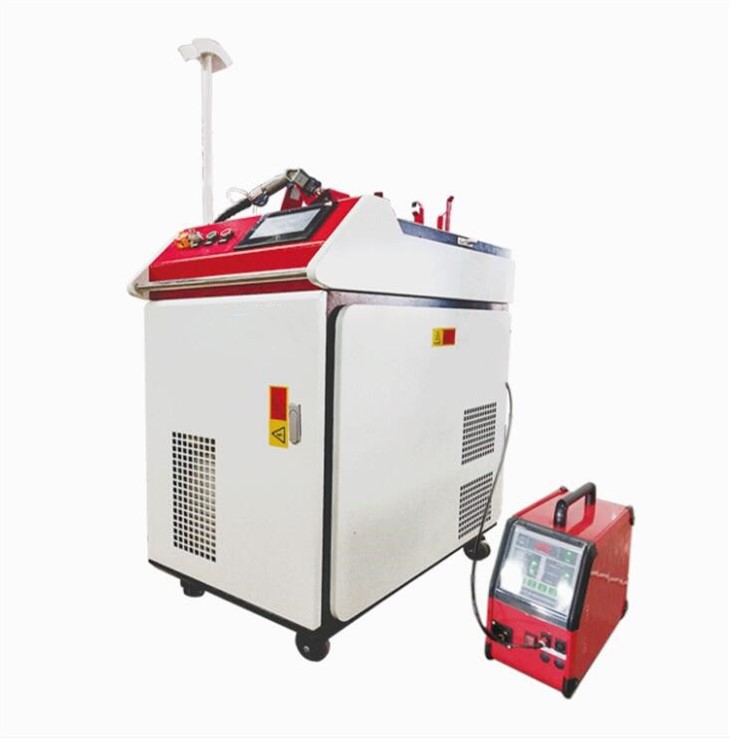

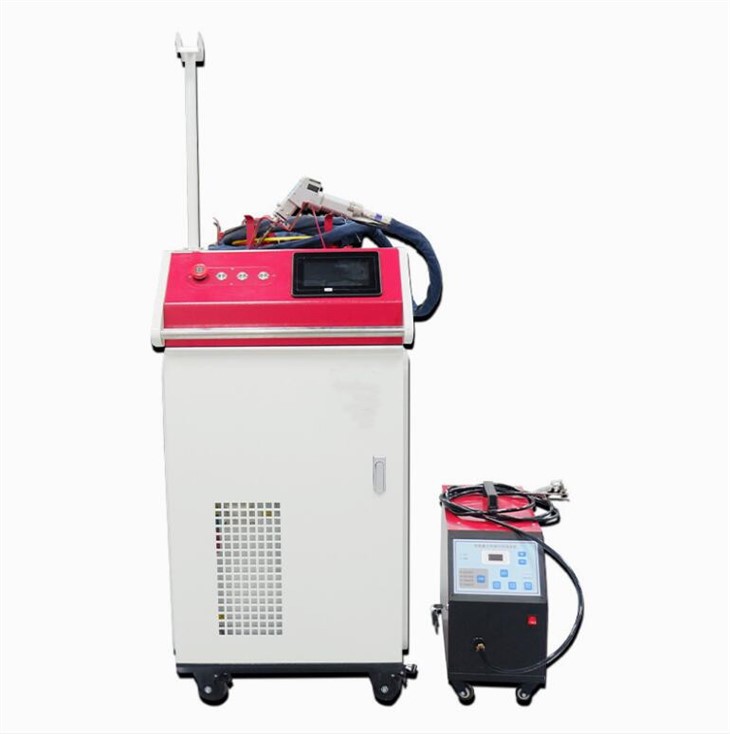

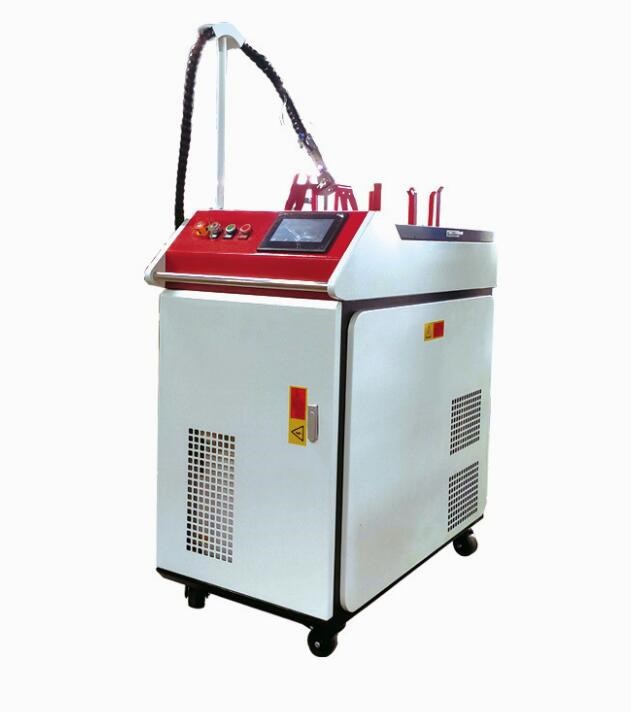

Hand Held Fiber Laser Welding Machine
Laser welding is a new type of welding method, which mainly aims at the welding of thin-walled materials and precision parts. It can realize spot welding, butt welding, overlap welding, seal welding, etc. it has high depth width ratio, small weld width, small heat affected zone, small deformation, fast welding speed, flat and beautiful weld, no treatment or simple treatment after welding, high weld quality, no pores, and can be accurately controlled, Small focusing light spot, high positioning accuracy and easy to realize automation.
Machine Features
✦Handheld laser welding machine can be widely used in metal equipment, stainless steel home and other industries complex irregular welding process.
The laser welding machine has a high degree of automation and simple welding process. The non-contact operation method can meet the requirements of cleanliness and environmental protection. Using laser welding machine to process workpieces can improve work efficiency, and the finished workpieces have beautiful appearance, small weld, large welding depth and high welding quality. Laser welding machine is widely used in dental denture processing, keyboard welding, silicon steel sheet welding, sensor welding, battery sealing cover welding and so on. However, the cost of laser welding machine is high and the precision of workpiece assembly is also high. There are still limitations in these aspects.
Specification
Model | GD-1000/1500/2000W | |||
Laser power | 1000/1500/2000W | |||
Laser wavelength | 1080+-5nm | |||
Beam quality | 1.3m² | |||
Work patterns | Continuous | |||
Power required | AC220V / 380V | |||
Output fiber length | 5/10/15m (Optional) | |||
Cooling method | Water Cooling | |||
Cooling water temperature | 5-45℃ | |||
Average consumed power | 2500/2800/3500/4000W | |||
Laser Energy Stability | <2% | |||
Air humidity | 10-90% |

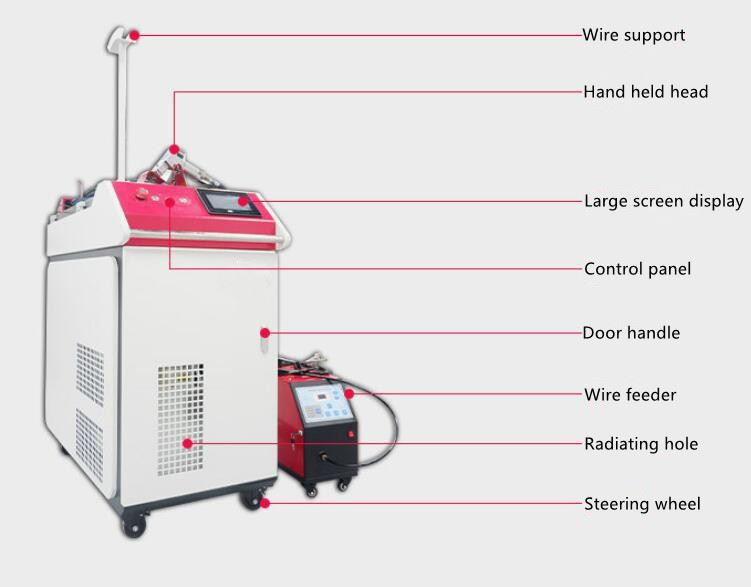

Details image

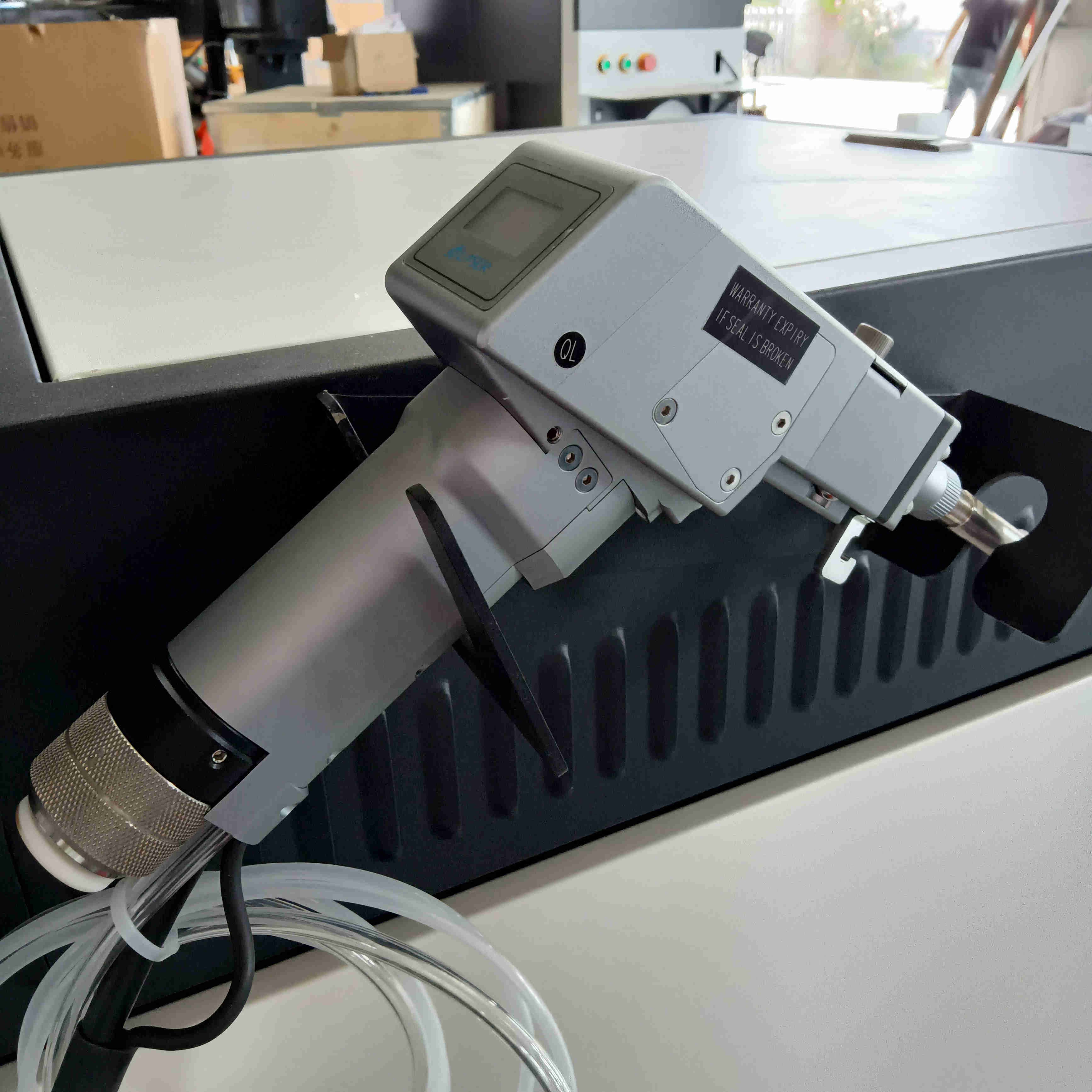

Double swing head welding Fast welding speed, beautiful weld, flexible and convenient, saving labor cost. |

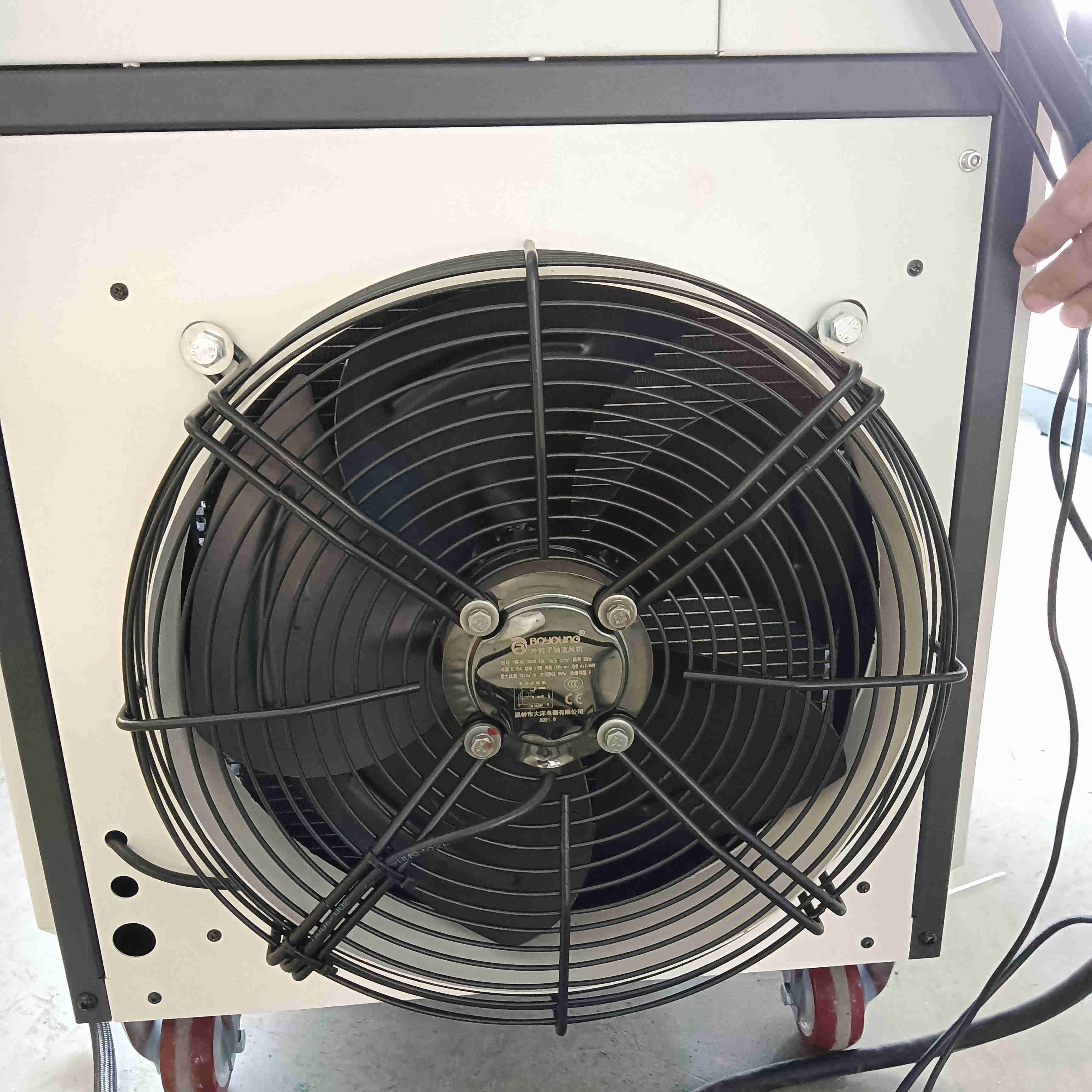

Built in cooling equipment Avoid wire binding, adapt to more sites, and have good dust and anticoagulation effect. |

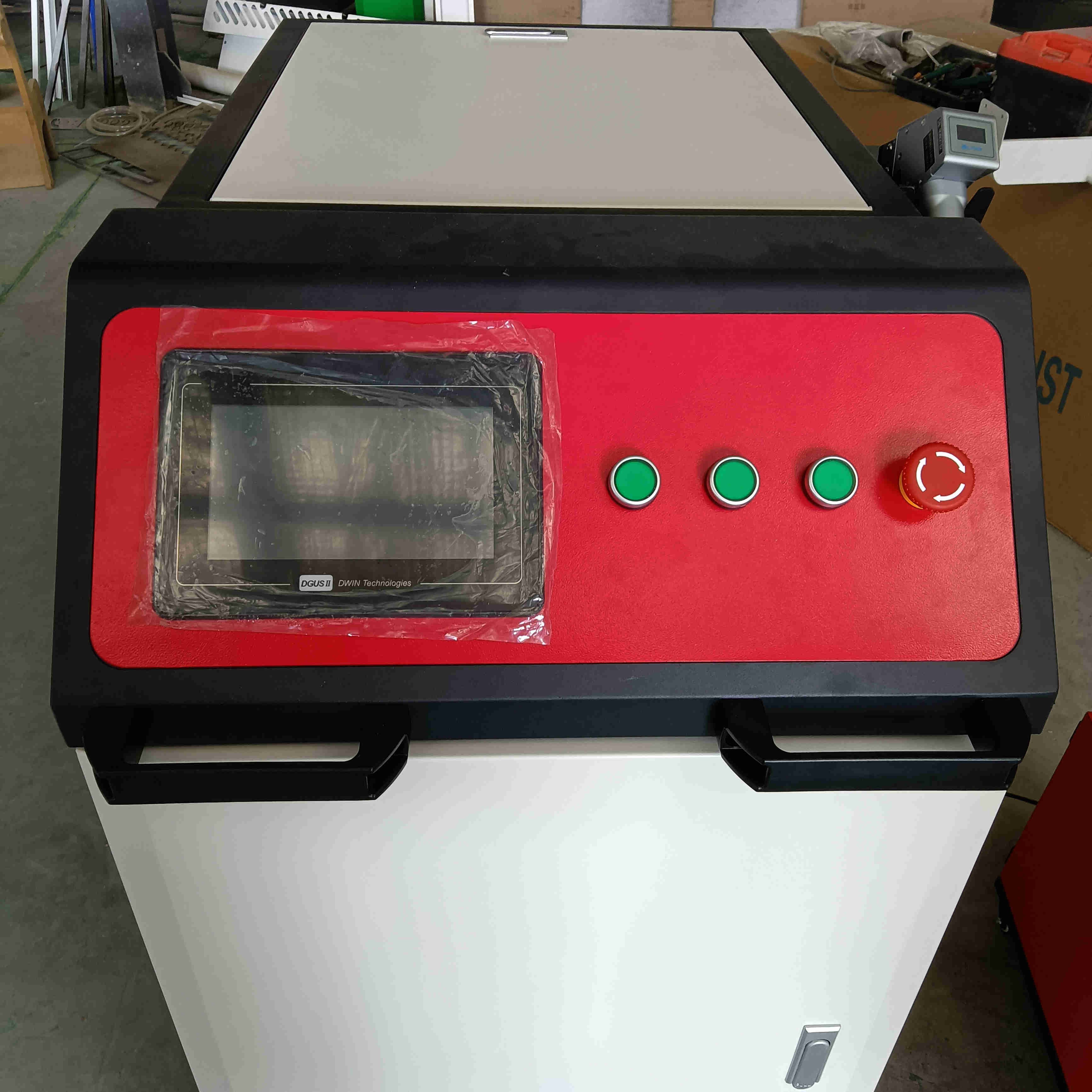

Intelligent control panel Multi parameter adjustment range is large, and one click Startup is simple and easy to use. |
Advanced sheet metal cabinet Advanced sheet metal cabinet has corrosion-resistant technology, which is convenient for single person operation without consumables. |

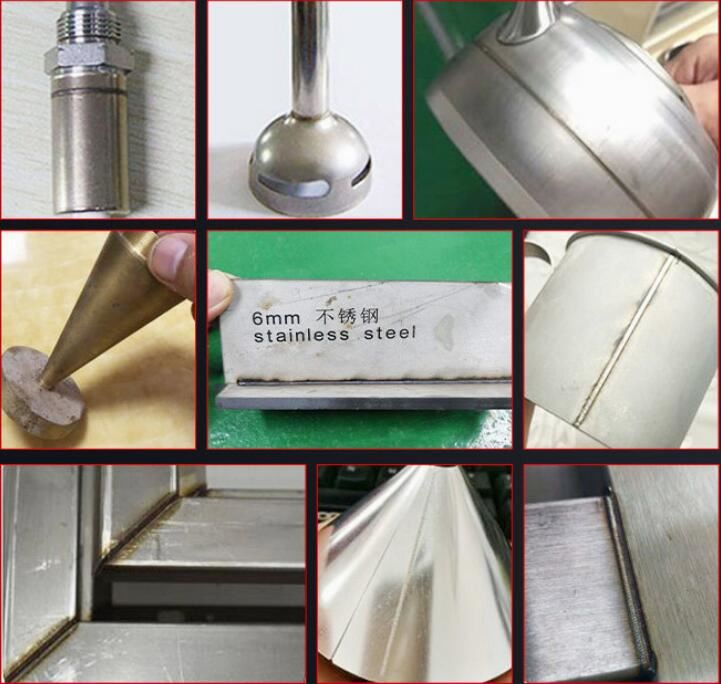

Application

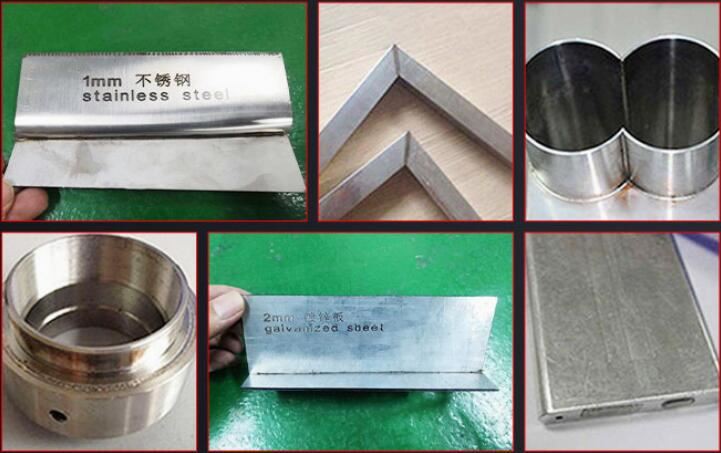

Fiber Laser welding machine is suitable for welding gold, silver, titanium, nickel, tin, copper, aluminum and other metals and their alloy materials. It can achieve the same precision welding between metals and dissimilar metals. It has been widely used in aerospace, shipbuilding, and instrumentation. , Mechanical and electrical products, automobiles and other industries.
Company profile

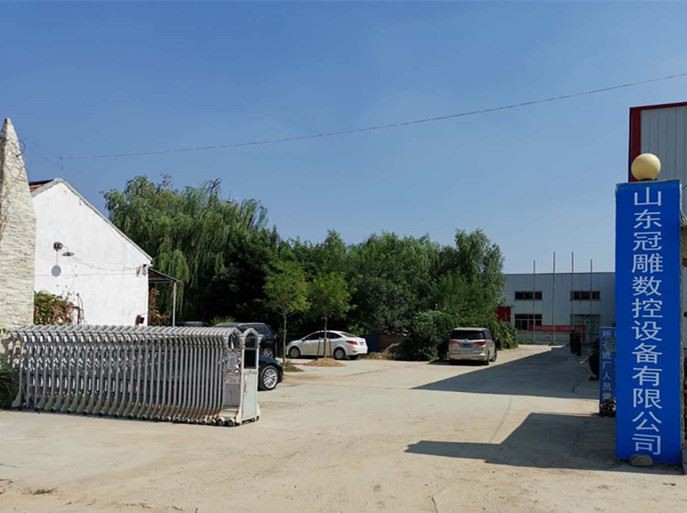

* About Shandong Guandiao CNC Equipment Co., Ltd.
is established in 2008, owns more than 500 square meters of researching and office space, more than 32000 square meters factory. All machines , passed the European Union CE authentication.
Products are sold to USA,Canada, Australia, Europe, South east Asia,Africa etc,more than 150 countries and areas,and supply OEM service for more than 30 manufactures.
If you have a plan to visit our factory, please tell us your schedule, we will book a hotel for you and arrange a driver.
Packing & Shipping
FAQ
Q1:Which type of machine is most suitable for us?
A1:We'll help you choose the suitable machine and share you the best technical solutions; after you share us what material you need mark / cut/weld and size of materials.
Q2: How to operate the machine?
A2:We'll support English manual and video with the machine to you. If needed,online traing or on-site training also available.
Q3: Warranty?
A3:We provide 1-3 years warranty for different machines(except for artificial damage).
Q4.Does the machine can be customized according to my requirements ?
A4:Sure, we have a strong technical team and rich experience.We'll supply eco laser solutions.
Q5: How is the packing?
A5: All the packing comply with exporting standard.
Q6: Do you arrange shipment for the machines?
A6:Yes,we can arrange shipment based on FOB/CFR/CIF terms.
For EXW price,shipment should be made by your shipping agents.
