Metal Cutting Fiber Laser Cutting Machine
We're well-known as one of the leading metal cutting fiber laser cutting machine manufacturers in China for over 15 years. We warmly welcome you to wholesale high quality metal cutting fiber laser cutting machine at competitive price from our factory. For more information, contact us now.
暂无分享


Product Information

Metal Cutting Fiber Laser Cutting Machine

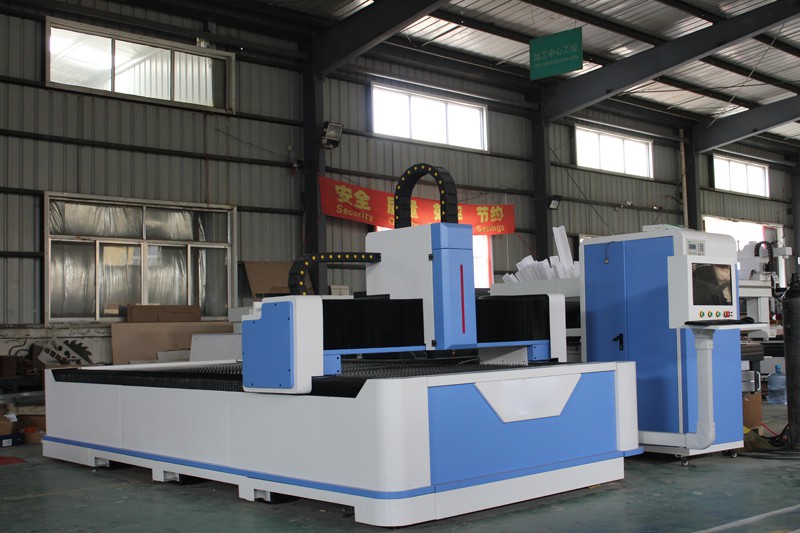

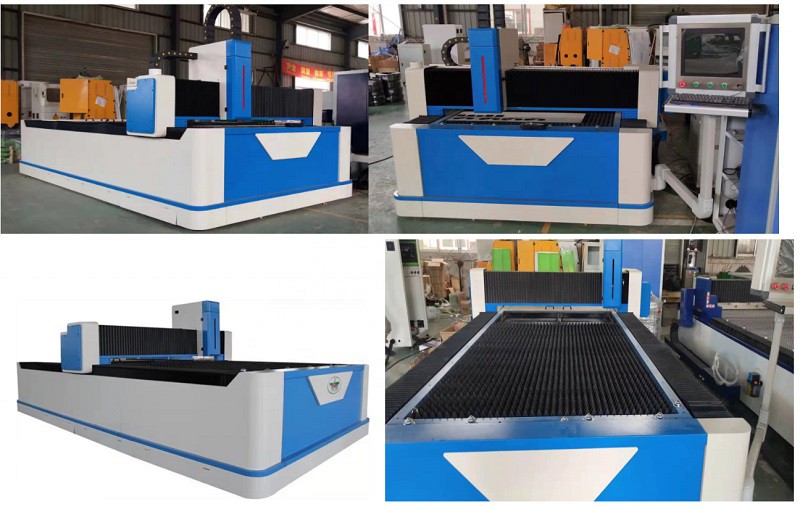

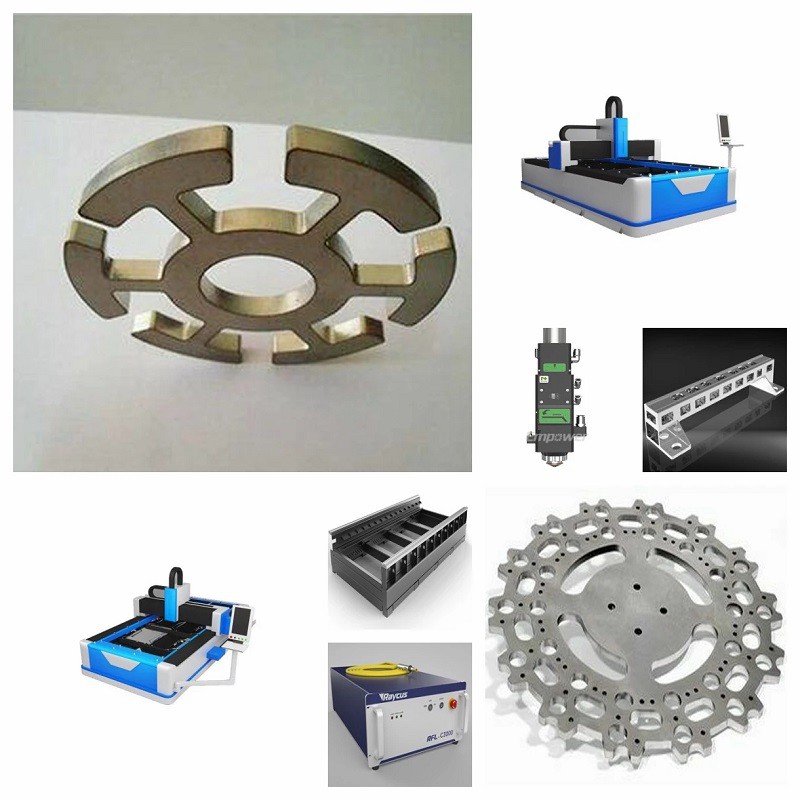

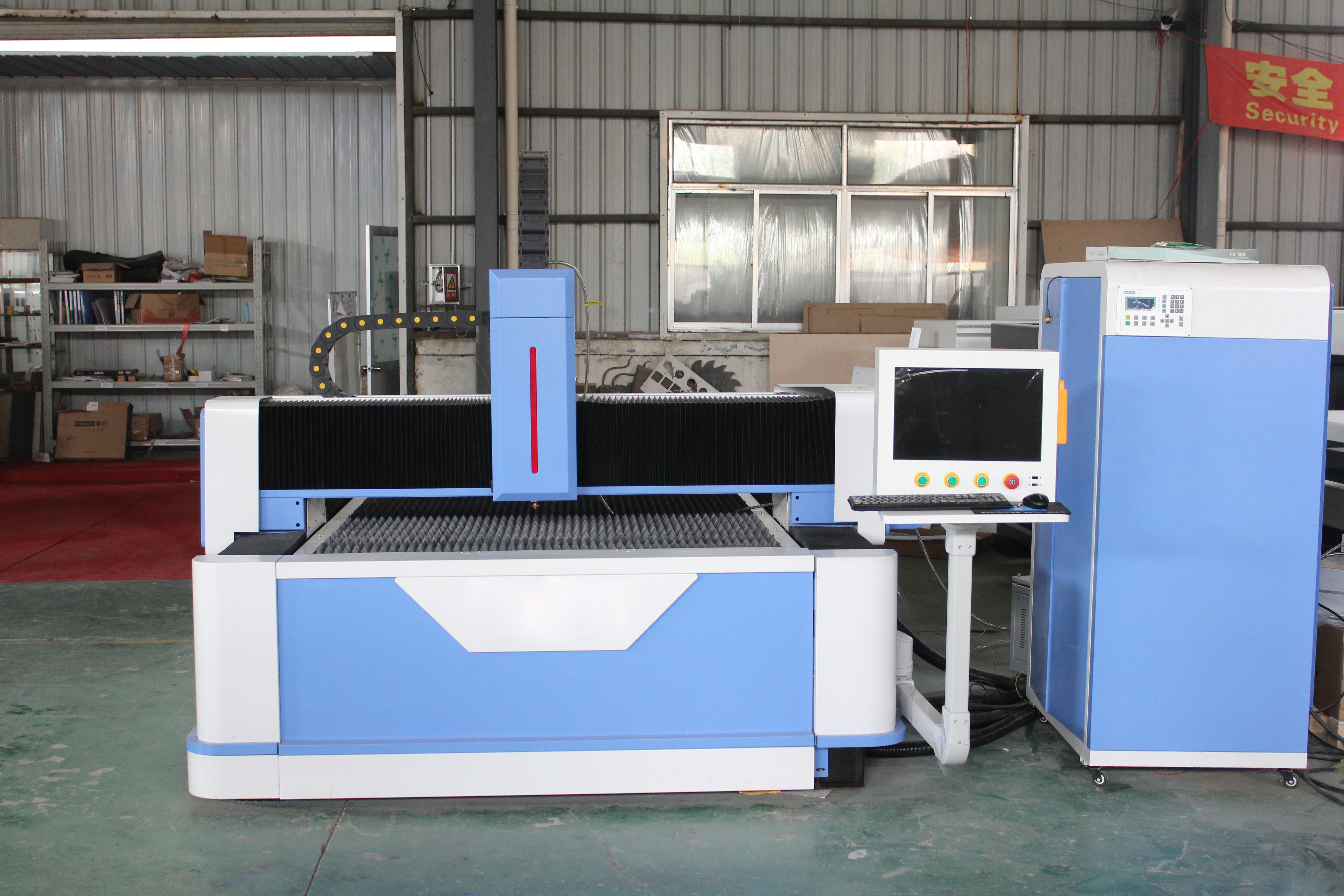

Product Description



product-750-505

product-750-500

product-750-500



Features:



Metal Cutting Fiber Laser Cutting Machine with exclusive patent climbing shuttle table. We use European technology to achieve platform exchange time with 8-12s. It is equipped with slope track in four or six ways, and exchanging with the parallel platform in a ladder-like type, which ensures the same level of the front and rear processing worktables, shorten the Z-axis stroke, effectively prevent the platform from colliding with the cutting head, The worktables are coaxially driven by the synchronous shaft, the consistency of the chain force can be guaranteed and achieve rapid and stable exchange, and achieve higher processing accuracy and better consistency.




Technical Parameters







Working Area

3000*1500mm

X axis working area

3,000mm

Y axis working area

1,500mm

Laser Power

1000W/1500W for option

Positioning accuracy

±0.15mm

Repeatability positioning accuracy

±0.02mm

XY Axis Maximum Acceleration

1g

XY Axis Max. speed

80m/min

Working Table

Serrate working platform

XY Axis Transmission system

German helical rack and pinion

Z axis Transmission system

Taiwan TBI ballscrew

Cooling System

Industry water chiller

Power Supply Rated Voltage

3-phase 380V/50Hz or Custom made

Machine Weight

3000KG

Dimension

2250*4200*2100mm

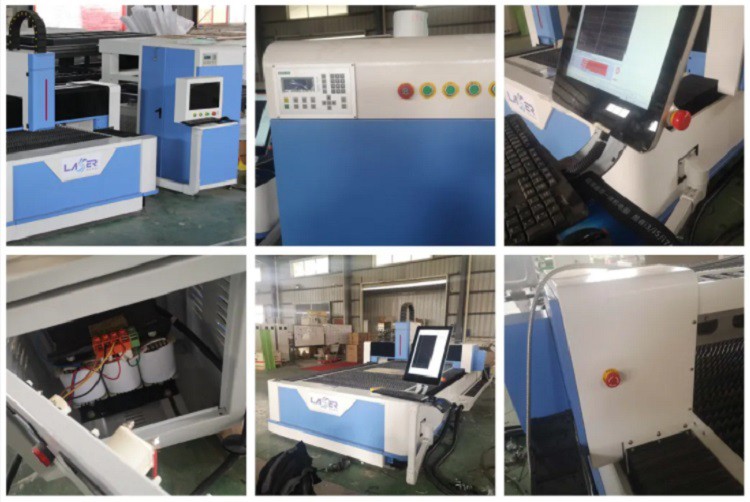

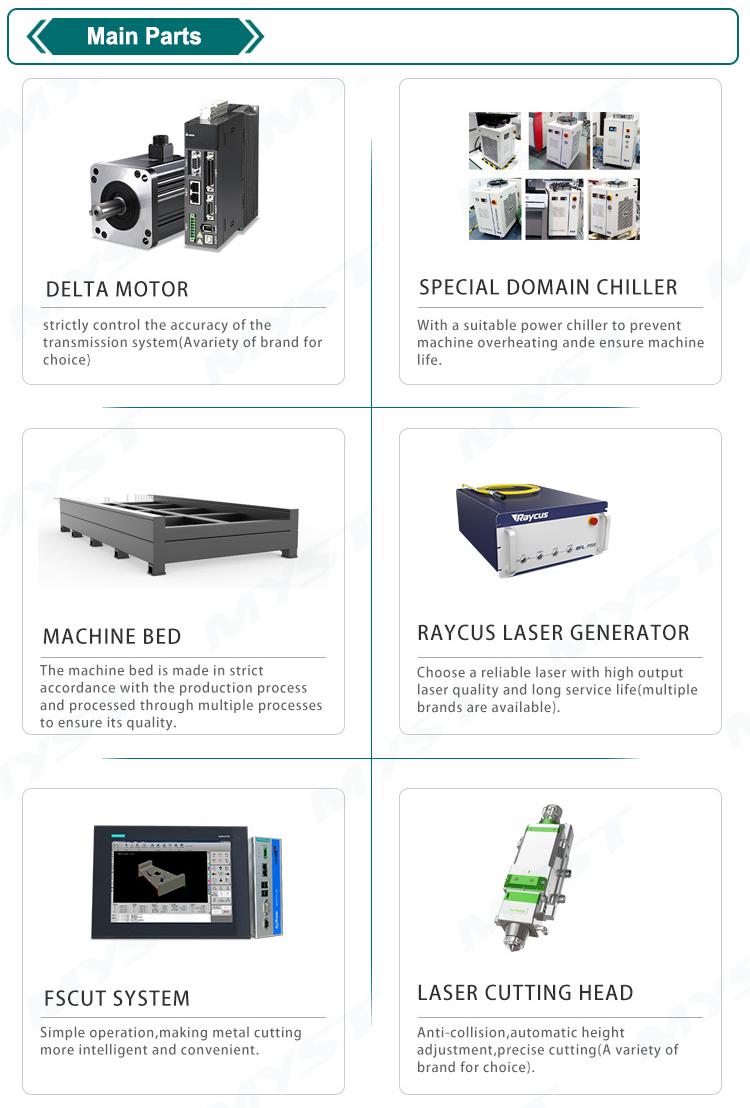

Machine Details



product-744-472

product-750-502

product-750-1108



product-750-56

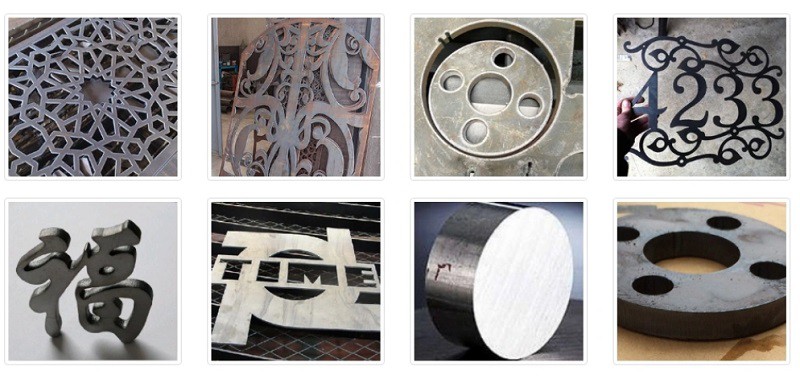

Application



product-747-747

product-748-354



Applicable Fields



Applicable for high-speed cutting on various metal plates or tubes such as S/S, carbon steel, galvanized sheet, electrolytic plate, aluminum plate, steel, brass, alloy plate, rare metals and other materials;


Widely used


Widely used in kitchen appliance, electric control box, high-resolute device, mechanical equipment, electrical equipment, lighting, posters, auto parts, display equipment, hardware and metal processing.

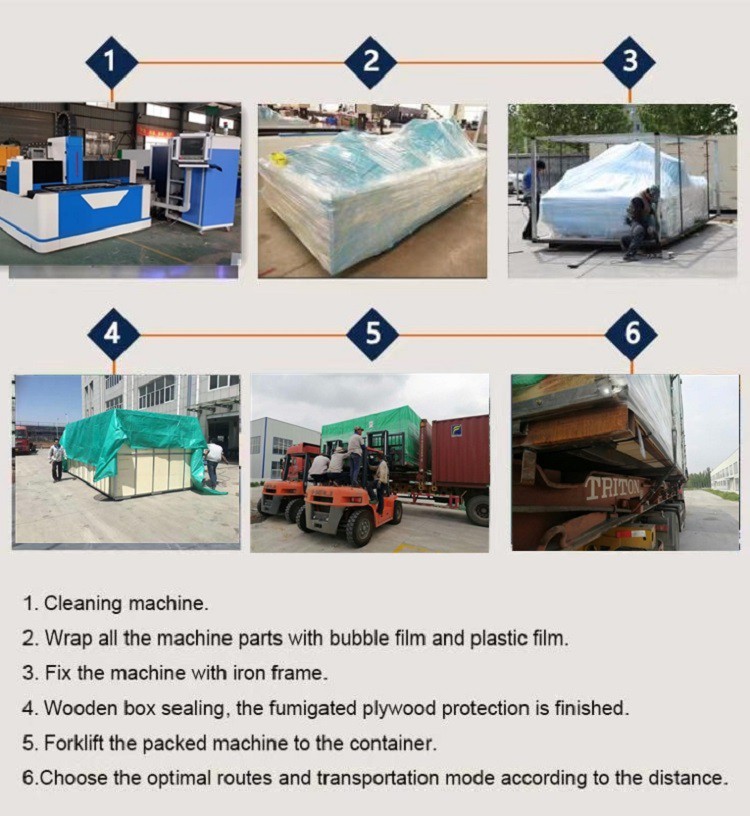

Packing & Shipping





product-750-816

Packing : Strong wooden package

Shipping: 20-40 working days after get deposit

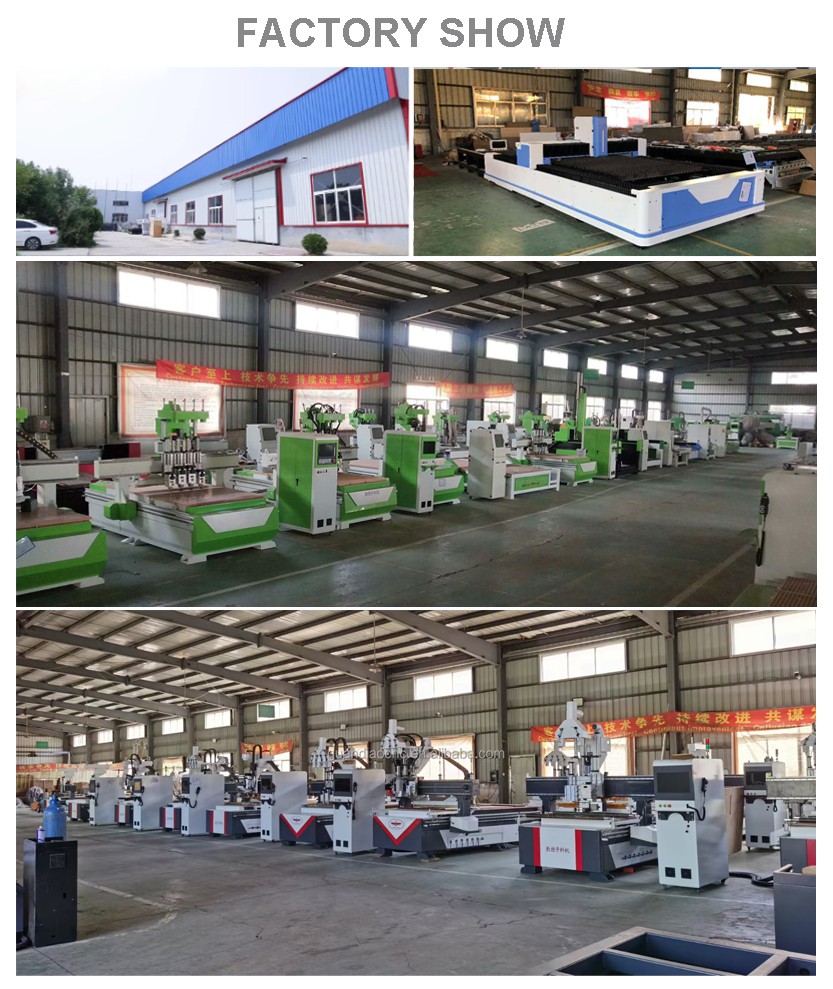

Company Information





product-746-886





Contact



product-588-339

Hot Tags: metal cutting fiber laser cutting machine, China, suppliers, manufacturers, factory, price, wholesale, for sale,
