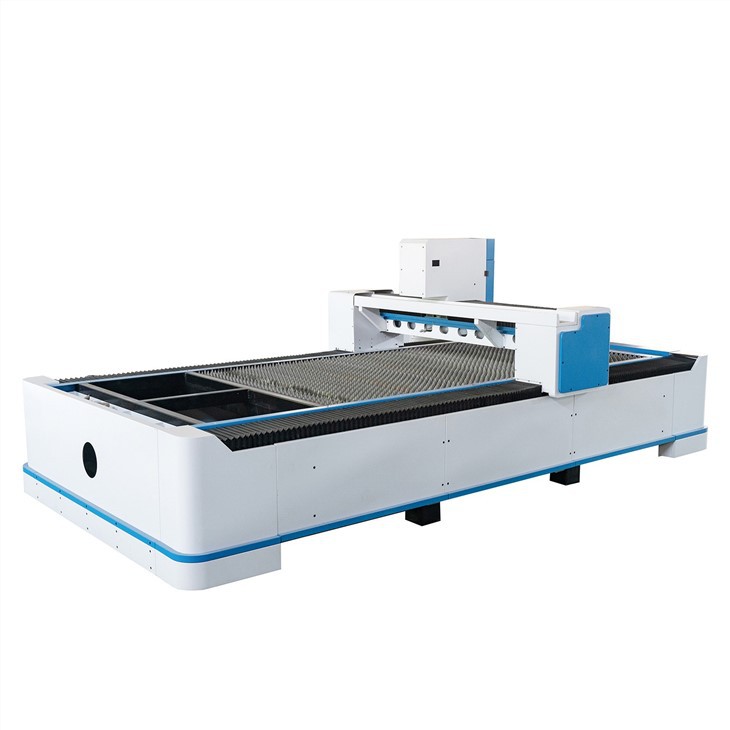

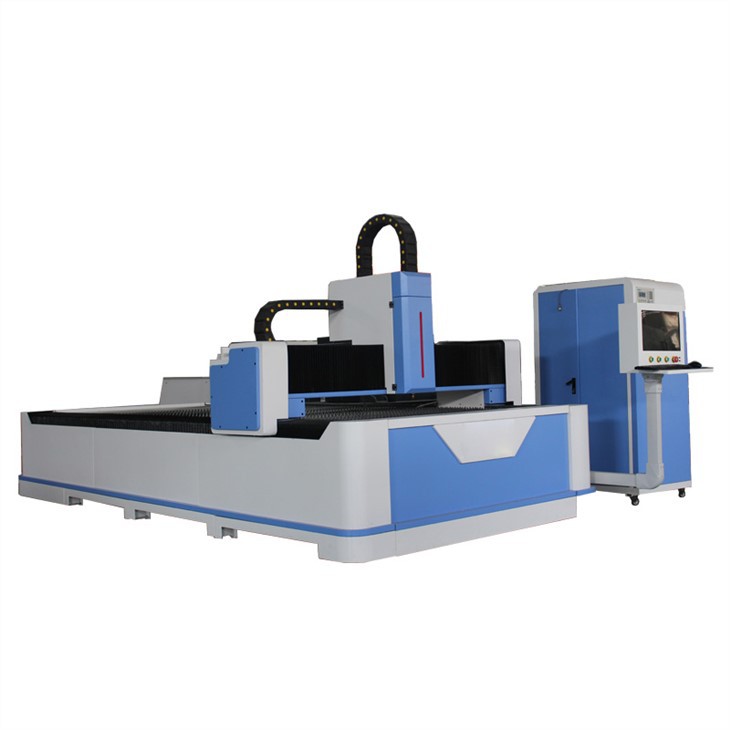

Metal Laser Cutting Machine
Product Description
Features:
1. Metal laser cutting machine is selected as the welding motherboard, to Ensure the stability and deformation of the bed
2. Heavy bed construction, ensuring the stability of the machine tool for long term application
3. Horizontal accuracy of integral welding platform is ≤0.5mm, so The welding precision of the bed is guaranteed, Overall welding accuracy ≤5mm
Technical Parameters
|
Product Name |
Metal Laser Cutting Machine |
|
Cutting Material |
Carbon Steel/ Stainless Steel/ Aluminum/ Alloy/ Copper, etc |
|
Metal Pipe/ Tube Diameter |
10-120mm/ 170mm/250mm/350mm/450mm diameter optional |
|
Metal Pipe/ Tube Length |
200mm-6m / 8m /10m /12m optional |
|
Laser Type |
Fiber Laser |
|
Laser Power |
1000W/1500W/2000W/3000W/4000W/6000W optional |
|
Fiber Laser Source |
IPG/Raycus/Maxphotonics/nLight/RECI optional |
|
Laser Cutting Head |
Precitec/RayTools Auto-focus head |
|
Cutting Software/ Control System |
TubePro / FSCUT or EtherCAT Bus system |
|
Nesting Software |
Tubes T 3D Tube Nesting Software |
|
Chuck/Rotary Device |
Double Pneumatic Chuck Auto Centering |
|
Servo Motor and Driver |
YASKAWA Sigma-7 series/ Panasonic EtherCAT motor |
|
Reducer/Gear box |
SHIMPO Reducer |
|
Water Chiller |
Hanli/Tongfei/S&A |
|
Liner Guide Rail |
HIWIN |
|
Gear and Rack |
YYC |
|
Lubrication system |
Automatic Oil self-lubrication |
|
Power Supply |
380V, 50 Hz +/-10% or customized |

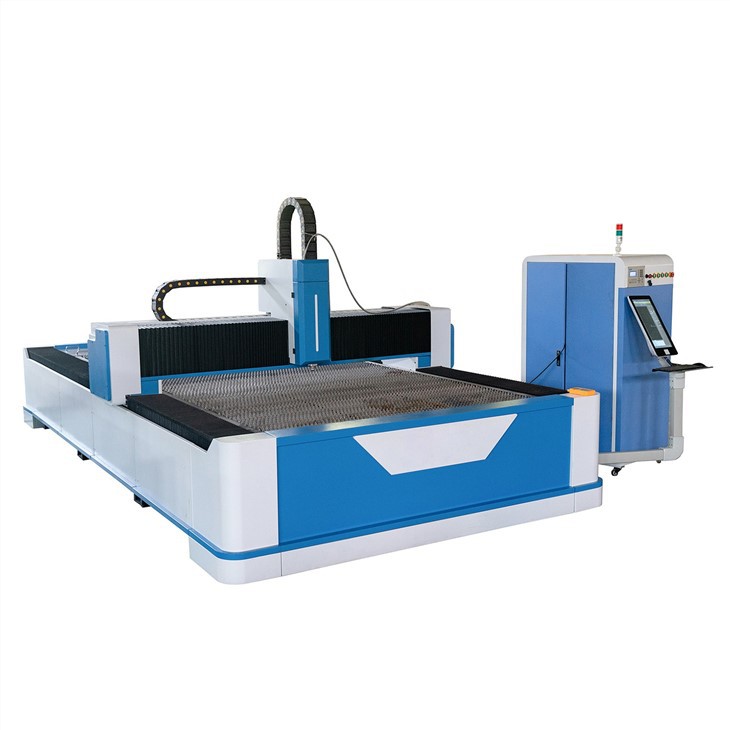

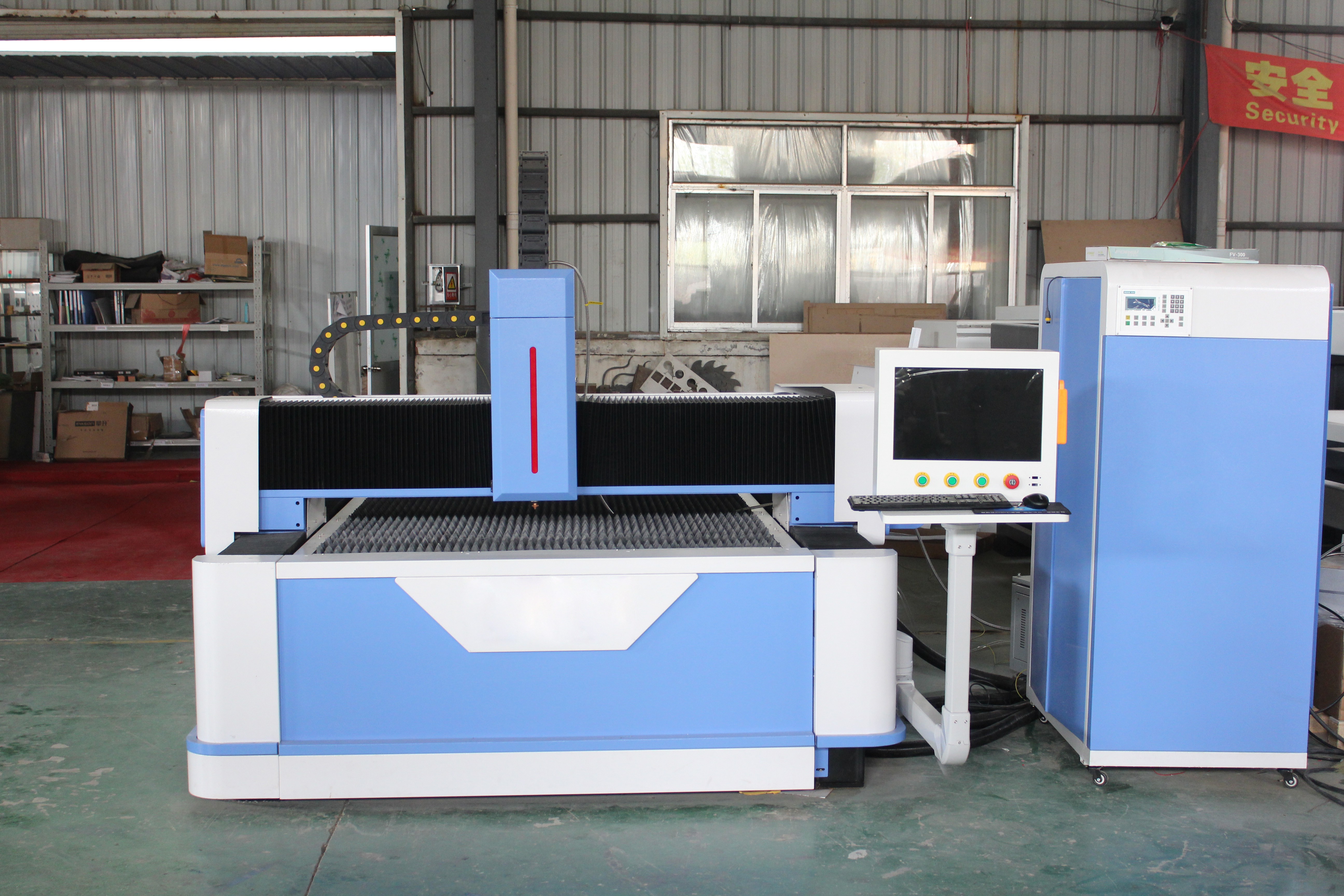

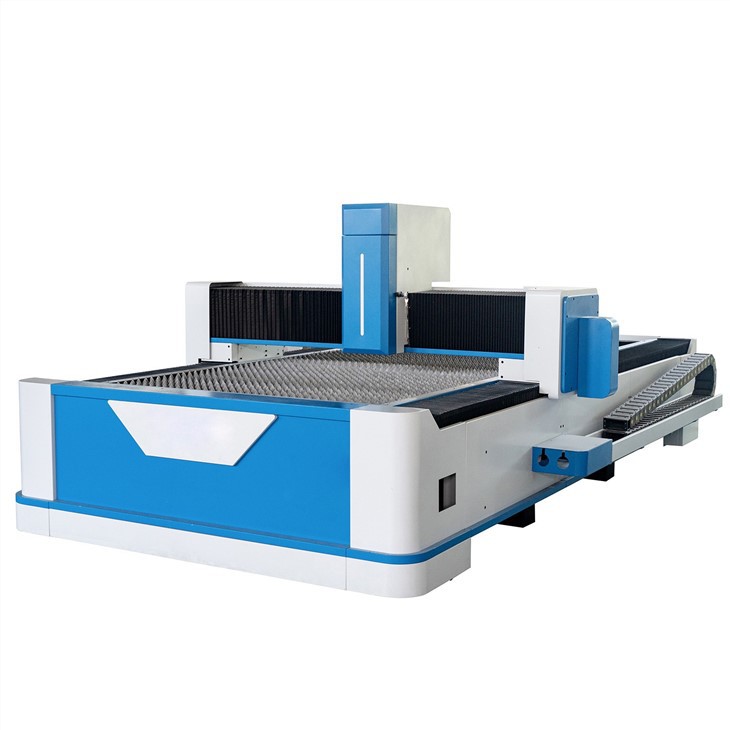

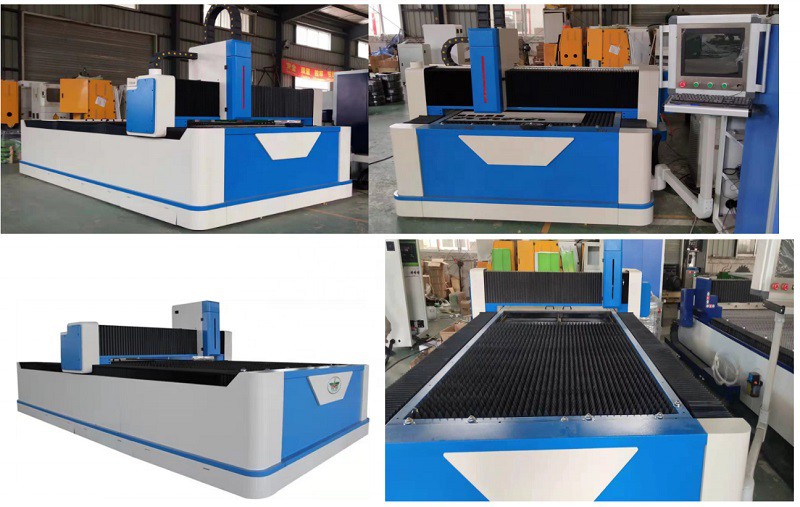

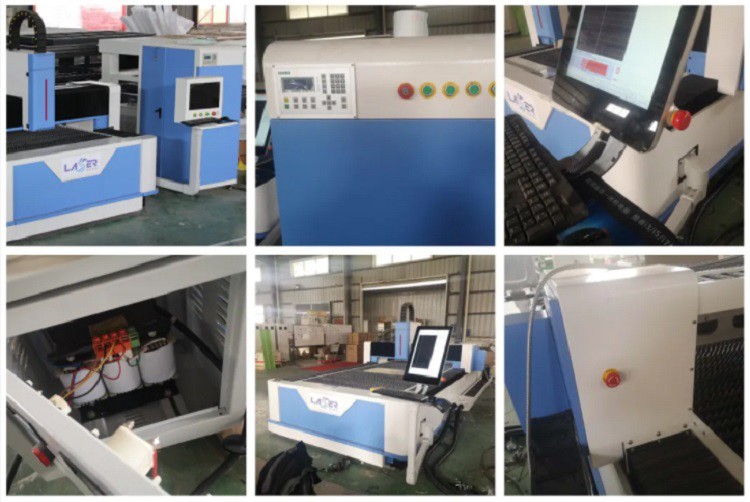

Machine Details

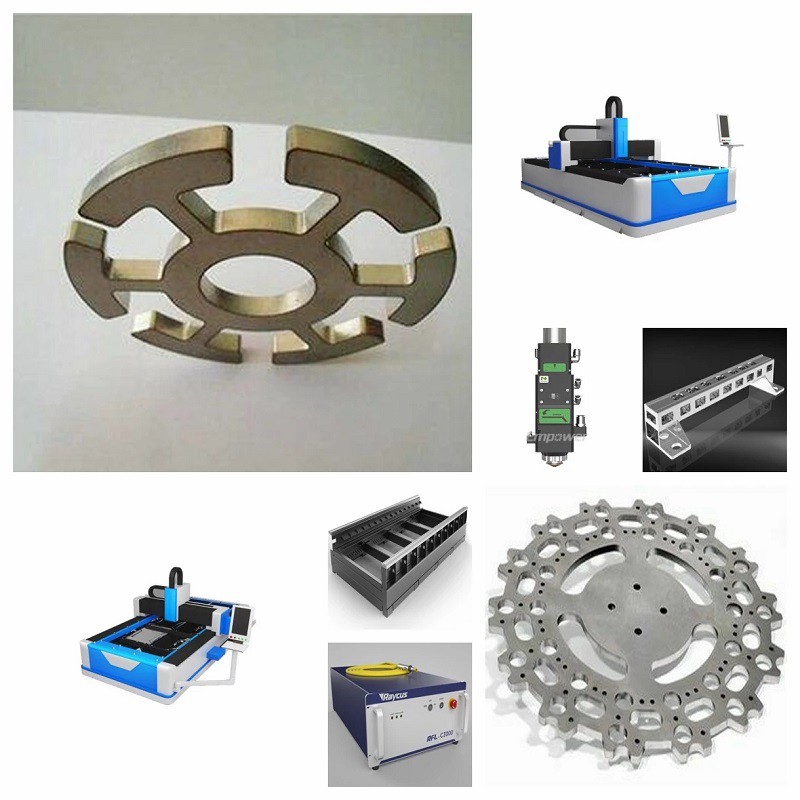

Application

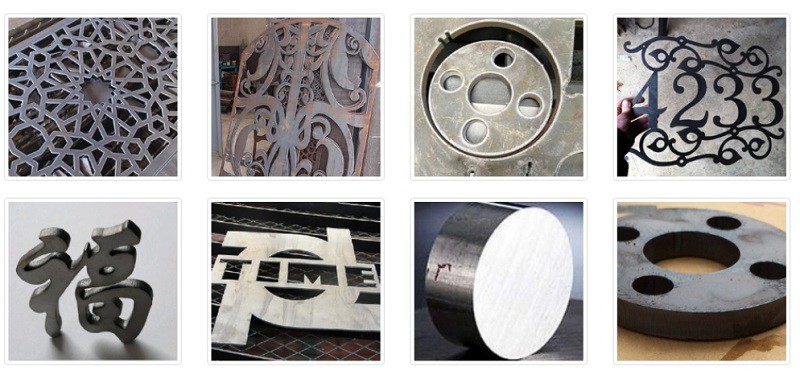

Applicable Materials
Stainless steel, carbon steel, galvanized steel, acrylic, plywood, MDF and other materials
Application Industries:
Advertising industry (stainless steel and acrylic), sheet metal industry (carbon steel), packaging industry (plywood), arts and crafts, awards and trophies, paper-cutting, architectural models, lights and lamps, electronic appliances, photo frame and album, garment leather and other industries
Packing & Shipping
Packing : Strong wooden package
Shipping: 20-40 working days after get deposit

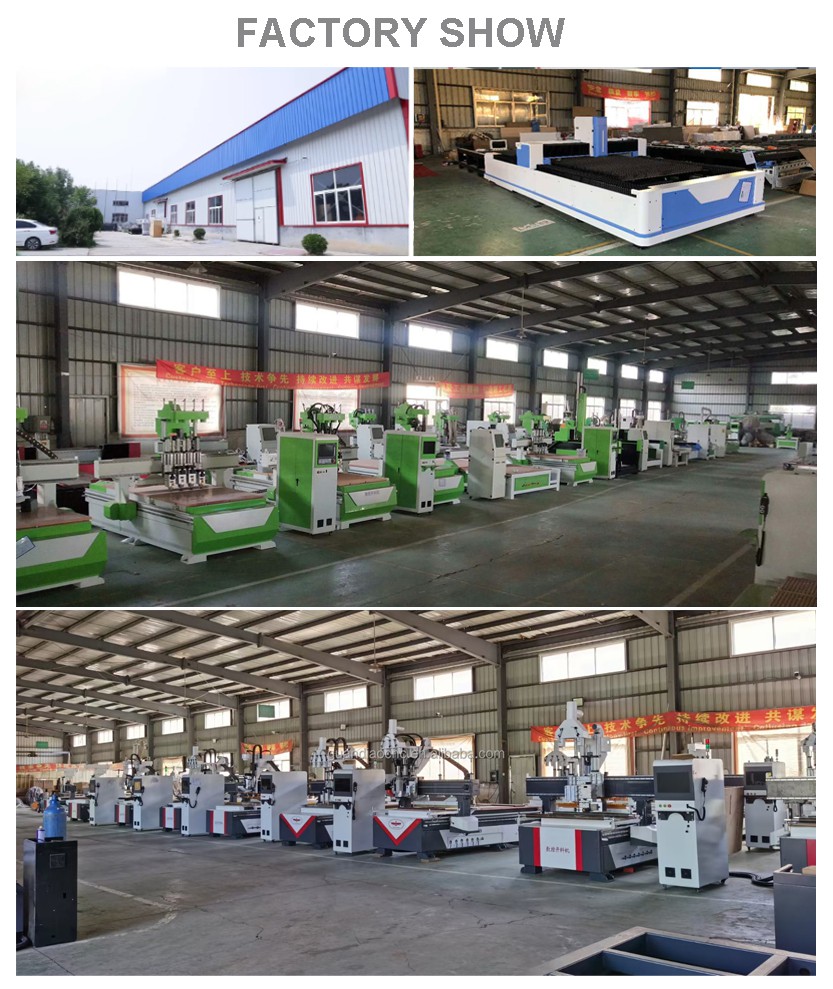

Company Information
