Machine Working Video
Machine Features
1. High rigidity heavy chassis, reducing the vibration generated during the high-speed cutting process.
2. Gantry double-drive structure,with imported Germany rack & gear transmission system, which improves the production
efficiency.
3. High-performance cast aluminium guide rail, after infinite analysis ,which accelerates the circular arc cutting speed.
4. Open worktable, easy operation and small space occupation.

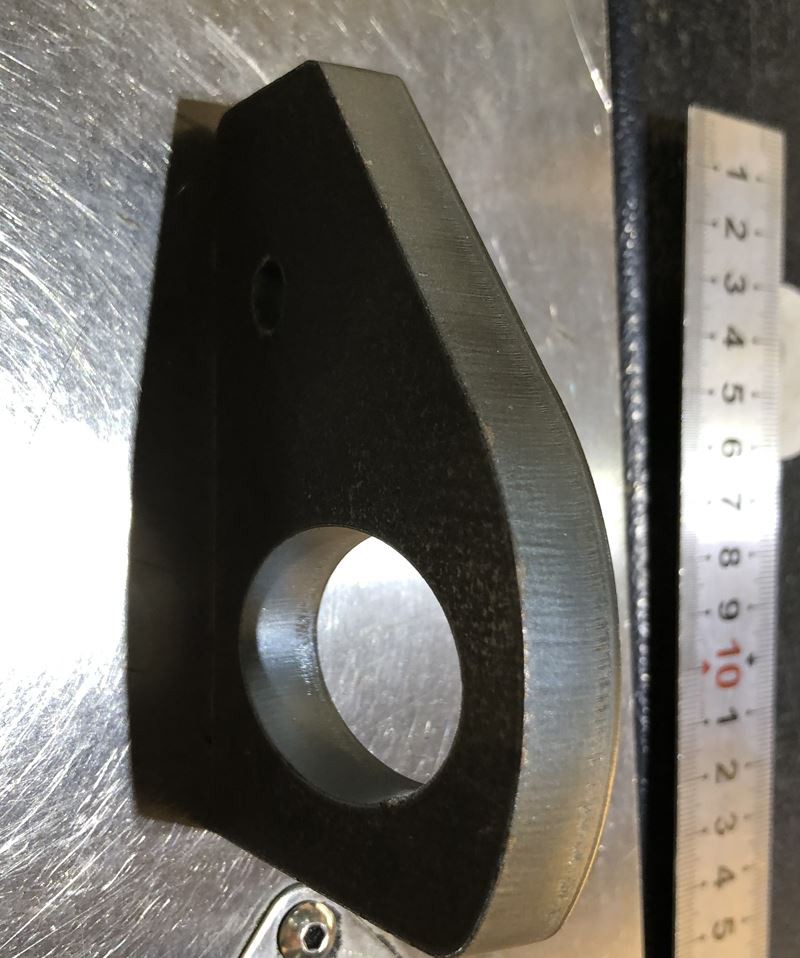

5. High precision, fast speed, narrow slit, minimum heat affected zone, smooth cut surface and no burr.
6. The laser cutting head does not come into contact with the surface of the material and does not scratch the work-piece.
7. The slit is the narrowest, the heat affected zone is the smallest, the local deformation of the work-piece is very small, and there is no mechanical deformation.
8. It has good processing flexibility, can process any pattern, and can cut pipes and other profiles.
9. Non-deformable cutting can be performed on materials of any hardness such as steel plates, stainless steel, aluminum alloy plates, and hard alloys.
Specifications

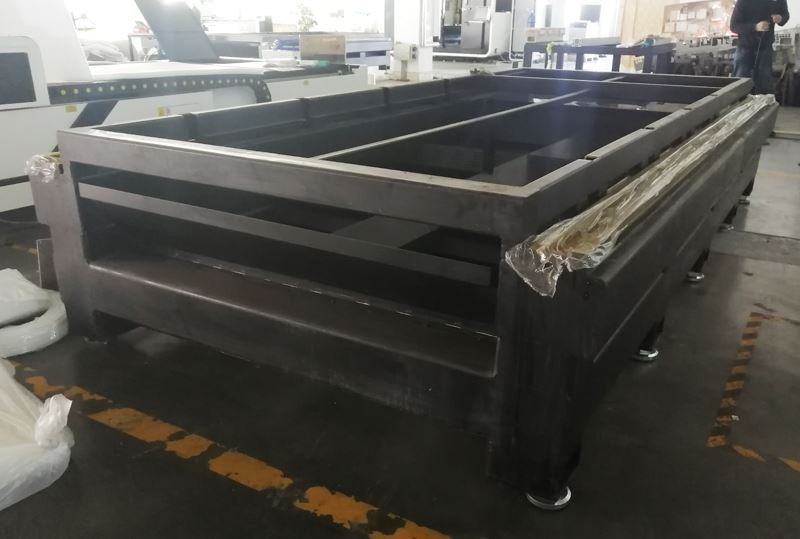

Plate Welding Strong Machine body,ensure machine working smooth no any shake when high speed cutting

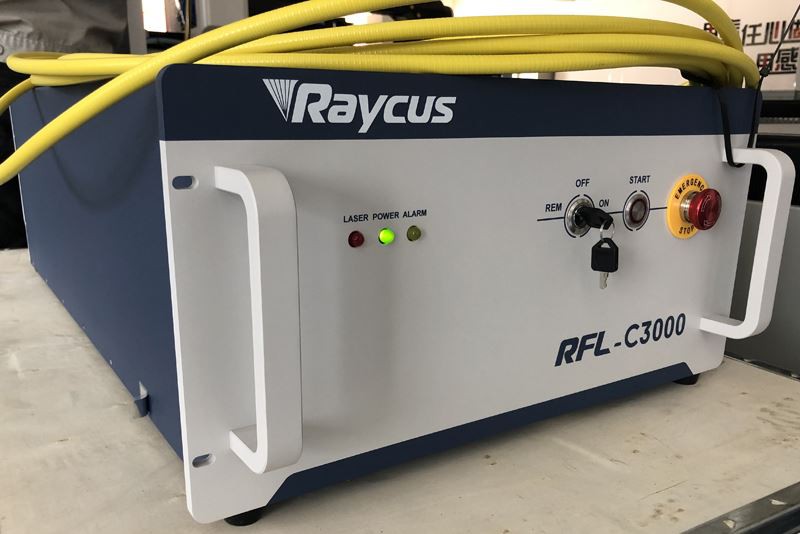

Famous band Raycus laser Generator,life time more than 100,000 hours

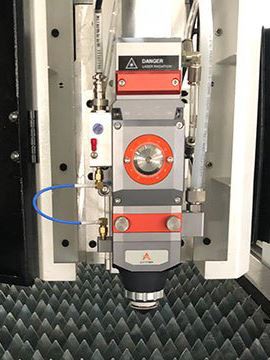

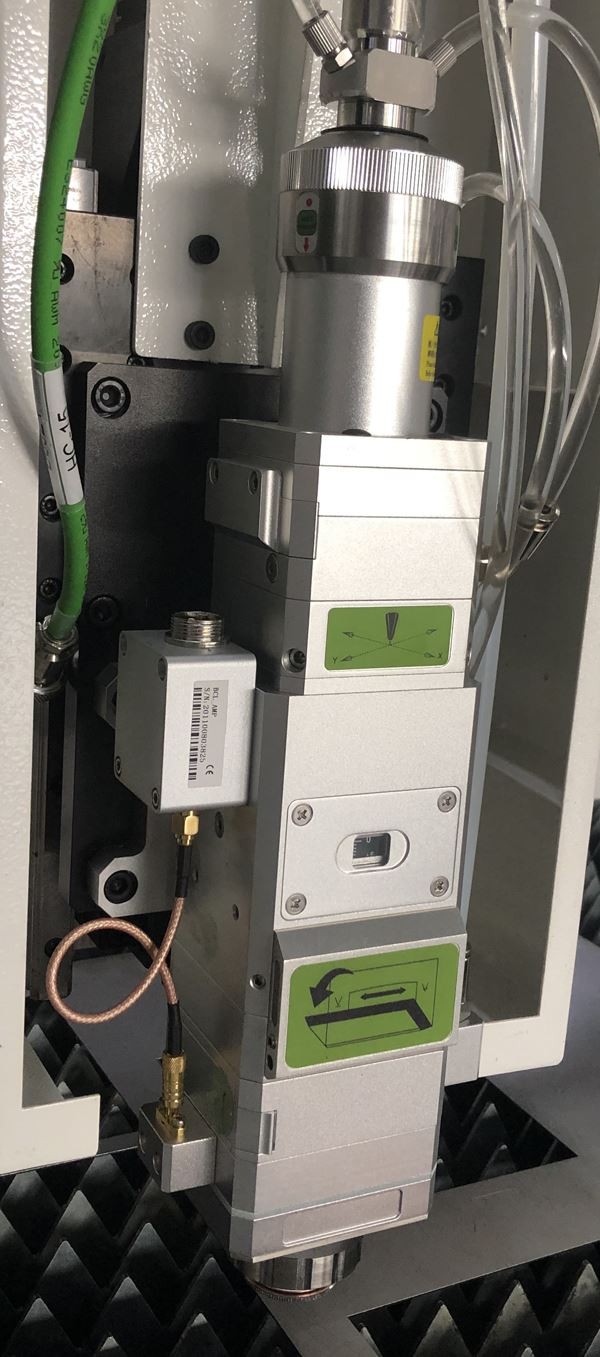

Different brand laser head for your optional,Au3tech or Swiss Raytools or Precitech

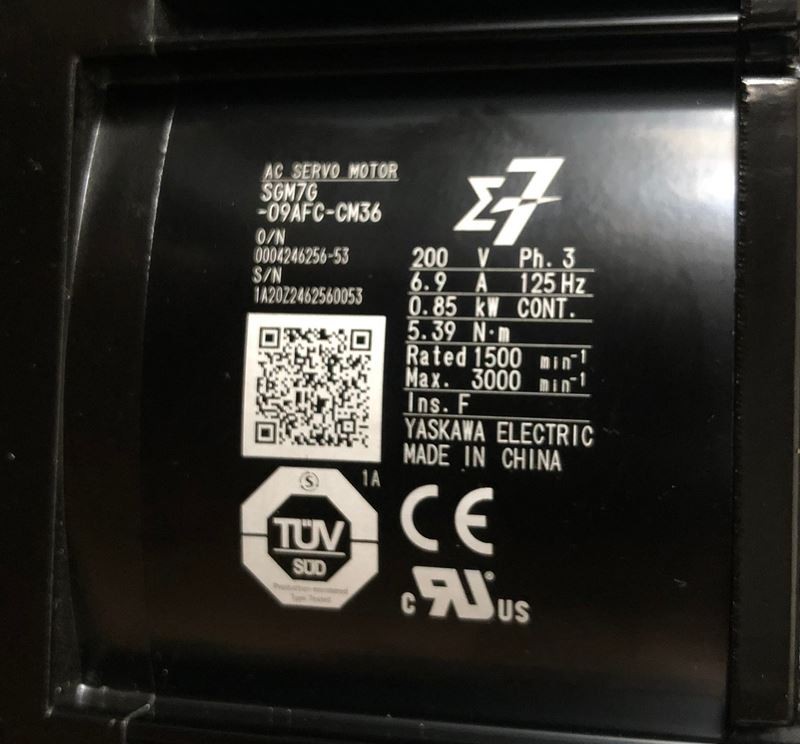

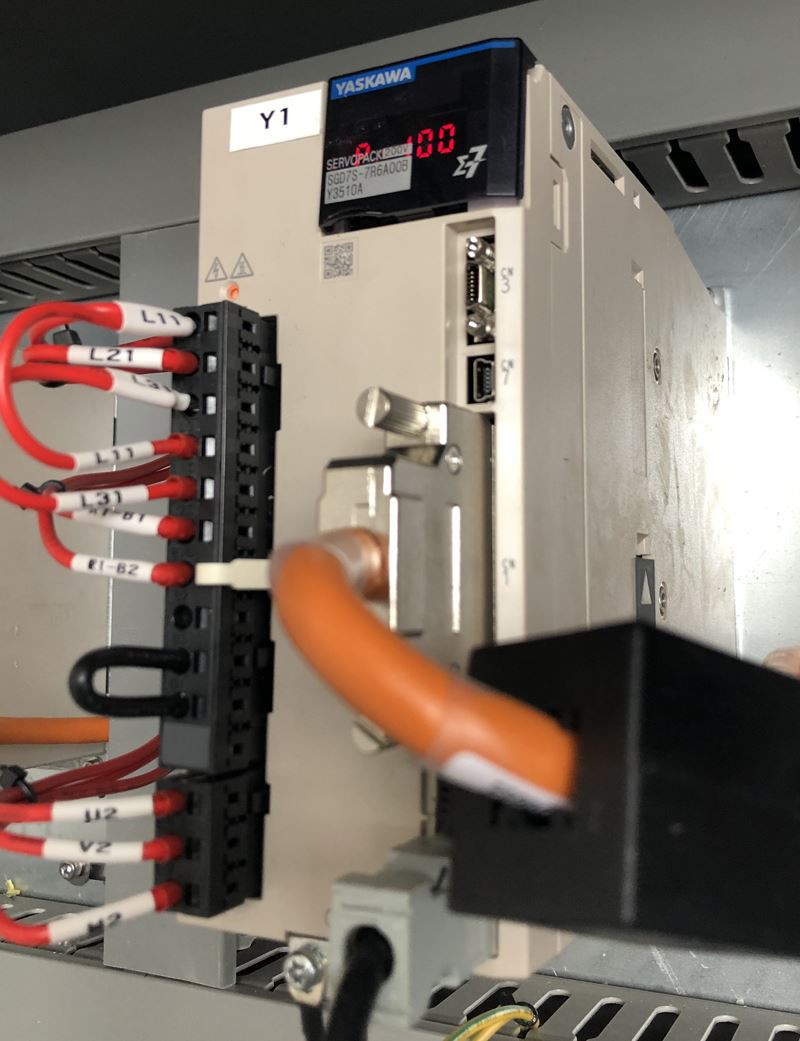

Japan Yaskawa AC Servo motor and driver

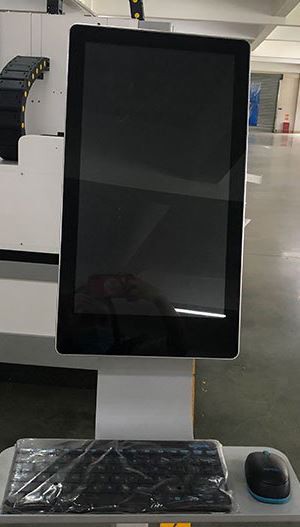

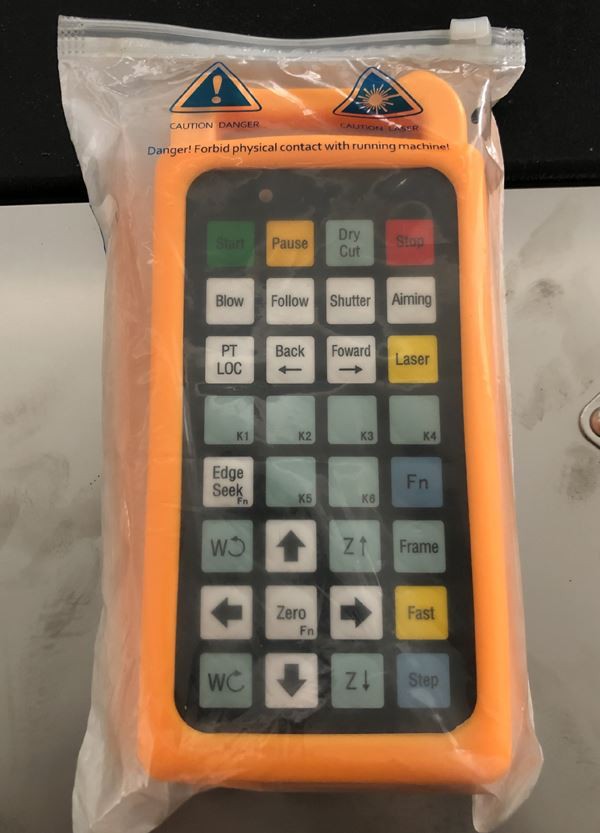

Industrial computer with handle

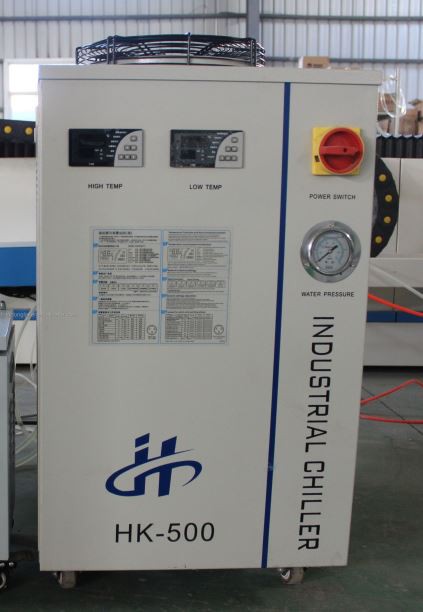

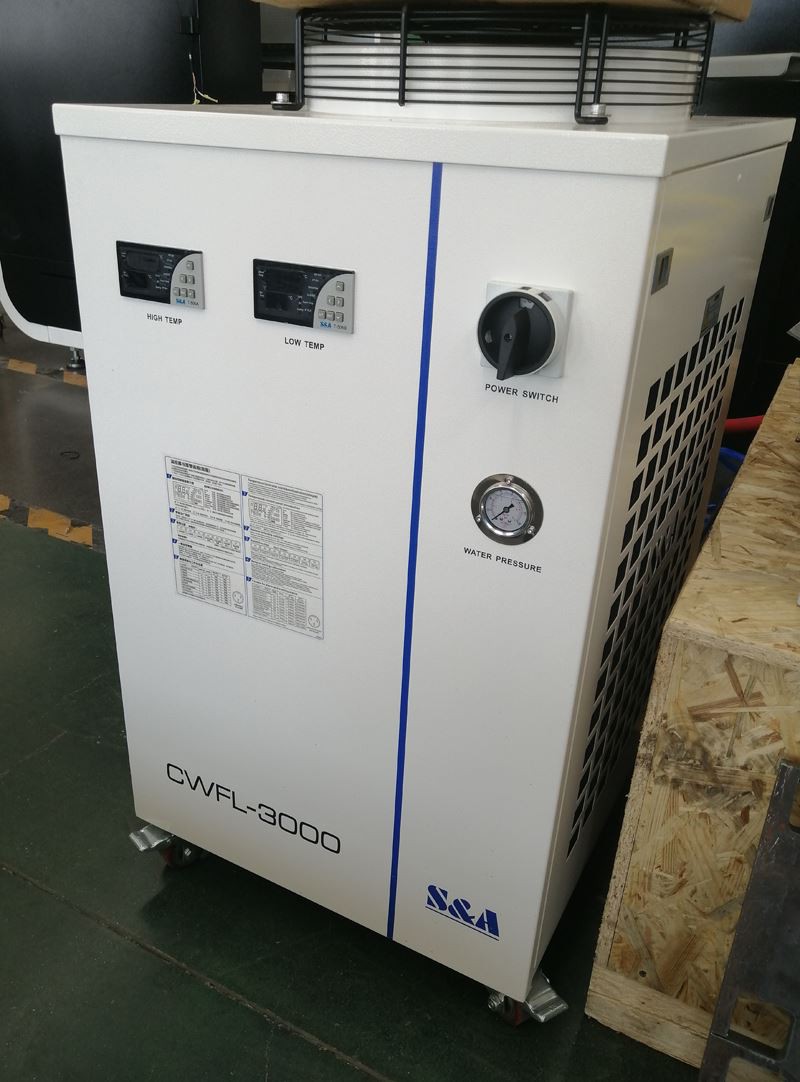

Different brand Industrial water chiller

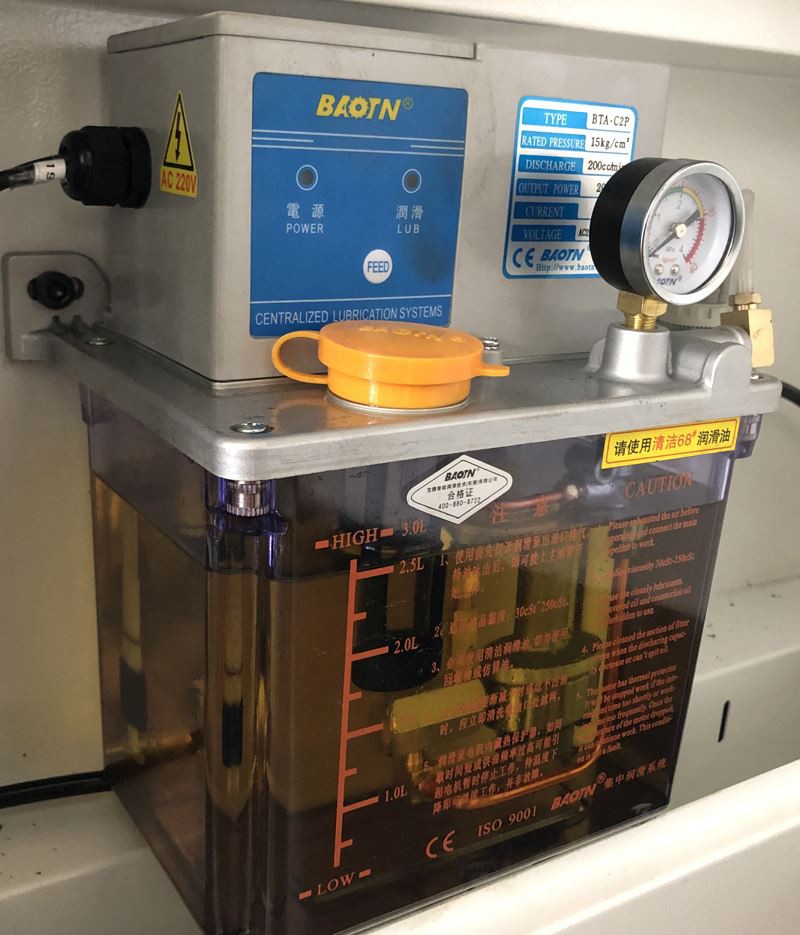

Auto lubrication system

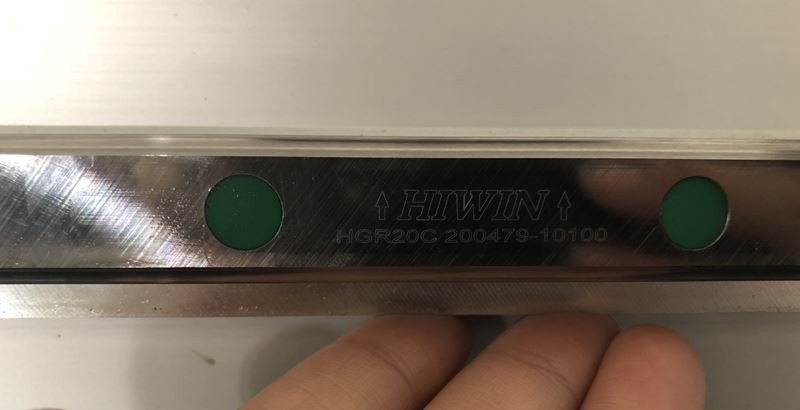

Taiwan Hiwin Guide rail,also has some other brand for optional

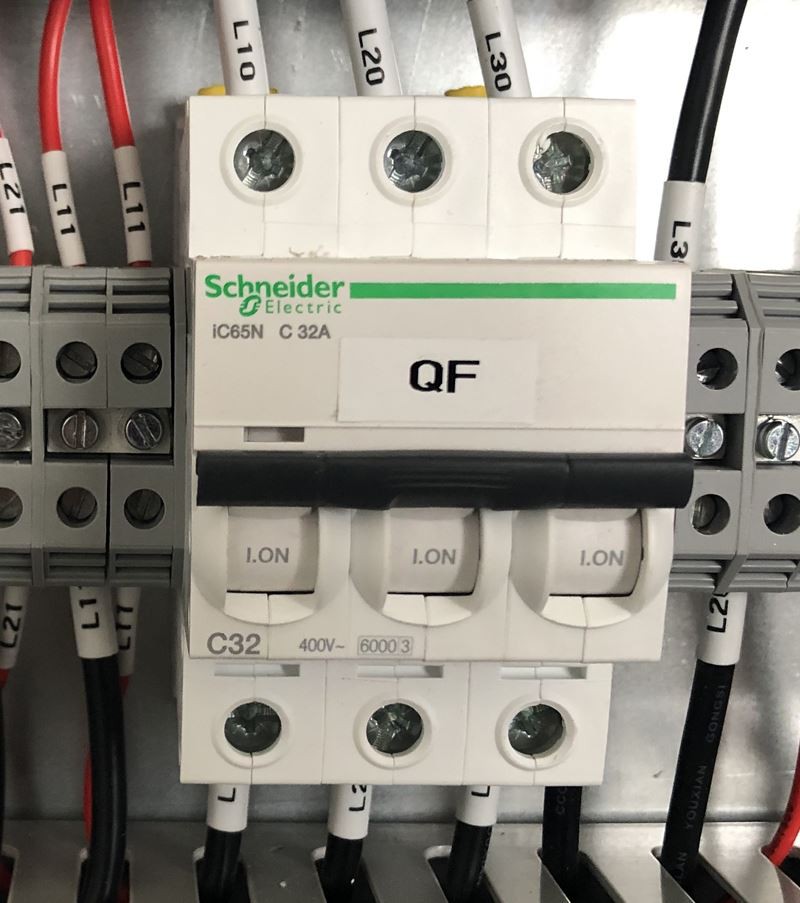

France Schnerider electrical components

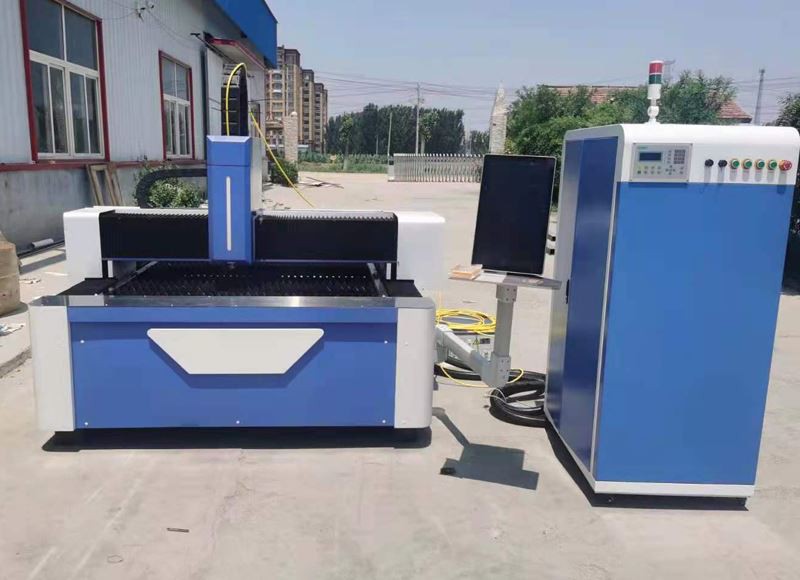

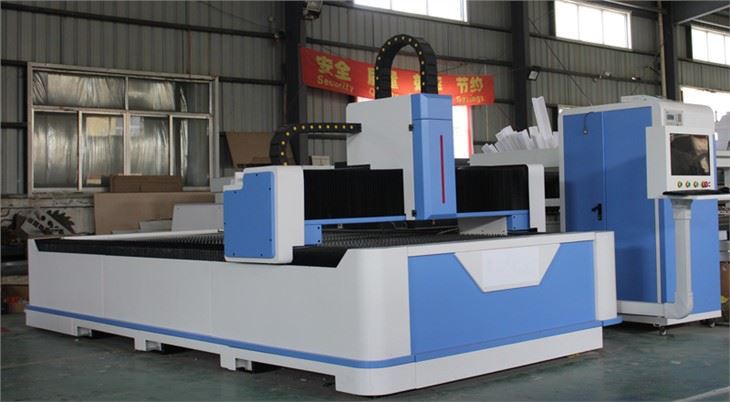

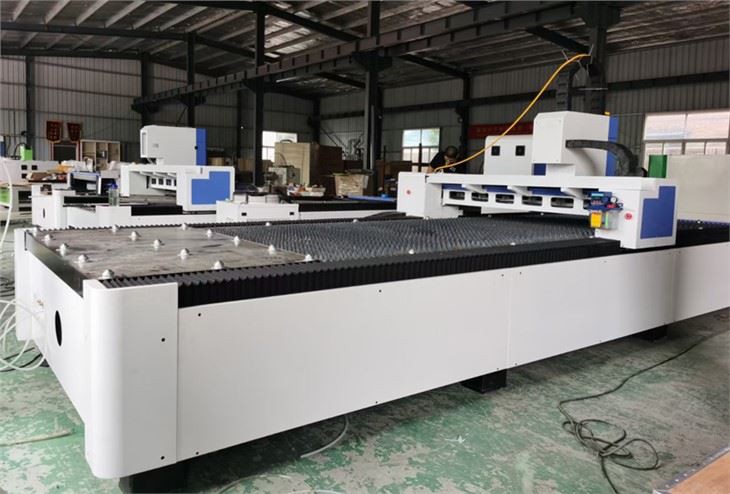

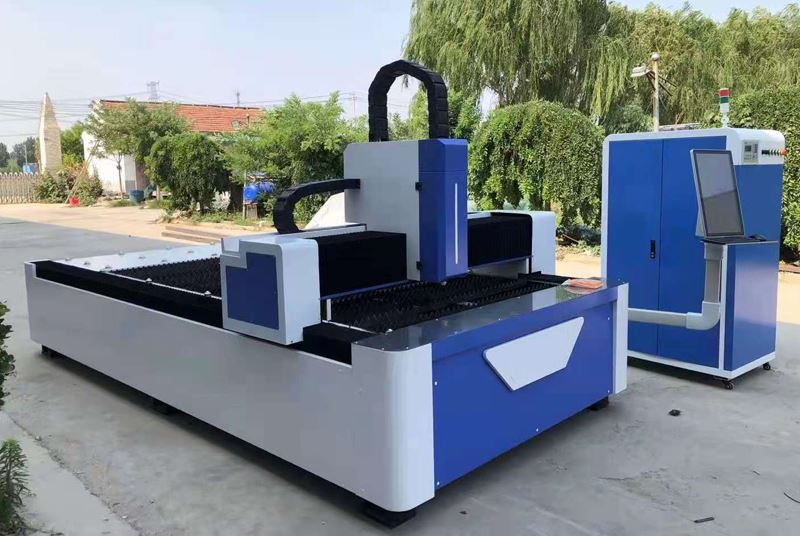

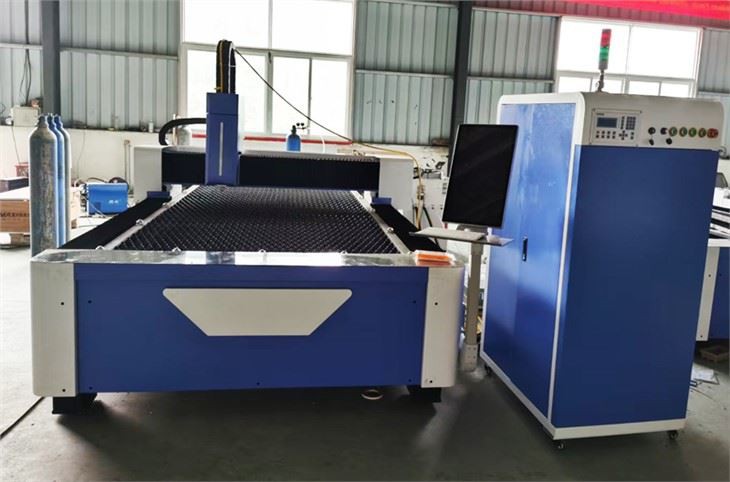

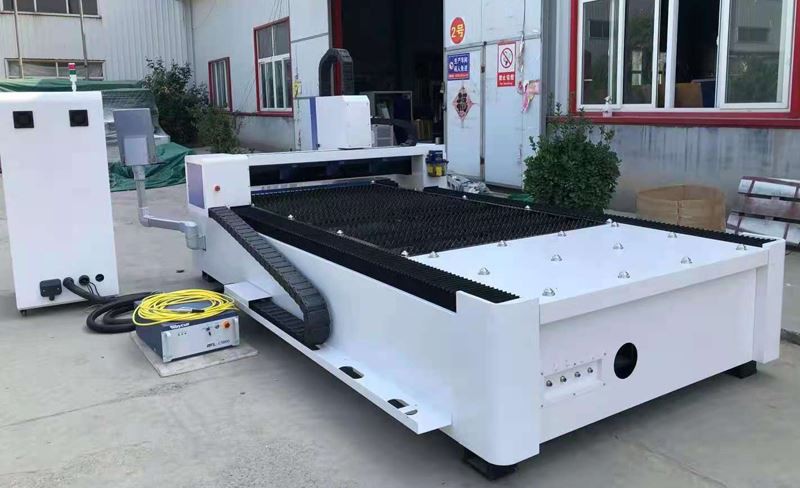

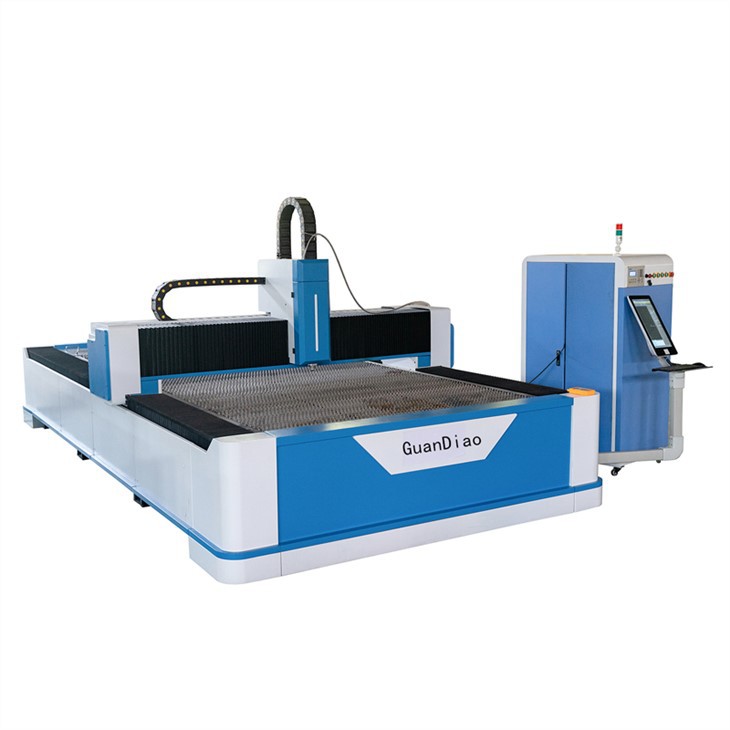

| Model | GD3015 flat-plate fiber laser cutting machine |
| Machine dimension | 4500x2500x1700mm |
| Working Area | 3000m*1500mm(10*5ft) |
| Fiber Laser Power | 1000W, 2000W,3000W,4000W,6000W,8000W |
| Fiber Laser Source | Raycus/IPG |
| Max. Cutting Speed | 60m/min |
| Repeated Positioning Accuracy | 0.02mm |
| Max.Acceleration | 1.0G |
| Transmission | Precise pinion and rack, dual-drive transmission |
| Machine Weight | 3500KG |
Machine Application

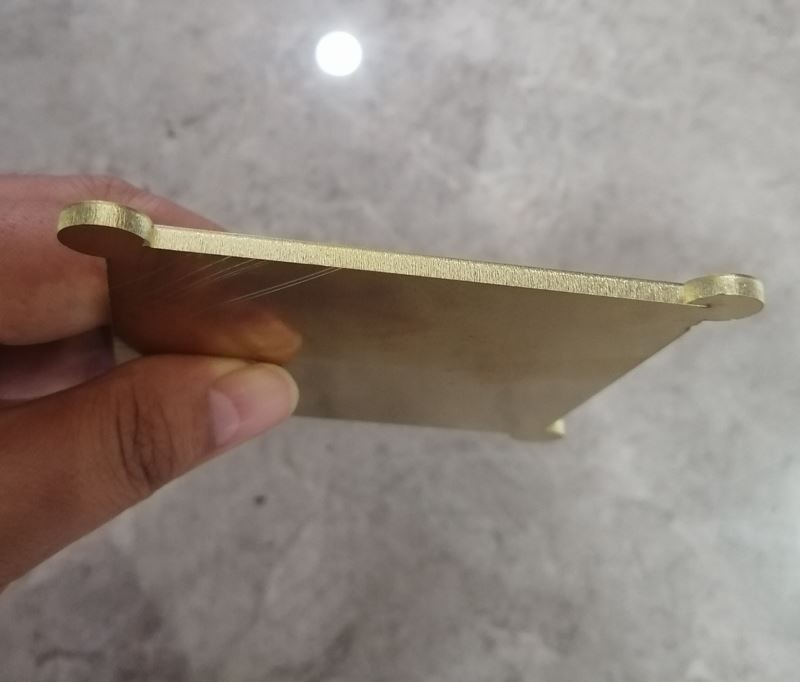

Fiber Laser Cutting Equipment is suitable for metal cutting like Stainless Steel Sheet, Mild Steel Plate,
Carbon Steel Sheet, Alloy Steel Plate, Spring steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, If you equipped with the rotary axis, Metal Plate, Tubes and Pipes, all ok.
About us
Our Service
1) Guarantee12 months guarantee of the whole machine, 6 months guarantee of the laser tube.
2) Software issueOur technician is able to re-install or set up by remote for free.
3) Hardware issueMain parts(excluding the consumables) shall be replaced/repaired free of charge, if there is any problem during the warranty period.
4) Support onlineOur technician is able to teach you online to run the machine or eliminate the fault for free.
5) Training in Guandiao factoryWe are able to train your staff after placed order in our factory for free.
6) On-site training (Recommended, the most effective way)We are able to send technician to your workshop to do the installation and training. You will need bear the related costs(flight, visa, hotel, training costs, etc.)
FAQ
Q1. How to get the most suitable machine and best price
As we may know, the different power fiber laser cutting machine can cut different thickness material, So you need to tell us what is your materials and max thickness,then we will recommend you with best suitable machine.
Q2. If we don't know how to use the machine, can you teach us?
Yes, We will send you manual and guide vedio in English, it can teach you how to operate the machine. If you still can not learn how to use it, we can help you by "Teamviewer" online helpsoftware.Or we can talk by phone, email or skype
Q3.How long is the delivery time?
For standard machines, it would be 30 days; For non-standard machines and customized machines according to client's specific requirements, it would be 40-50 days.
Q4. Quality Control:
The whole production procedure will be under regular inspection and strict quality control. Tea
complete machine will be tested to make sure they can work very well before being out of factory.
Our machine passed CE Certificate, meet European and American standard, were exported to more than 100 Countries.
Q5. Do you arrange shipment for the machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
