Product Description
Main specification
W3D Scanning
Without the need of cables to connect to computers, you can enjoy complete freedom of 3D scanning.
Real-time visualization
Real-time data display on your smartphone or tablet, for ease of scanning of large objects and scenes.
Portable and user-friendly
Light-weight 3D scanner & “AirMaster”, intuitive workflow for easy operation.
Long battery life
Adaptable to measurement tasks in indoor, outdoor and other complex environment;
Advanced operation
AirMaster wireless computational processor, with a built-in het-
erogeneous multi-core SOC processor, offers a calculation of
image data completely driven by the hardware.
W3D Scanning
Without the need of cables to connect to computers, you can enjoy complete freedom of 3D scanning.
Real-time visualization
Real-time data display on your smartphone or tablet, for ease of scanning of large objects and scenes.
Portable and user-friendly
Light-weight 3D scanner & “AirMaster”, intuitive workflow for easy operation.
Long battery life
Adaptable to measurement tasks in indoor, outdoor and other complex environment;
Advanced operation
AirMaster wireless computational processor, with a built-in het-
erogeneous multi-core SOC processor, offers a calculation of
image data completely driven by the hardware.
♦ Quickly identify the paper 1D barcode
♦ Plug & Play design, No need driver
♦ Auto sensing & continuous scanning
♦ Appearance with ergonomic design
♦ Long working time with 2600mAh battery capacity
♦ Compatible with a variety of systems
Specification

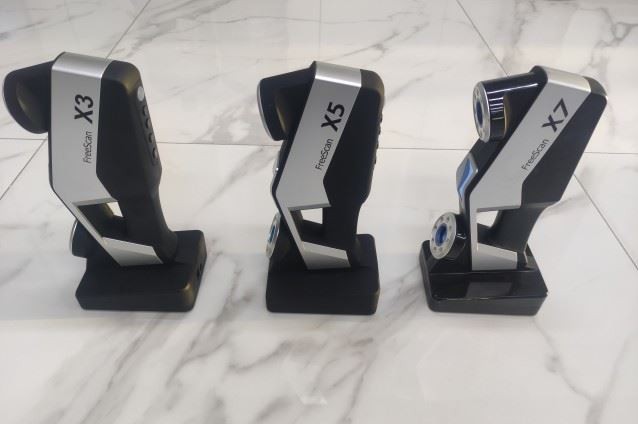

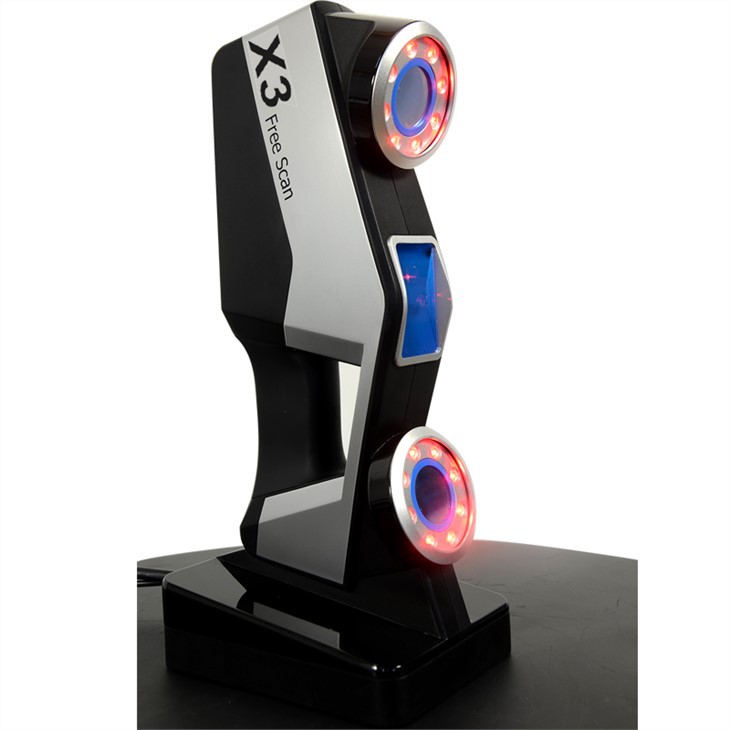

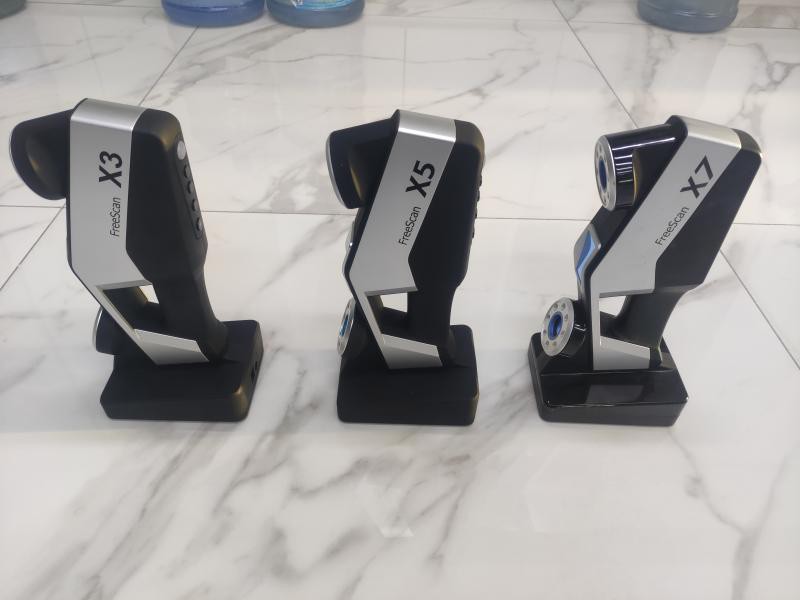

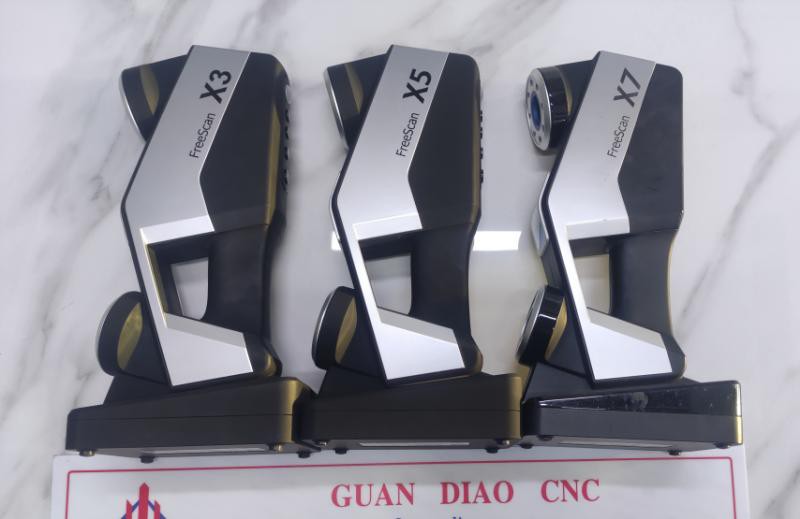

Mode | Freescan x3 | Freescan x5 | Freescan x7 |
Weight | 0.95kg | ||
Dimension | 130*90*310mm | ||
Scan rate | 240,000 points/s | 350,000 points/s | 480,000 points/s |
Scanning area | 280*250mm | 300*250mm | 300*275mm |
Light source | laser cross lines X3+1 class 2 (eye-safe) | laser cross lines X5+1 class 2 (eye-safe) | laser cross lines X7+1 class 2 (eye-safe) |
Resolution | 0.10mm | 0.1mm | 0.05mm |
Accuracy | 0.03mm | 0.03mm | 0.03mm |
Volumetric accuracy | 0.02+0.10 mm/m | 0.02+0.08 mm/m | 0.02+0.06 mm/m |
Extended scanning configuration | Digimetric | ||
Volumetric accuracy with Digimetric | 0.020+0.025 mm/m | ||
Standard-off distance | 300mm | ||
Depth of filed | 250mm | ||
Scanning parts size | 0.1-6mm | 0.1-8mm | 0.1-8mm |

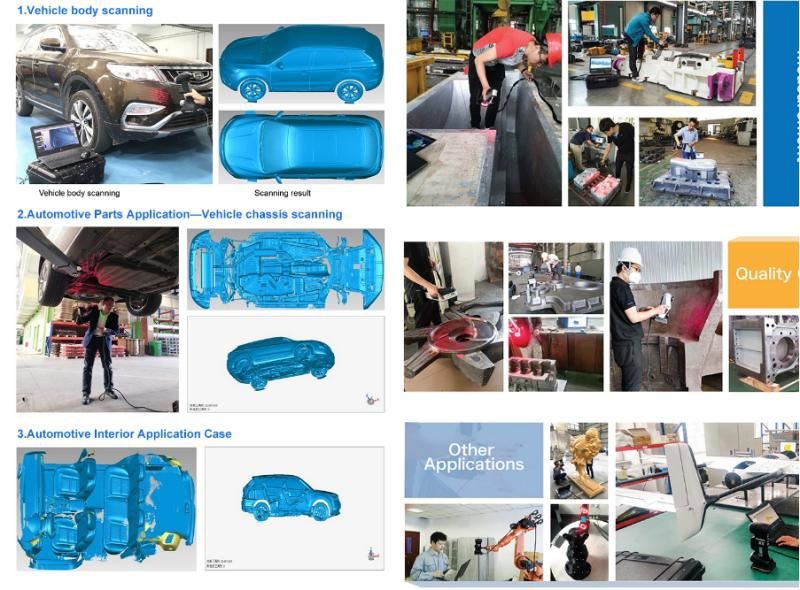

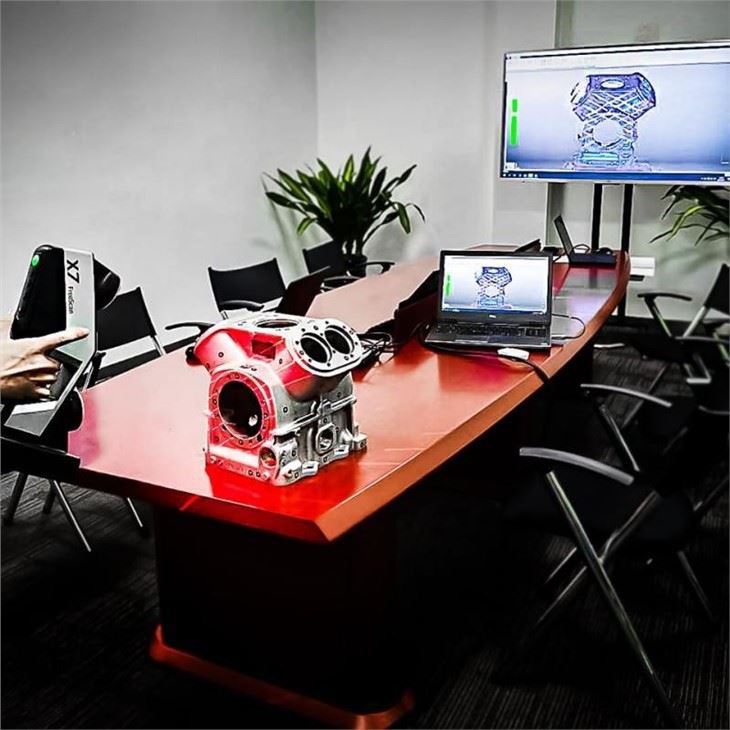

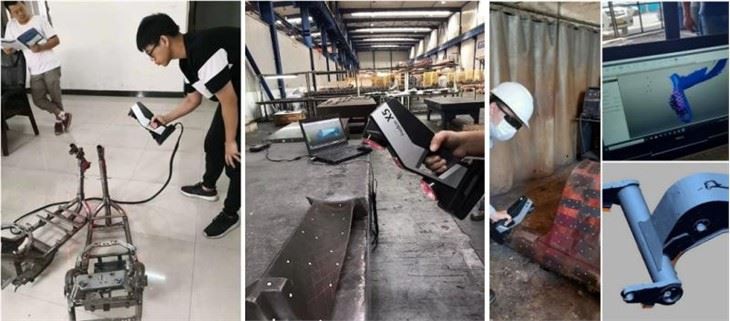

Samples Display

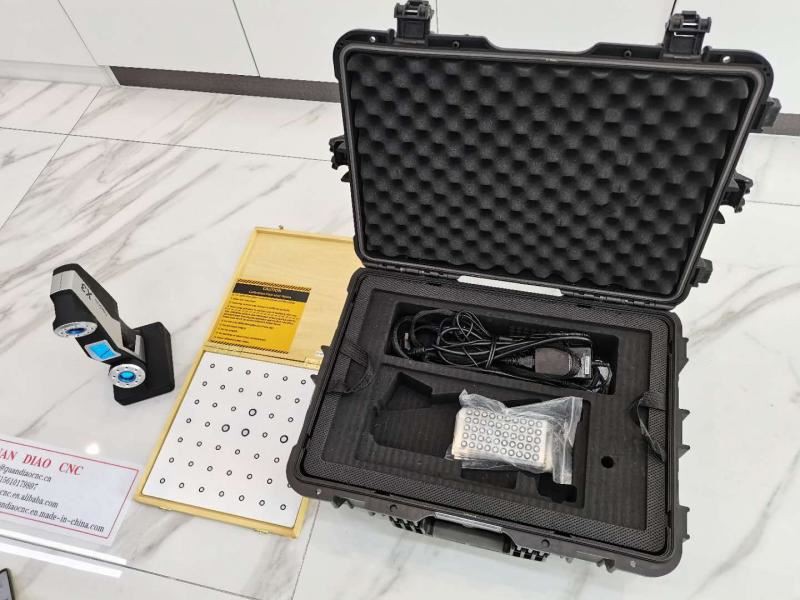

Packing & Delivery
1.Package:one wooden case,inside and outside package.
2.Transportation way: The express(DHL/UPS/FEDEX), by air ,by sea ,by train.
3.Lead time: 10-12 workdays.
3.Lead time: 10-12 workdays.
4. Warranty: Two years period.
5. Instruction Book, Training Video.
6.24 hours Online Service.
7.TT/Ali Trade Assurance Payment.
