Production Introduction

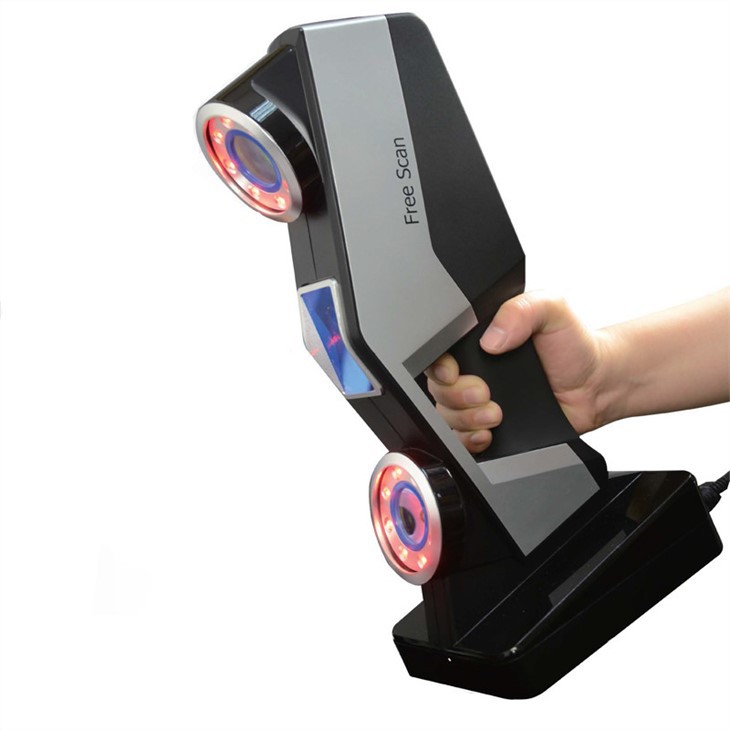

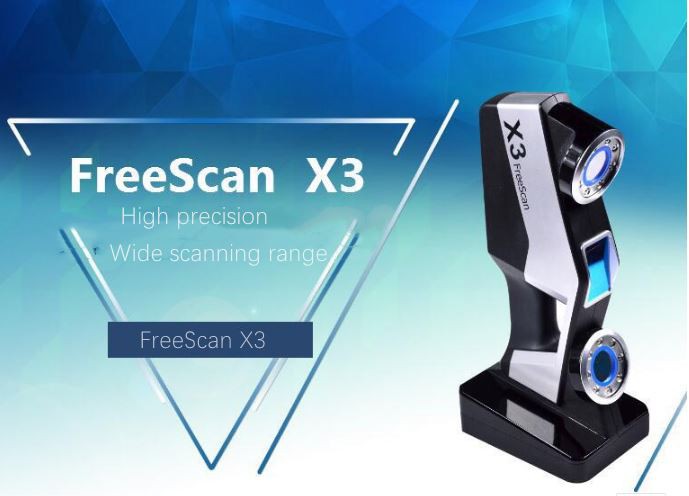

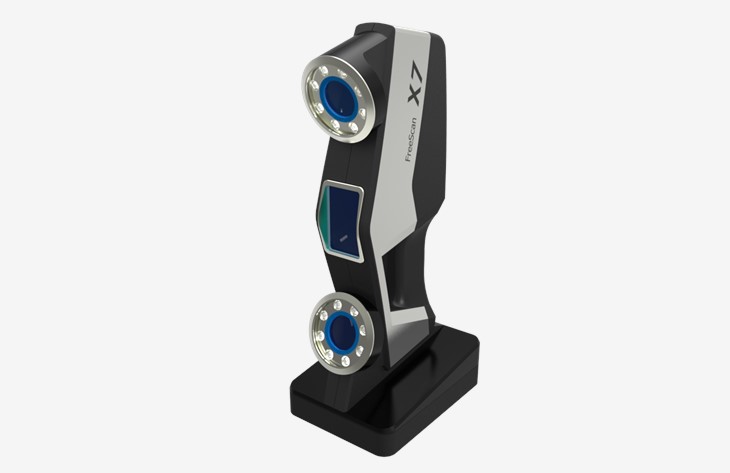

Production details
|
|

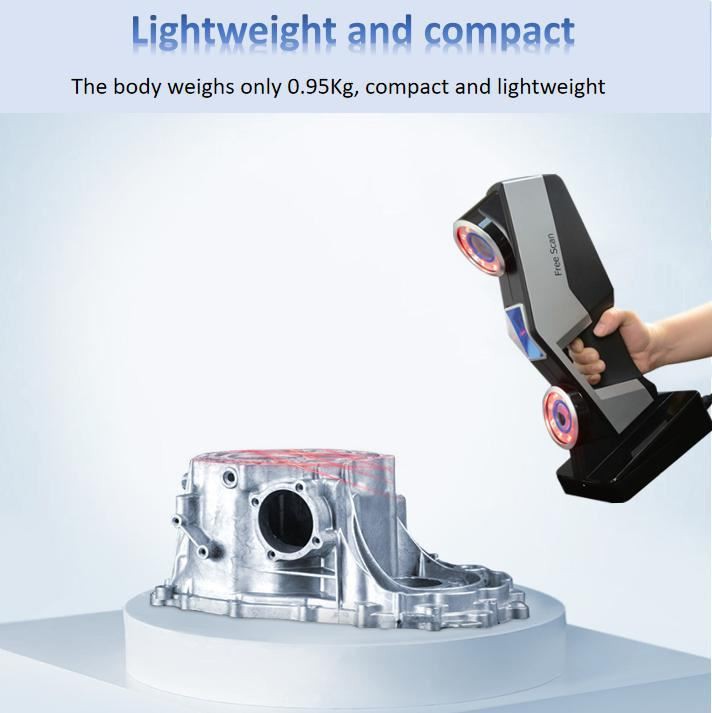

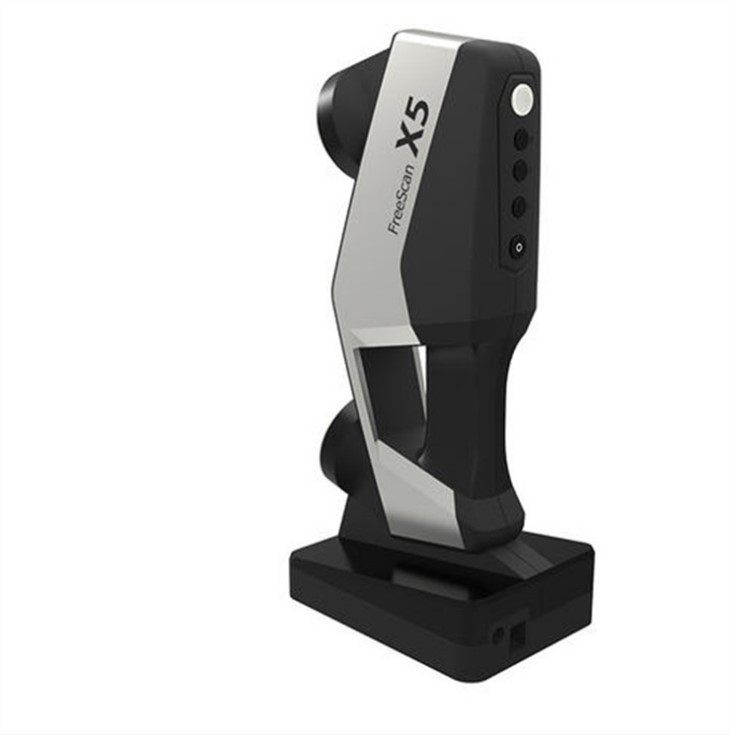

The body weighs only 0.95kg, compact and lightweight
|
|

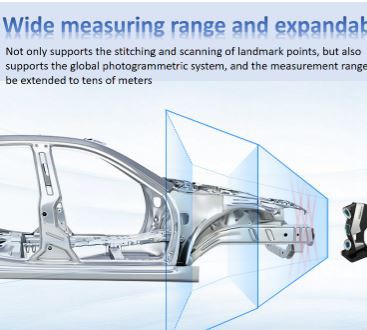

Not only supports the stltching and scanning of landmark points,but also supports the global photogrammetric system,and the measurement range can be extended to tens of meters |
|
|
|

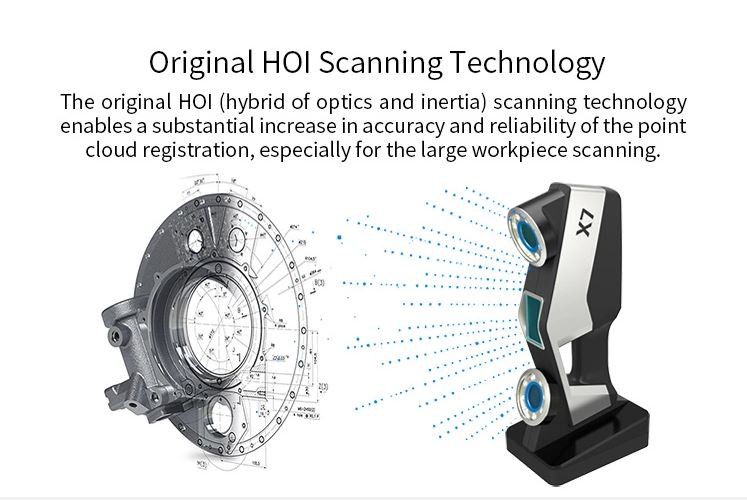

Original HOI Scanning Technology The original HOI (hybrid of optics and inertia) scanning technology enables a substantial increase in accuracy and reliability of the point cloud registration, especially for the large workpiece scanning。
|

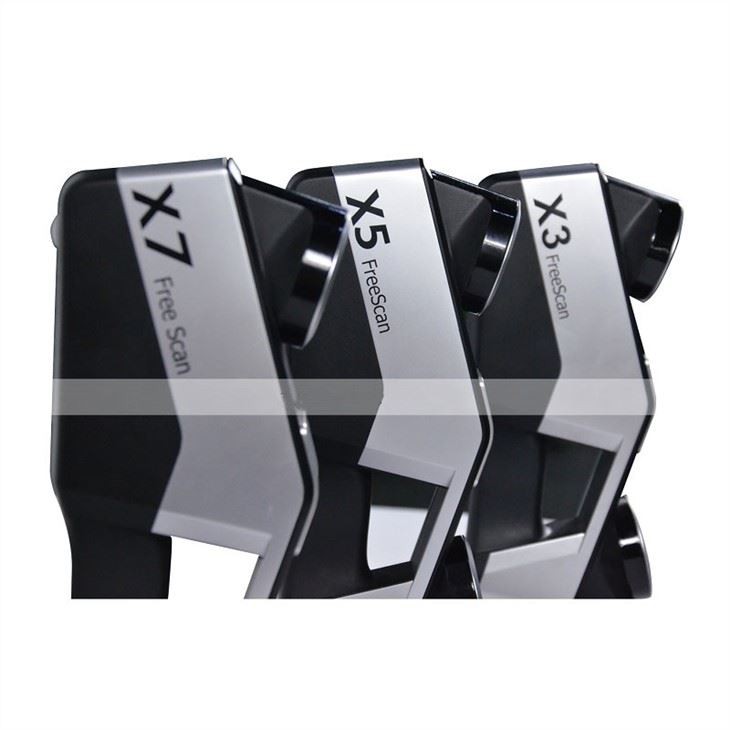

Production parameters

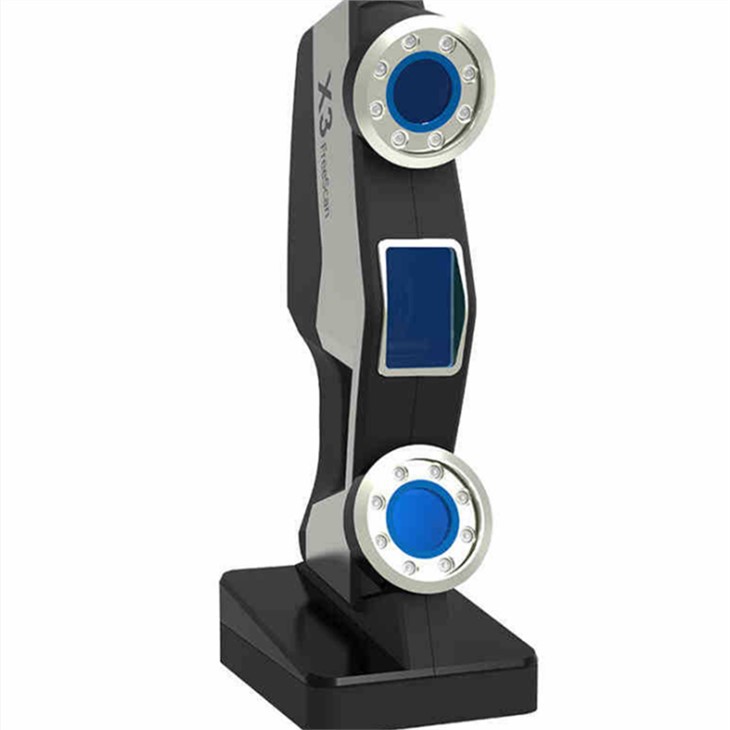

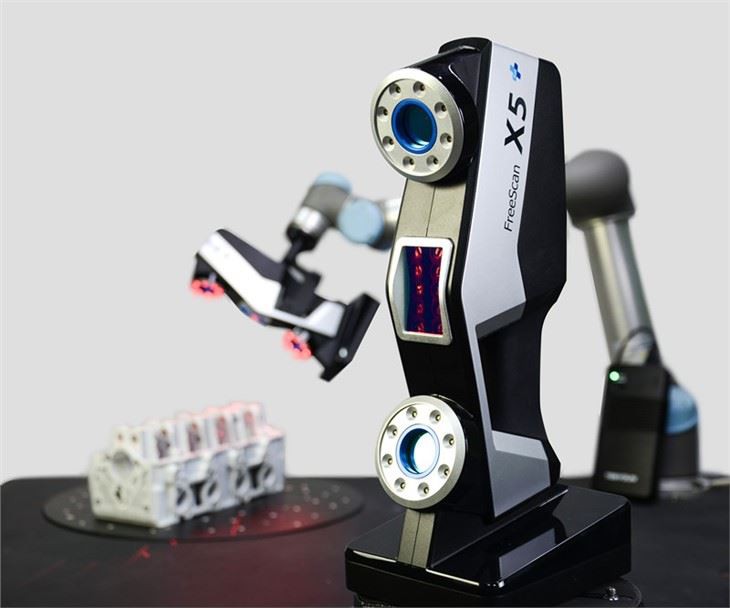

| Model | Freescan X3 | Freescan X5 | Freescan X7 |
| Weight | 0.95KG | ||
| Dimension |
130x90x310mm |
||
| Scan speed | 240,000 points/s | 350,000 points/s | 480,000 points/s |
| Scanning area | 280*250mm | 300*250mm | 300*275mm |
| Light source | Laser cross lines X3+1 class 2(eys-safe) | Laser cross lines X5+1 class 2(eys-safe) | Laser cross lines X7+1 class 2(eys-safe) |
| Resolution | 0.1mm | 0.1mm | 0.05mm |
| Accuracy | 0.03mm | ||
| Volumetric accuracy | 0.02+0.1mm/min | 0.02+0.08mm/min | 0.02+0.06mm/min |
| Extended scanning configuration |
Digimetric |
||
| Volumetric accuracy with digimetric |
0.02+0.025mm/m |
||
| Standard-off distance |
300mm |
||
| Depth of filed |
250mm |

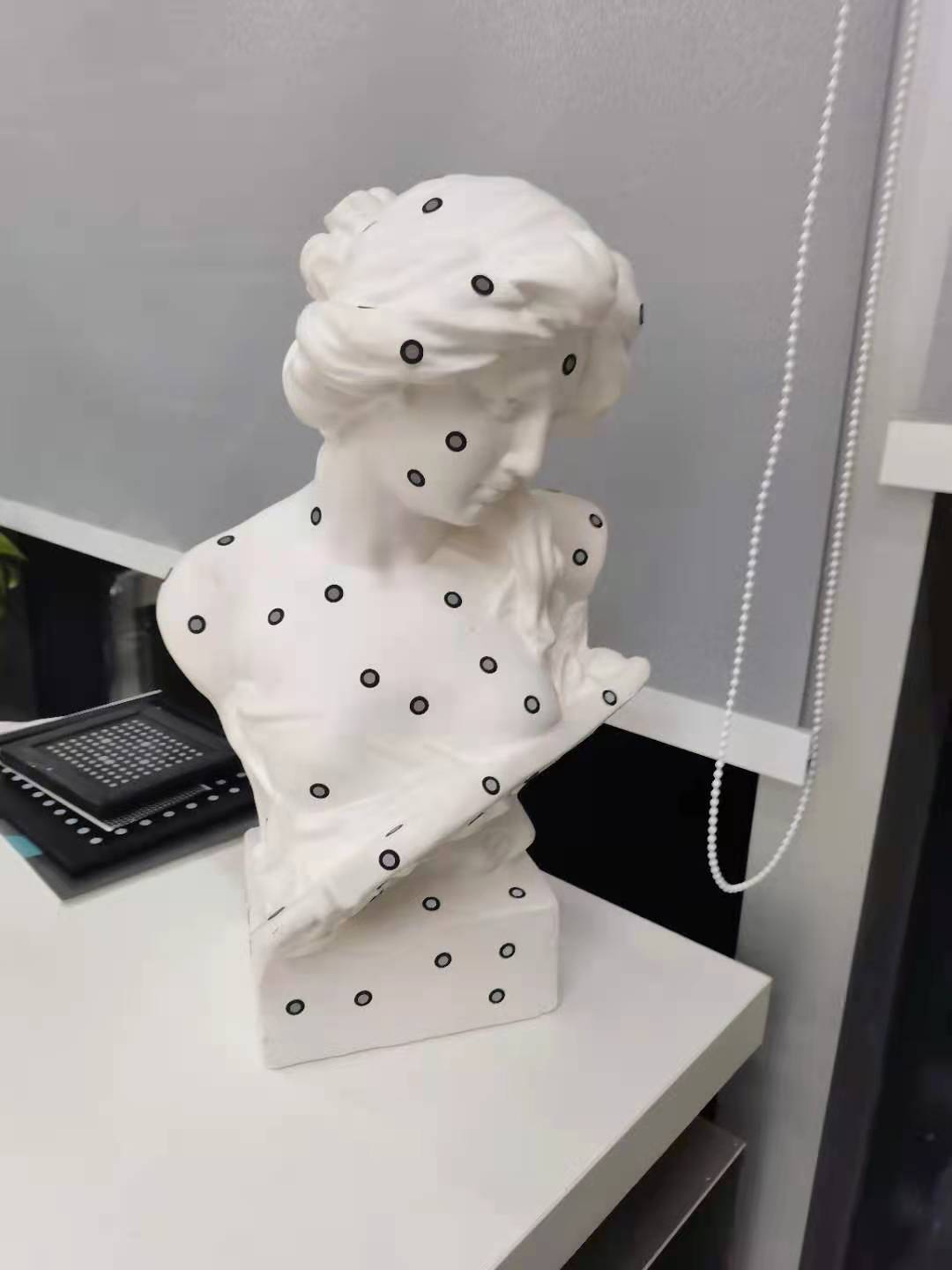

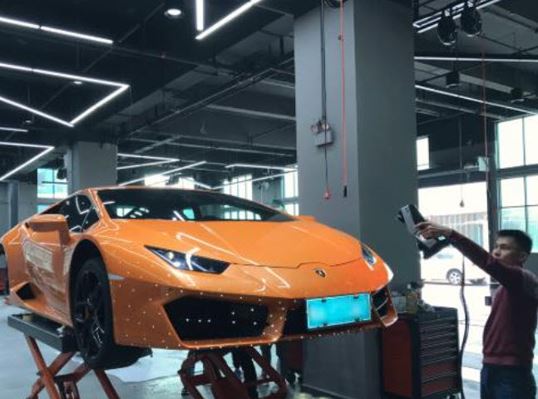

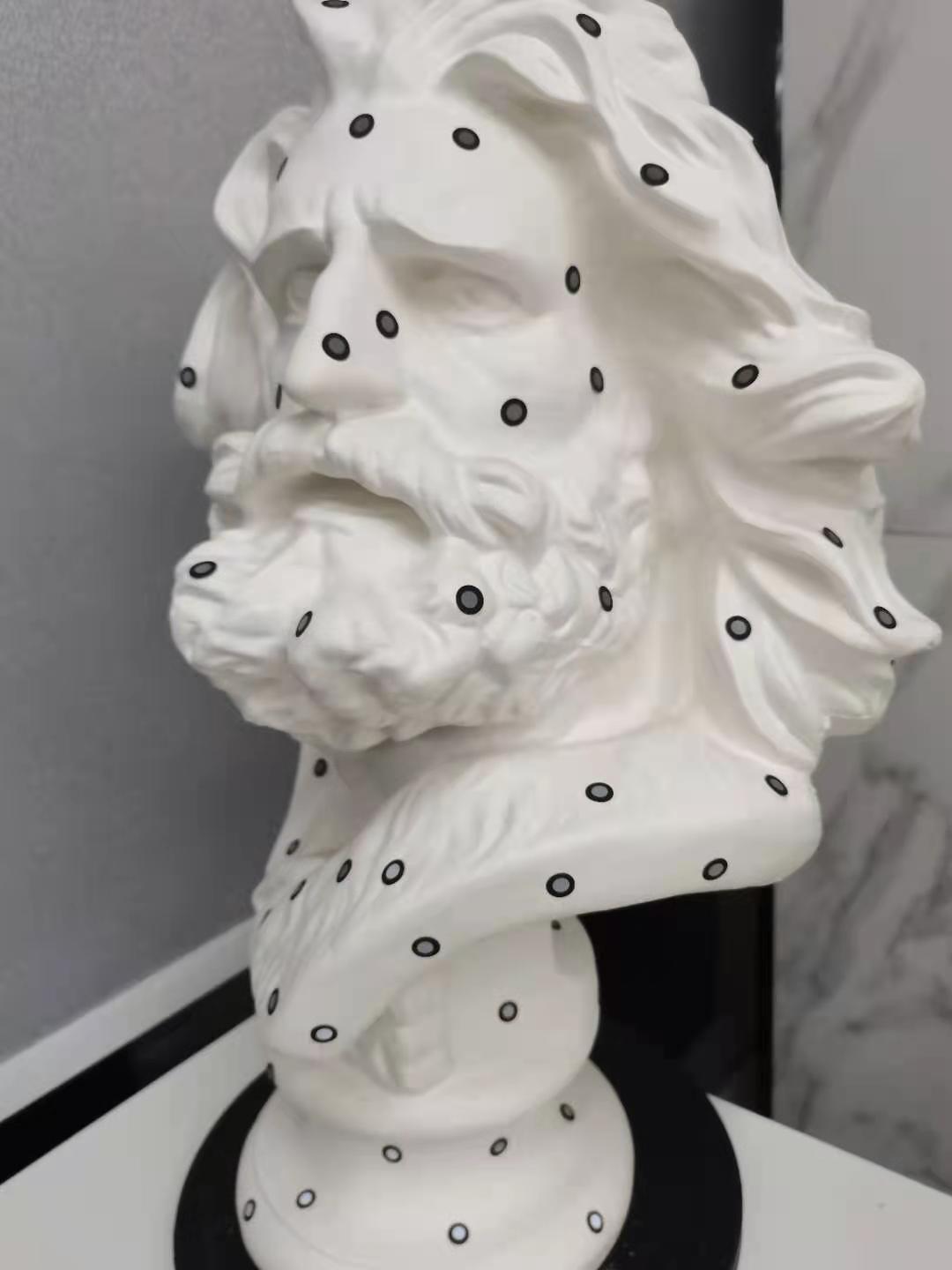

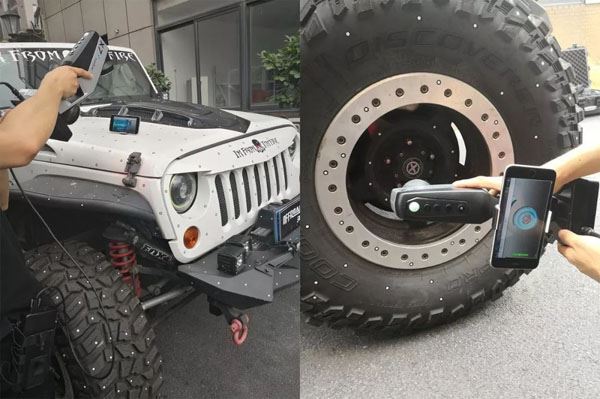

Sample
Package&shipping

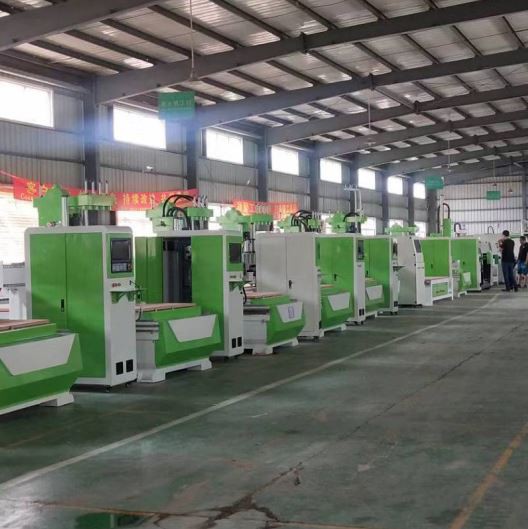

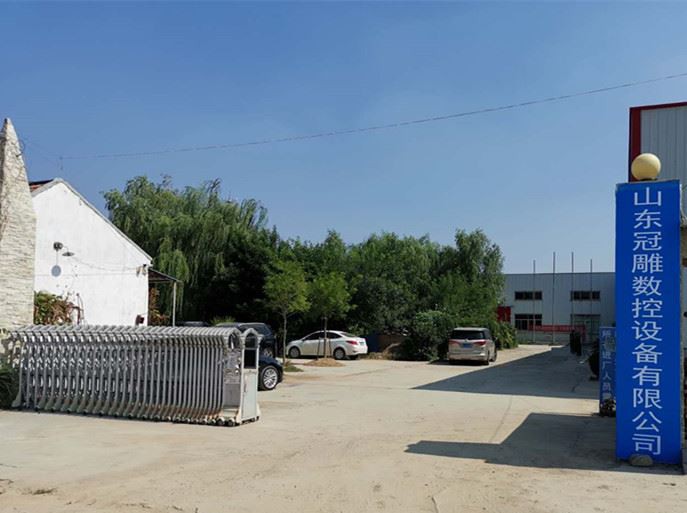

Company
|
|
|
|
|
|
After sale services
1. Do you have any machines in our country?
Our machines have been sold to more than 20 countries all over the world, like Russia, Singapore, Uzbekistan, The USA,Malaysia,Peru, Colombia, Vietnam, Slovakia, etc.
2. Can you customized the machine?
Our machines can be customized made according to buyers’ request.
3. What other machine do you offer?
We provide one-stop shop service of woodworking machines for the buyers. Other kinds of woodworking machines, like sanding machine, CNC router, drilling machine, saw machine can be provided as well.
4. Can you set the system to our language?
Our system supports common languages like Chinese, English,
