Production Introduction
Production details
|
|

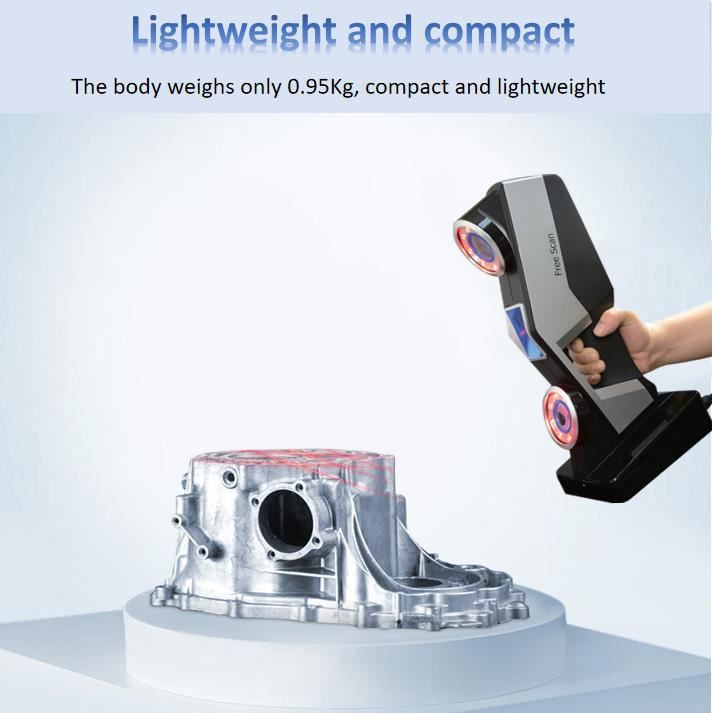

The body weighs only 0.95kg, compact and lightweight
|
|

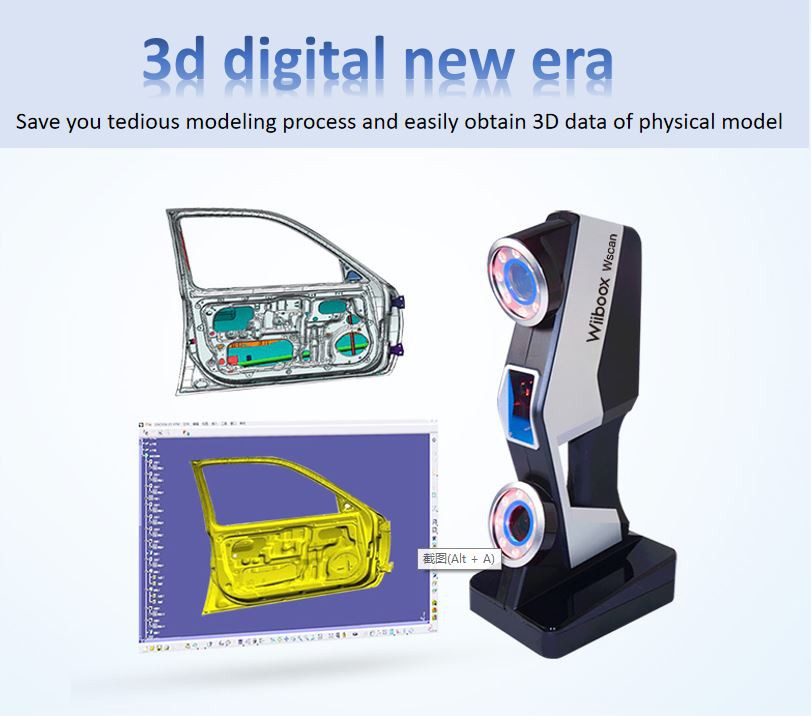

3d digital new era Save you tedious modeling process and easily obtain 3D data of physical model
|
|
|
|

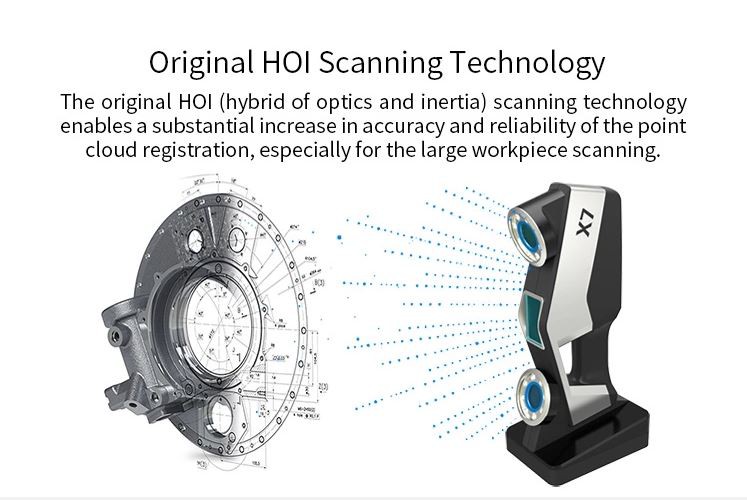

Original HOI Scanning Technology The original HOI (hybrid of optics and inertia) scanning technology enables a substantial increase in accuracy and reliability of the point cloud registration, especially for the large workpiece scanning。
|
Production parameters

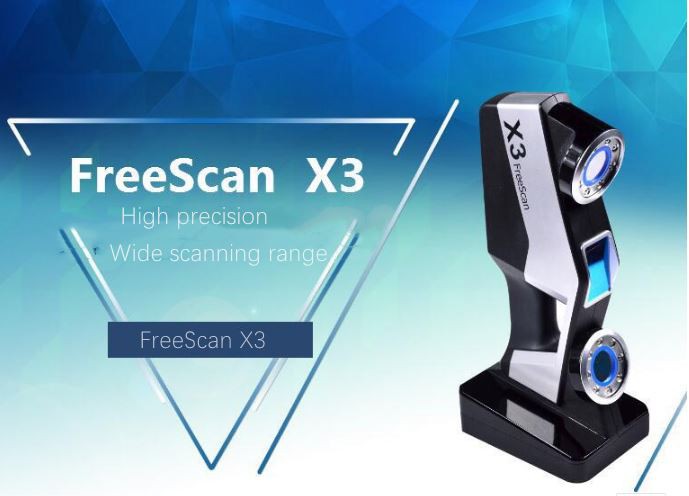

| Model | Freescan X3 | Freescan X5 | Freescan X7 |
| Weight | 0.95KG | ||
| Dimension |
130x90x310mm |
||
| Scan speed | 240,000 points/s | 350,000 points/s | 480,000 points/s |
| Scanning area | 280*250mm | 300*250mm | 300*275mm |
| Light source | Laser cross lines X3+1 class 2(eys-safe) | Laser cross lines X5+1 class 2(eys-safe) | Laser cross lines X7+1 class 2(eys-safe) |
| Resolution | 0.1mm | 0.1mm | 0.05mm |
| Accuracy | 0.03mm | ||
| Volumetric accuracy | 0.02+0.1mm/min | 0.02+0.08mm/min | 0.02+0.06mm/min |
| Extended scanning configuration |
Digimetric |
||
| Volumetric accuracy with digimetric |
0.02+0.025mm/m |
||
| Standard-off distance |
300mm |
||
| Depth of filed |
250mm |

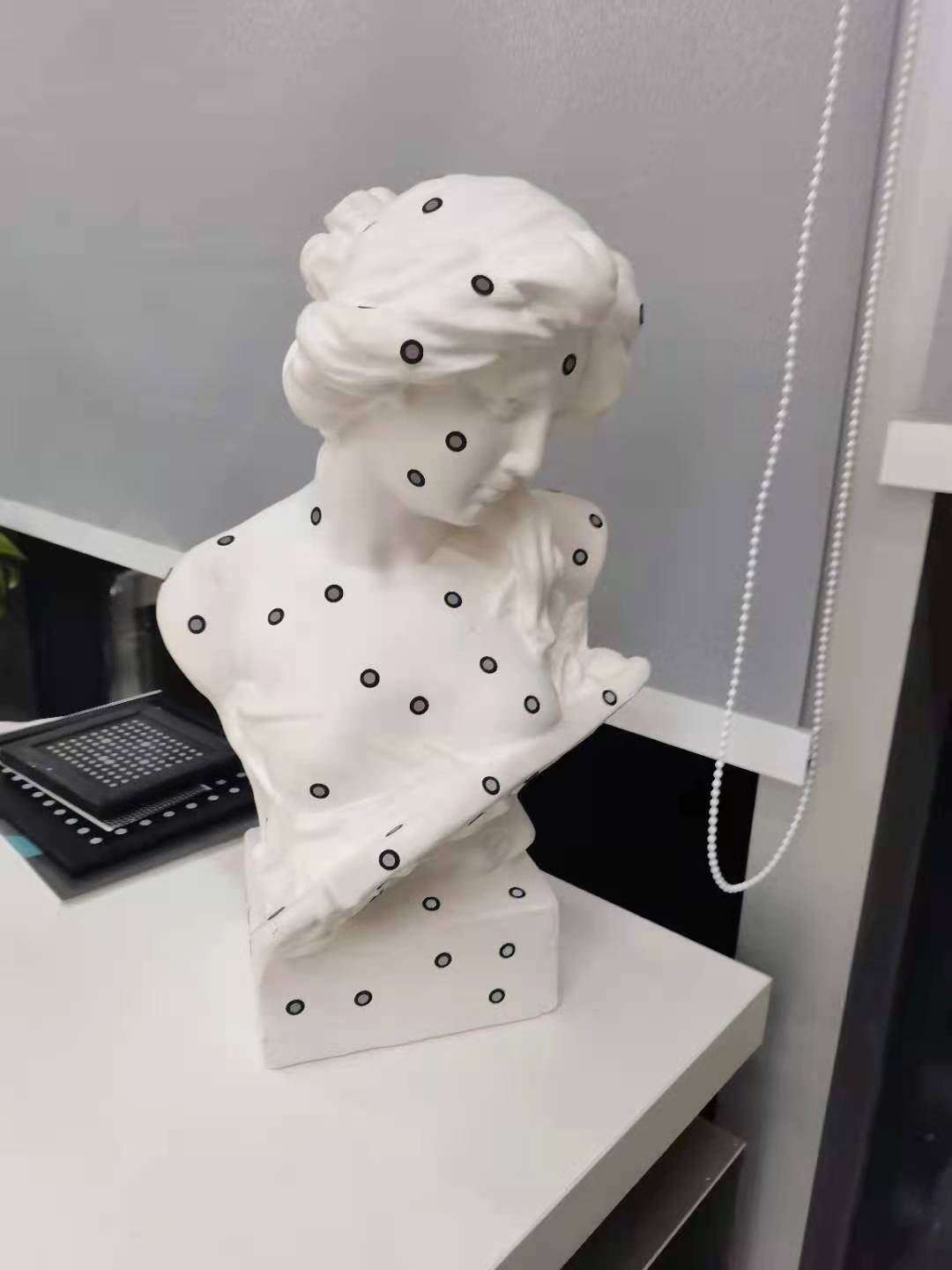

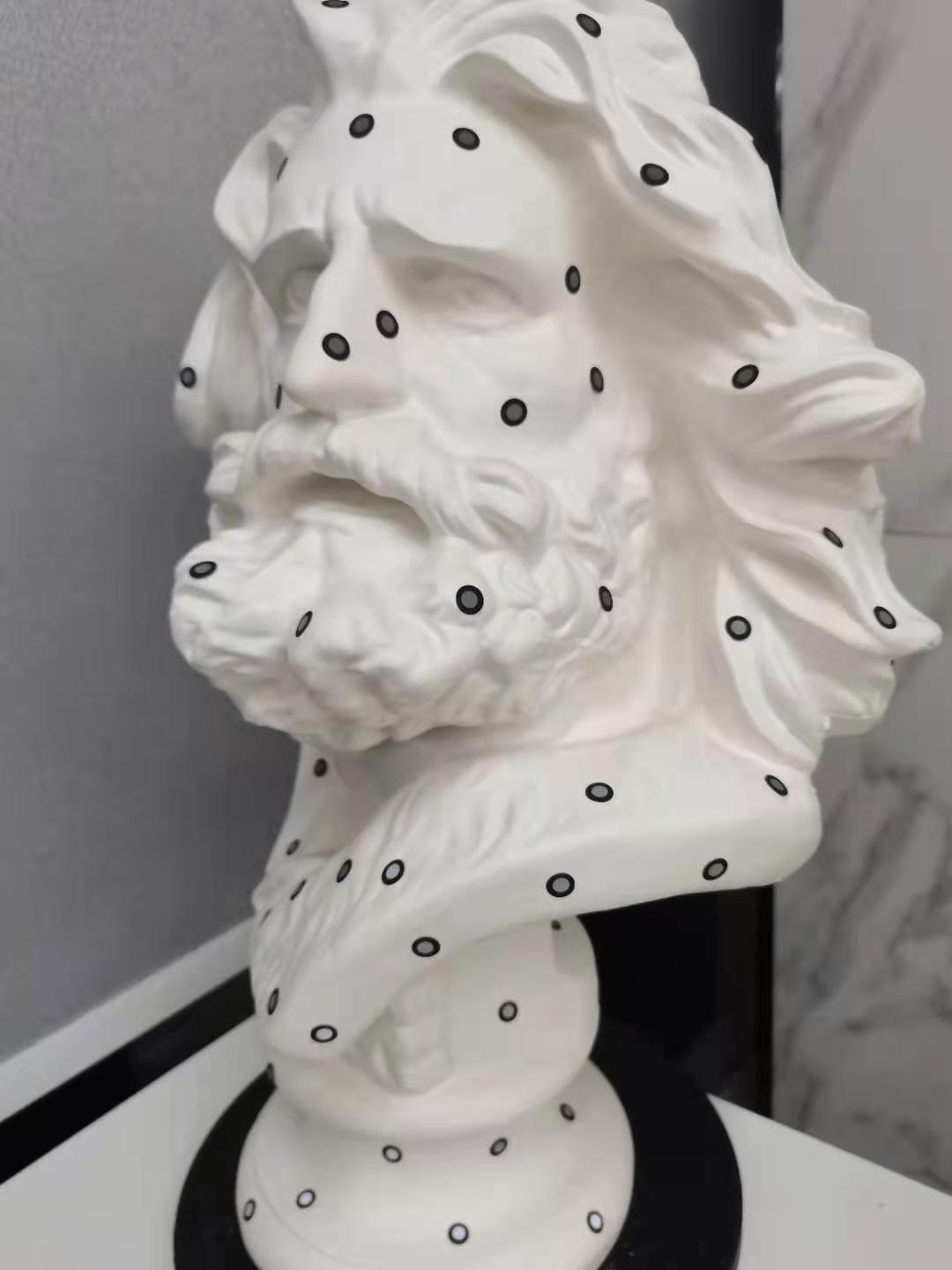

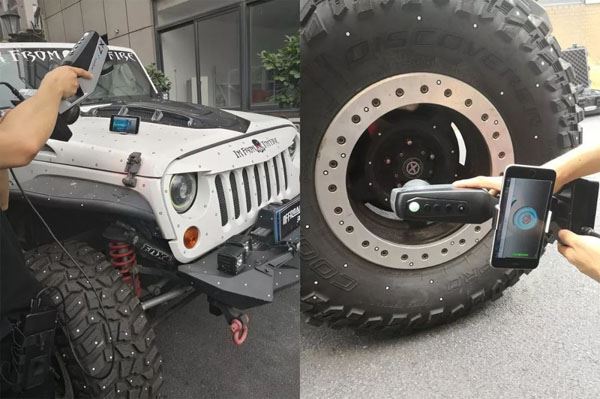

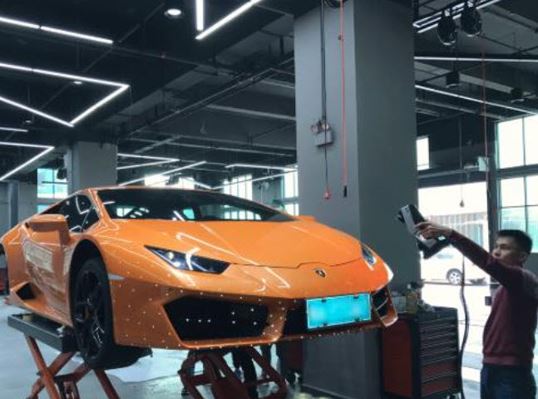

Sample
Package&shipping

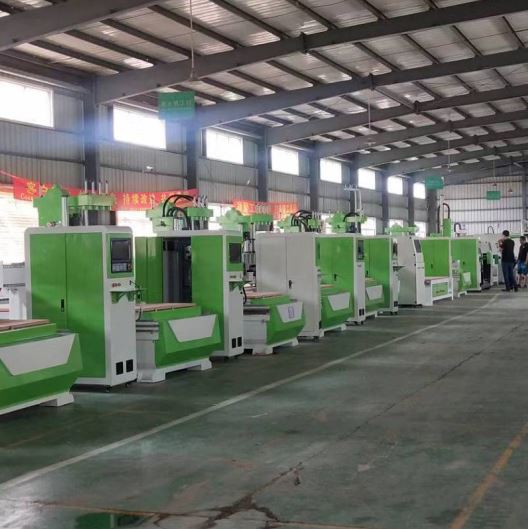

Company
|
|
|
|
|
|
Our services
1. Free Sample Machining Service
Send us your designed files, we will arrange free sample machining in our factory and make video to show you the process and result, or send samples to you to check the machining quality.
2. Machining Solution Design:
According to customer’s requirements, we can design the unique solution that supports higher manufacturing efficiency and better machining quality for customer.
3. Custom and OEM Service
The divisions and partnerships of GUANDIAO welcome both custom work and OEM customers. We have a broad range of capabilities and manufacturing strengths, which makes it possible for GUANDIAO to customize our existing products for OEM customers.
