Products Description
UE Pro 3D Scanner maintains FreeScan UE's high precision, stable repetitive precision and lightweight design, while improving the ability of fine scanning and global precision control of large workpiece scanning. It uses 26+5+1 blue laser lines to combine and integrate photogrammetric modules, taking into account speed, precision and detail, and will provide users with technical solutions that can be applied to different size scanning scenes, and carry out metrological accuracy detection, reverse design Additive manufacturing and other applications.
The accuracy can reach 0.02mm, and the volume accuracy is 0.02mm+0.04mm/m.
Stable repetition accuracy
The same workpiece is measured several times and the results are consistent. Stable and reliable, and can stand the test

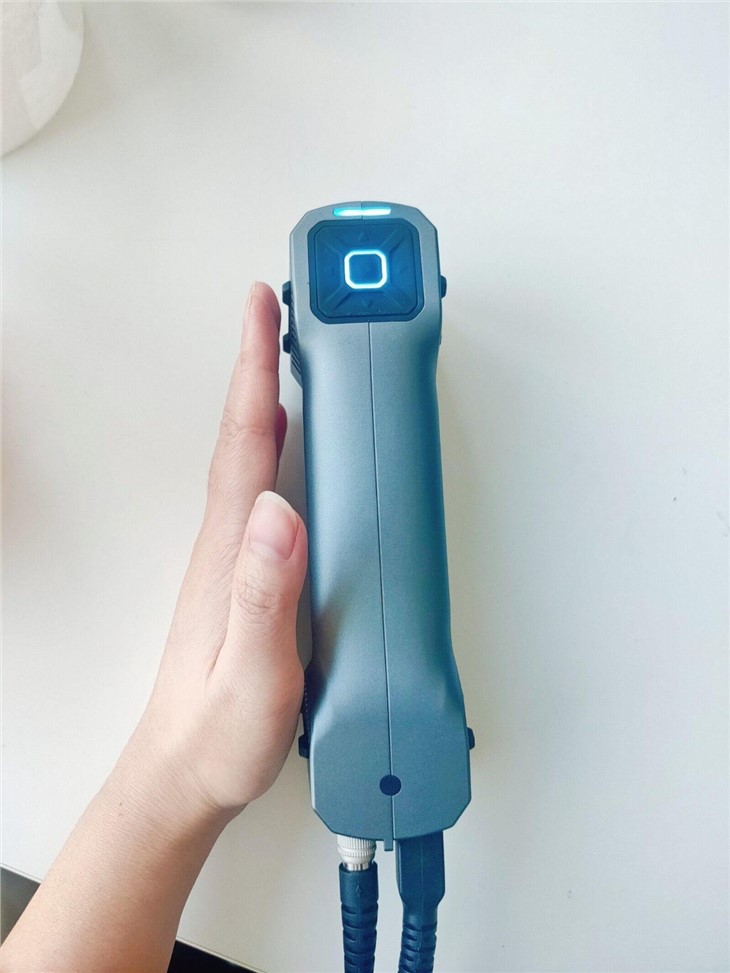

The device weighs only 750g, which makes it easier to hold the device and scan, effectively avoiding long-time working fatigue.
Smooth and efficient
The scanning format can reach 510mm * 520mm, and the larger field of vision brings a smoother and more efficient scanning experience.
Products parameters
| Model | UE7 | UE11 |
| Scan Style | Multi-line scanning, single-line scanning | |
| Scanning speed | 860000 points/second | 1350000 points/second |
| Lighting category | Class 2M (eye safety) | |
| Light source form | 14 lines+1 line blue laser | 22-wire+1-wire blue laser |
| Certificate | CE，FCC，ROHS，WEEE | |

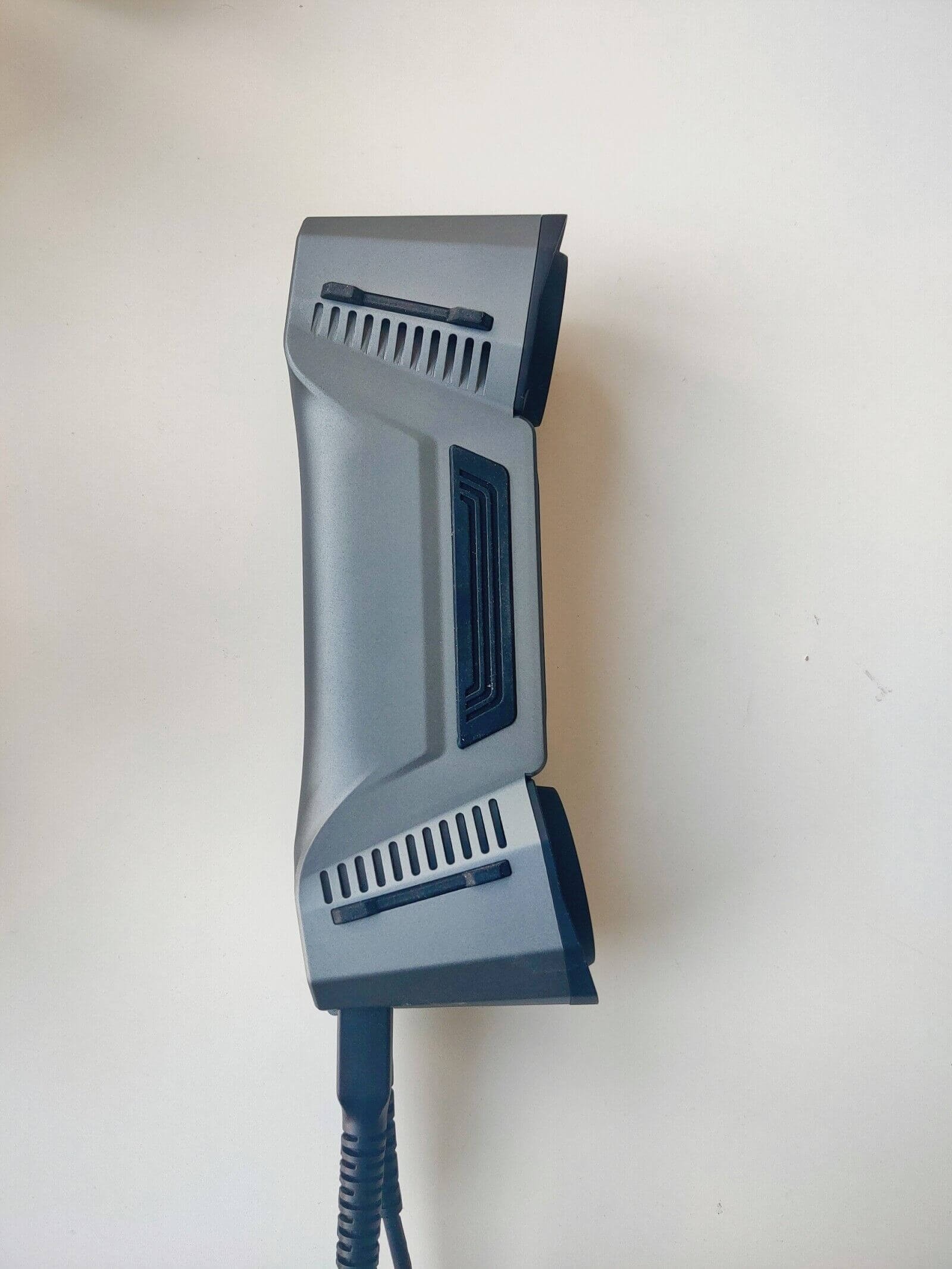

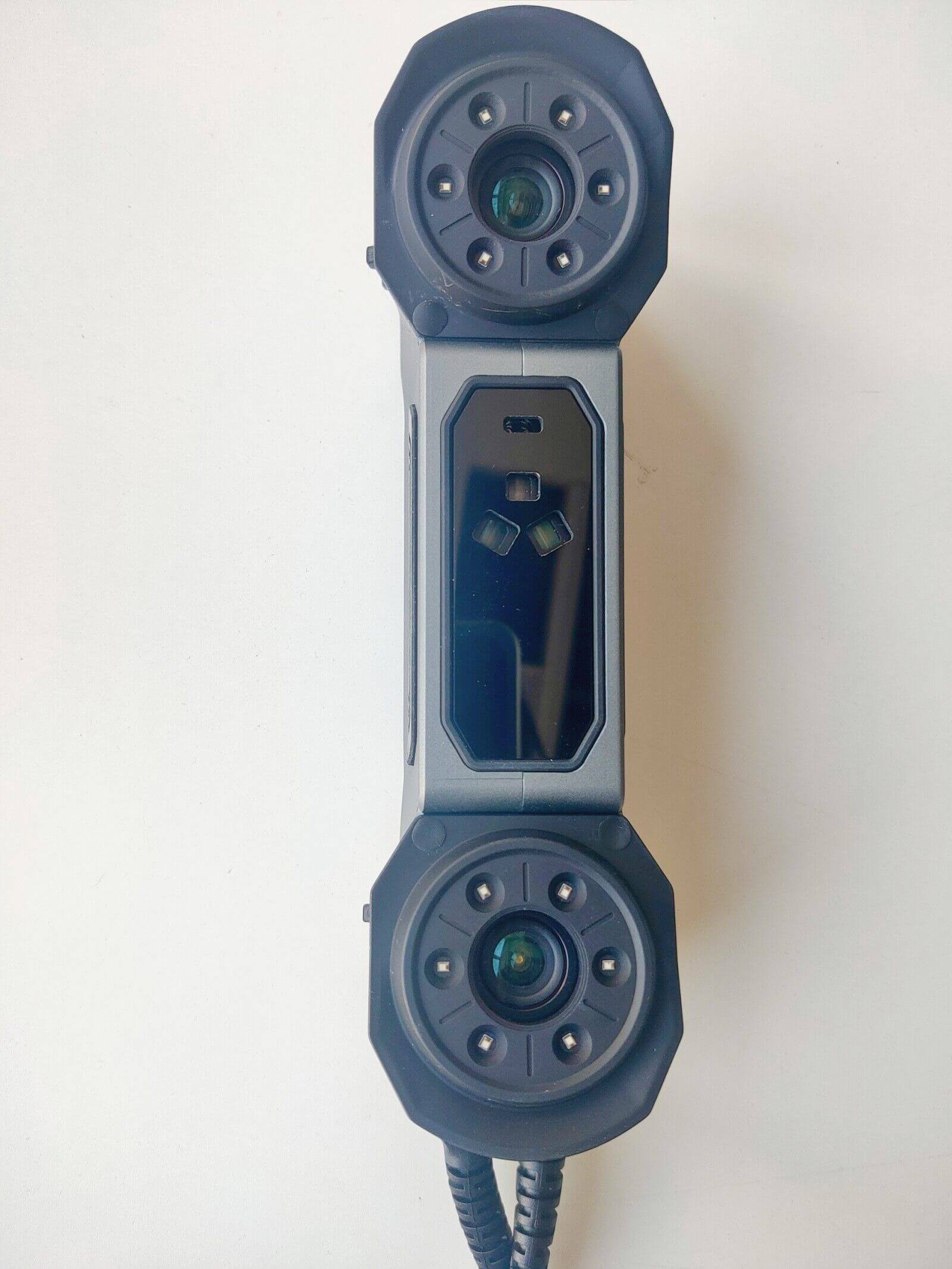

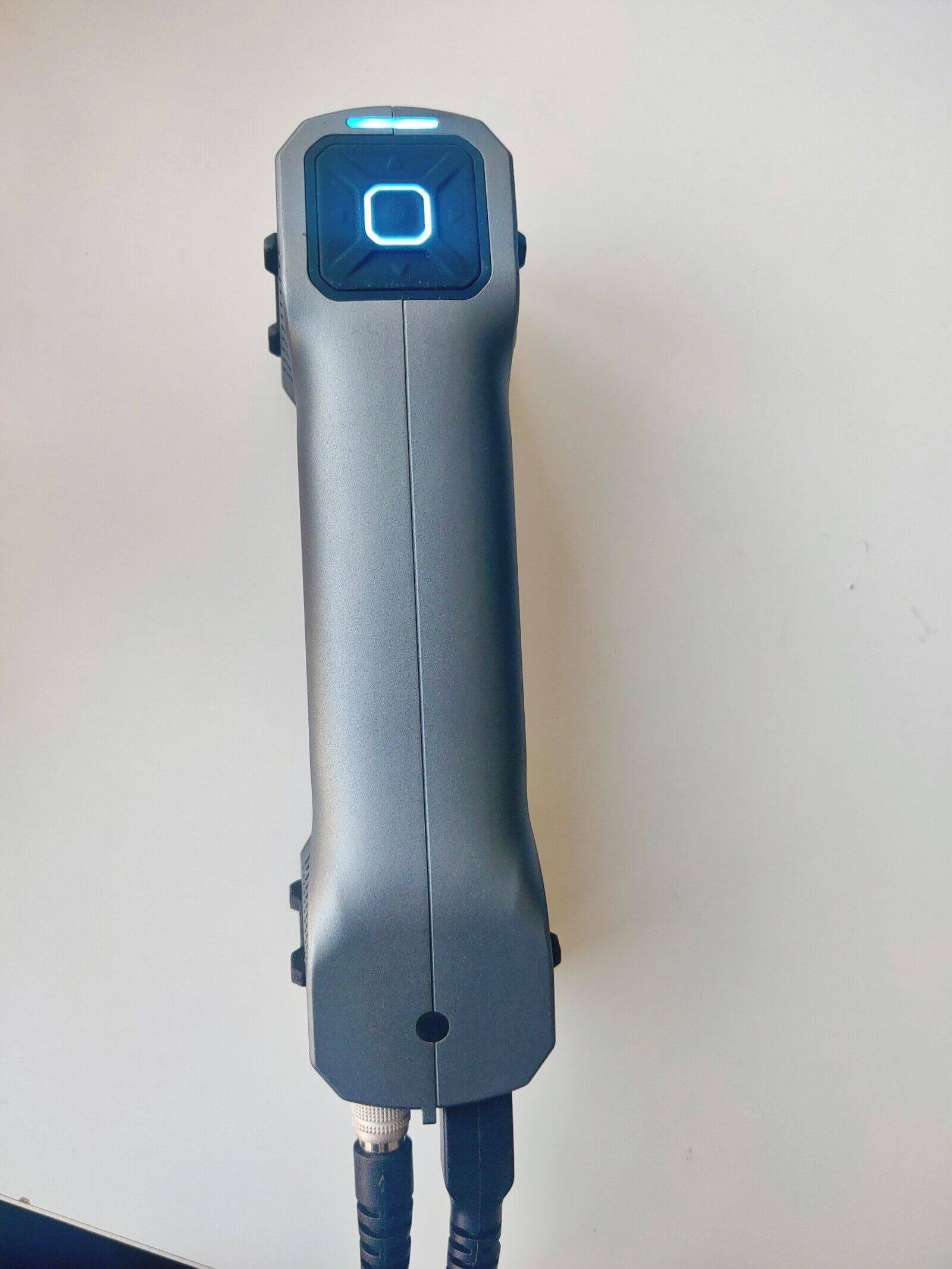

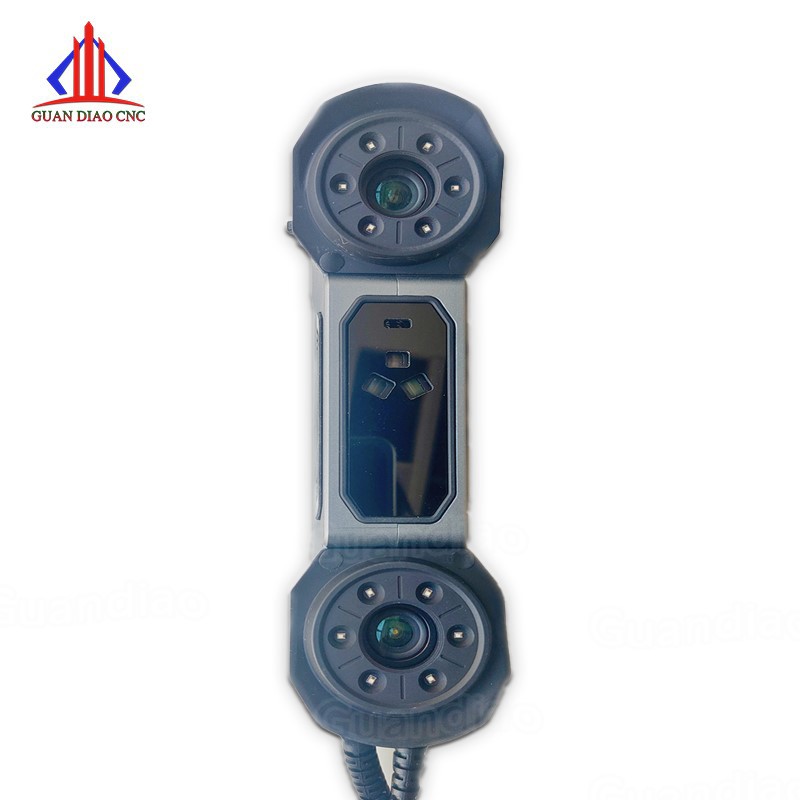

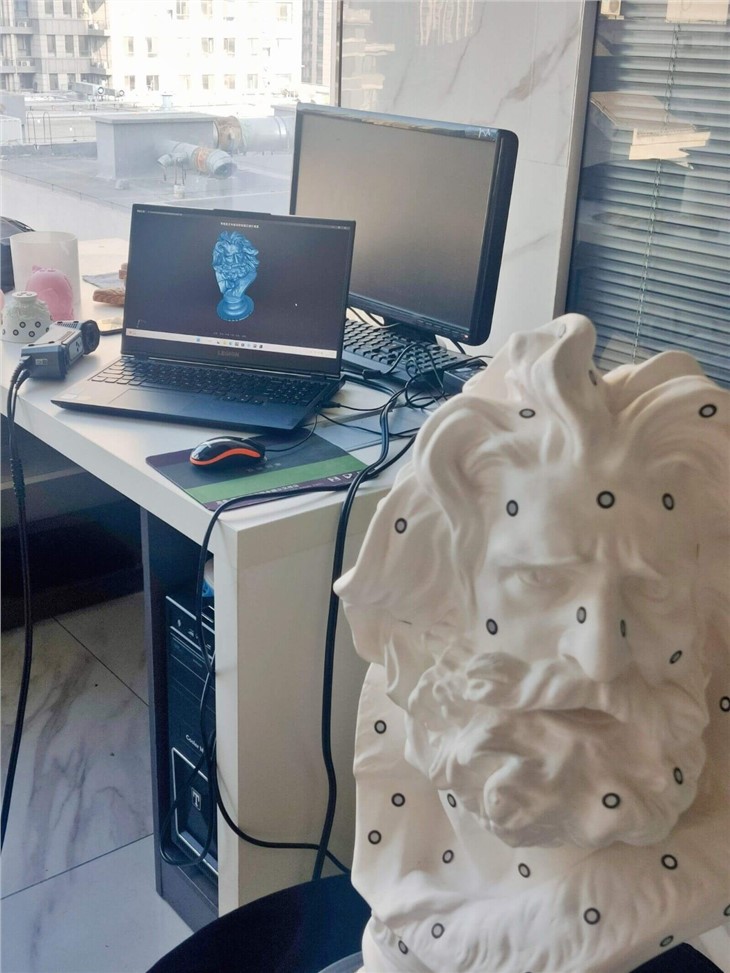

Product Picture
