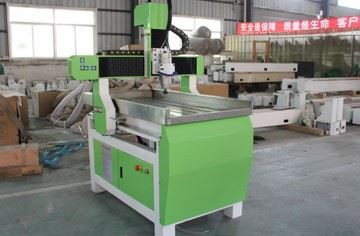

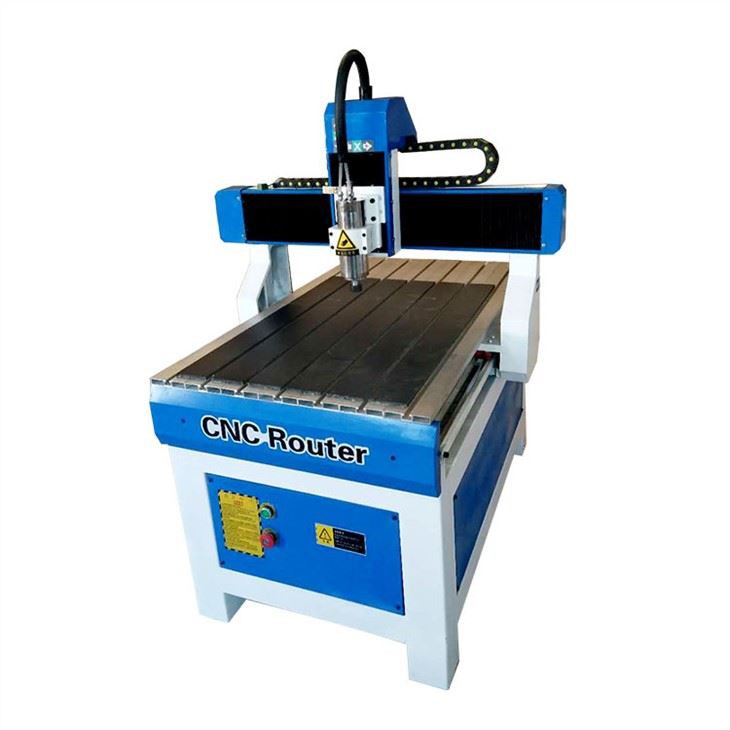

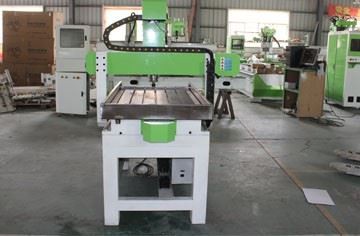

Product Description

Specification

Mode	GD-3030			GD-6090
Working size	300*300mm			600x900mm
Table Structure	Steel Structure
X Y Structure	Rack and Pinion TAIWAN HIWIN/PMI Square Guide Rails 20/25mm
Z Structure	Germany TBI Ball Screw
Spindle	3.2KW water cooling.24000rpm/min
Driver motor	China Stepper motor and leadshine driver
Inverter	Fuling or Sunfar

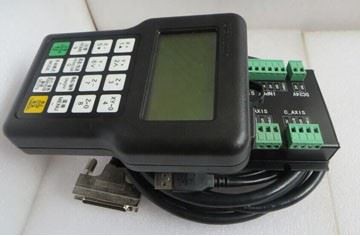

Control system	Nc studio/DSP
Working Voltage	380V/3PH/50HZ
Command Code	G code
Software Compatibly	Artcam/Artengraver/Type3/V9/JD paint
Relative Humidity	30%-75%

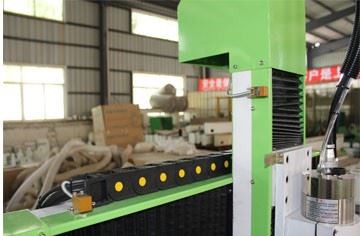

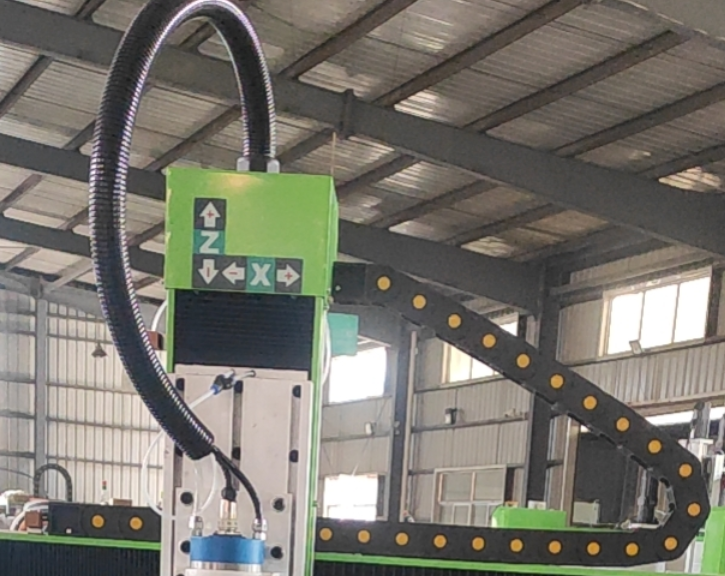

High quality drag chain
high-quality line drag line, neat, clean, simple and efficient

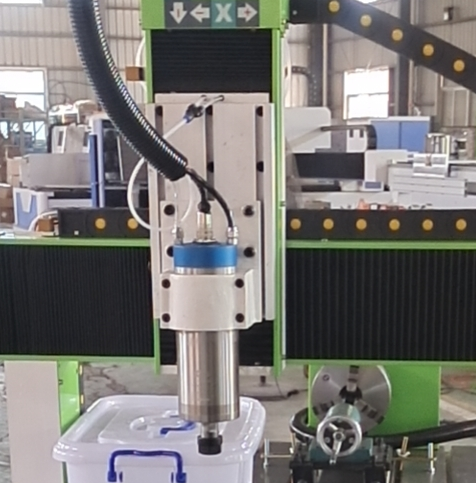

High strength spindle
The main shaft is driven by double motors, with heavy load and long life. The equipment adopts double tooth transmission, which
makes the operation simpler and the design more humanized

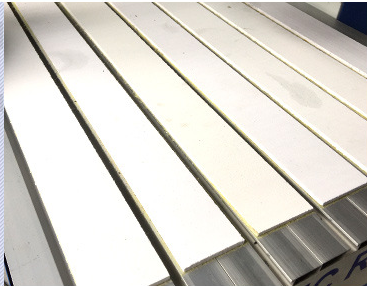

Large-format aluminum profile

countertopsstrong, stable and durable, PVC countertops anti-skid protection aluminum profile

countertops

Integrated cast iron body
The integrated cast iron body after heat treatment has good overall rigidity, more stable operation and higher machine precision

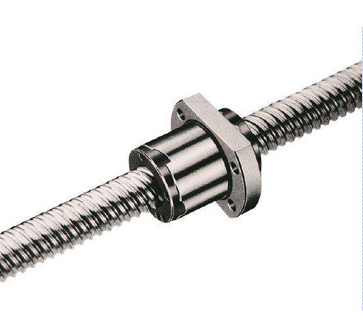

ball screw

Imported high-precision grinding oblique teeth and matching are adopted to improve the accuracy and ensure that the long-time work is not affected

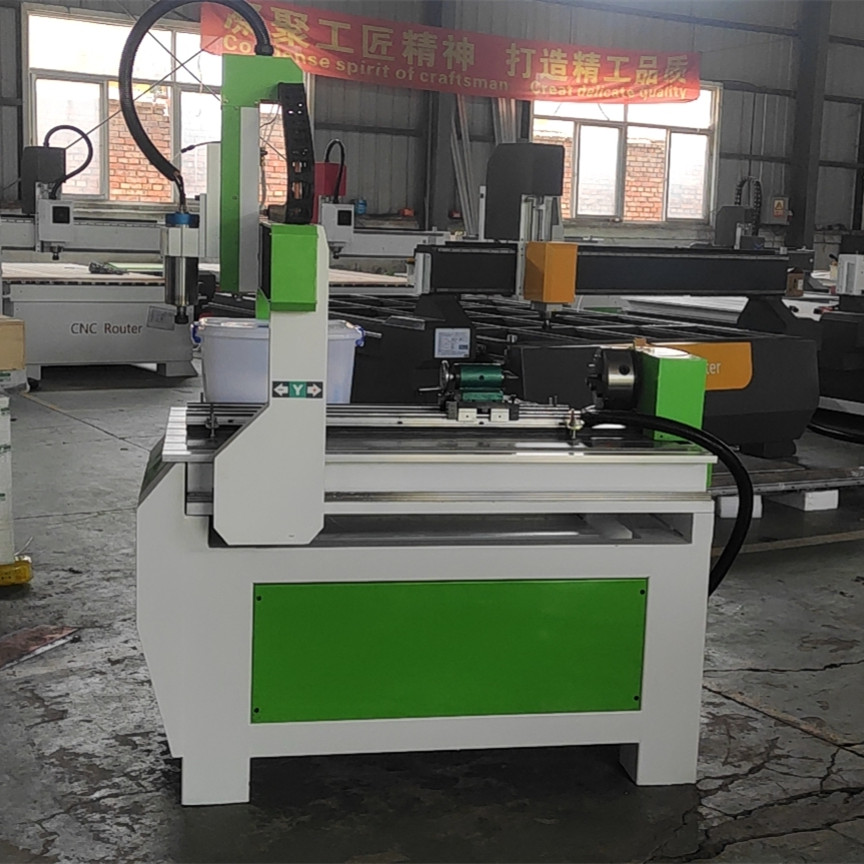

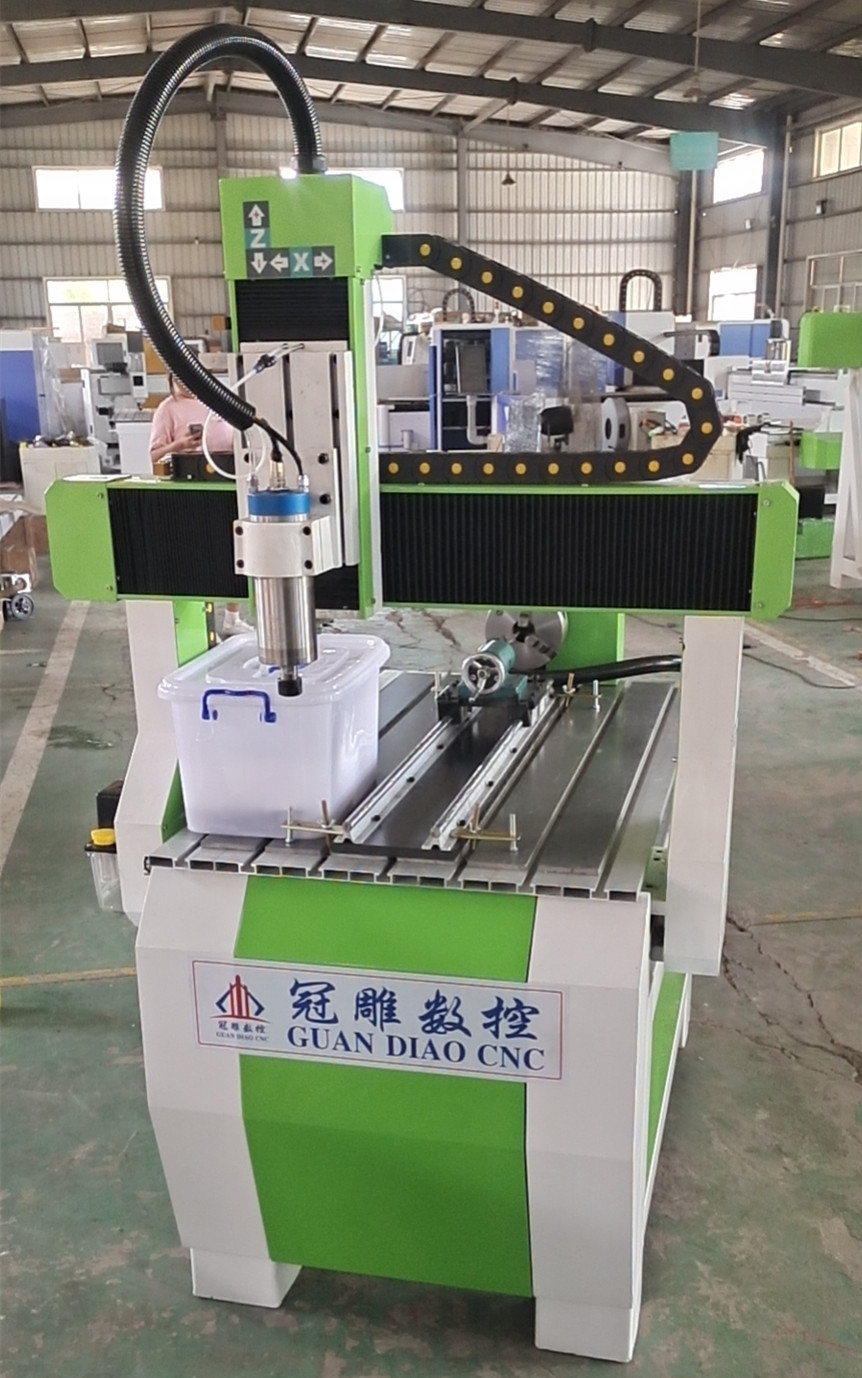

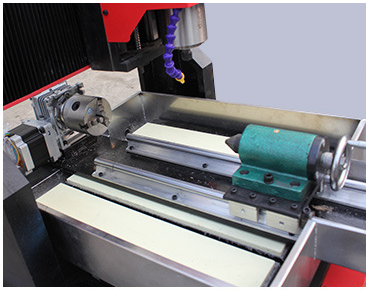

Rotating shaft (optional)

Optional rotary shaft, four axis four linkage engraving machine can engrave 360 °, which is a necessary kit for three-dimensional engraving

Application

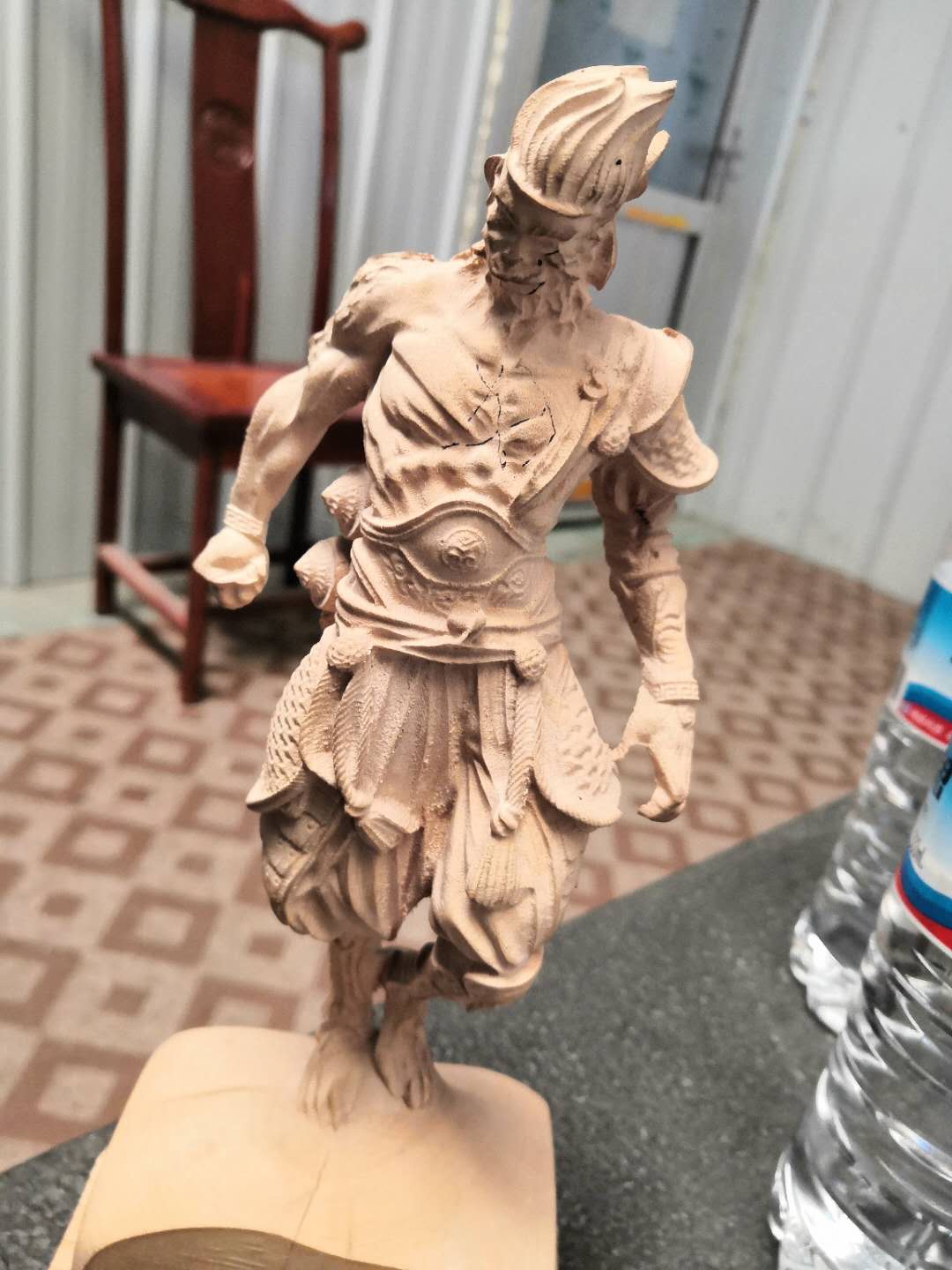

Suitable for solid wood furniture, stair pillars, Buddha statues, strange stone bases, special-shaped crafts, jade carvings, plastic models and other three-dimensional work piece carvings; can also be used for deep relief of complex planes; can also process three-dimensional stone work pieces

Packing & Delivery

FAQ

Q1 : I knew nothing about this machine, what kind of machine i should choose?

A:Very easy to choose. Just tell us what you want to do by using cnc router,then let us give you perfect solutions and suggestions.

Q2: When i got this machine, but i did not know how to use it.What should i do?

A:We will send video and English manual with the machine.If you still have some doubts, we can talk by telephone or skype.

Q3: If some problems happened to this machine during warranty period,what should i do?

A: We will supply free parts in machine warranty period if machine have some problem.While we also supply free after-service forever,so any doubts,just us know,we will give you solutions in 30 minuets.

Q4: What is the MOQ?

A:MOQ for our products is 1 set machine,we could send it to your country if you tell detail information about your country port.
