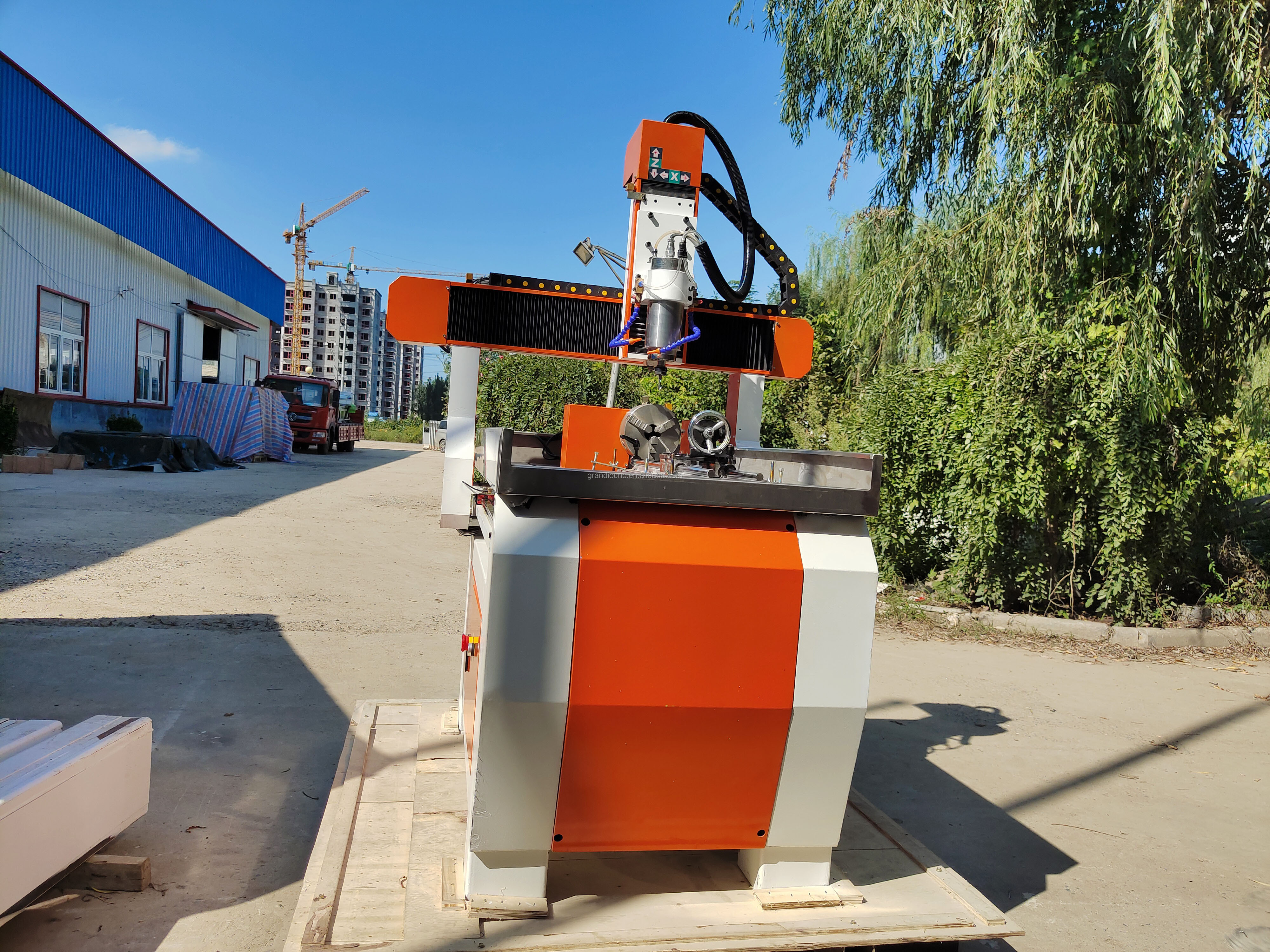

Production Introduction
Mode | GD-4040 | GD-6090 |
| ||
Working size | 400*400mm | 600x900mm | |||
Table Structure | Steel Structure | ||||
X Y Structure | Rack and Pinion TAIWAN HIWIN/PMI Square Guide Rails 20/25mm | ||||
Z Structure | Germany TBI Ball Screw | ||||
Spindle | 3.2KW water cooling.24000rpm/min | ||||
Driver motor | China Stepper motor and leadshine driver | ||||
Inverter | Fuling or Sunfar | ||||
Control system | Nc studio/DSP | ||||
Working Voltage | 380V/3PH/50HZ | ||||
Command Code | G code | ||||
Software Compatibly | Artcam/Artengraver/Type3/V9/JD paint | ||||
Relative Humidity | 30%-75% | ||||
Details Images

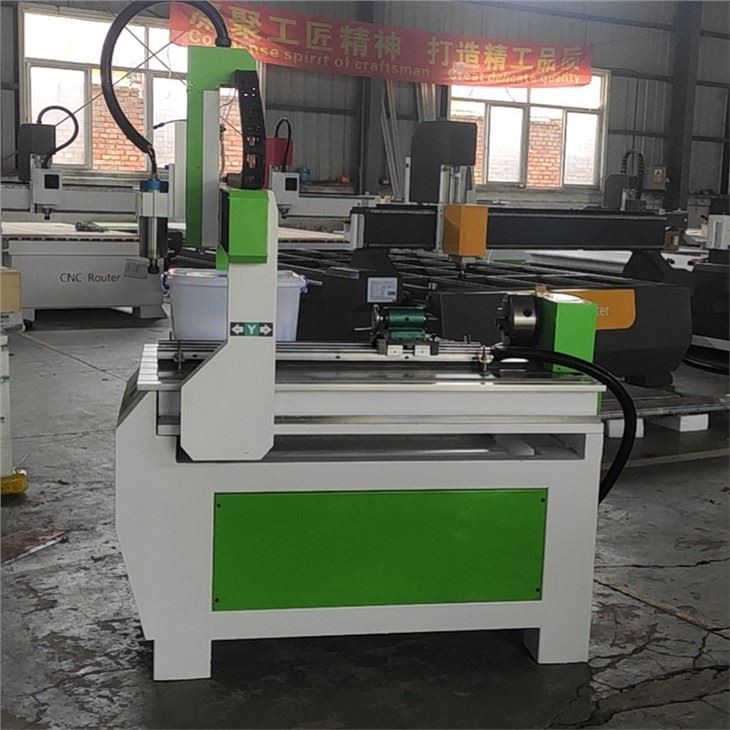

| High quality drag chain high-quality line drag line, neat, clean, simple and efficient Rotating shaft (optional) Optional rotary shaft, four axis four linkage engraving machine can engrave 360 °, which is a necessary kit for three-dimensional engraving |

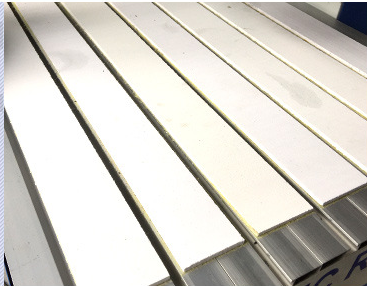

| Large-format aluminum profile countertops strong, stable and durable, PVC countertops anti-skid protection aluminum profile countertops |  |

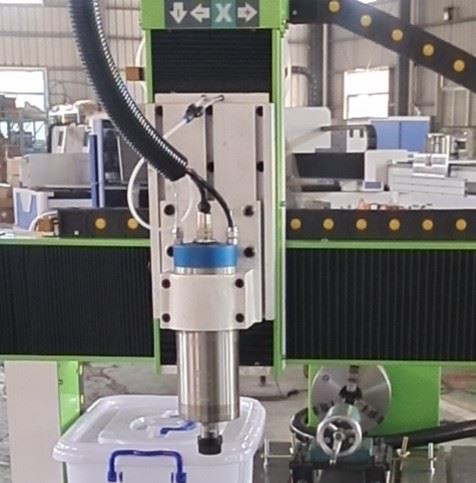

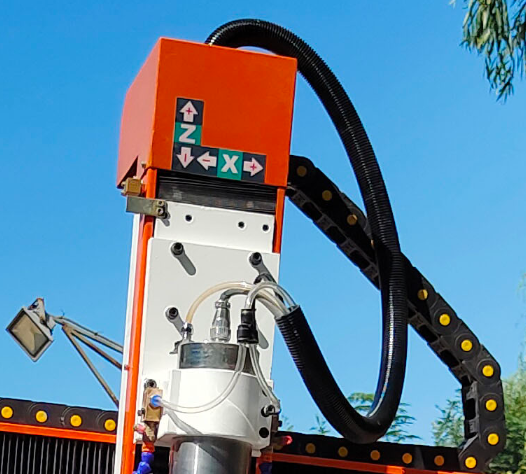

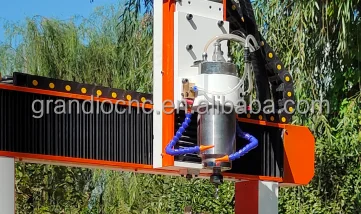

| High strength spindle The main shaft is driven by double motors, with heavy load and long life. The equipment adopts double tooth transmission, which makes the operation simpler and the design more humanized |

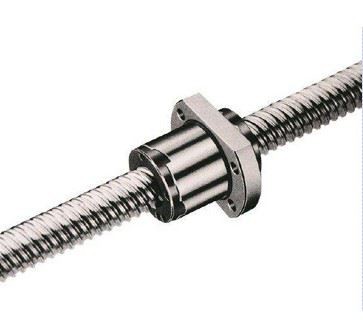

Integrated cast iron body The integrated cast iron body after heat treatment has good overall rigidity, more stable operation and higher machine precision ball screw Imported high-precision grinding oblique teeth and matching are adopted to improve the accuracy and ensure that the long-time work is not affected |
|
Product Usage

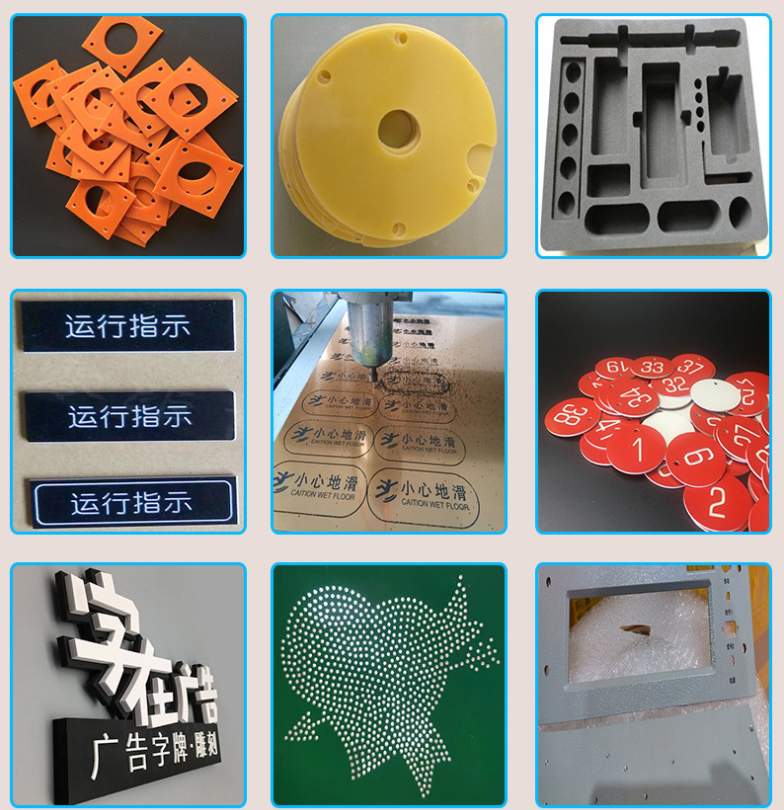

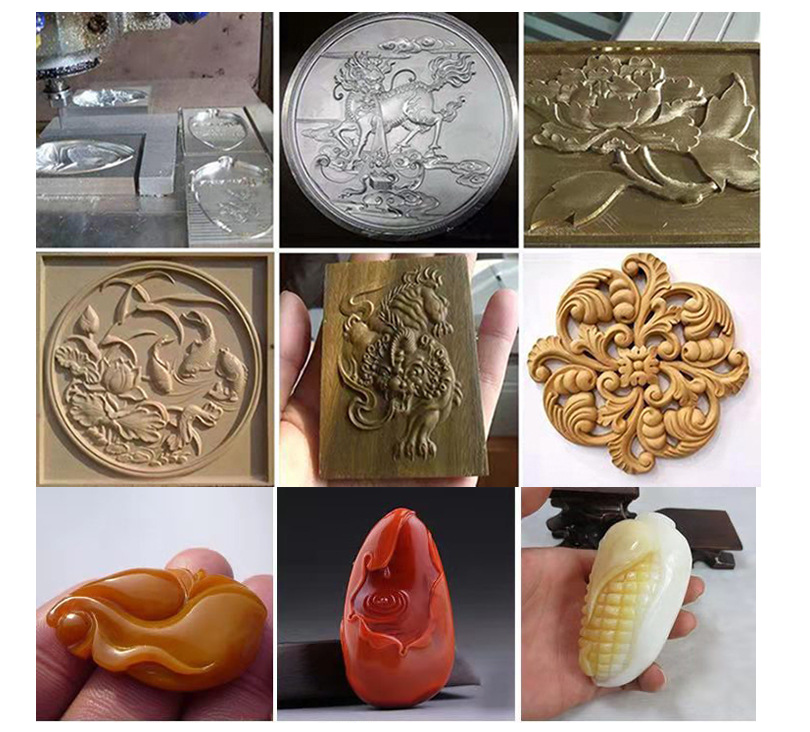

The machine is suitable for the production of advertising materials, 3D relief and line carving cutting, drilling, 2D carving, etc. of glass, stone and hard objects. Machinable materials: wood materials, plastic materials, insulating materials, PVC, acrylic, some soft metals, etc. | |
|
|

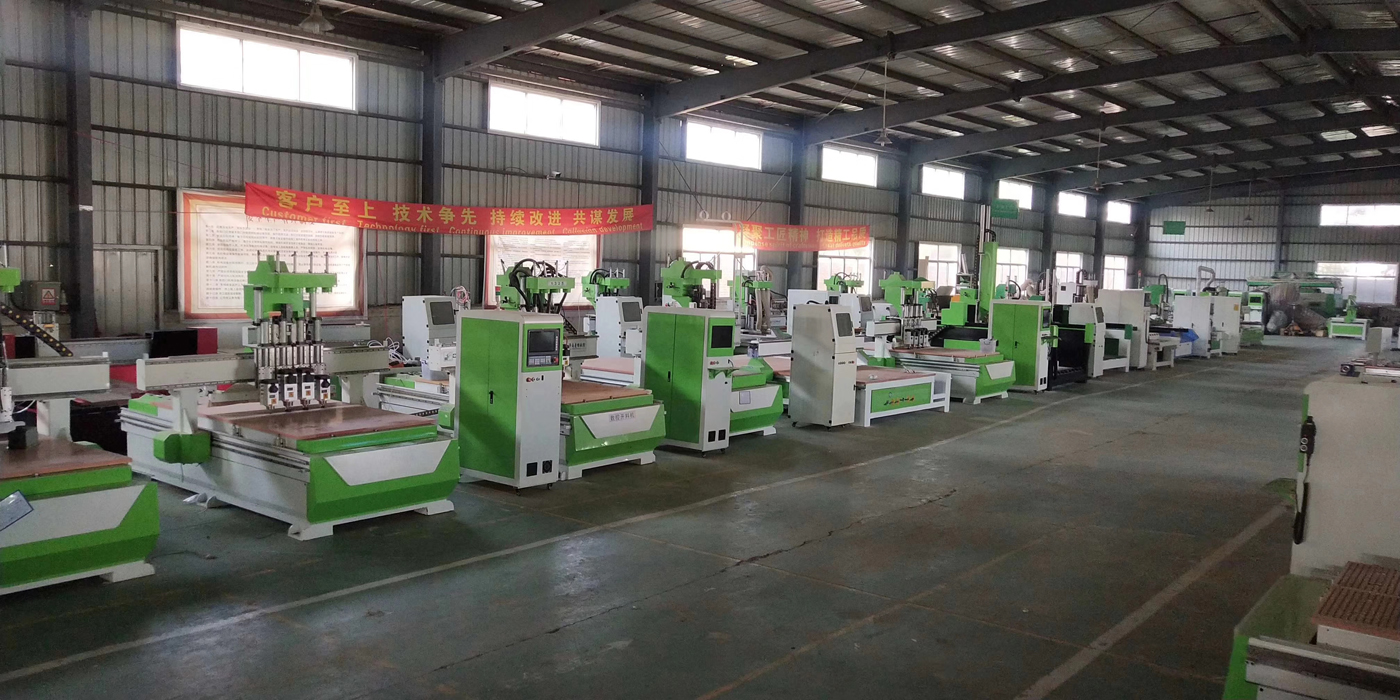

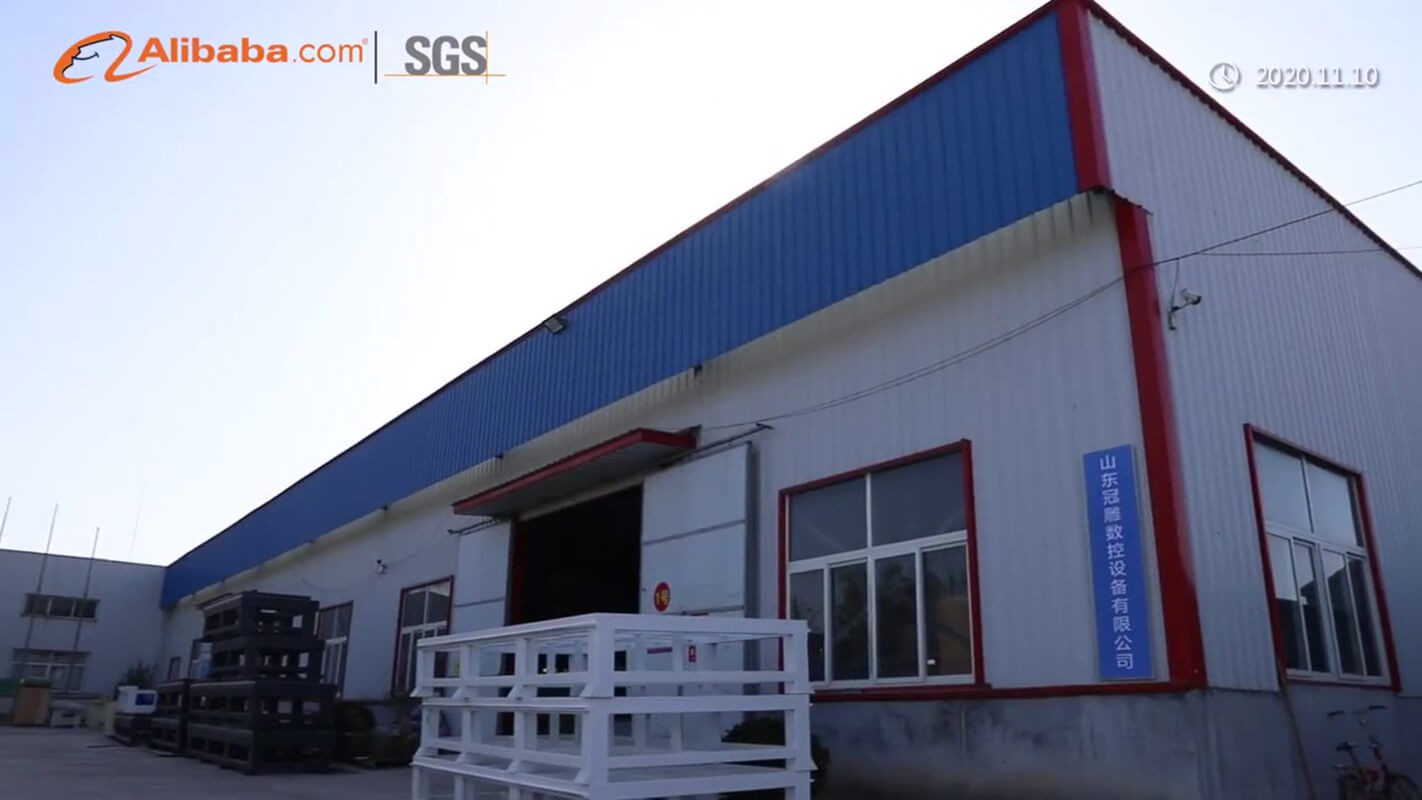

Company Introduction
| Pre-Sales Service 1. We have many exhibitions very year, hundreds of clients was coming to our booth for further communication. 2. 24-hours online Inquiry and consulting support. 3. Support sample testing . 4. We welcome you to visit our factory. After-Sales Service 1. Training how to install the machine, training how to use the machine online. 2. Engineers available to clients' factory for training if necessary. 3. Guarantee for one year 4. 24-hour technical support by email or calling 5. User-friendly English manual for machine using and maintaining 6. Free technician training for customers. |
|
|
