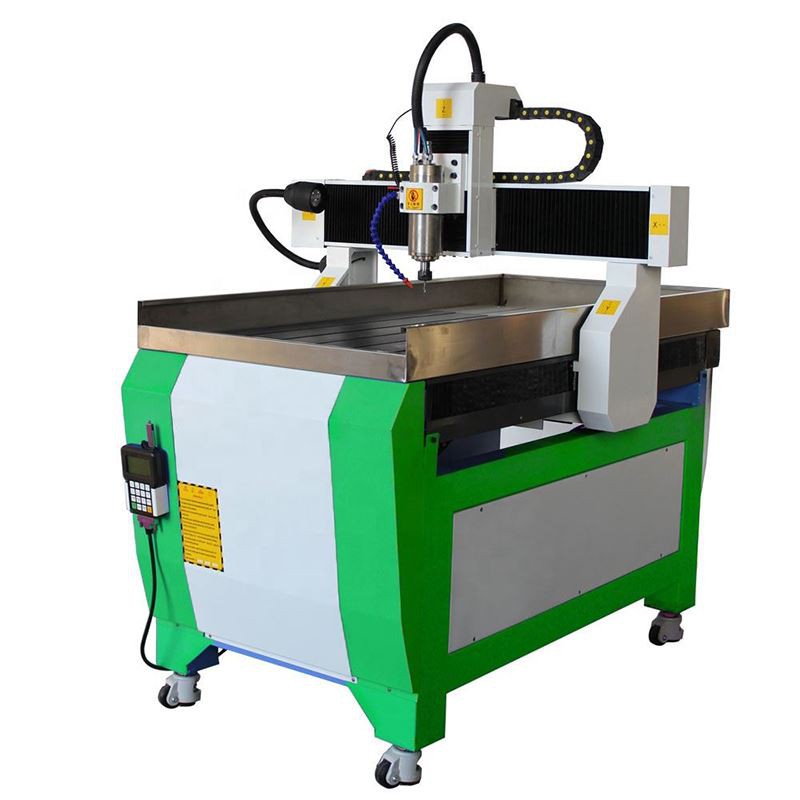

Brief introduction of metal CNC engraving machine CNC 6090:
1. The cast iron frame is subjected to vibration aging treatment to ensure that the machine is not easily deformed.
2. The imported ball screw drive is X Y Z axis, with good stability, high precision and long service life.
3. Linear circular guide, optional: Taiwan HIWIN linear square guide, diameter 20mm, longer life and more durable
4. Stainless steel sink cooling system for cooling tools and materials required for metal and stone/glass processing.
5.DSP NK105 Control system
6.5.5 kw water cooling spindle
7. Can realize multi-layer 3D processing, fast speed, smooth three-dimensional processing, engraving and cutting.
8. Emergency stop button to ensure safe operation.
9. Good software compatibility, suitable for CAD/CAM design software such as Type3, Artcam, Castmate, Ucanam, etc.
10. The worktable moves back and forth, and the aluminum T-slot worktable has higher precision than the mobile gantry.
Product Specification
Name/Mode | GD-6090 |
WorKing size | 600*900mm |
Feeding height | 150mm, (Customized) |
Travelling speed | 6000-10000mm/min |
Tool diameter | ￠3, ￠4, ￠6, ￠8, ￠12.7, etc |
Transmission mode | Xy precision helical gear transmission, Z imported brand screw drive |
Software working environment | WindowsXP/7 |
Spindle power | 1.5KW/2.2KW (Optional) |
Driver motor | servo motor |
Working voltage | 220v |
Engraving command | (G code) (nc), mmg, plt, eng, dxf |
Spindle rotating speed | 6000-24000rpm/min |
Control system | DSP |
Spindle speed | 0-24000rpm |

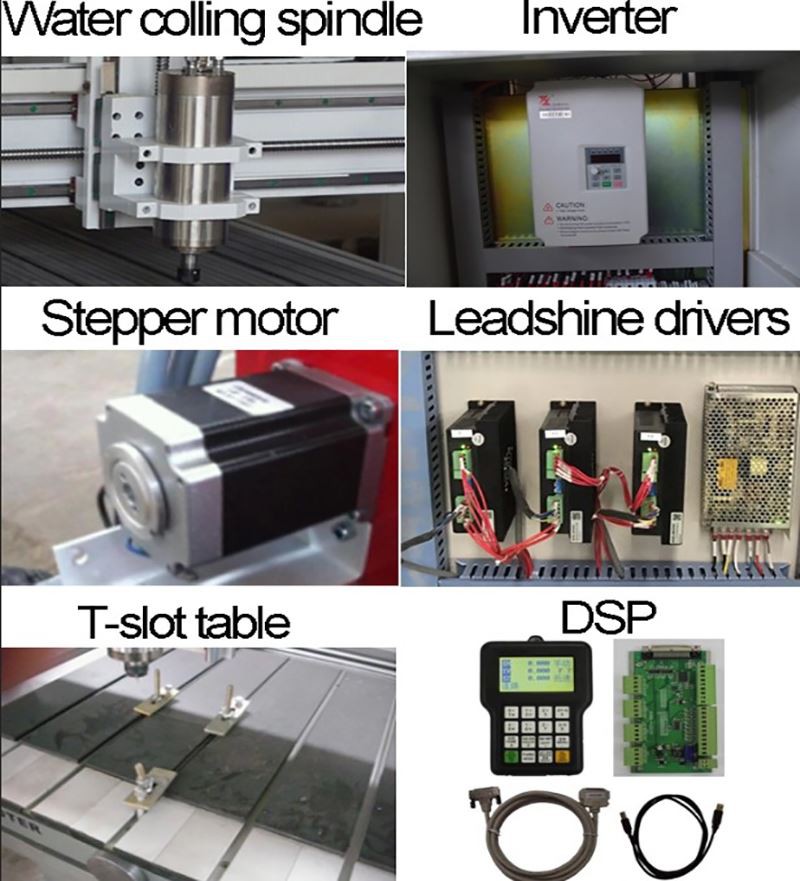

Product Detail
(1)The machine body structure adopt cast iron, the rigidity is good, not easy to be deformed, to make sure the machine's stability.
(2)Well compatibility: compatible for software CAD/CAM, such as type3/artcam/JDPaint/proe/ug.rtc
(3)Heavy loading, non-deformation, adopting imported double nut screw to ensure the engraving speed. Adopting Taiwan's high-precision square linear guide, effectively imported the precision of carving.
(4)Adopt high-speed water cooling motor with invariably power, big torque,strong cutting, high-frequency and long-life.
(5)Available for continuous work for a long time.
Sample
Company
Shipping
Service
*. 1 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
*. Lifetime maintenance free of charge.
*. Free training course at our plant.
*. We will provide the consumable parts at an cost price when you need replacement.
*. 24 hours on line service each day, free technical support.
*. Machine has been adjusted before delivery.
*. We accept the ODM,OEM
