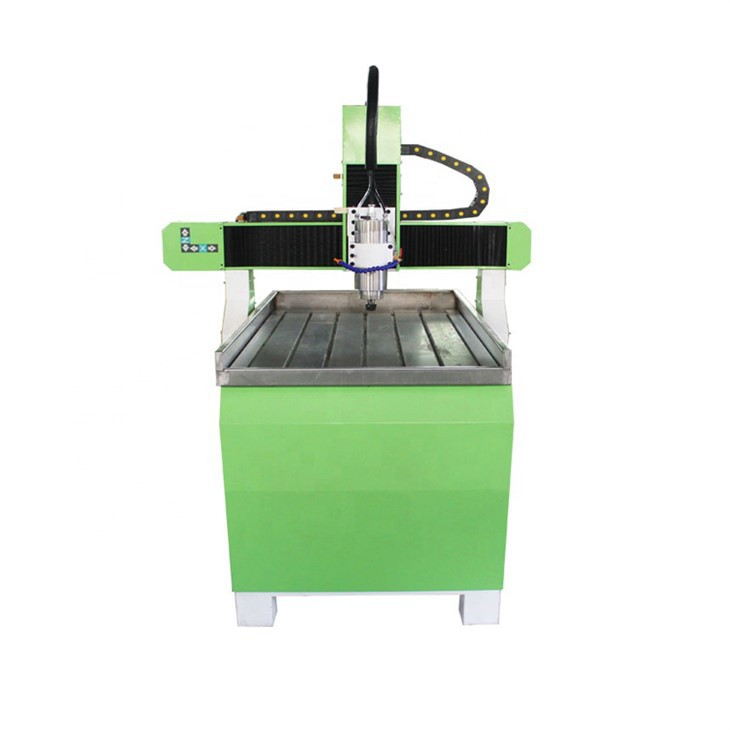

6090 Cnc Stone Metal Engraving Machine-Guandiaocnc

Product Information

Products Description

Features

*Three axis with dust cover cloth structure,Ball screw&guide rails with auto oiling system,asuring ball screw &guide rails long time working with no rust.

*High torque spindle,high rotating speed, small rotating shaking.lower noise.

*With X/Y/Z axis with all square linear guide ,bigger bearing redundance,longer life. Having longer life, higher pricision comparing to the round guide rail.

*Easy operation,Humanization design, design.Machine processing more handy .

Products Specification

SPECIFICATIONS
working size	300*300mm	Spindle power	1.5KW water cooling
	600*400mm		2.2KW water cooling
	600*900mm		3.5KW water cooling
Driver parts	Guide rail	Hiwin square guide
	Driver motor	Stepper motor°	or leadshine servo motor
	Transmission	XYZ with TBI ball screw
Control system	NC studio	Voltage	220V,1P,50Hz or 380V,3P
	March 3	Precision	0.1mm
	DSP	speed	20m/min

photobank 1

Water Tank

photobank 3

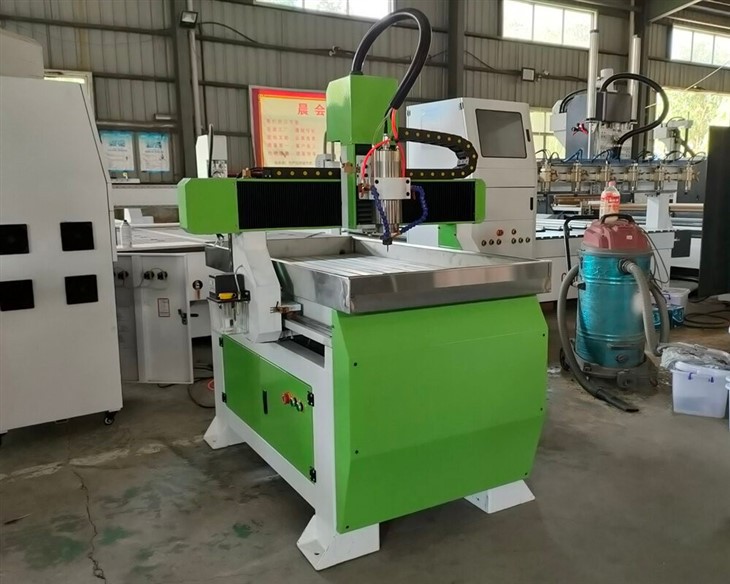

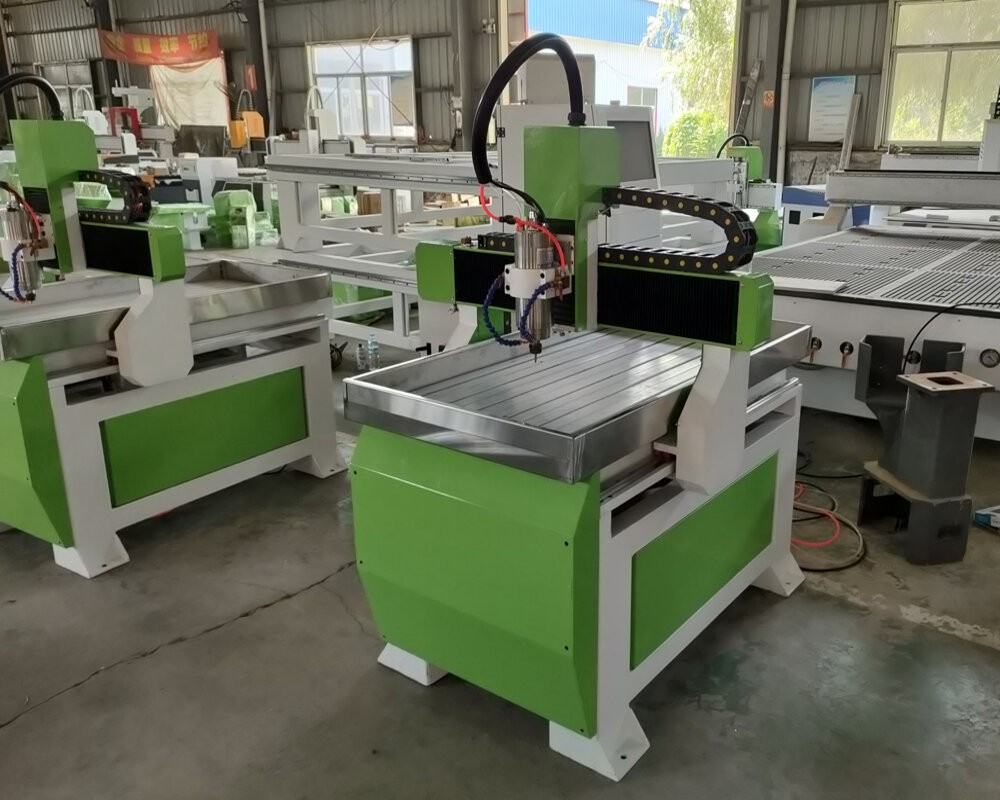

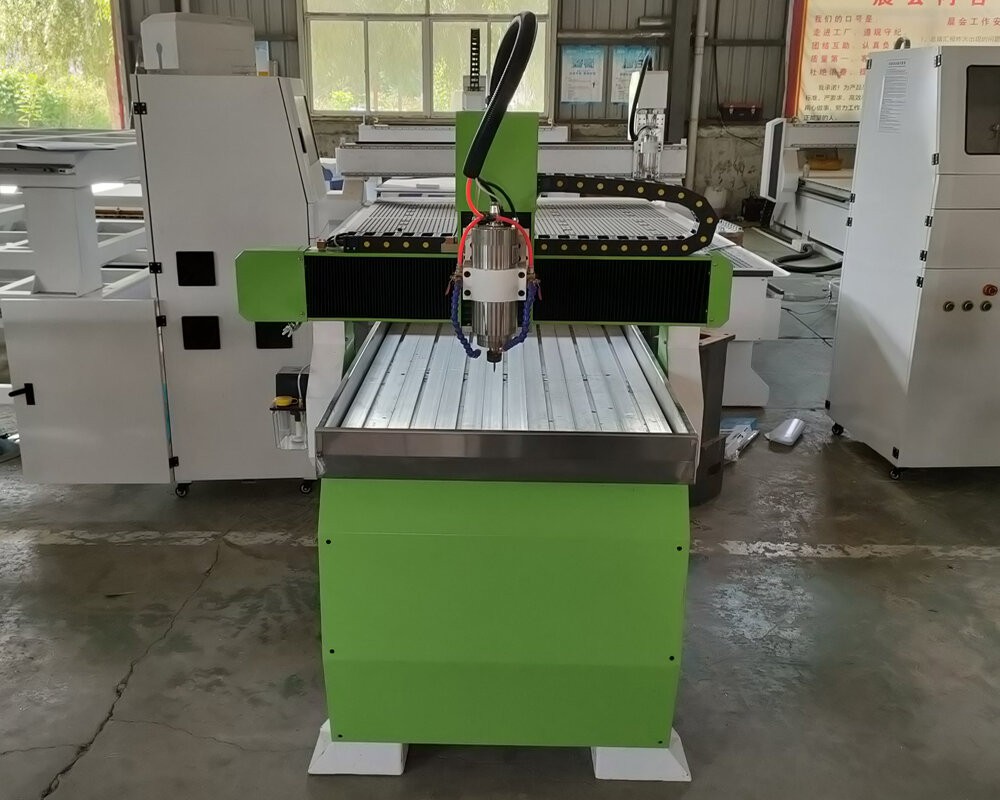

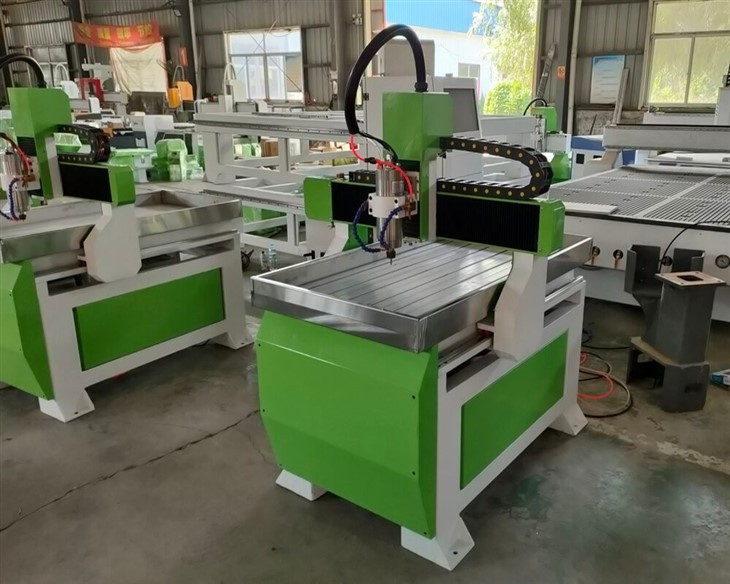

Machine Body

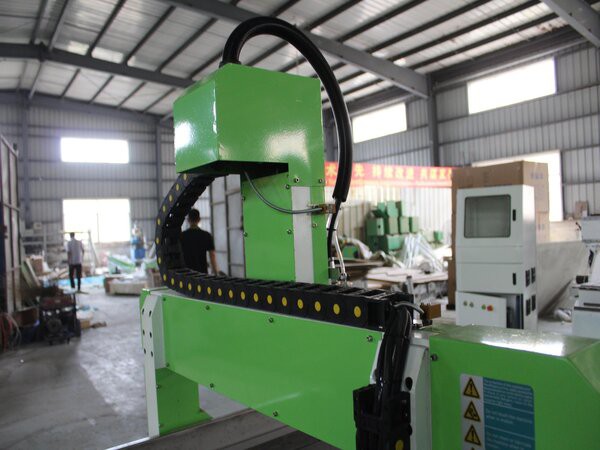

High quality drag chain
high-quality line drag line, neat, clean, simple and efficient

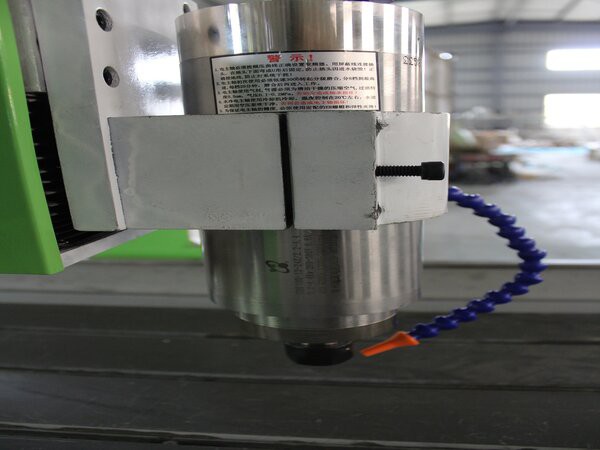

High strength spindle
The main shaft is driven by double motors, with heavy load and long life. The equipment adopts double tooth transmission
