Comuter Panel Saw Working Video

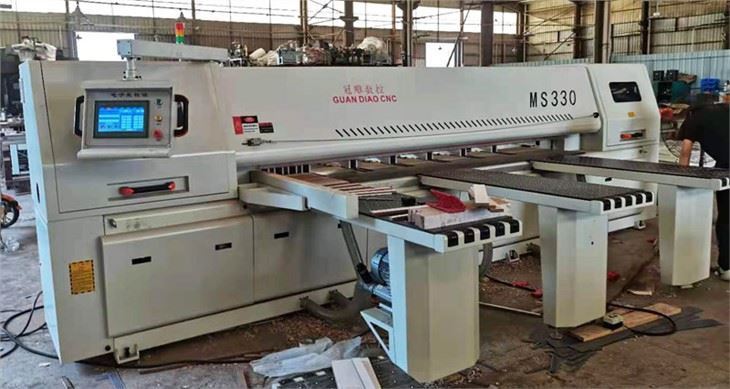

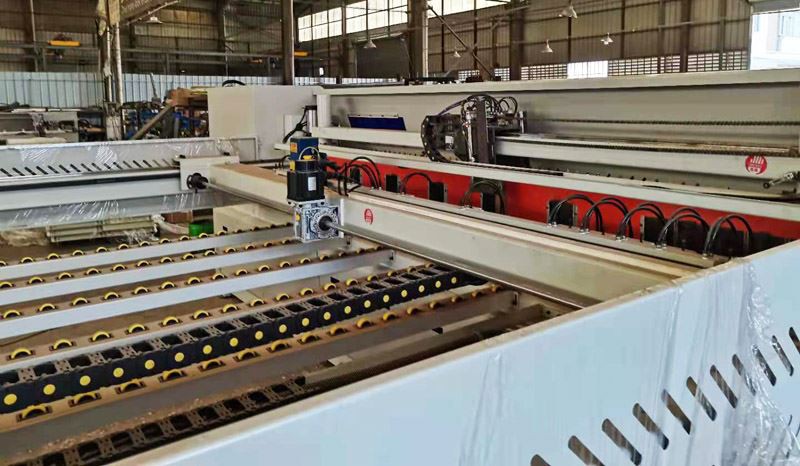

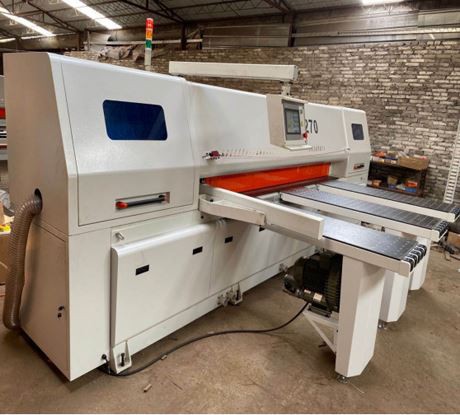

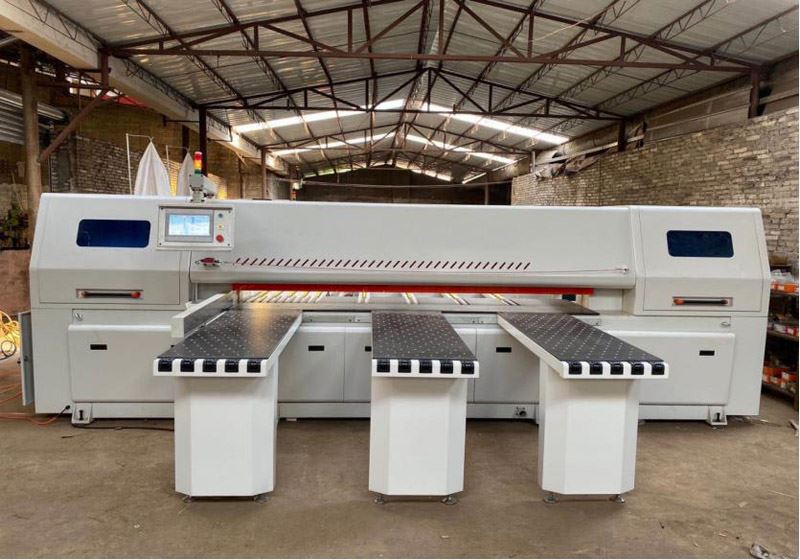

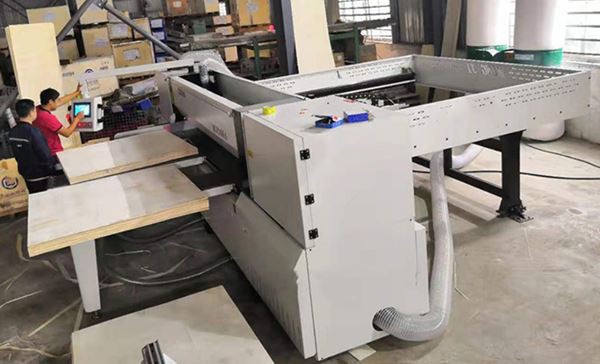

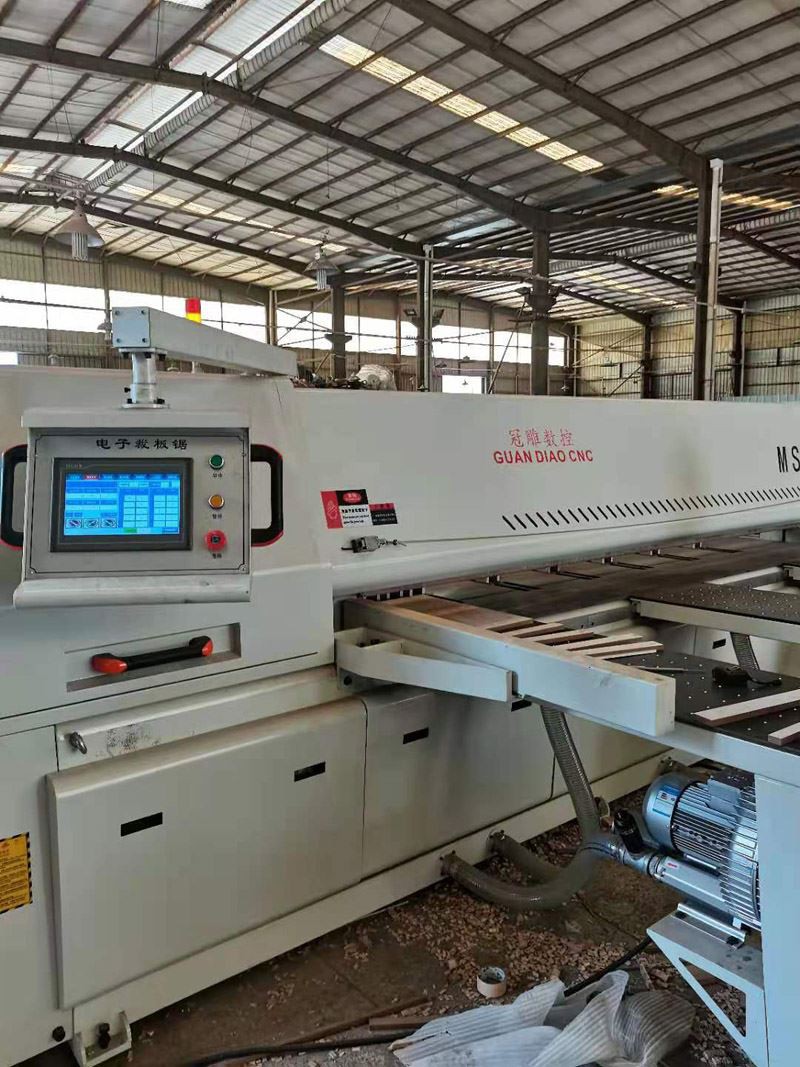

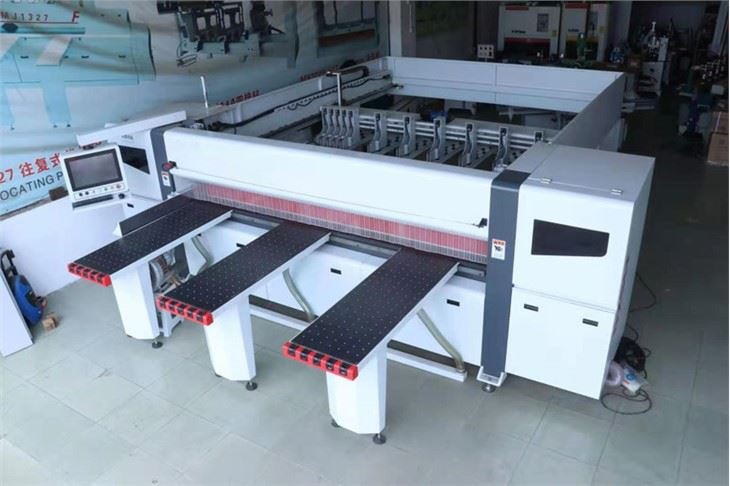

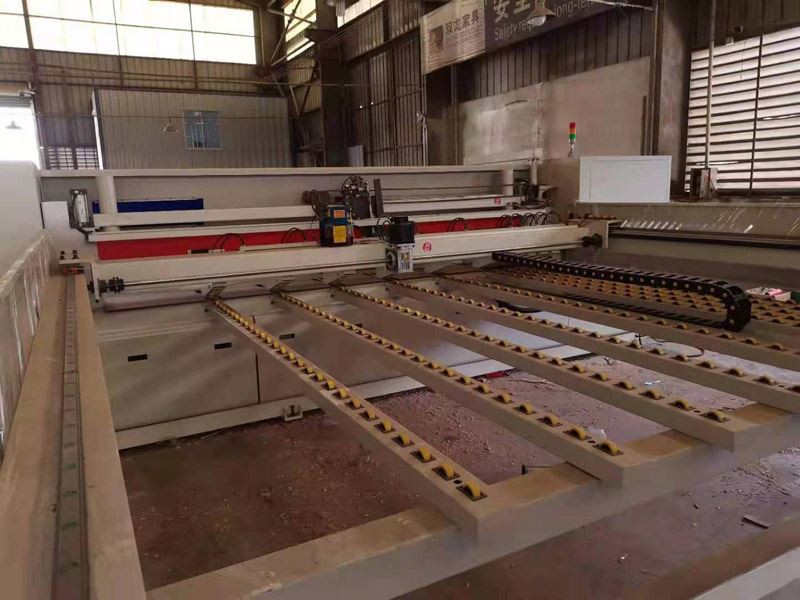

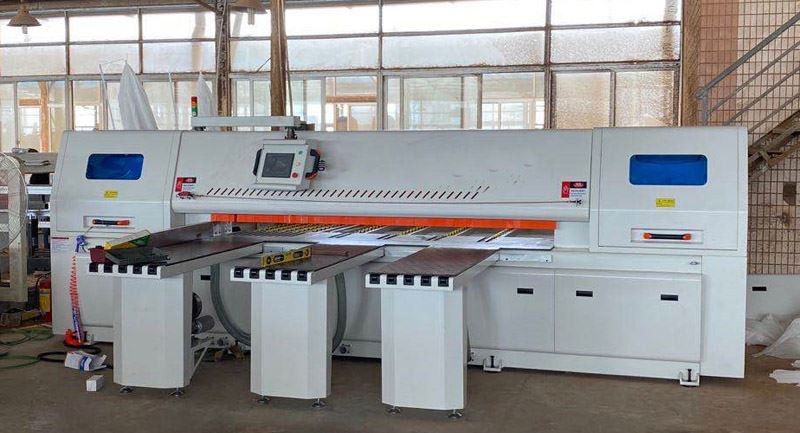

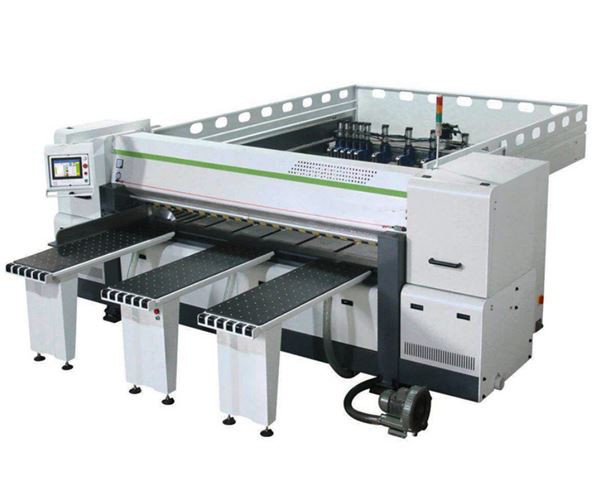

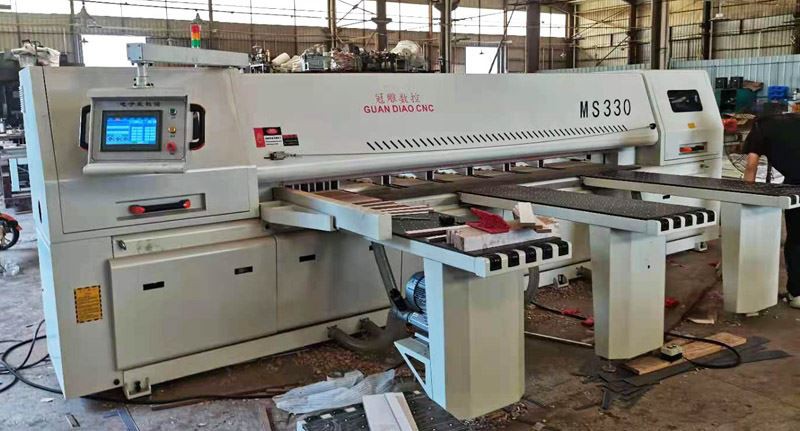

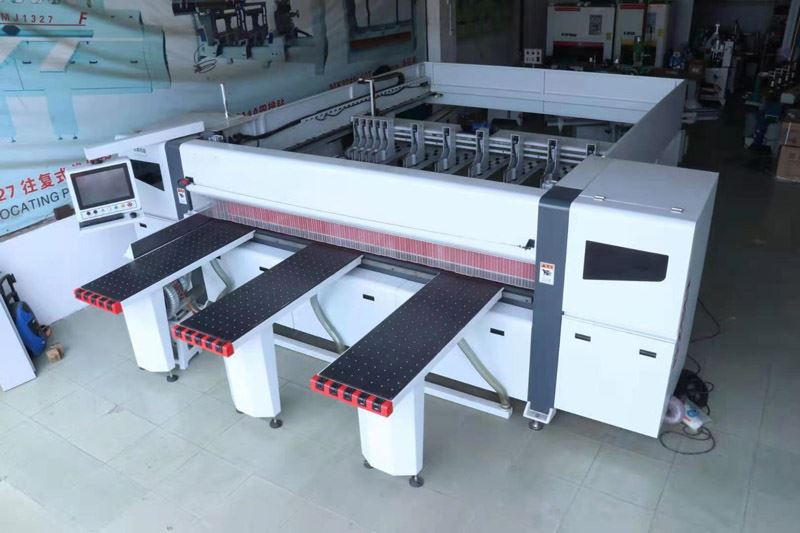

Pictures for Computer Panel Saw
Parameters
Sawing Length | 3200/3300/2800mm | Head Saw Motor | 15KW |
Sawing Thickness | 80mm | Saw Carriage Drive Motor | 1.5KW |
Diameter Of Main Saw Blade | 355mm | Automatic Feeding Motor | 1KW |
Axis DIA. Of Main Saw Blade | 60mm | High Pressure Bower Motor | 3KW |
Rotate Speed Of Main Saw Blade | 5600rpm | Total Power | 21KW |
Dia. Of GROOving Saw Blade | 180mm | Automatic Feeding Speed | 0-80m/min |
Axis Dia.of Grooving Saw Blade | 30mm | Operatin Pressure | 5-7KG/cm |
Rotate Speed Of Rrooving Saw Bkade | 6300rpm | Workbench Height | 850mm |
Saw Carriape Forward Spee | 0-120min | Net Weight | 5500kg |
Saw Carriage Back Speed | 30-120min | Dimensions(L*W*H) | 5850*6100*1750mm |
Machine Specification
1.Using precision linear slide rail, strong stability, high precision.
2.Industrial PC,HHM Control software
3.Sheet metal clip is expected to adopt cylinder and feed forward through the roller bed surface, feeding and accurate, and ensure that saw cutting precision, and will not hurt the workpiece surface.
4.Floating effect of the floating platform is caused by the pressure, to facilitate feeding, especially suitable for the heavy plate, and can avoid the surface damage.
5.Automatic sheets-feeder with Japan's Mitsubishi high-performance servo motor drive, big torque, accurate positioning and long service life.
6.High quality Japanese Mitsubishi CPU control main board.
7.The machine adopts imported magnetic feet as feed positioning detection control, precise positioning detection size effectively, improve the cutting precision.
8.Advanced reasonable electrical control design, equipment can be realized automatically return, to ensure the safety of the processing efficiency.
9.Adopt Taiwan precision gear and rack, durable.
Machine advantages

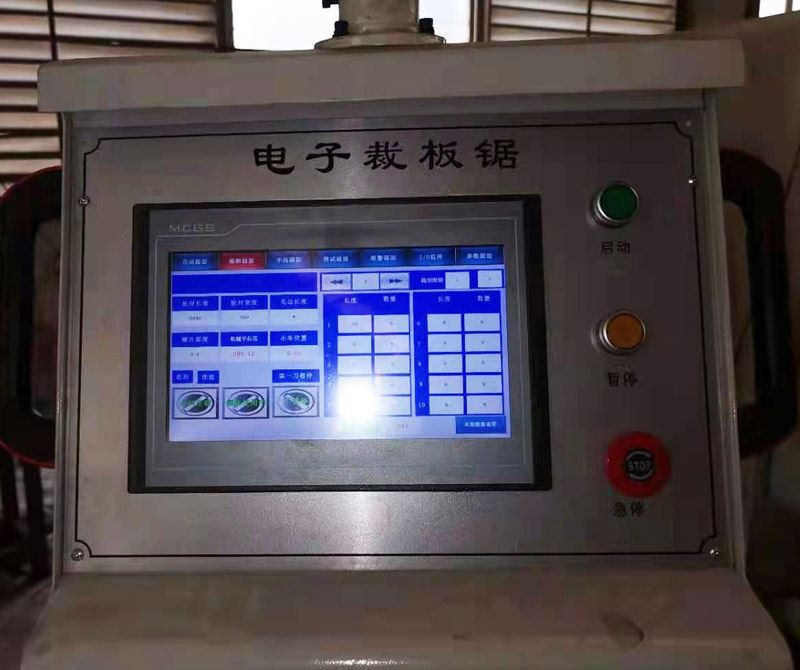

* The machine adopts industrial computer control, which has an advanced but easy-to-operate man-machine interface.
* The key components and other electrical appliances or toggle components are all from international brand-name products to ensure accuracy and reliability.
* Optional optimization software adds drawing design and optimization while with the practical functions of residuals management, layout optimization, and barcode printing.
* Due to the intelligence system, the worker only takes 2 hours of training before using it.

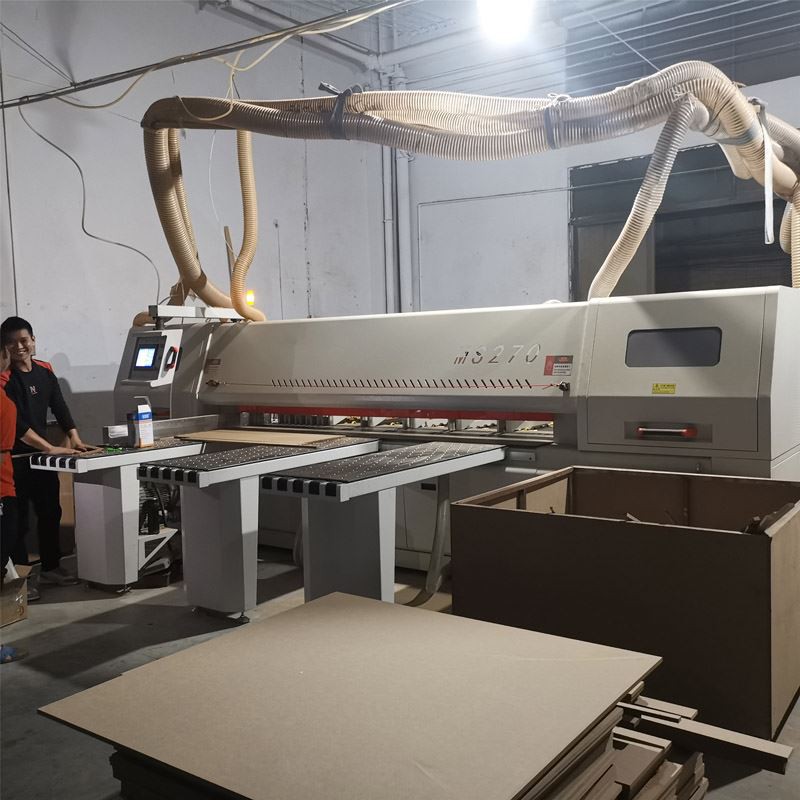

Machine Samples

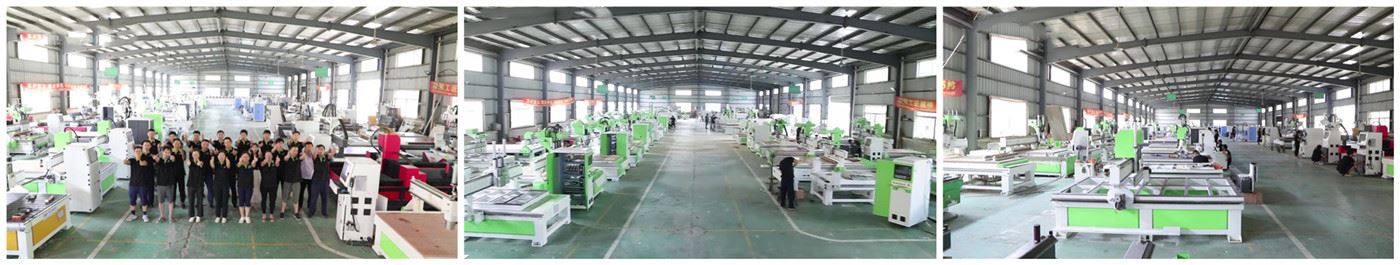

About us
Ours Certificate
After 10 years of development, the National High- -tech Enterprises, CE certification and other certificates.
Package & Shipping
Use standard export plywood box
FAQ
Q1: Installation and Debugging
Customers can get detailed operation manual and instruction video. We will make sure that customers can operate machines skillfully.
Q2: Training
A.Customers can get free technical training in our factory or online. Mainly training are as follow:
1.Software operation
2.Machine operation and maintenance
3.Instruction of technical parameters, as well as their setting ranges
4.Solutions for common problems
B.Also we can dispatch our technician to customers' place if customer agrees to pay visa cost,air ticket, accommodation and USD150/day/person training fee .
