Comuter Panel Saw Working Video

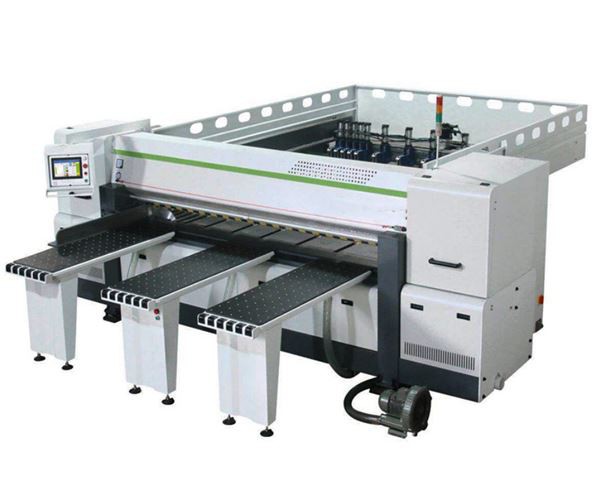

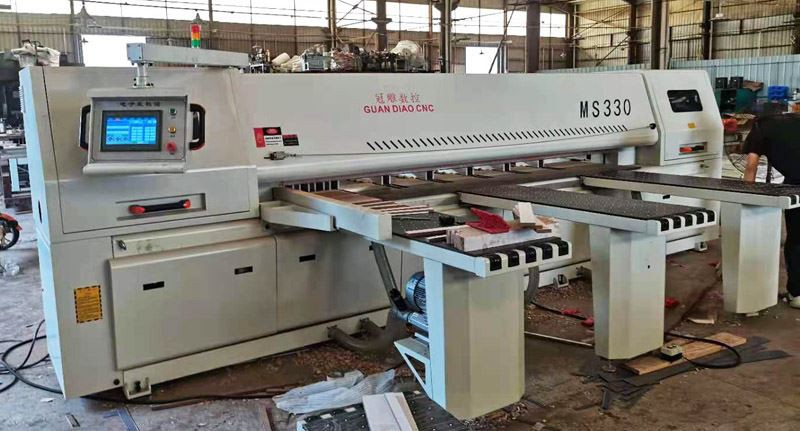

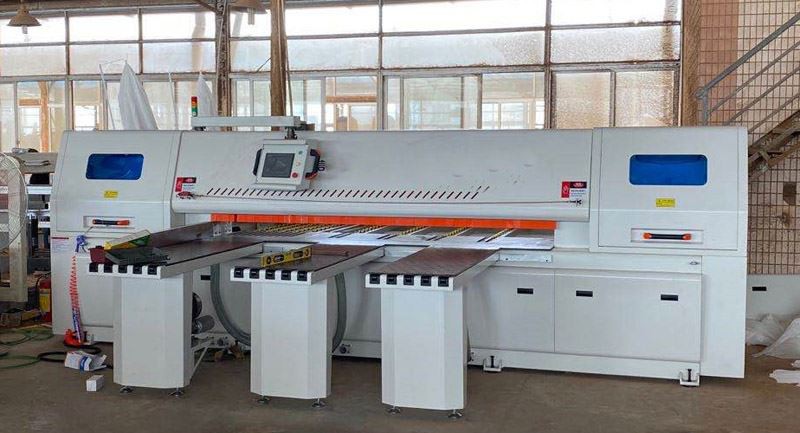

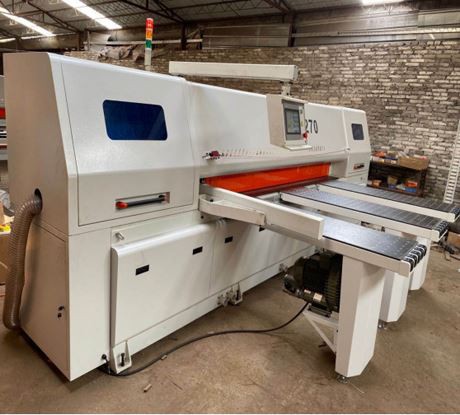

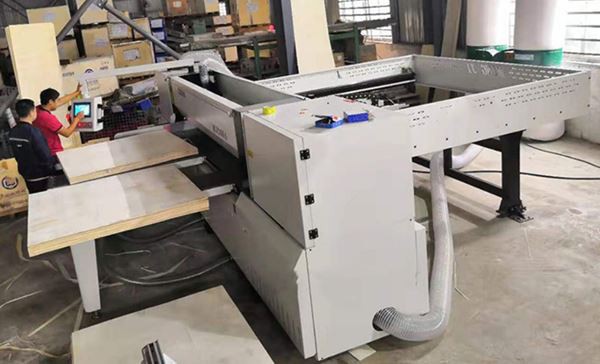

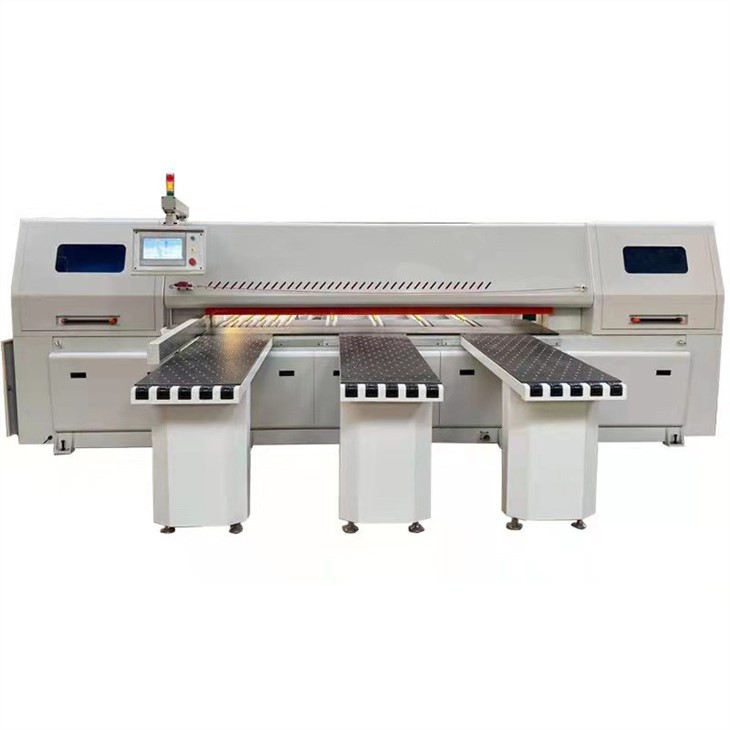

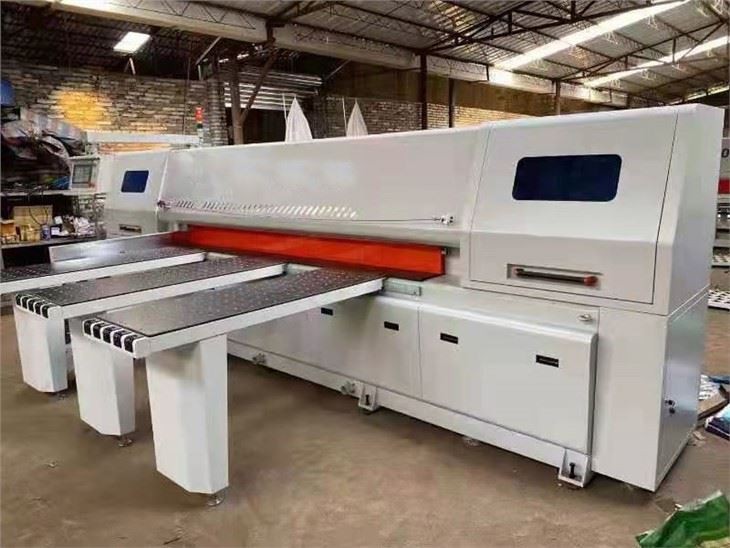

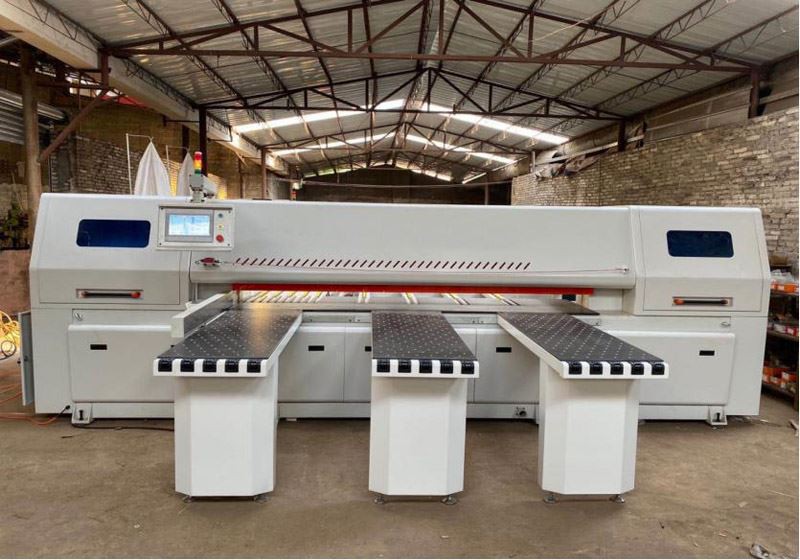

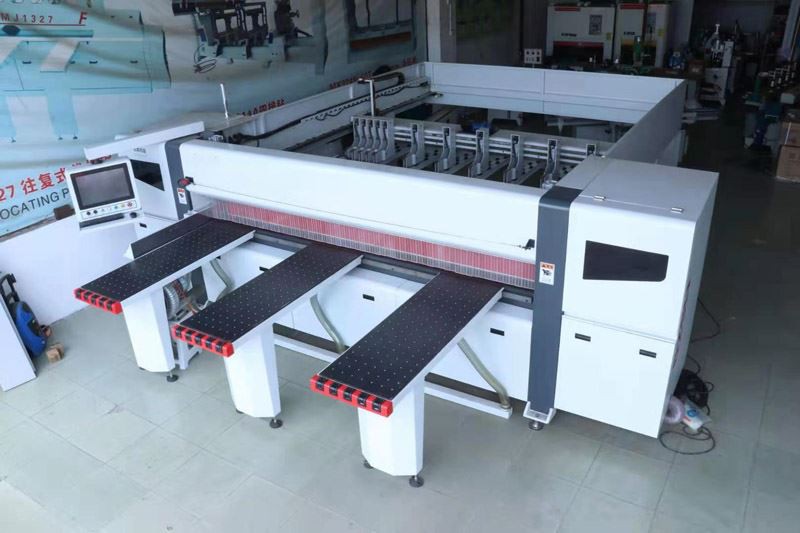

Pictures for Computer Panel Saw
Parameters
Sawing Length | 3200/3300/2800mm | Head Saw Motor | 15KW |
Sawing Thickness | 80mm | Saw Carriage Drive Motor | 1.5KW |
Diameter Of Main Saw Blade | 355mm | Automatic Feeding Motor | 1KW |
Axis DIA. Of Main Saw Blade | 60mm | High Pressure Bower Motor | 3KW |
Rotate Speed Of Main Saw Blade | 5600rpm | Total Power | 21KW |
Dia. Of GROOving Saw Blade | 180mm | Automatic Feeding Speed | 0-80m/min |
Axis Dia.of Grooving Saw Blade | 30mm | Operatin Pressure | 5-7KG/cm |
Rotate Speed Of Rrooving Saw Bkade | 6300rpm | Workbench Height | 850mm |
Saw Carriape Forward Spee | 0-120min | Net Weight | 5500kg |
Saw Carriage Back Speed | 30-120min | Dimensions(L*W*H) | 5850*6100*1750mm |
Machine Specification

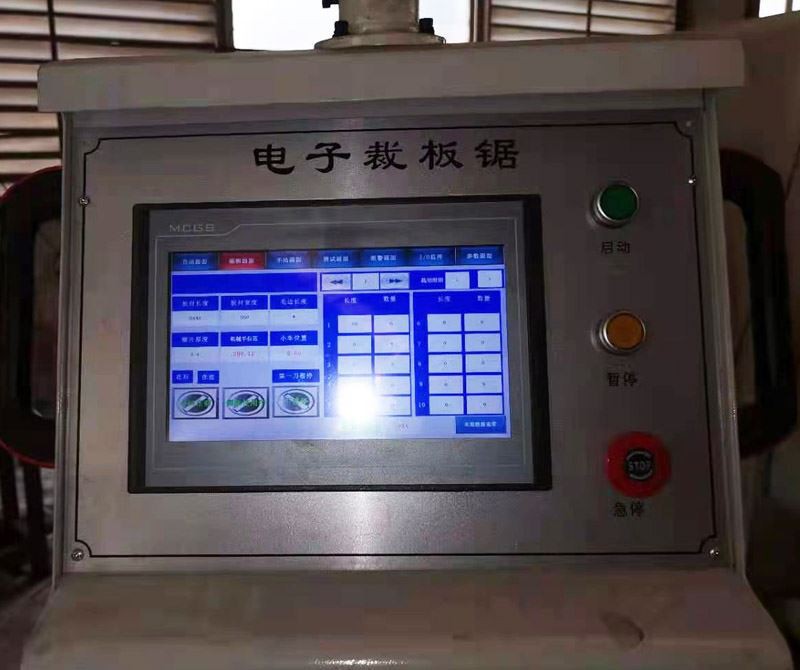

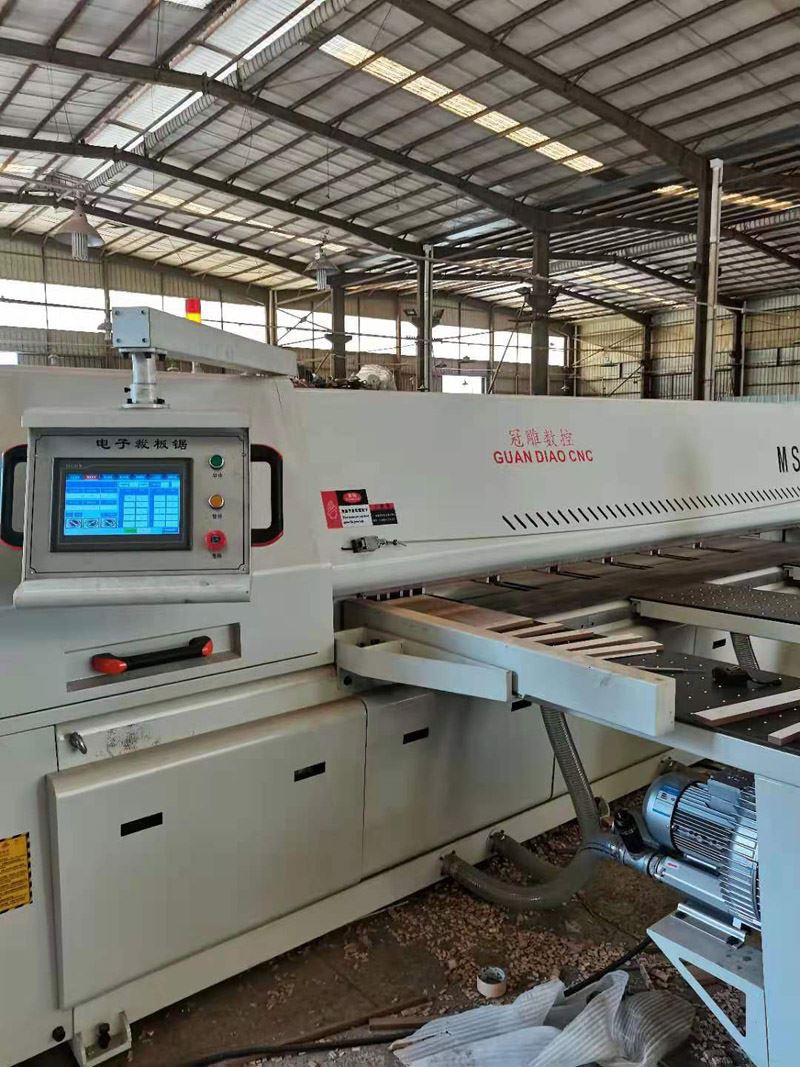

PLC touch screen
The touch screen panel display interface is simple and easy to understand,and the control method is safe and reliable.
Side aligning device
Fix cutting panel width side, control panels not move or shake when sawing, ensure width sawing precision.

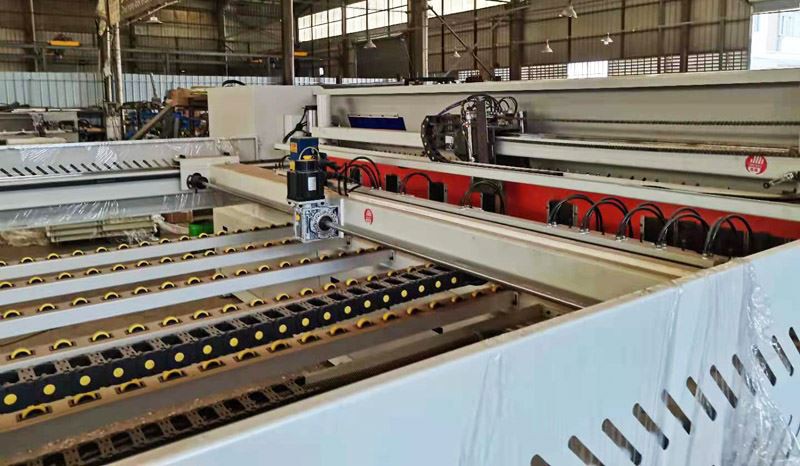

Loading system
Air floating loading table,avoiding board scratching and assuring smoother board movement, suit for heavy and big type wood panel.
Computer panel saw features
1.Using precision linear slide rail, strong stability, high precision.
2.Industrial Control software
3.Sheet metal clip is expected to adopt cylinder and feed forward through the roller bed surface, feeding and accurate, and ensure that saw cutting precision, and will not hurt the workpiece surface.
4.Floating effect of the floating platform is caused by the pressure, to facilitate feeding, especially suitable for the heavy plate, and can avoid the surface damage.
5.Automatic sheets-feeder with high-performance servo motor drive, big torque, accurate positioning

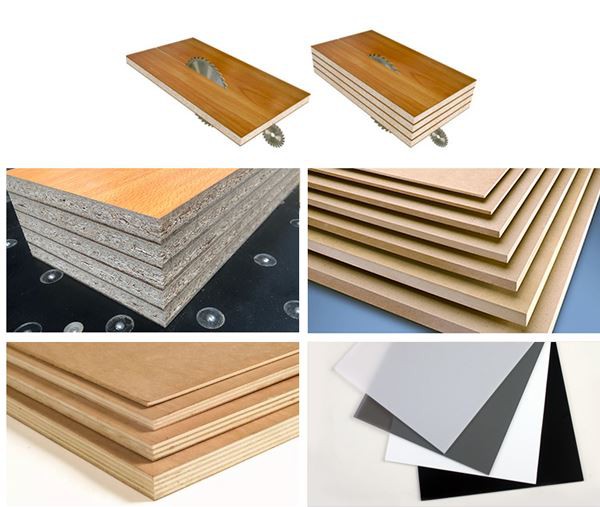

Machine Samples

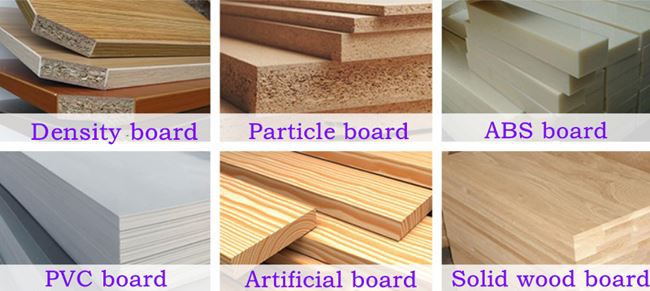

The computer electric panel saw apply to processing all kinds of density boards, shaving boards, wood-based panels, ABS panels, PVC panels, organic glass plates and solid wood and others with wood structure and similar hardness.
Advantages of the computer panel saw
1. Pneumatic compressed feeding roller is applied, the pressing force can be adjusted by stages which is favorable for smooth feeding of timbers with different thickness.
2. International brands electrical parts are applied for good stability.
3. Spare parts are thick and solid to maintain high precision, high stability and reliability.
4. Completely sealed safety shield can avoid flying of saw dust and isolate noise efficiency and protect operators.
5.Mass production is several times more efficient than common machinery and saves time and power.

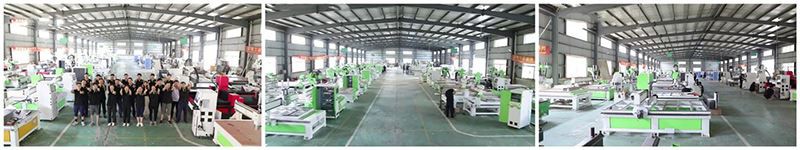

About us
Ours Certificate
After 10 years of development, the National High- -tech Enterprises, CE certification and other certificates.
Package & Shipping
Use standard export plywood box.
