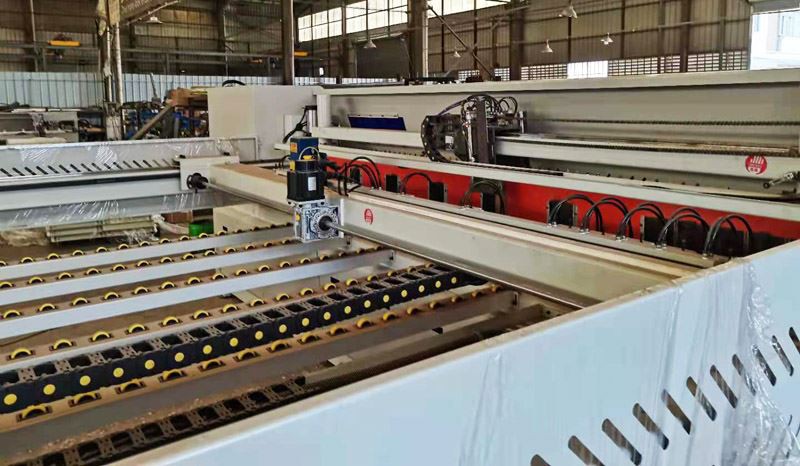

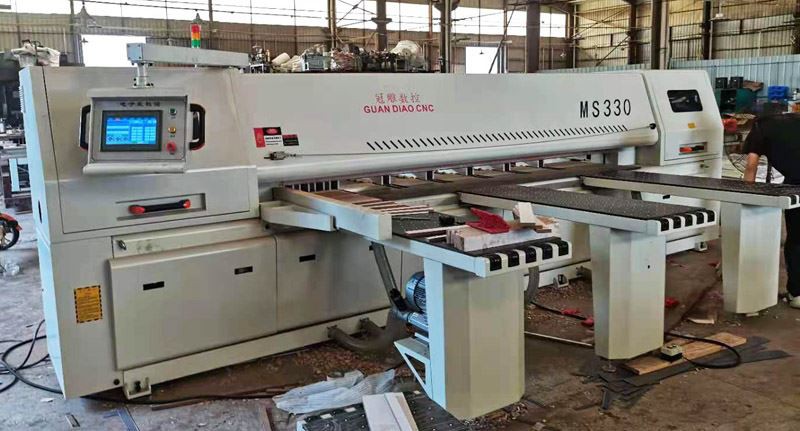

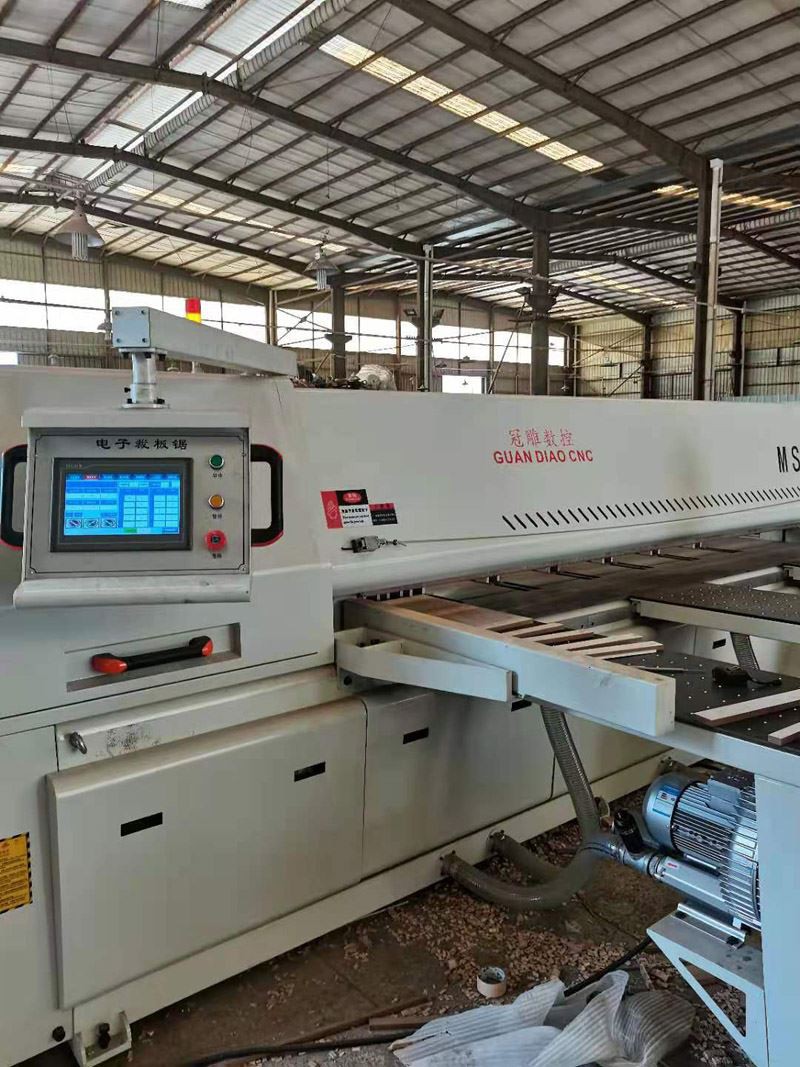

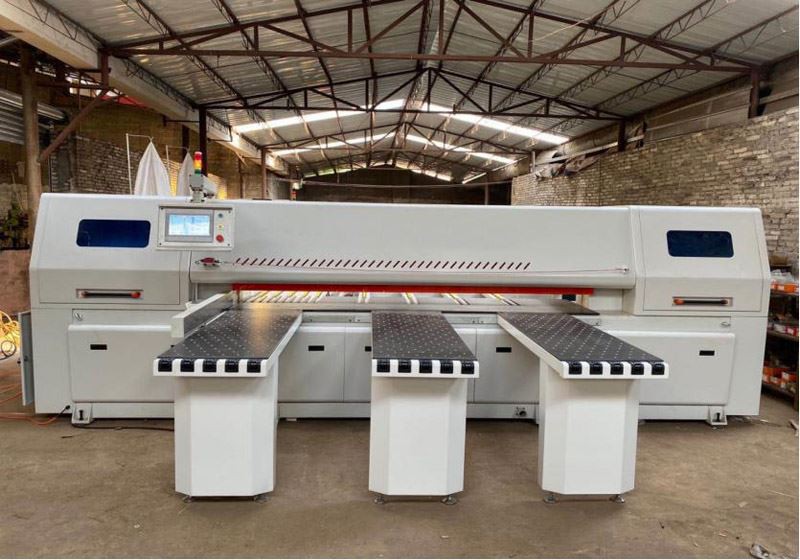

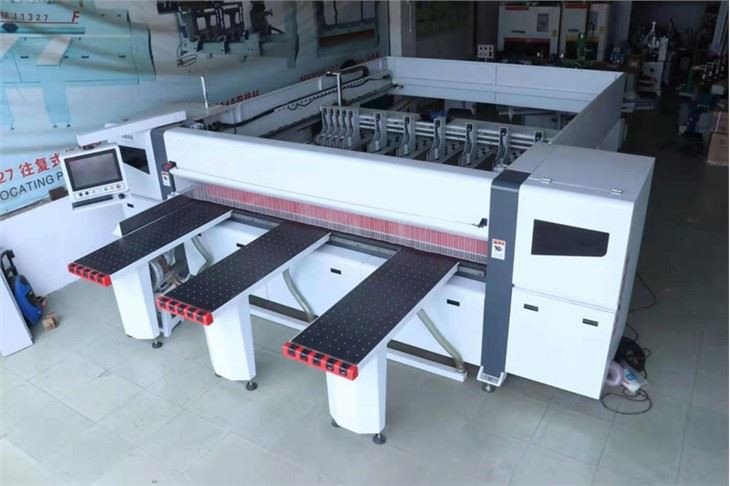

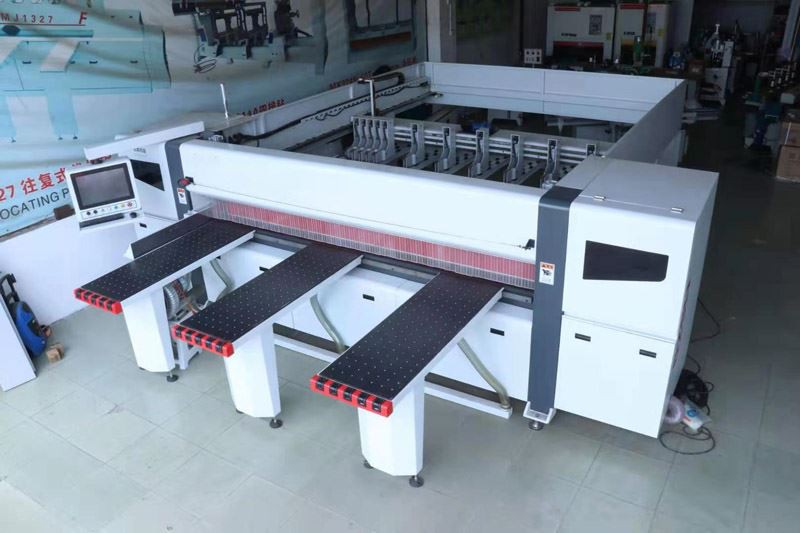

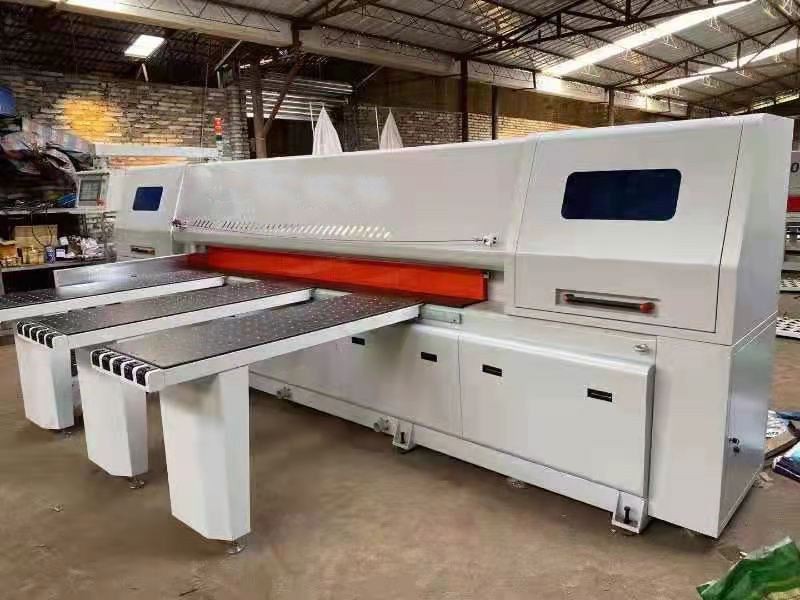

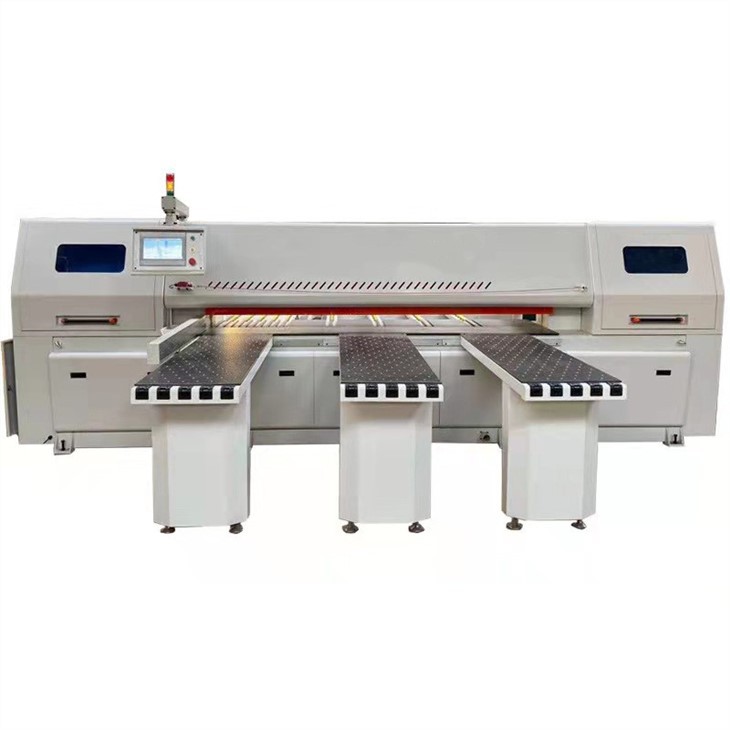

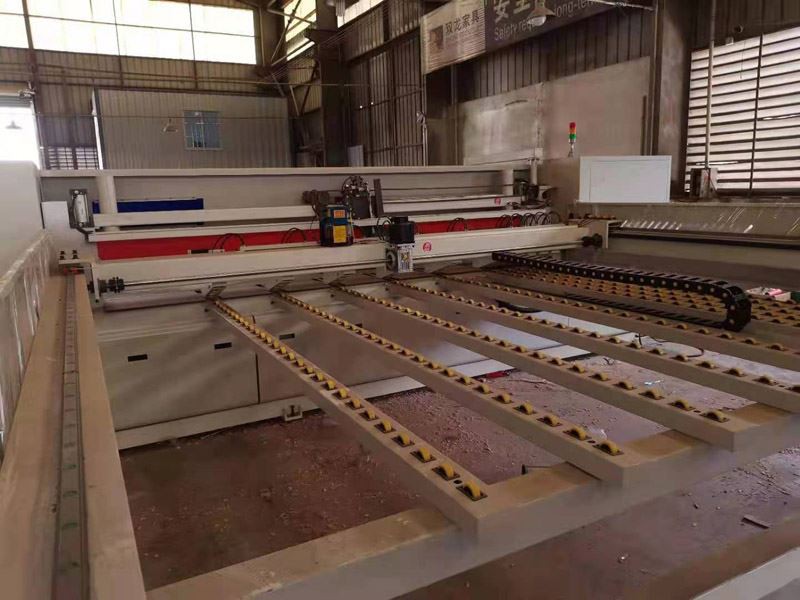

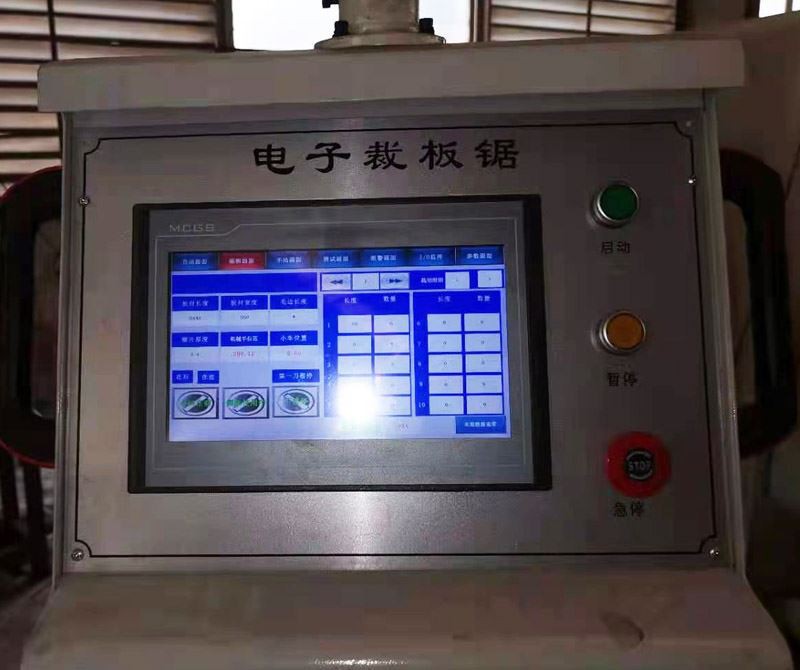

Pictures for Computer Panel Saw
Parameters
Sawing Length | 3200/3300/2800mm | Head Saw Motor | 15KW |
Sawing Thickness | 80mm | Saw Carriage Drive Motor | 1.5KW |
Diameter Of Main Saw Blade | 355mm | Automatic Feeding Motor | 1KW |
Axis DIA. Of Main Saw Blade | 60mm | High Pressure Bower Motor | 3KW |
Rotate Speed Of Main Saw Blade | 5600rpm | Total Power | 21KW |
Dia. Of GROOving Saw Blade | 180mm | Automatic Feeding Speed | 0-80m/min |
Axis Dia.of Grooving Saw Blade | 30mm | Operatin Pressure | 5-7KG/cm |
Rotate Speed Of Rrooving Saw Bkade | 6300rpm | Workbench Height | 850mm |
Saw Carriape Forward Spee | 0-120min | Net Weight | 5500kg |
Saw Carriage Back Speed | 30-120min | Dimensions(L*W*H) | 5850*6100*1750mm |
Machine Specification
#Steel chrome-plated countertops effectively solve the problem of scratching the surface of the board
#The air-cushion table uses stainless steel beads to effectively reduce the friction between the workpiece and the steel ball. There is a roller at the front end of the work surface to facilitate the workpiece to fall and reduce the friction between the workpiece and the front end of the table.
#Manipulator splint device, heavy-duty design, enough grip and push the workpiece to ensure smooth workpiece push
Machine advantages
1.Made of high-strength extruded aluminum alloy, movable table is high in strength and won't bend.
2.With oxidation treatment, movable table surface is beautiful and hard wearing.
3.Tilt angles of main and scoring saw blades are displayed directly by precision inclinometer.
4.The main body by the high quality steel plate and profiles welded together.
5.Rail with high precision linear guide.
6.The machine electrical components mainly choose the foreign advanced products, security, stability.
7.Automatic induction, sawing plate width automatically return the sawing, convenient, fast.

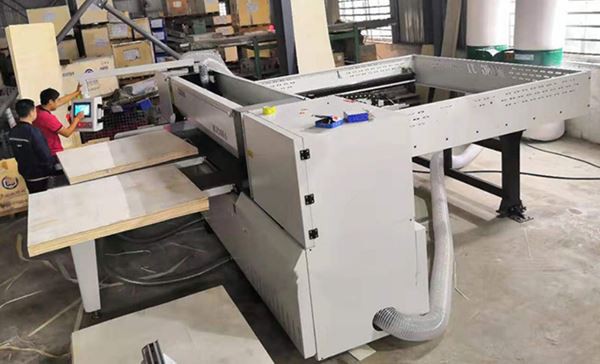

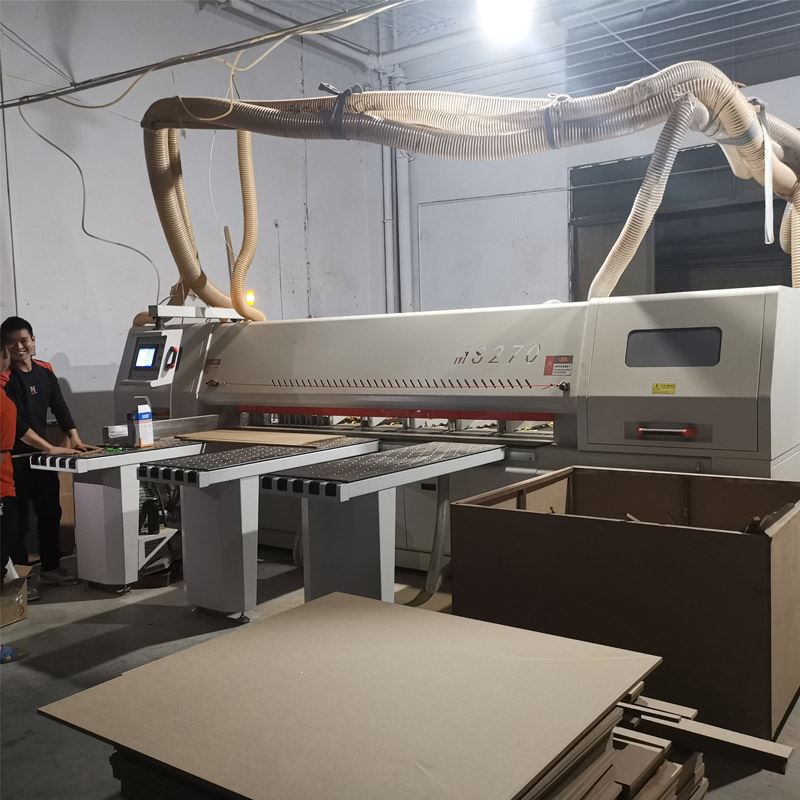

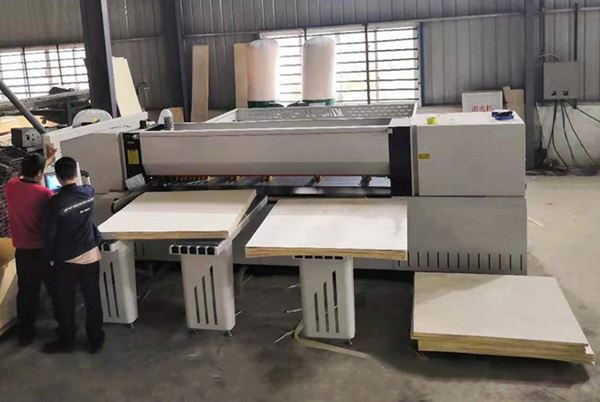

Machine Samples
The computer panel saw has a wide range of uses. Because of its high rotation speed, the electronic cutting saw can be widely used in: precision casting of furniture factories, electrical appliances factories, garment factories, toy factories, hardware factories, etc.

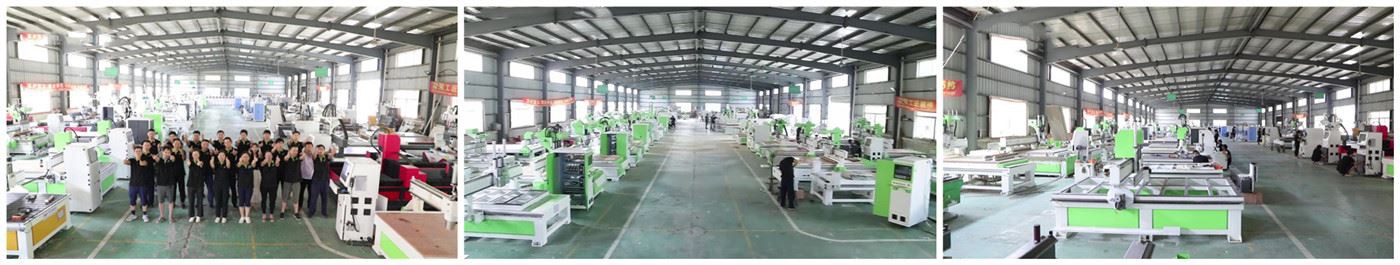

About us
Ours Certificate
After 10 years of development, the National High- -tech Enterprises, CE certification and other certificates.
FAQ
Q: How to install and maintain the machine?
A: Before you use it, we will send the operation tutorial and installation operation video with English version to you. If you still can not operate, we will provide video guidance online.
Q: What are the machine working environment requirements?
A: The machine should be fixed on a stable table and the environment should be kept clean and tidy to avoid contact with dust,static electricity, humidity, and chips to cause parts failure.
Q: What about after-sales service? How long is the warranty period?
A: We offer 24 hours online video call to solve your problems. We have a standby team ready to assist you at any given time. Machine maintenance requirement will be provided to you upon purchase. On all machinery we offer 1 year warranty and 6 months warranty for core components.
Package & Shipping
Use standard export plywood box.
