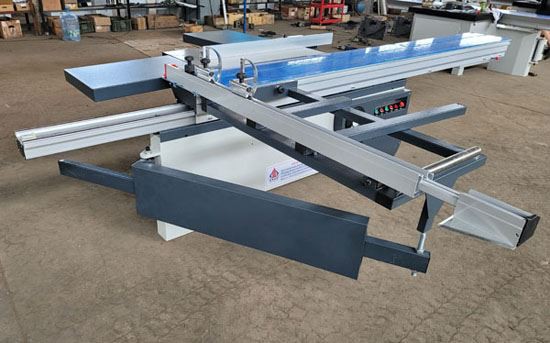

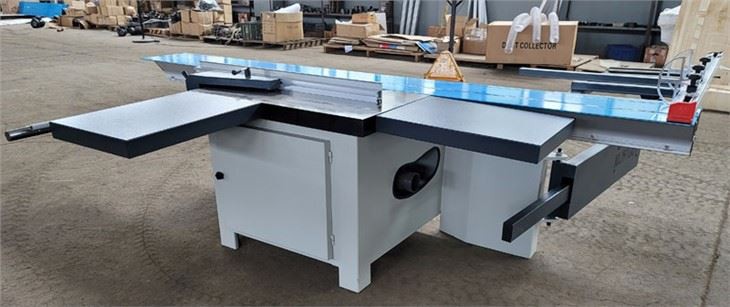

Inroduction for Sliding Table Saw
Suitable for cutting materials such as density board, polished board, man-made board, solid wood board, ABS board, PVC board, etc.
Parameters
Product model | 2.8m 45° MJ45YD | 2.8m 9° MJ45YD | 3m 45° MJ45YD |
Dimensions of sliding table saw | 2800*320mm | 2800*320mm | 3000*375mm |
Maximum sawing length | 2750mm | 2750mm | 2950mm |
Maximum sawing width | 1250mm | 1250mm | 1250mm |
Blade Diameter | 300mm | 300mm | 300mm |
Maximum blade thickness | 80mm | 80mm | 80mm |
Spindle speed | 4000/6000rpm | 4000/6000rpm | 4000/6000rpm |
Spindle diameter | 30mm | 30mm | 30mm |
Angle of saw blade | 0-45° | 90° | 45° |
Main motor power | 4.0/5.5kw | 4.0/5.5kw | 4.0/5.5kw |
Diameter of scoring saw | 120mm | 120mm | 120mm |
Speed of scoring saw | 8000rpm | 8000rpm | 8000rpm |
Diameter of countershaft | 20mm | 20mm | 20mm |
Auxiliary motor power | 0.75/1.1kw | 0.75/1.1kw | 0.75/1.1kw |
Net weight（kg) | 700 | 700 | 770 |
Size (mm) | 2850*3050*900 | 2850*3050*900 | 3050*3100*900 |

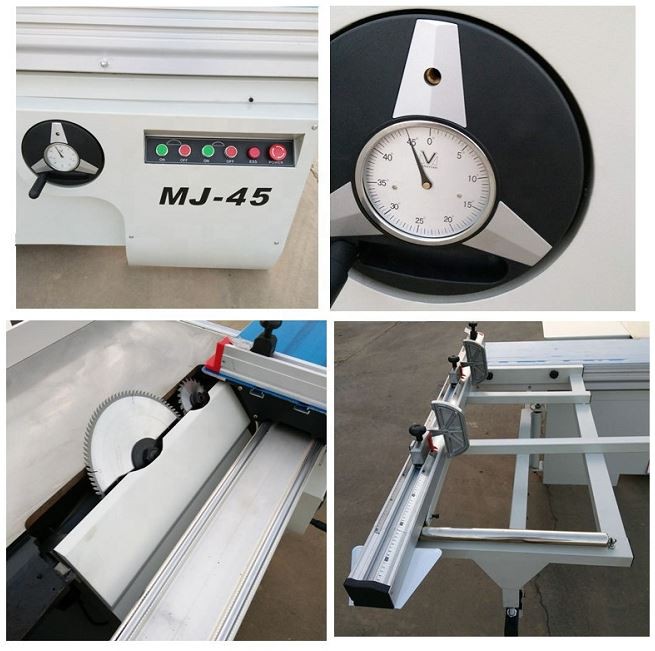

Machine Specification

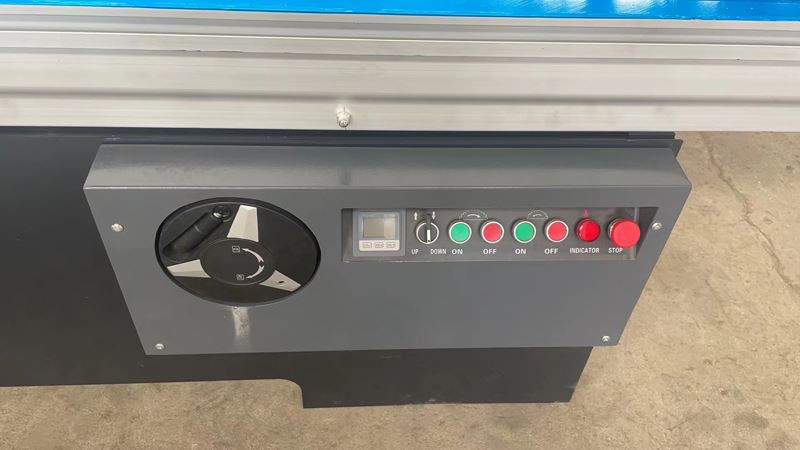

 | Electric lift, digital display function, one-button lifting, simpler operation |
| Cast iron structure, easy to cut without sliding, using non-rust chrome plated mold shaft to promote smooth |
| Round guide rail |

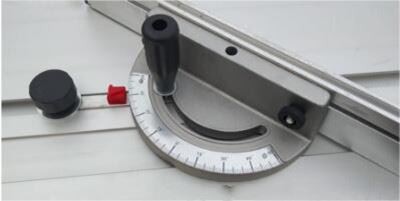

| Ruler |
Sliding Table saw Features
1.Sliding Table saw apply to processing all kinds of MDF boards, PB boards, wood-based panels, ABS panels, PVC panels, organic glass plates and soild wood and others with wood structure and similar hardness.
2.Adopt lengthened machine body,NSK bear,Chrome Plated Round Bar push table,Copper motor,Cast iron worktable,Paint baking treatment for the appearance of the whole machine.
3.Common models:45°/90°Electronic rise and down.45°with 3 meter working table,90° with 2.8 meter working table. Support the customization of various models,such as 3 meter ,3.2 meter,3.8 meter,4 meter,4.2 meter.

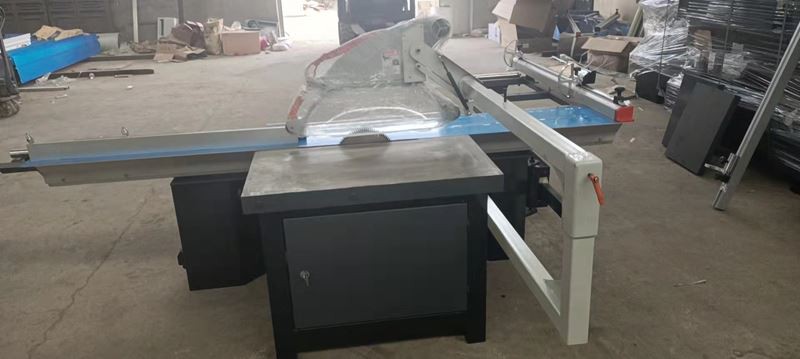

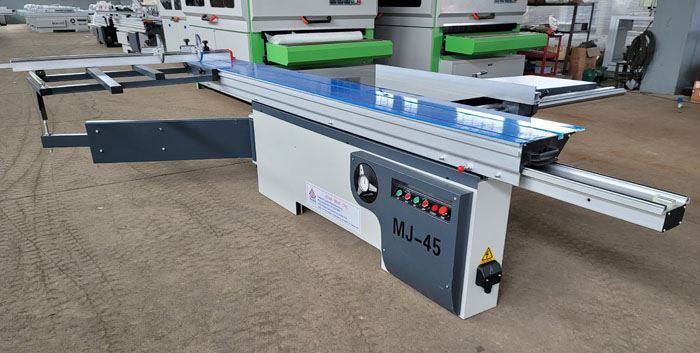

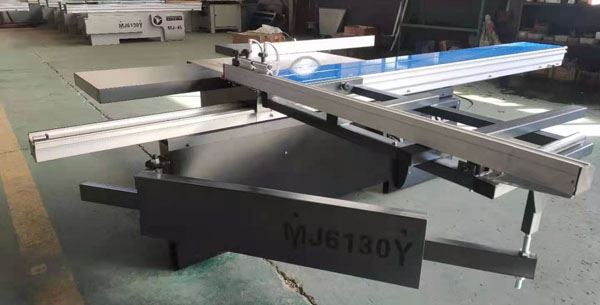

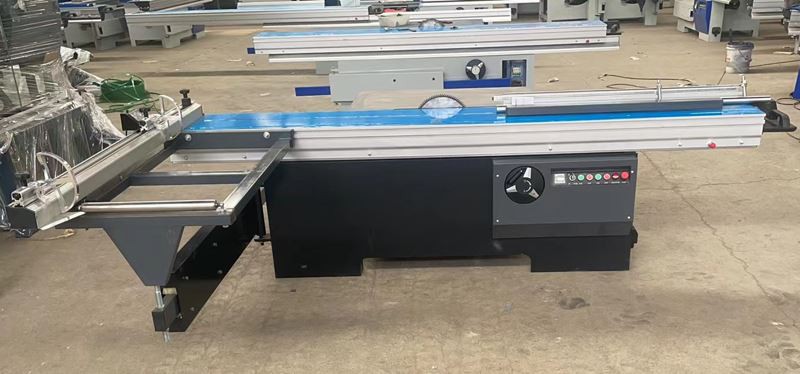

Machine Samples

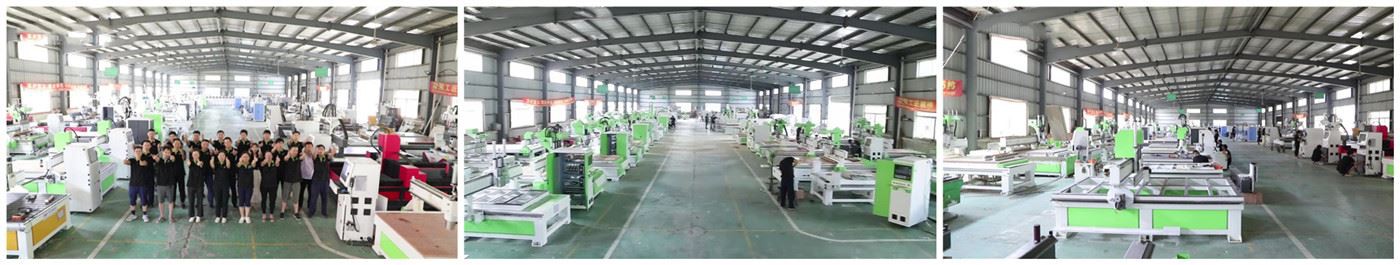

About us
Ours Certificate
After 10 years of development, the National High- -tech Enterprises, CE certification and other certificates.
Package & Shipping
Contact Information
