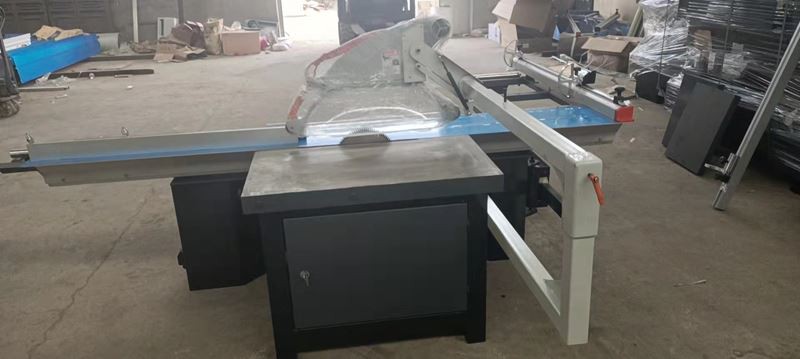

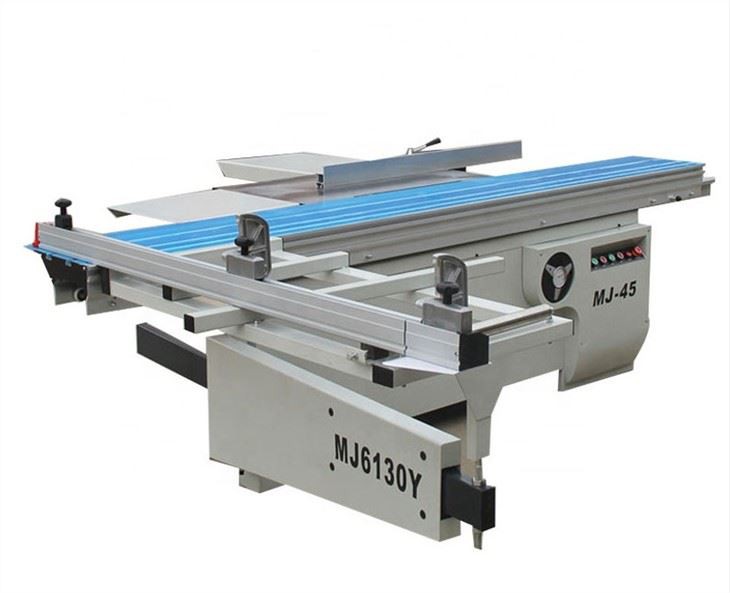

Inroduction for Sliding Table Saw
1,Eeuro design sliding table, this will make the machine more stable, and greatly enhance the pressure bearing capacity of the machine.
2,Circular rod structure with chromium plating, the positioning is more accurate than the linear guide, the push table is smoother.
3,Big ruler, made of aluminum alloy material, stable and non-displacement, effectively guarantees the precision in the cutting process, can increase the stretching space, promote smooth, and save time and labor.
4,Imported swedish skf bearings, low noise, smooth operation, durable, cost 3-5 times the cost of ordinary bearings.
5,Upgrade large motor, the main motor power is 5.5kw, the scoring motor power is 1.1kw, the power is strong, and the service life is long.
6,Main and scoring saw blade, first slotted by a scoring saw, followed by a main saw can easily cut the sheet to prevent chipping burrs, in addition, the size of the saw blade can be used alone.
7,Heavy rip fence, the cutting board is more precise, the error is controlled within 10 wires, and the thick chrome-plated round bar is used on the mold column to improve the bearing pressure of the plate during vertical cutting.
Suitable for cutting materials such as density board, polished board, man-made board, solid wood board, ABS board, PVC board, etc.
Parameters
Product model | 2.8m 45° MJ45YD | 2.8m 9° MJ45YD | 3m 45° MJ45YD |
Dimensions of sliding table saw | 2800*320mm | 2800*320mm | 3000*375mm |
Maximum sawing length | 2750mm | 2750mm | 2950mm |
Maximum sawing width | 1250mm | 1250mm | 1250mm |
Blade Diameter | 300mm | 300mm | 300mm |
Maximum blade thickness | 80mm | 80mm | 80mm |
Spindle speed | 4000/6000rpm | 4000/6000rpm | 4000/6000rpm |
Spindle diameter | 30mm | 30mm | 30mm |
Angle of saw blade | 0-45° | 90° | 45° |
Main motor power | 4.0/5.5kw | 4.0/5.5kw | 4.0/5.5kw |
Diameter of scoring saw | 120mm | 120mm | 120mm |
Speed of scoring saw | 8000rpm | 8000rpm | 8000rpm |
Diameter of countershaft | 20mm | 20mm | 20mm |
Auxiliary motor power | 0.75/1.1kw | 0.75/1.1kw | 0.75/1.1kw |
Net weight（kg) | 700 | 700 | 770 |
Size (mm) | 2850*3050*900 | 2850*3050*900 | 3050*3100*900 |

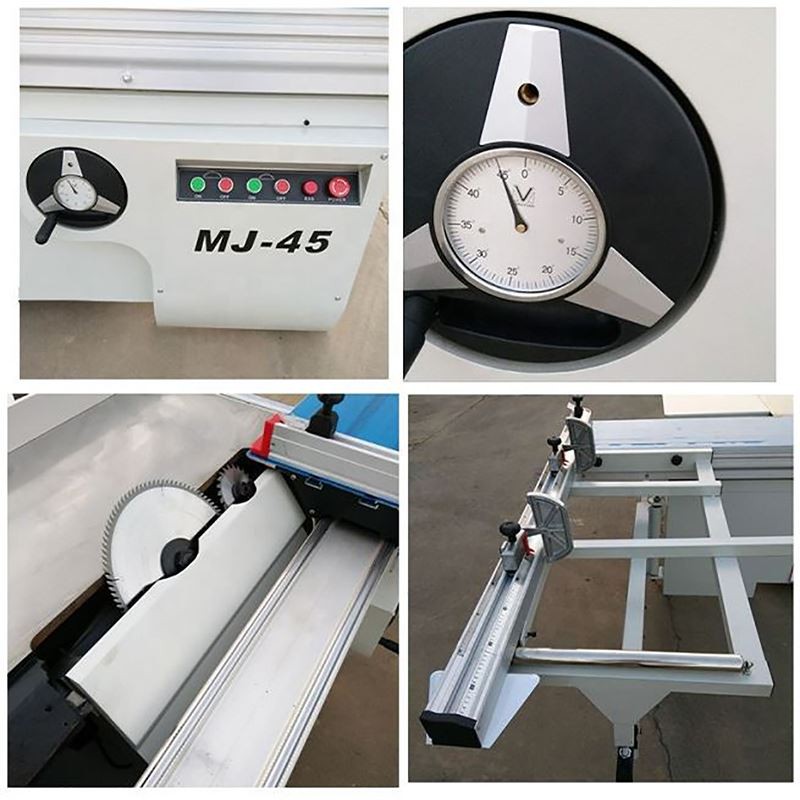

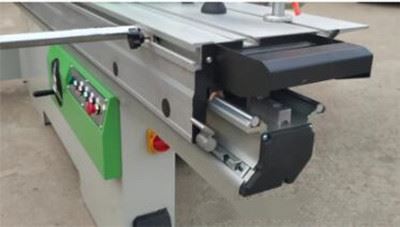

Machine Specification

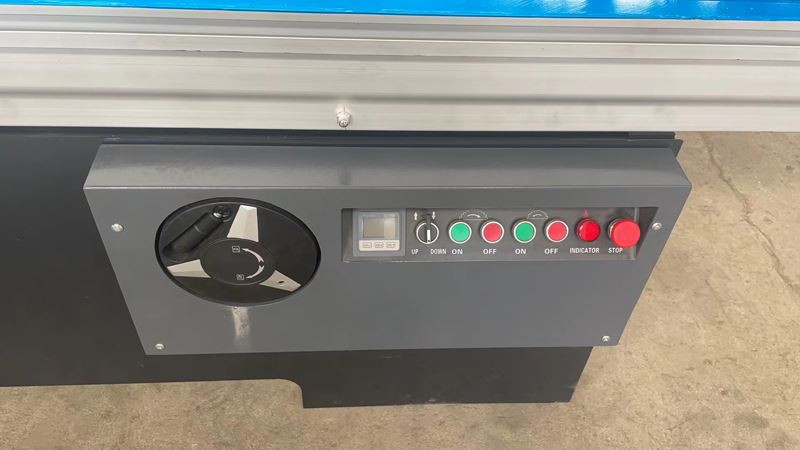

 | Adjustment button |

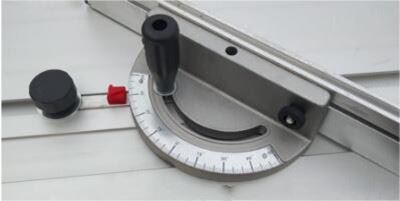

| 45 degree saw |
| Round guide rail |
| Ruler |
Machine advantages
1. Improved internal structure, ensure stable and precision working environment;
2. Aluminum sliding table with round stick rail, ensure smooth running;
3. Accurate and solid rip fence with fine adjustment function;
4. Adjustment saw blade protection extraction hood;
5. Saw blade manual tiltable (0°- 45°)as well as height adjustable.

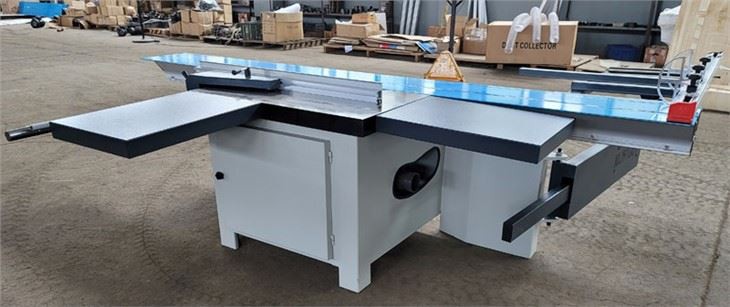

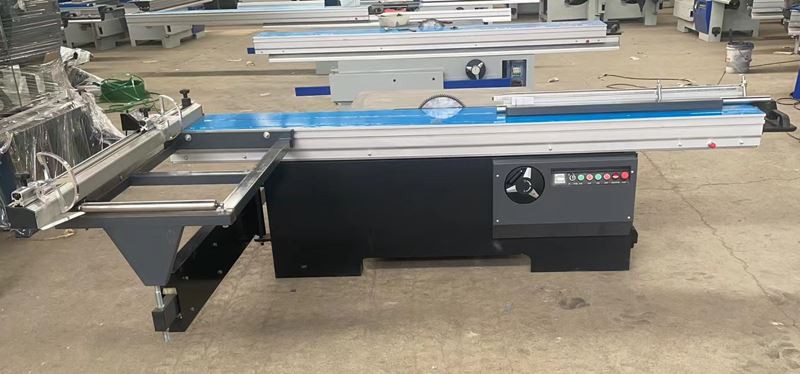

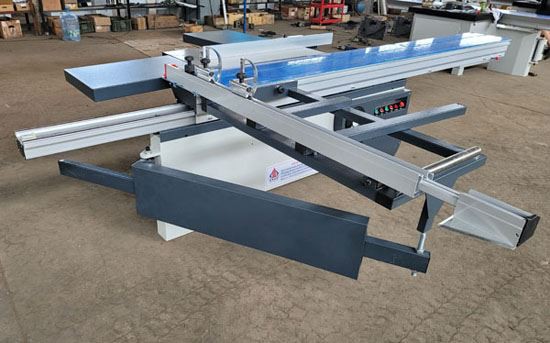

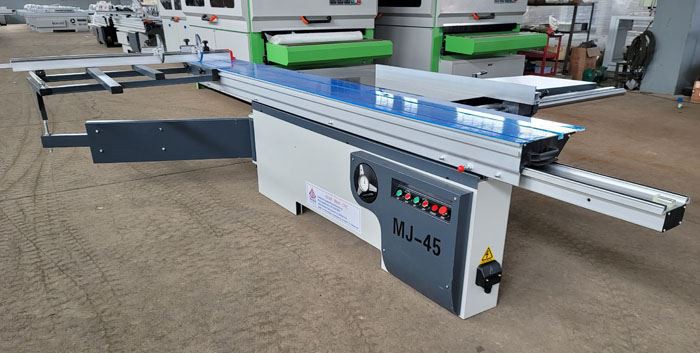

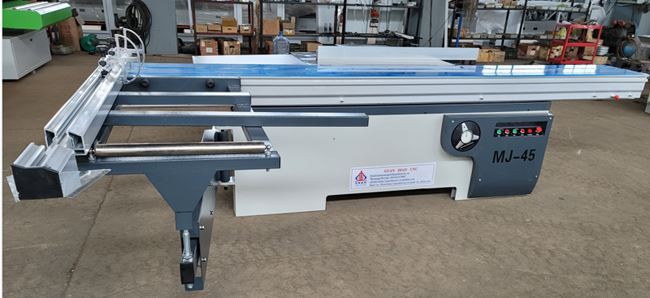

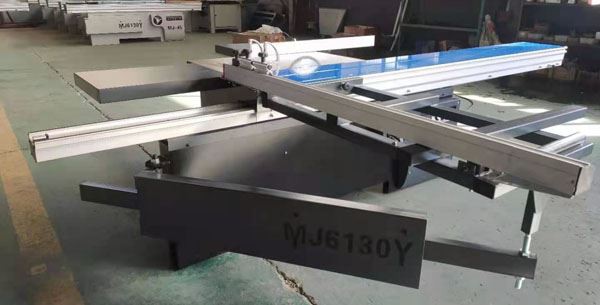

Machine Samples
About us
Ours Certificate
After 10 years of development, the National High- -tech Enterprises, CE certification and other certificates.
Package & Shipping
Contact Information
