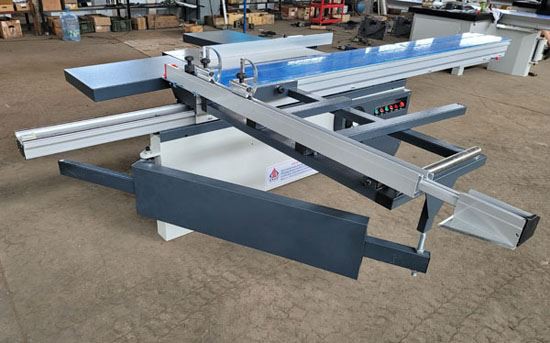

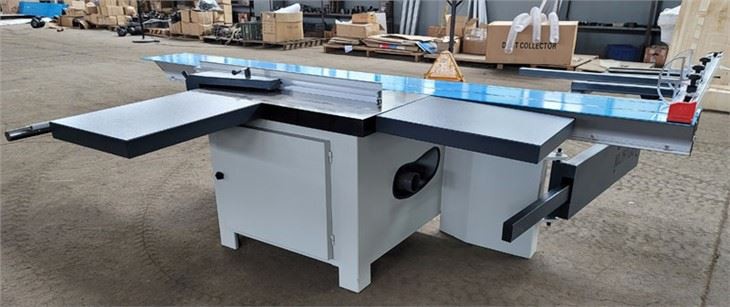

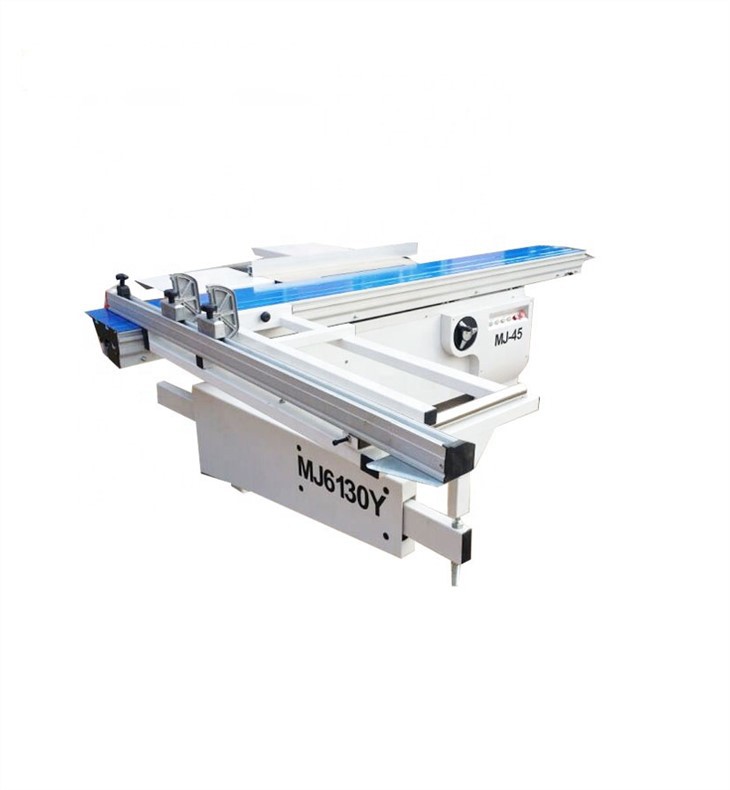

Inroduction for Sliding Table Saw
Panel cutting saw apply to processing all kinds of MDF boards, PB boards, wood-based panels, ABS panels, PVC panels, organic glass plates and soild wood and others with wood structure and similar hardness.
Parameters
Product model | 2.8m 45° MJ45YD | 2.8m 9° MJ45YD | 3m 45° MJ45YD |
Dimensions of sliding table saw | 2800*320mm | 2800*320mm | 3000*375mm |
Maximum sawing length | 2750mm | 2750mm | 2950mm |
Maximum sawing width | 1250mm | 1250mm | 1250mm |
Blade Diameter | 300mm | 300mm | 300mm |
Maximum blade thickness | 80mm | 80mm | 80mm |
Spindle speed | 4000/6000rpm | 4000/6000rpm | 4000/6000rpm |
Spindle diameter | 30mm | 30mm | 30mm |
Angle of saw blade | 0-45° | 90° | 45° |
Main motor power | 4.0/5.5kw | 4.0/5.5kw | 4.0/5.5kw |
Diameter of scoring saw | 120mm | 120mm | 120mm |
Speed of scoring saw | 8000rpm | 8000rpm | 8000rpm |
Diameter of countershaft | 20mm | 20mm | 20mm |
Auxiliary motor power | 0.75/1.1kw | 0.75/1.1kw | 0.75/1.1kw |
Net weight（kg) | 700 | 700 | 770 |
Size (mm) | 2850*3050*900 | 2850*3050*900 | 3050*3100*900 |

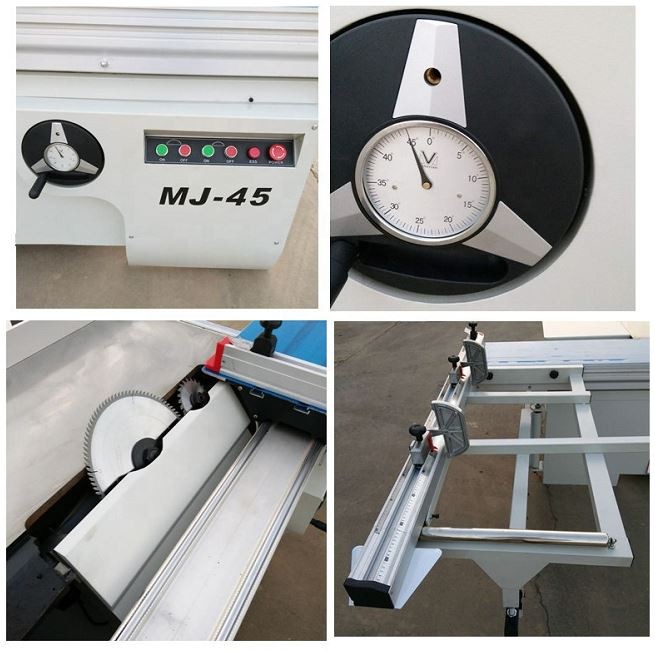

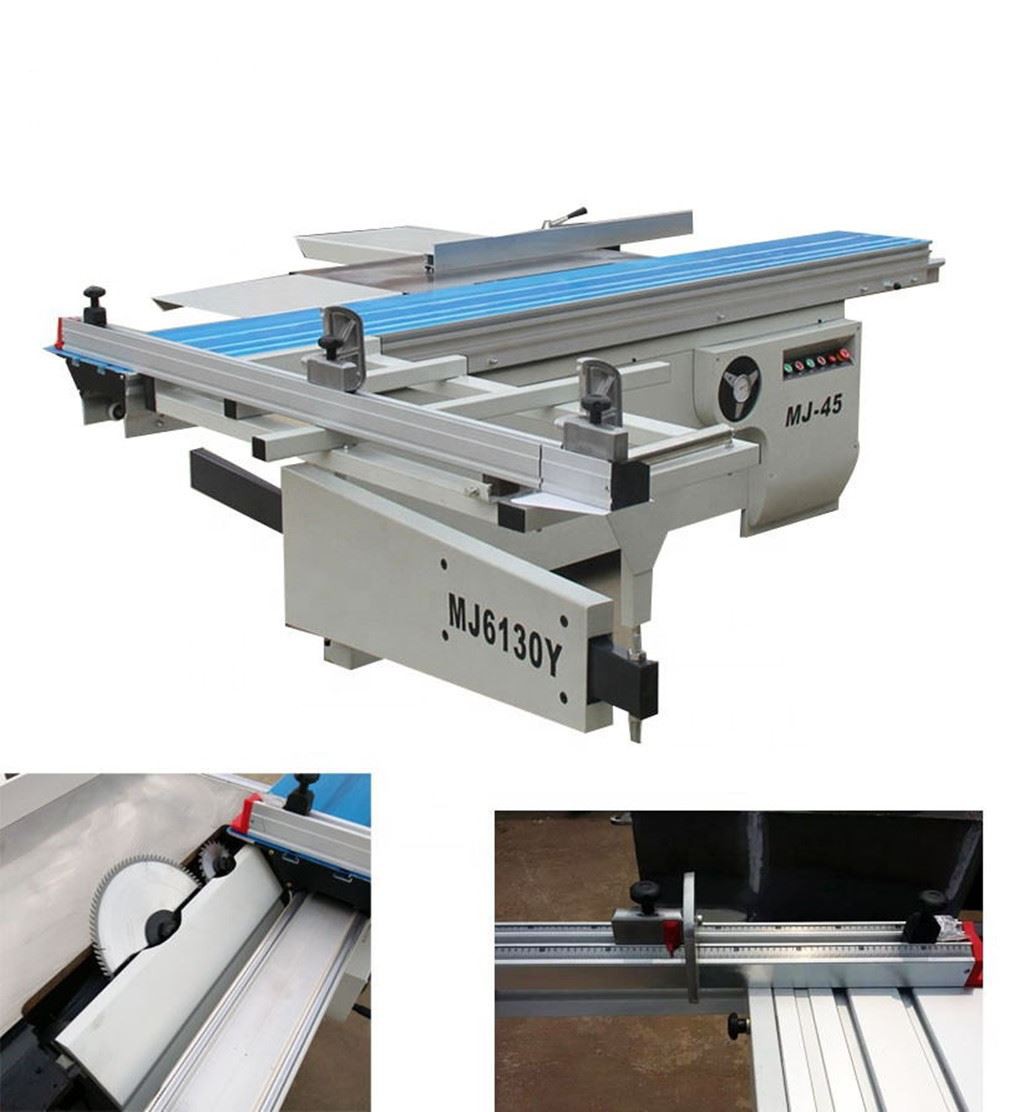

Machine Specification

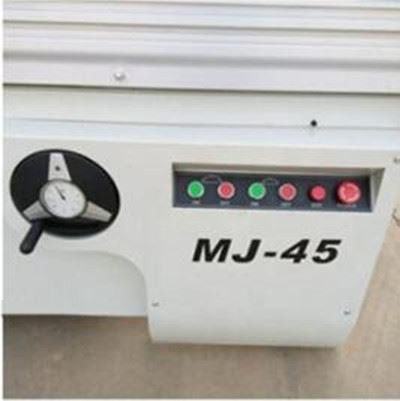

 | Adjustment button |

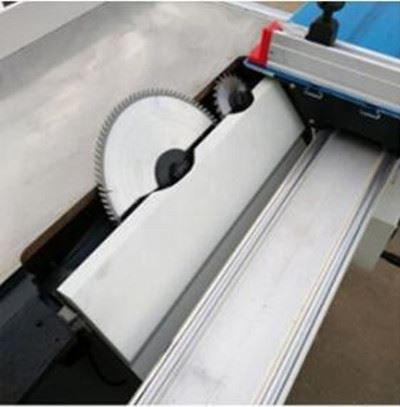

| 45 degree saw |
| Round guide rail |

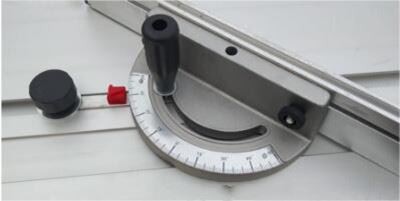

| Ruler |
Machine advantages
1. Apply to processing all kinds of density boards,shaving boards,wood-based panels,PVC panels,organic glass plates and soild wood and others with wood structure and similar hardness.
2. The production process of the platform is the national leader.
Movable table surface oxidation treatment, beautiful and durable. The plate in the production process can be more stable on the surface.
3. The width of our platform is widened.
4. Precision sliding table saws are equipped with large saw blades and scribing saw blades.
5. The machine adopts the international pure copper motor. Strong Power and long service life.
6. The machine adopts the continental scale.
Machine Samples

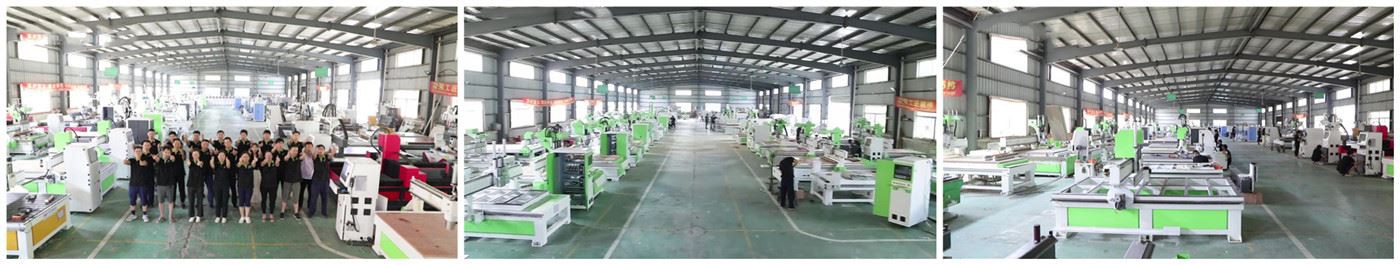

About us
Ours Certificate
After 10 years of development, the National High- -tech Enterprises, CE certification and other certificates.
