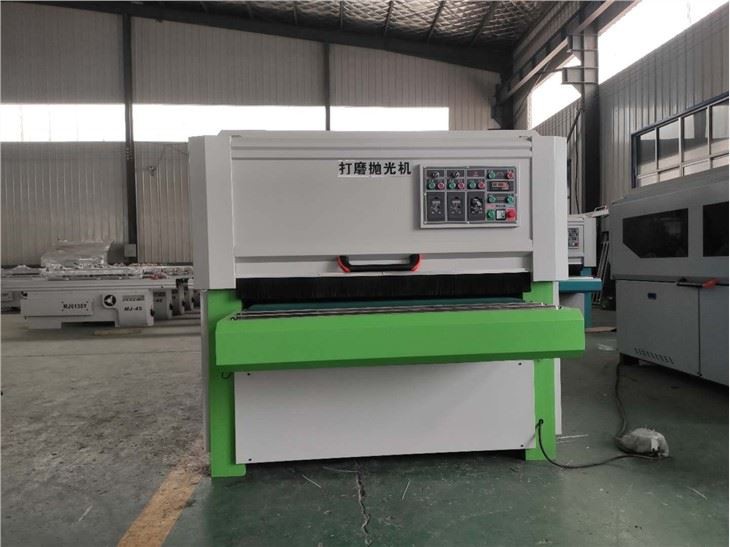

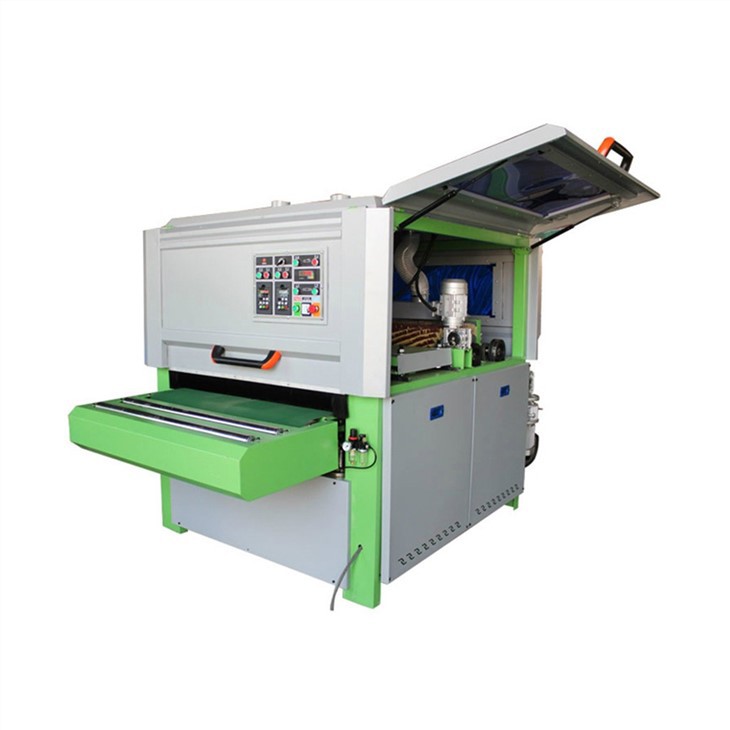

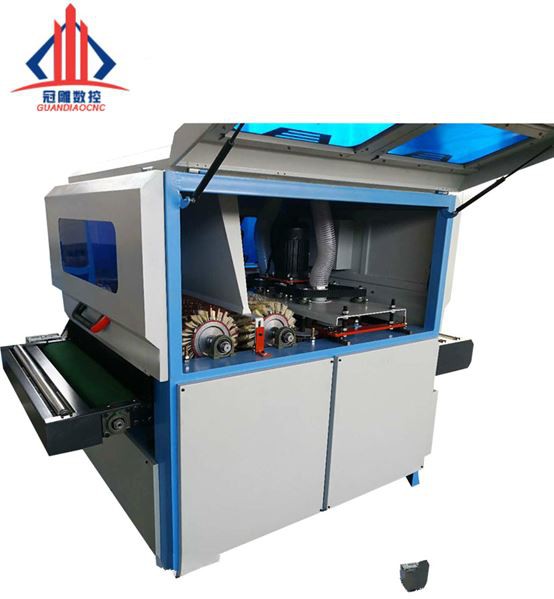

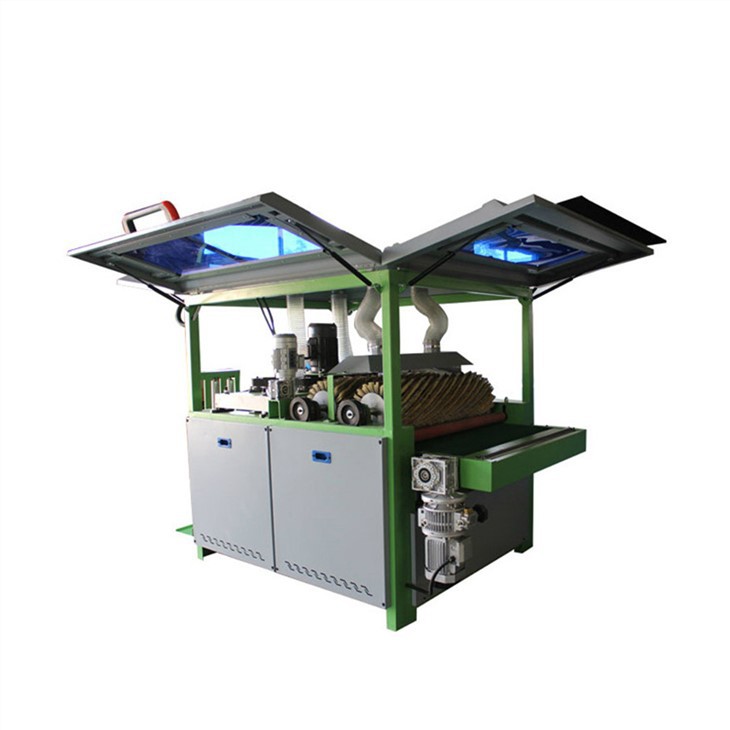

Wood polish sander

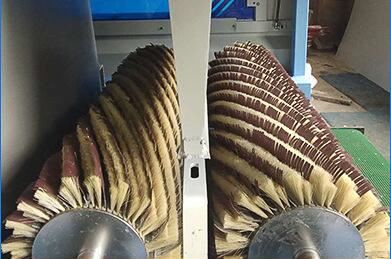

This equipment uses abrasive strip, sisal and abrasive roller as abrasive material to polish sharp edge chamfering, surface burr and workpiece edge after painting;Fully functional, wide range of processing, mainly used for door plate, primer polishing, including solid wood doors, composite doors, sticker doors, cabinet doors, wardrobe doors, door polishing, such as PU, paint panel, primer panel, white stubble workpiece polishing processing can be selected.Can replace the grinder to complete the work efficiently.
Specification
Model | GD-630 | GD-1000 | GD-1300 | |
Working width | 30-630mm | 30-1000mm | 30-1300mm | |
Size of Abrasive Belt | 650*1900mm | 1020*2000mm | 1320*2200mm | |
Working thickness | 2-100mm | |||
Feeding speed | 5-25m/min | |||
Inverter | 5.5KW+1.5kw | |||
Reducer motor | 1.5kw | |||
Total power | 11kw | |||
Air pressure | >0.55Mpa | |||
net weight | 1600kg | |||
Voltage | 220V,3P.60hz | |||

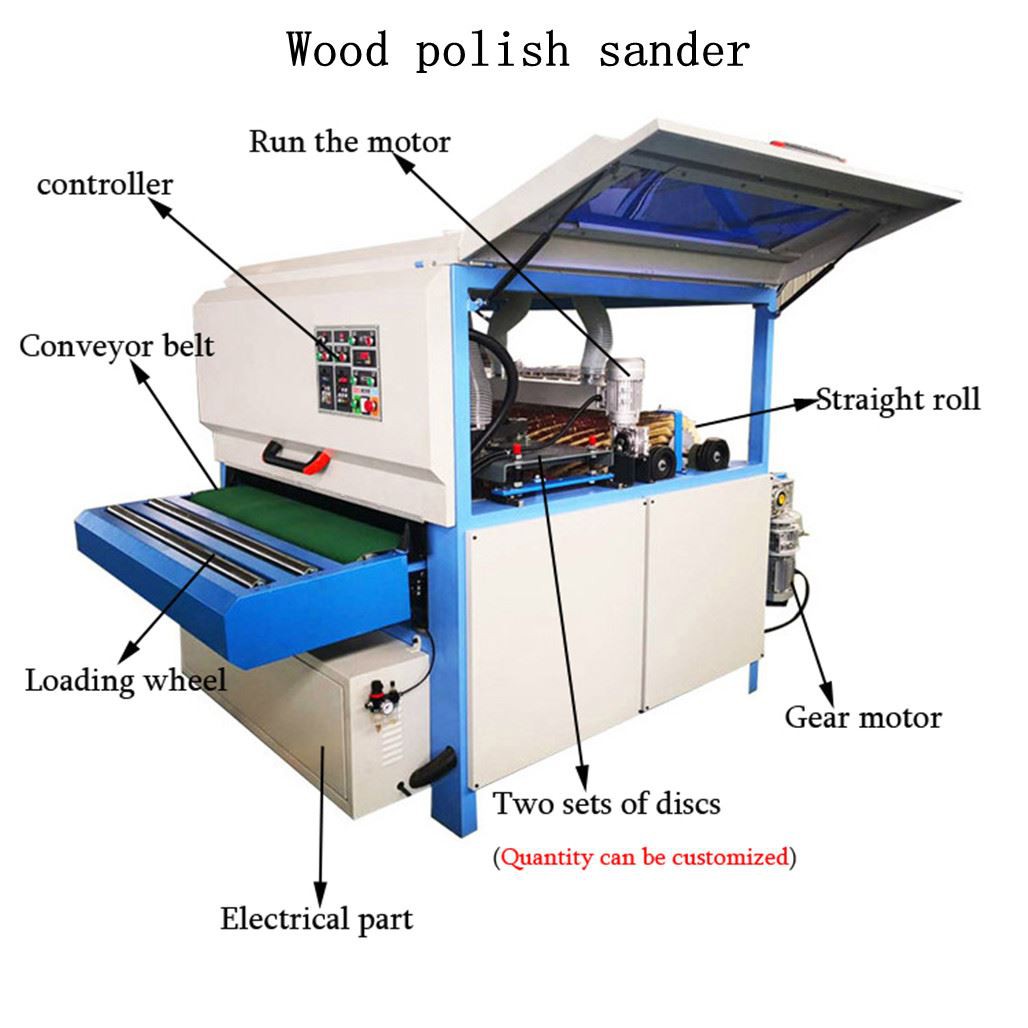

Details

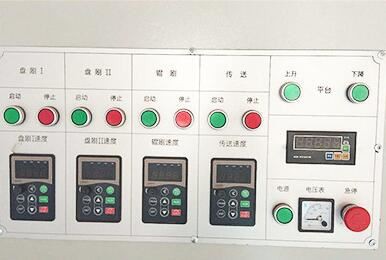

Control panel The panel design is clear, the operation is more convenient, the labor time is saved, and the efficiency is higher. |
Conveyor belt motor Cast iron gearbox motor, even in the case of high temperature does not affect the work, large speed ratio, conveying speed can be adjusted at will. |

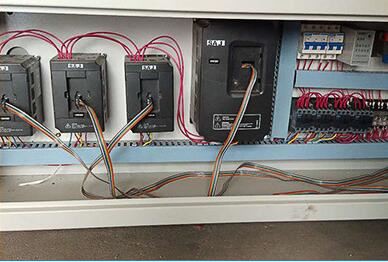

Genuine inverter The whole machine is made of genuine well-known electrical appliances, with super stable performance and anti-interference ability. The warranty is three months for other manufacturers, and one year for us. |

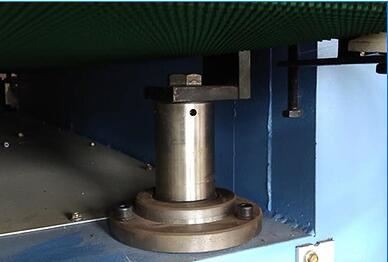

Lifting support column The use of high-power electric lifting table, save time, labor, labor, processing plate thickness up to 12 cm, far more than the market. |

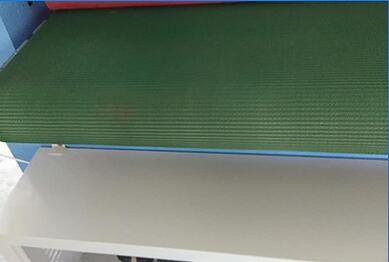

Conveyor table Five layer superimposed material conveyor belt, long-term use will not appear deviation, channel iron plate worktable, equipped with pneumatic deviation device, heavier body, prevent shaking, long service life. |

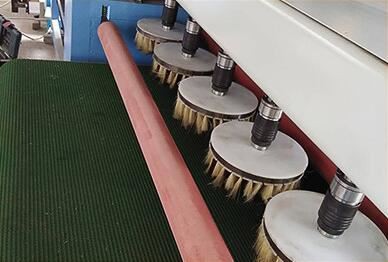

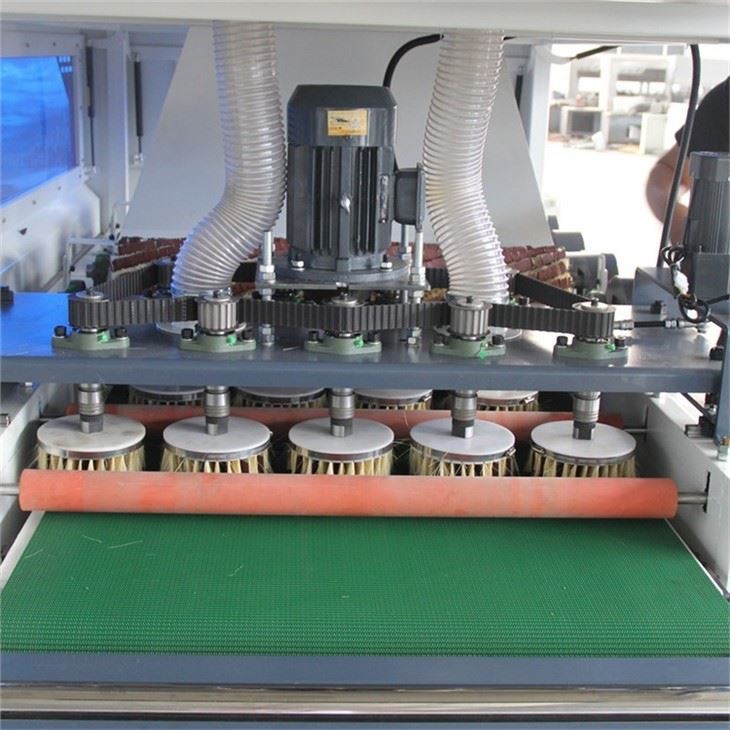

Vertical grinding plate Used for vertical grinding, suitable for groove, carving, lattice and other grinding. |
Cross roll It is also called straight roller, which is used for plane grinding of plate. For softer wood, it uses 2-4 rollers, and for harder wood, it uses 2-4 rollers. |
Application

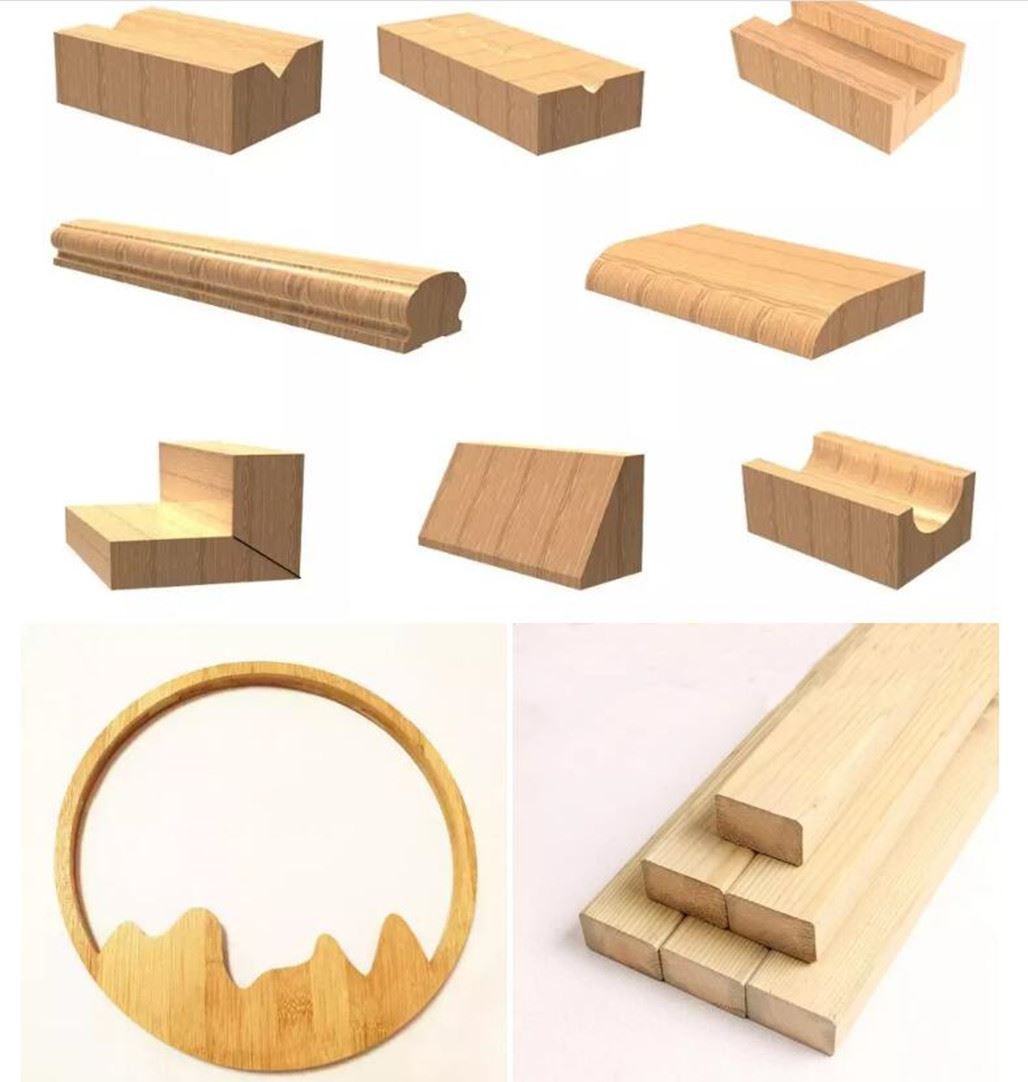

1 For finish sanding of louver, shutter, raised panel, doors and frames,
2 For sanding finishing of hard wood, softwood, MDF, veneer, plywood, and painted panel

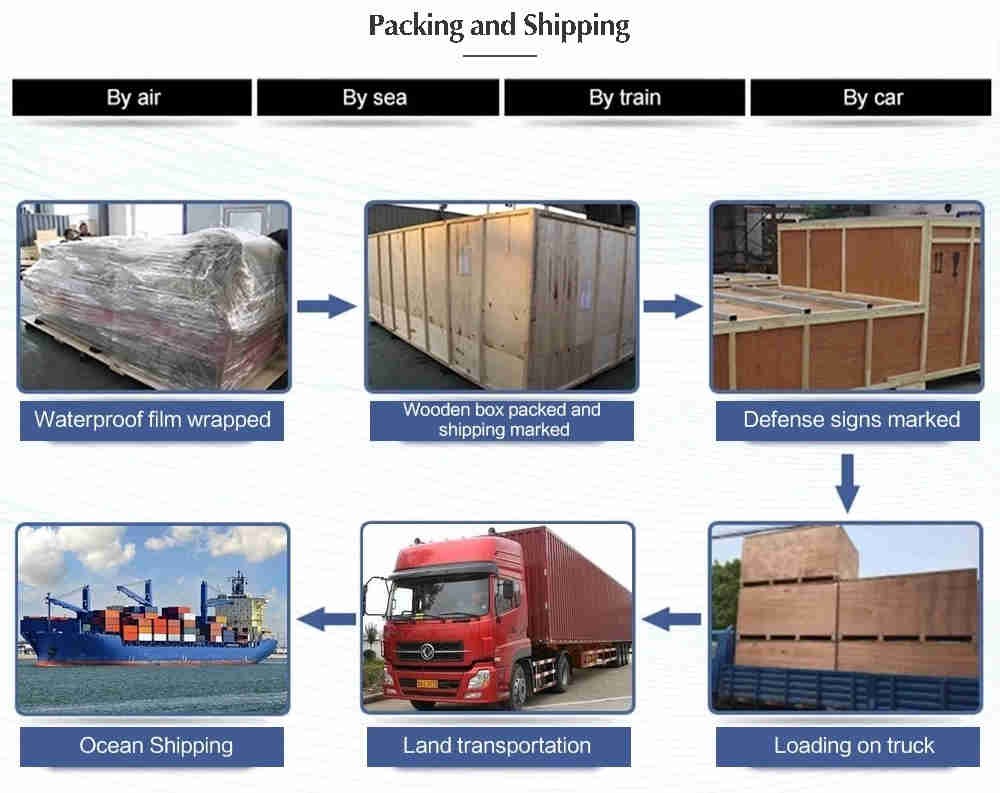

Packing&Shipping

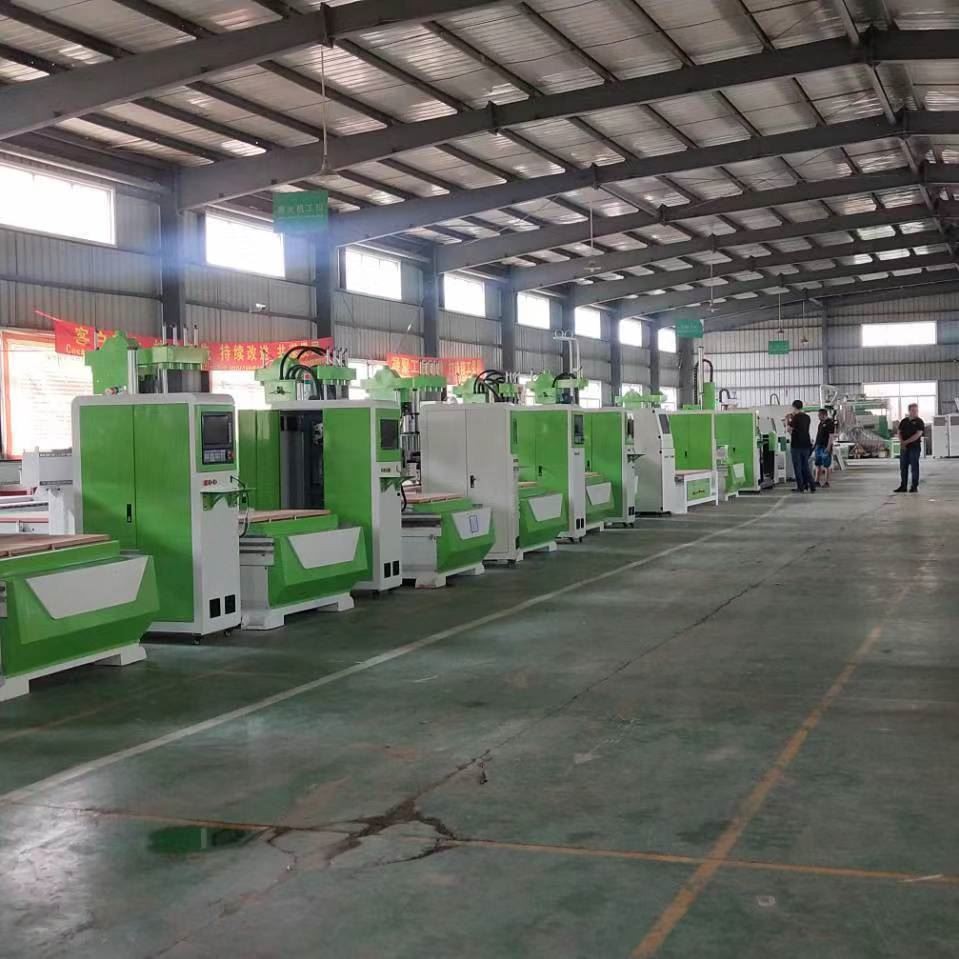

Company Profile
We are the professional woodworking machine supplier, and our main products are the Precise panel saw, all kinds of edge banding machine, wood polishing sanding machine, wood multiple-drilling machine, spindle moulder, hydraulic cold press, hot press machine, etc.
1.Delivery and Package:
We will take care of your machinery packages well like picture show.
·Our workers will make sure your machine clean before package.
·We will add stretchy film for the whole machine and spare parts for delicate protection.
·We will make export standard strong Wooden box case package as your request.
2.Guarantee:
The machine is guaranteed for 12 months .Within 12 months under normal using and maintenance, if the machine has something problem ,you will get spare part for free . more than 12 months,you will get the cost price for accessories. You will also get technical support and service all the time.
3. Technical support:
·Technical support by Phone, Email ,Wechat, WhatsApp and Skype,24 hours online.
·We provide English version manual.
·Engineer available to service machinery overseas.
4. After sales services:
Our machine is installed and tested well before delivery. You can operation the machine immediately after received machine.
If you don't know how to use the machine,we will offer you free training until you can use machine freely.And If there is still have any question, please contact us by Email, Skype, Phone and Trademanager online service at any time.
