Product Descrption

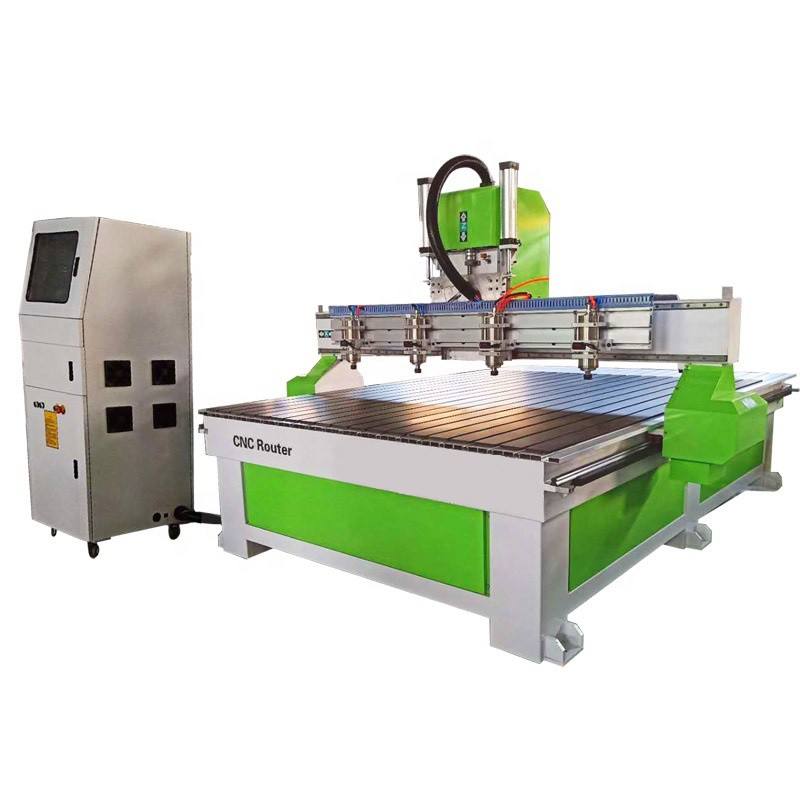

Wood Relief CNC Router is our cnc router with multi spindles for wood relief carving and engraving, spindles can be 4,6,8,12 etc and machine size can be 1218, 1325, 1625, 1825, 1530, 2030, 2025 etc.
Machine Features
2. Three axes adopt the imported ball screw rod with high precision and linear guide rail which ensures the precision of machine.
3. High subdivision step motor with high speed, low noise, running firmly, and powerful torque cutting.
4. Adopts water cooled spindle with frequency conversion. With low noise, the service life is long, and rotated steadily.
5. High-power, deeply incise. It can incise 30mm thickness acrylic once.
6. The software of the machine can be upgraded so as to ensure the machine improved constantly.
7. Opening software interface can connect all kinds of 3D engraving software, compatible with high precision software.
8. Inserting DSP control system can be optional to this machine.
Technical Parameters
|
Model NO. |

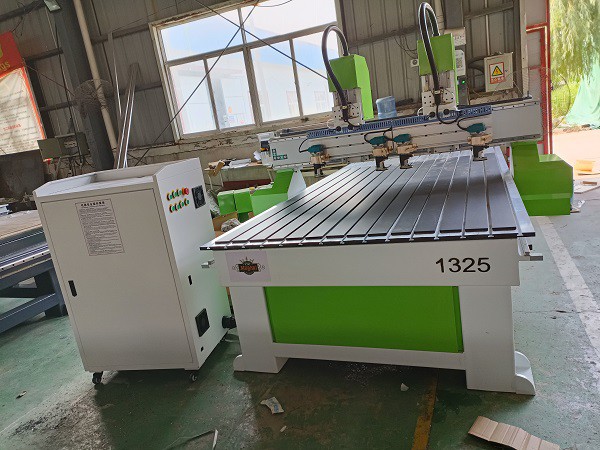

LD-1325 Multi-Spindle CNC Router |
|
X Y Z Traveling Area |
1300*2500*200mm(optional) |
|
Table Structure |
Aluminum profile |
|
X Y Transmission |
XY is with helical helical Rack Gear |
|
Z Transmission |
Germany brand ball screws |
|
X Y Z Guide Rail |
TAIWAN HIWIN 20mmSquare Rail |
|
Spindle Power |
2.2KW Water Cooling/24000rpm/min |
|
Spindle quantity |
3/4/5/6 heads(optional) |
|
Max. Spindle Power |
24000 r/min |
|
Max. Traveling Speed |
20 m/s |
|
Max. Working Area |
12 m/min |
|
Processing Accuracy |
±0.025mm |
|
Reposition Accuracy |
≤0.025mm |
|
Driving System |
Stepper motor and leadshine driver |
|
Command Language |
HPGL, G Code |
|
Software |
Castmate Artcam Typs 3 March 3 Wentai |
|
Operation System |
NC studio control system |
|
Working Voltage |
AC380V, 50HZ |
|
Packing |
Wooden case |
|
Net Weight/Gross Weight |
1300KGS /1500KGS |
|
Package Dimension |
3.2*1.85*2.15m |
|
Payment |
TT with 30% in advance |
Machine Details

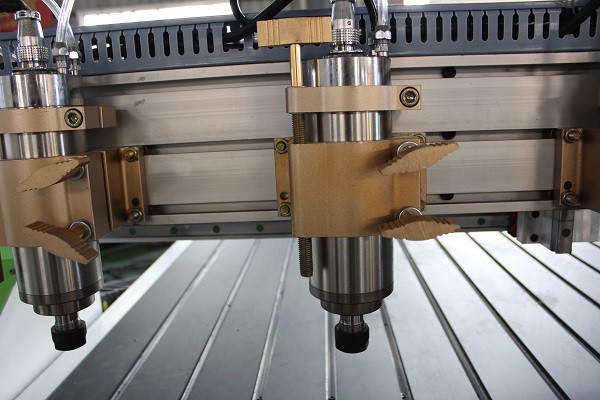

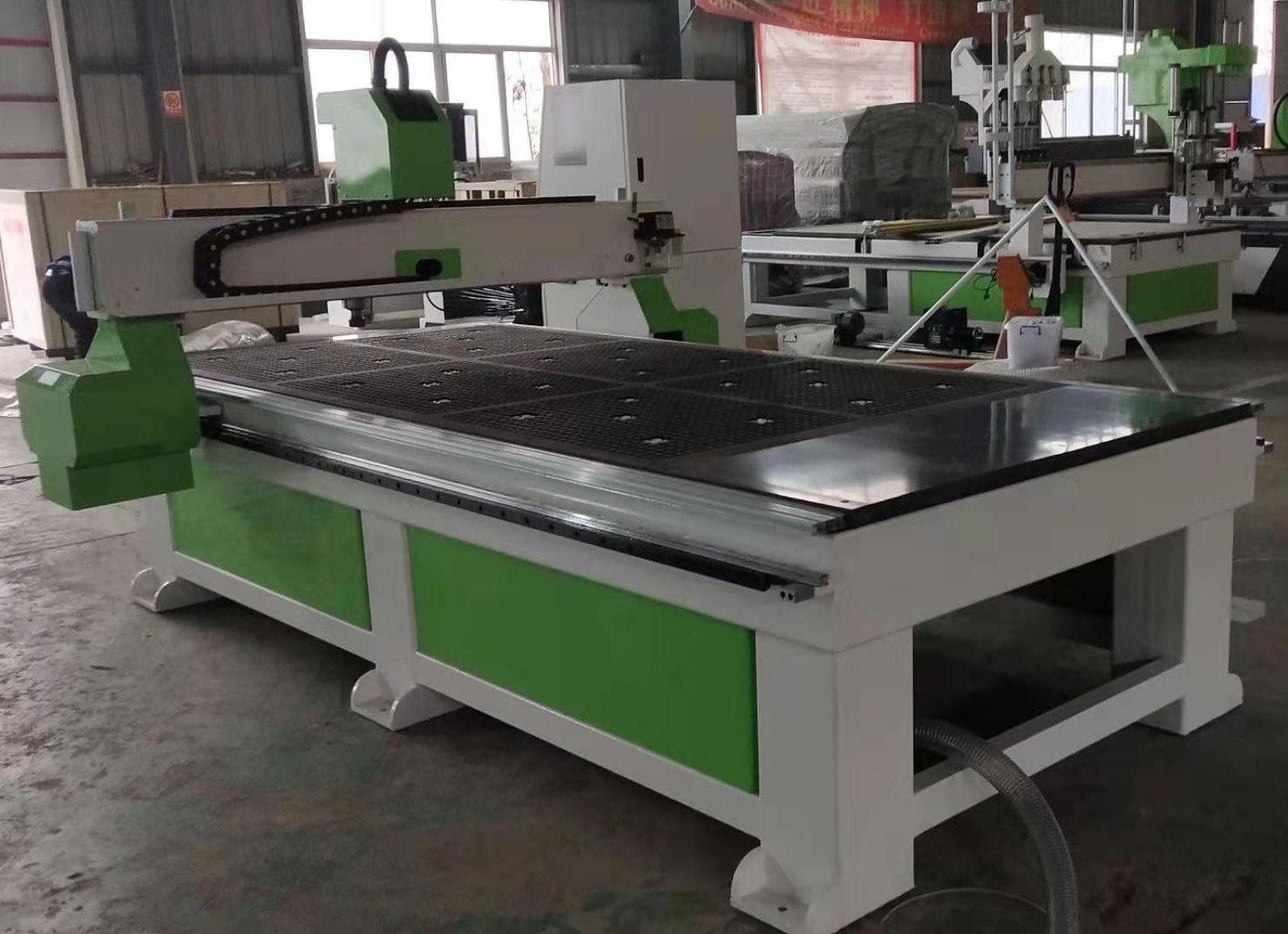

2.2kw*4 / 6 water cooled spindle Heavy duty body structure

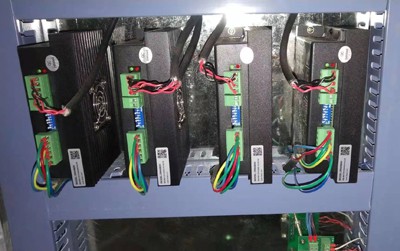

Aluminum T-slot table Leadshine 860H Stepper drivers

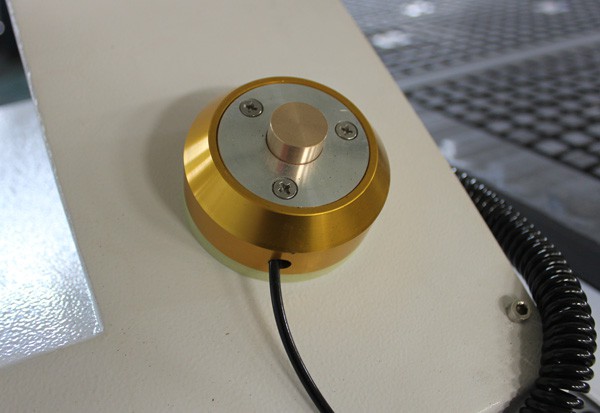

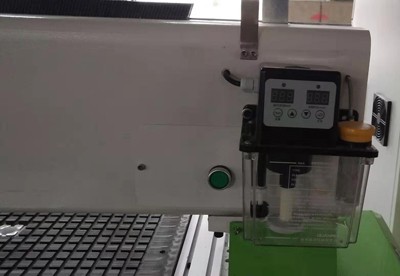

Manual oil lubricating system Tool sensor

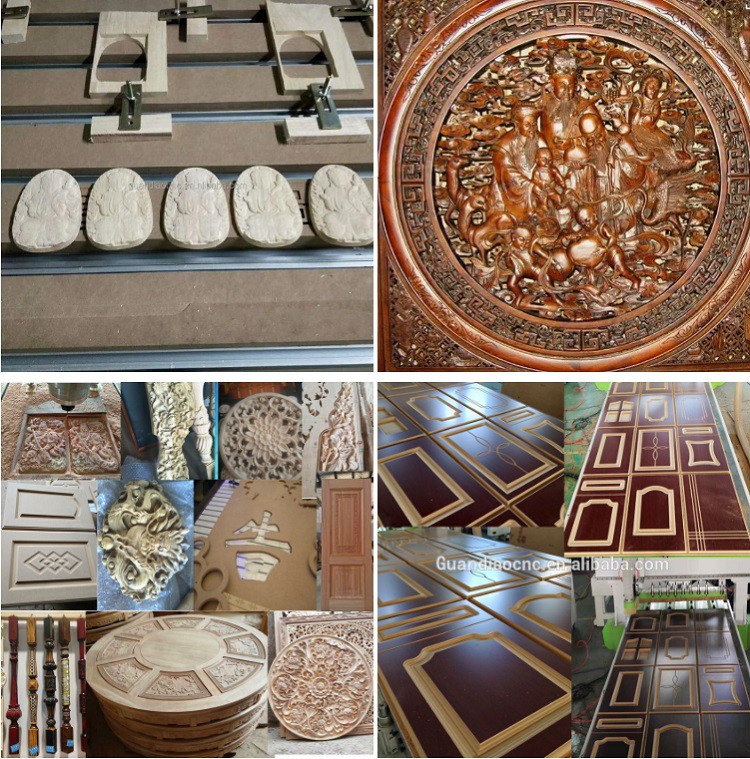

Application
Advertising industry : used to engrave all kinds of board signs, plexiglass, three-dimensional billboards, two-color figure statues, relief medals, organic board reliefs, three-dimensional door heads and so on.
Model industry: making sand table models, house models, mold making operation: printing bronzing mold, injection mold, stamping mold,etc.
Wood industry: used for embossed pattern design and production.
Seal industry:seal engraving of various types of materials.
Automotive industry:tire molds, lamp molds and decorative mold processing.
Packing & Shipping
Service

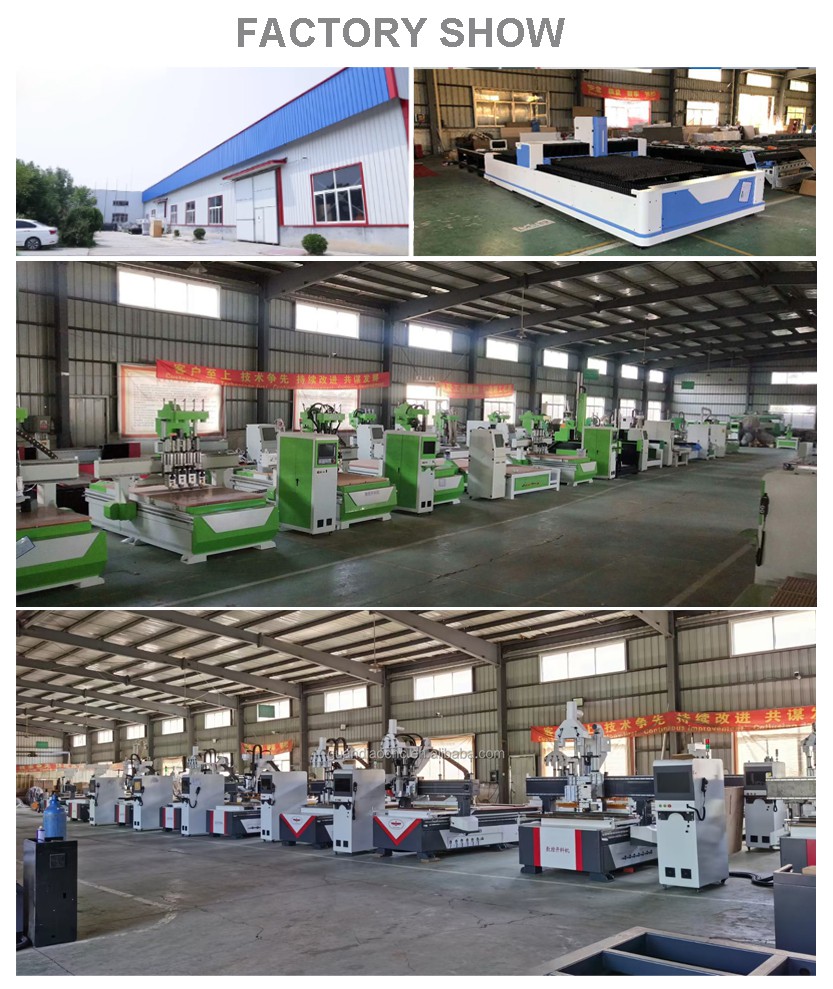

Company Information
