Product Descrption
Machine Features
2.The machine body is made of thick walled steel tube. As the machine provides a rigid and stable processing platform and all the parts before the bed process has to eliminate stress. With imported guide rail, screw.
3.The USB transmission of Embedded DSP numerical control system, can realize breakpoint glyph, power-off memory function, the standard flash memory, completely offline operation, NC studio operating system can also be used.
4.High speed process, high efficiency, Travelling speed can be 1000mm/min. Longmen mobile. Long lifetime ,no deformation,Precision can be assured.
Technical Parameters
|
Mode
|
GD-1313
|
GD-1325
|
|
X working area
|
1300mm
|
1300mm
|
|
Y working area
|
1300mm
|
2500mm
|
|
Z working area
|
200mm
|
200mm
|
|
Gantry
|
Stable steel structure
|
Stable steel structure
|
|
Spindle power
|
2.2KW water cooling
|
2.2KW water cooling
|
|
Feeding height
|
200mm(customized)
|
Fuling brand
|
|
Max processing speed
|
30m/min
|
30m/min
|
|
Spindle speed
|
0-24000rpm
|
Fuling brand
|
|
Re-position precision
|
0.05mm
|
0.05m
|
|
control system
|
NC studio/ DSP
|
NC studio/ DSP
|
|
Warranty
|
One year
|
One year
|
|
Package
|
Wooden box
|
Wooden box
|
|
Delivery time
|
15 working days
|
15 working days
|
|
Parts are optional, configurations can customize
|
|
|

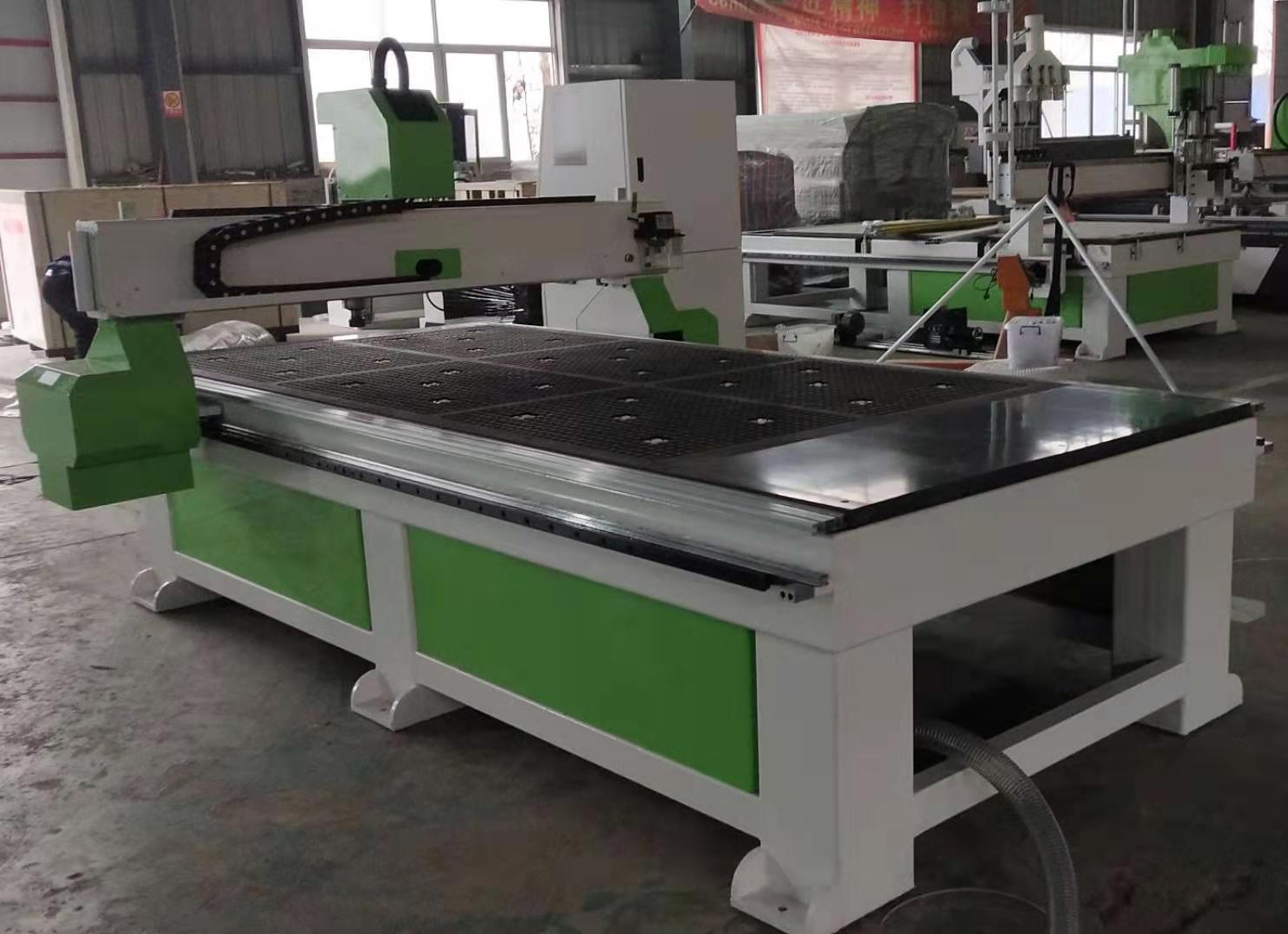

Machine Details

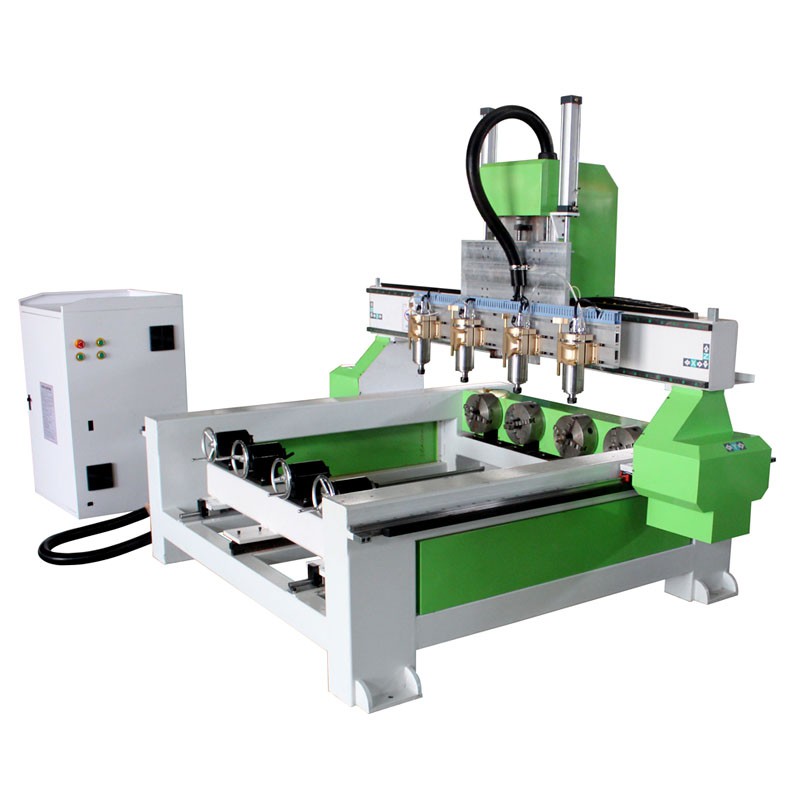

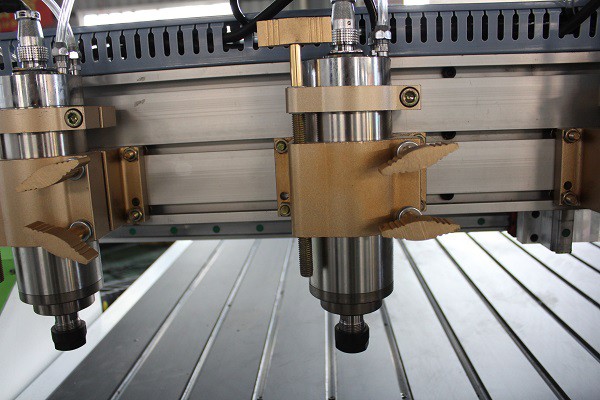

2.2kw*4 / 6 water cooled spindle Heavy duty body structure

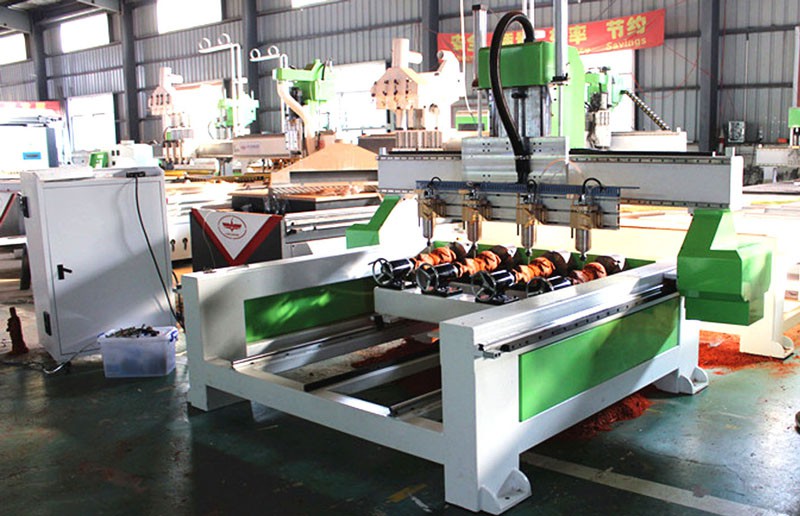

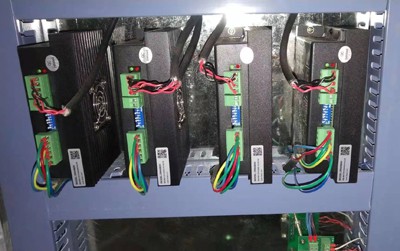

4 axis rotary attachment *4 Leadshine 860H Stepper drivers

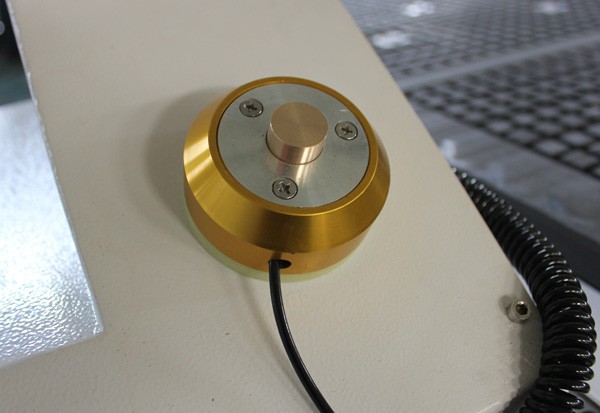

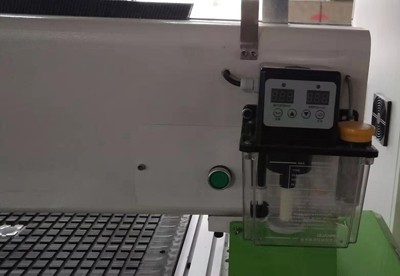

Manual oil lubricating system Tool sensor
Application
1.Furniture industry:Solid wood furniture,wooden door,cabinet.
2.Wooden Products Processing:Wooden Speakers,Wooden Clock,Wardrobe,Sports Equipment .
3.Musical instrument:3D surface engraving and shape cutting.
4.Artware making:photo frame,jewelry box.
5.Electrical industry:circuit board,insulation material,LED display screen.
Packing & Shipping
Service

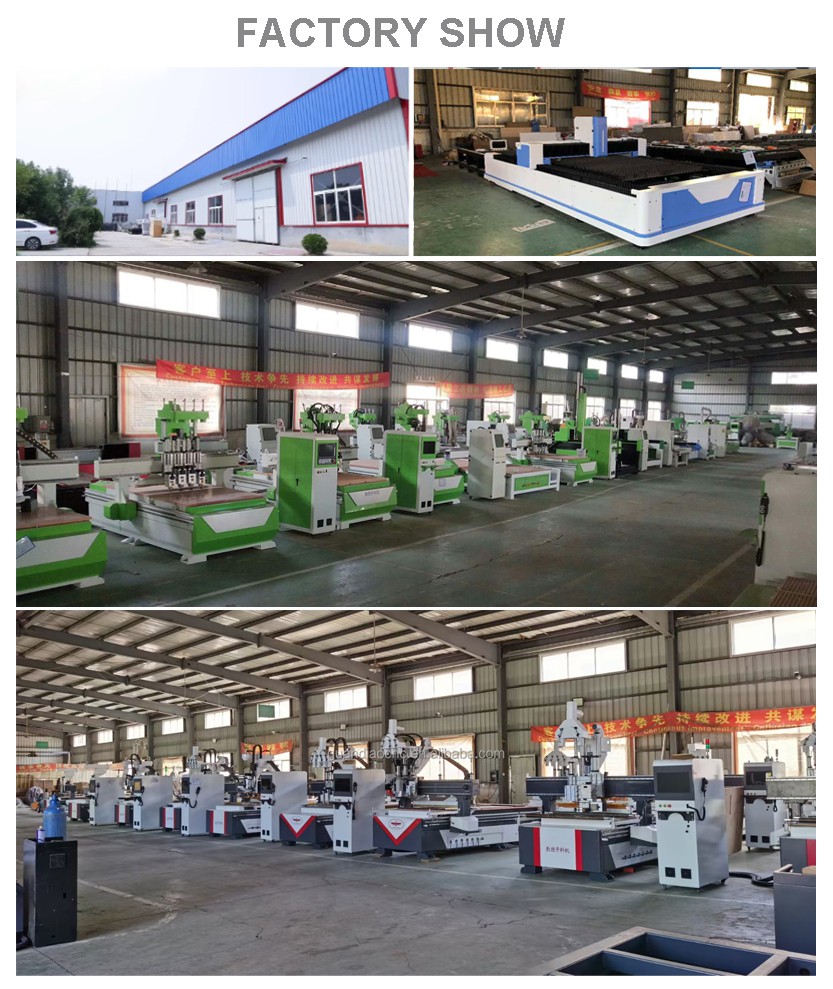

Company Information
