Wood furniture industry, wooden table legs, sofa legs
Crafts industry: wooden Buddha head, 3D state
1. Excellent parts: original Nc studio system, easy to learn and convenient to operate.
2. Imported Taiwan linear guide rail, German ball screw and big torque stepper motor, ensure an excellent performance and precise working.
3. Perfect automatic electric note oil lubrication system and prolong the service life of equipment.
4. Bed overall weld steel strong, forceful smooth rotation, make high -speed operation for a long time no distortion.
5. Compatibility is higher: compatible Type 3/Artcam/Castmate/Proe/UG/Wentai a verity of CAD/CAM software.
Application
1. Furniture industry: solid wood furniture, wooden door, cabinet
2. Wooden products processing: wooden Speakers, wooden Clock, wardrobe, Sports Equipment
3. Musical instrument: 3D surface engraving and shape cutting
4. Artware making: photo frame, jewelry box
5. Electrical industry: circuit board, insulation material, LED display screen
Details

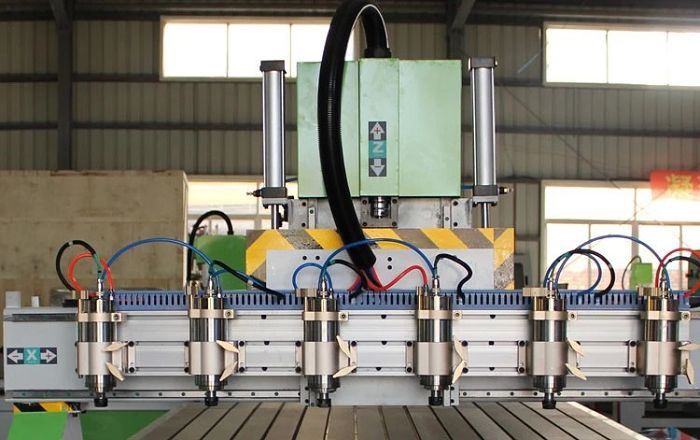

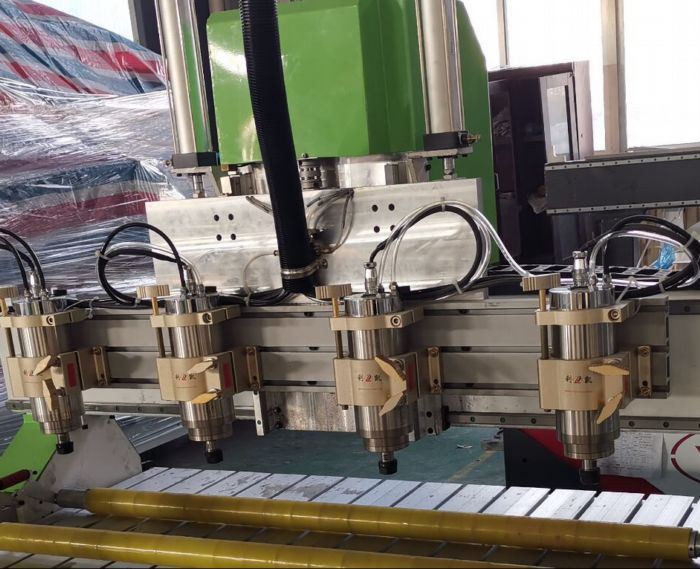

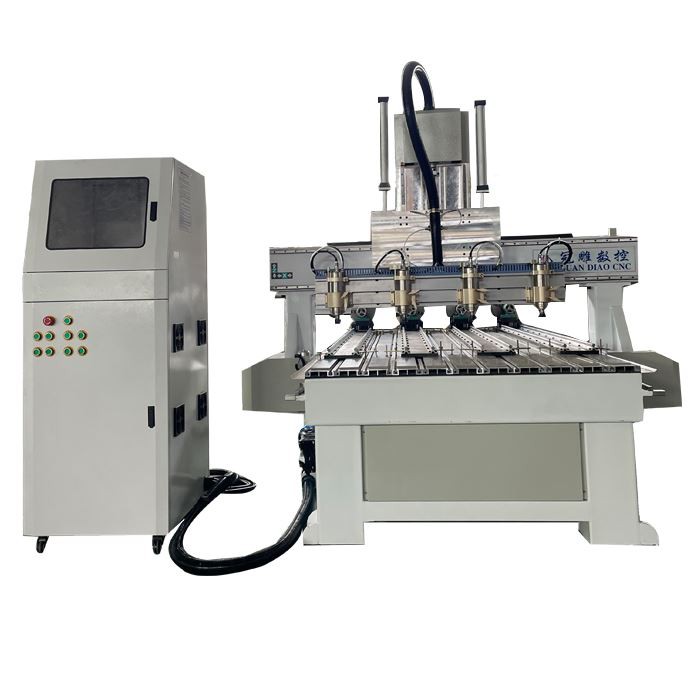

Main Features Name: multi spindles Machine equip with 4/6/8/10 pics spindles according to user's productions, multi heads, high efficiency and each spindle with adjustable holder for same level adjusting when process material, easy for position, ensuring working precision, saving calibration time |
|

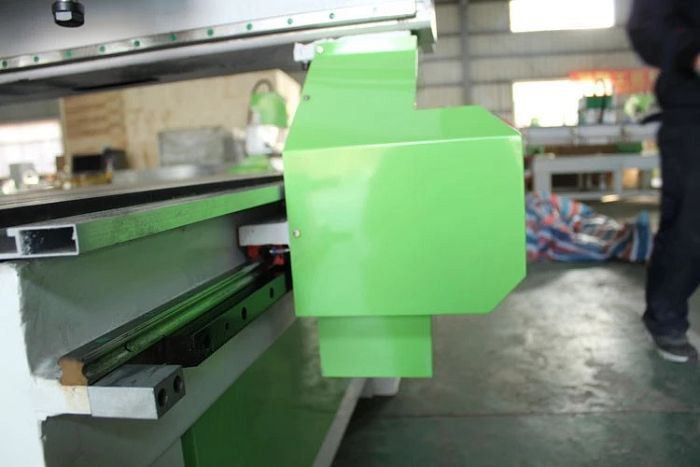

Machine Parts Y axis adopts two motor, to ensure moving more stable. And Taiwan Hiwin square guide rail and Germany brand helical rack transmission, stable running, longer using life. |
|
Z aixs with two pics balance cylinders Guandiao CNC use unique patent design on the relief relief cnc engraving machine for the Z axis head, two cylinders working with compressors ensure Z axis balance working, improve working accuracy |
|

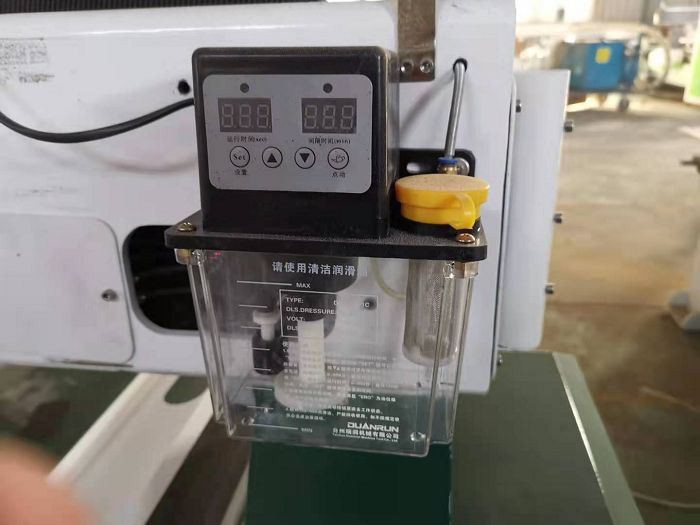

Automatic lubrication device Automatic oil lubrication for guide rail and rack after setting time save labor, easy for maintenance for machine |
|

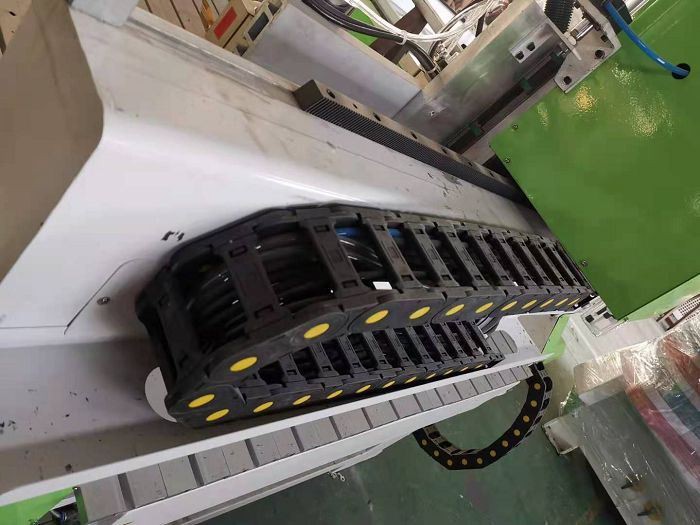

Quality chain High quality chain, can achieve thousands of bend, no deformation |
|

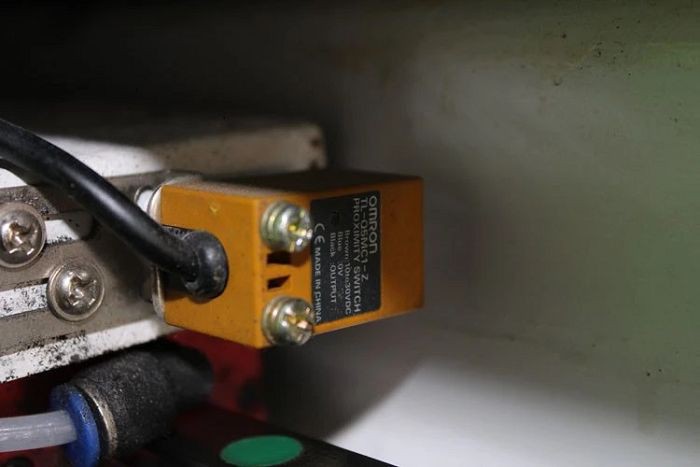

Three axis traveling limit One machine equip with three pis limit for protecting machine safe & efficient working, we adopts world famous brand Japan Omron limit, stronger sensor, long life time convenient maintenance. We also add hard limit on each axis for safety issue |
|

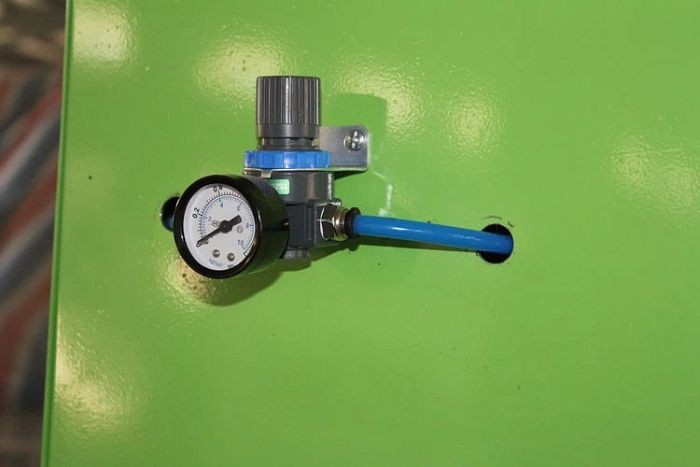

Oil-water separator Each machine we install oil-water separating device, for protecting cylinders long life time |
|

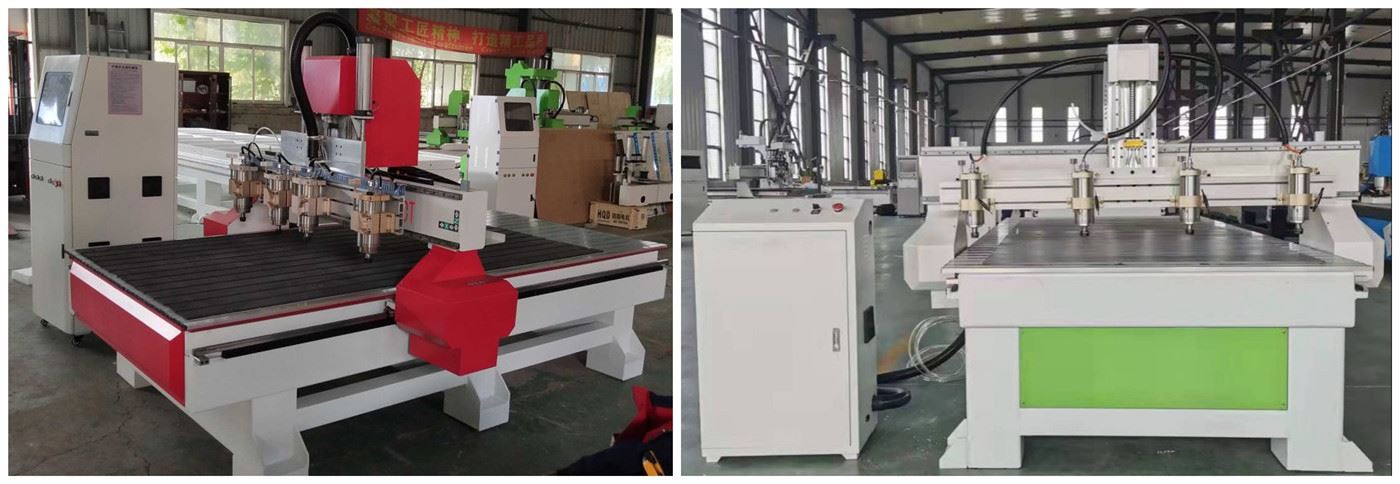

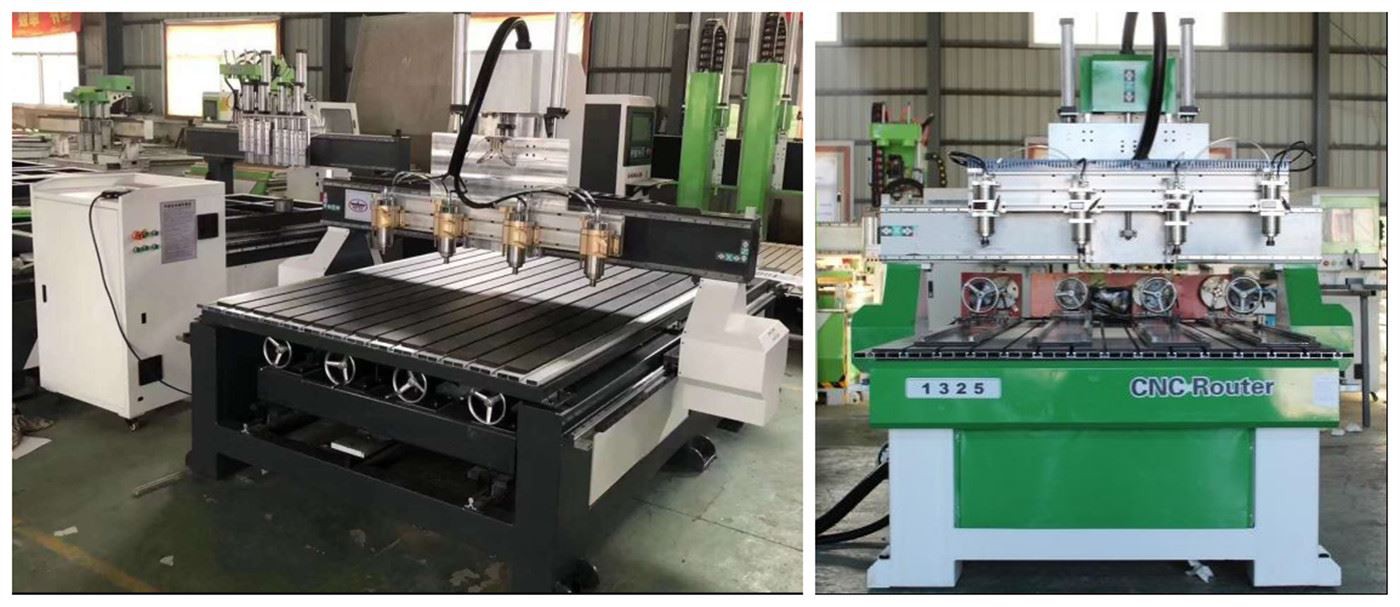

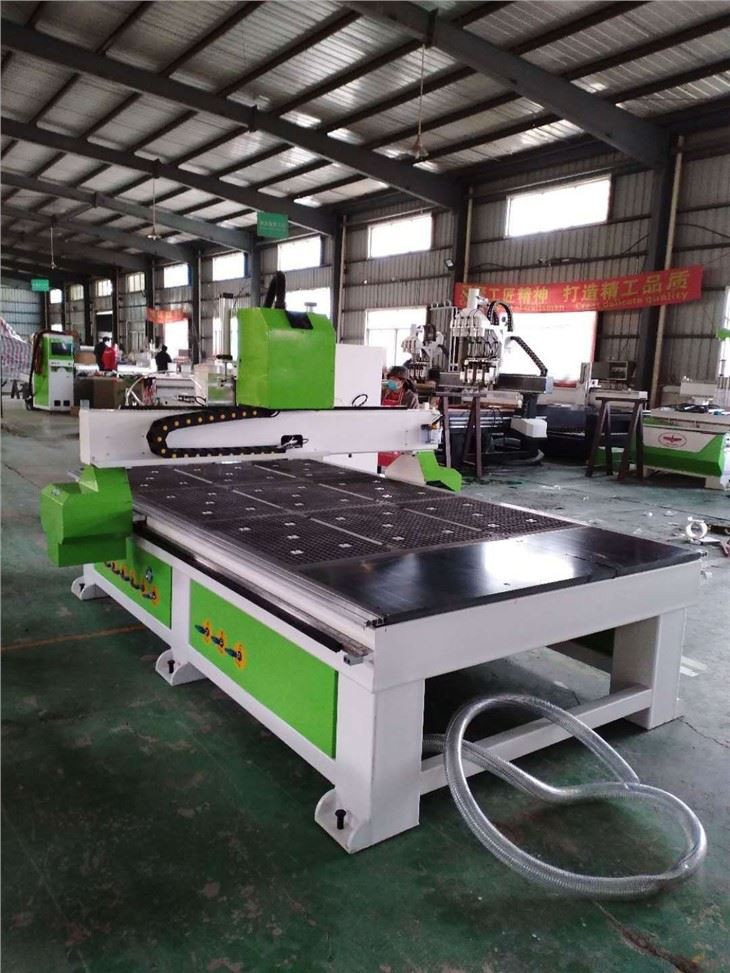

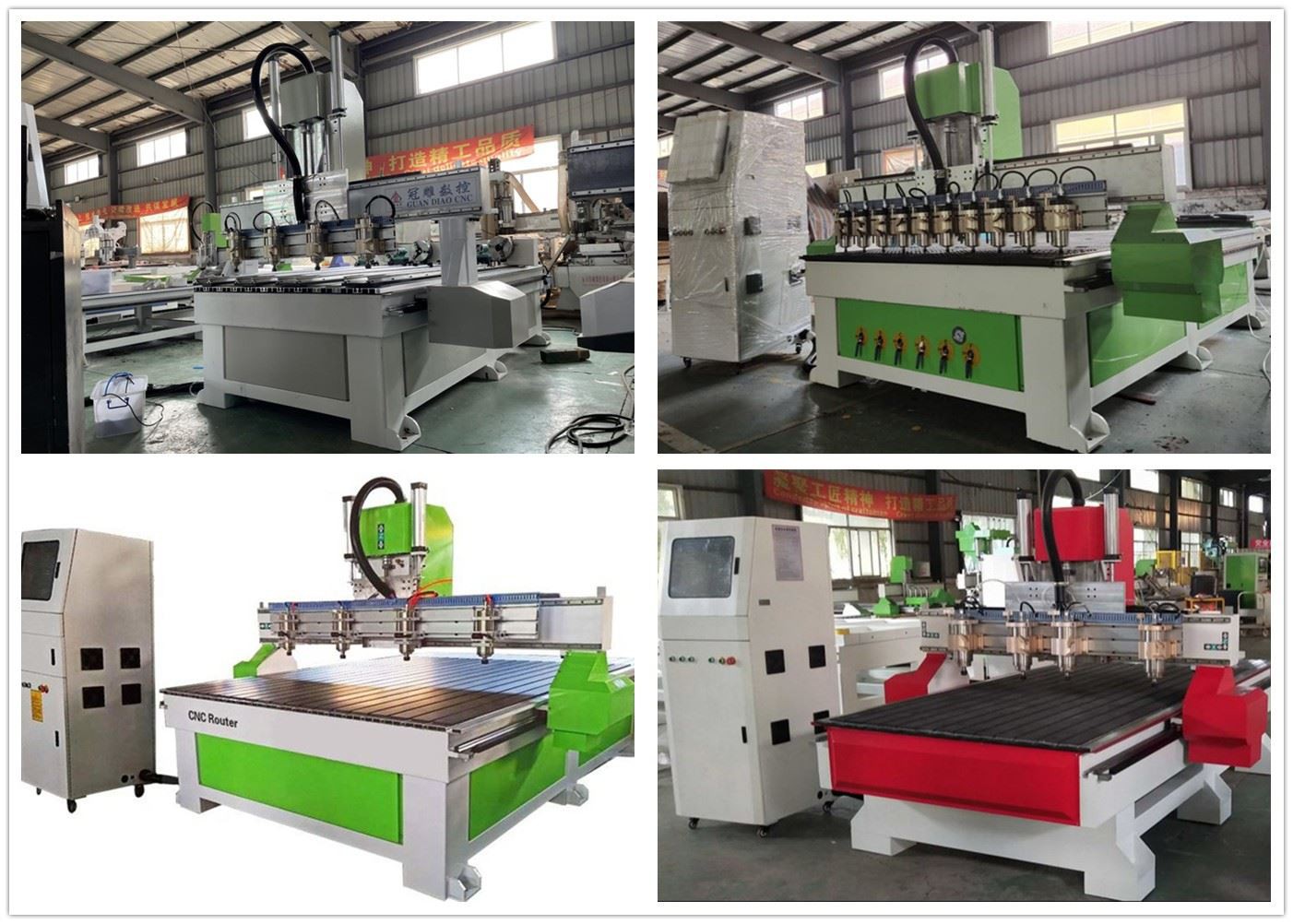

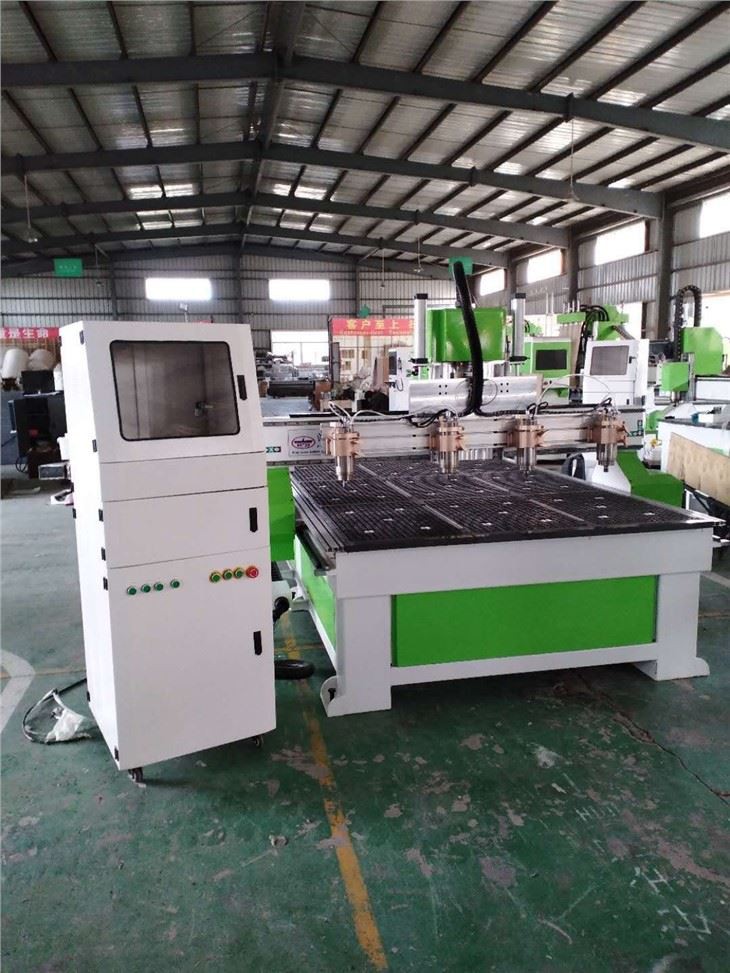

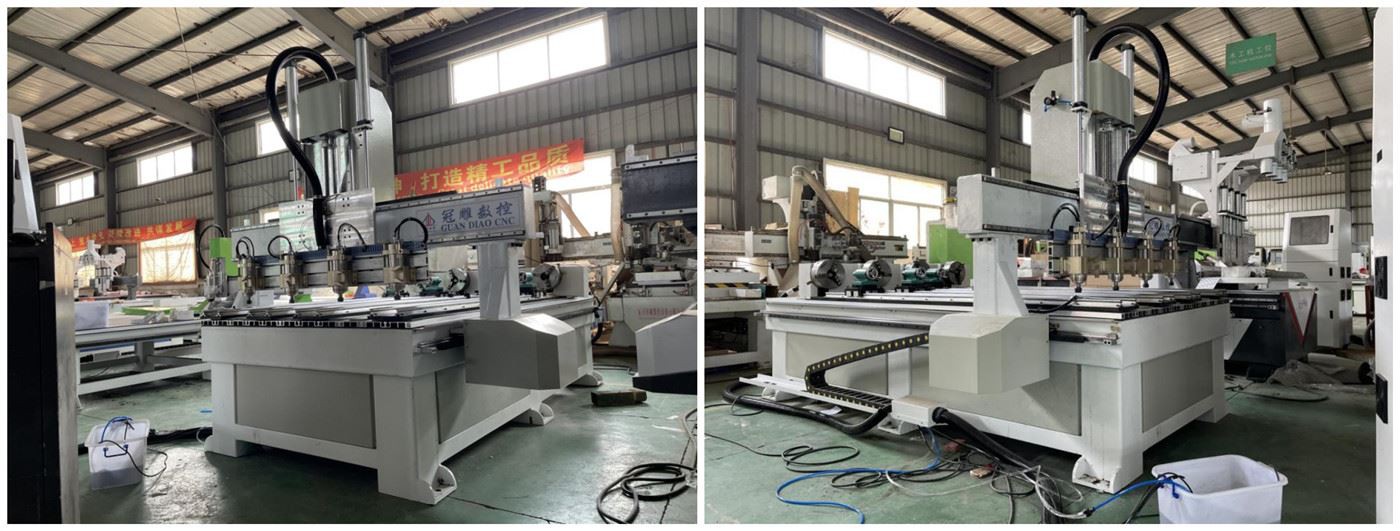

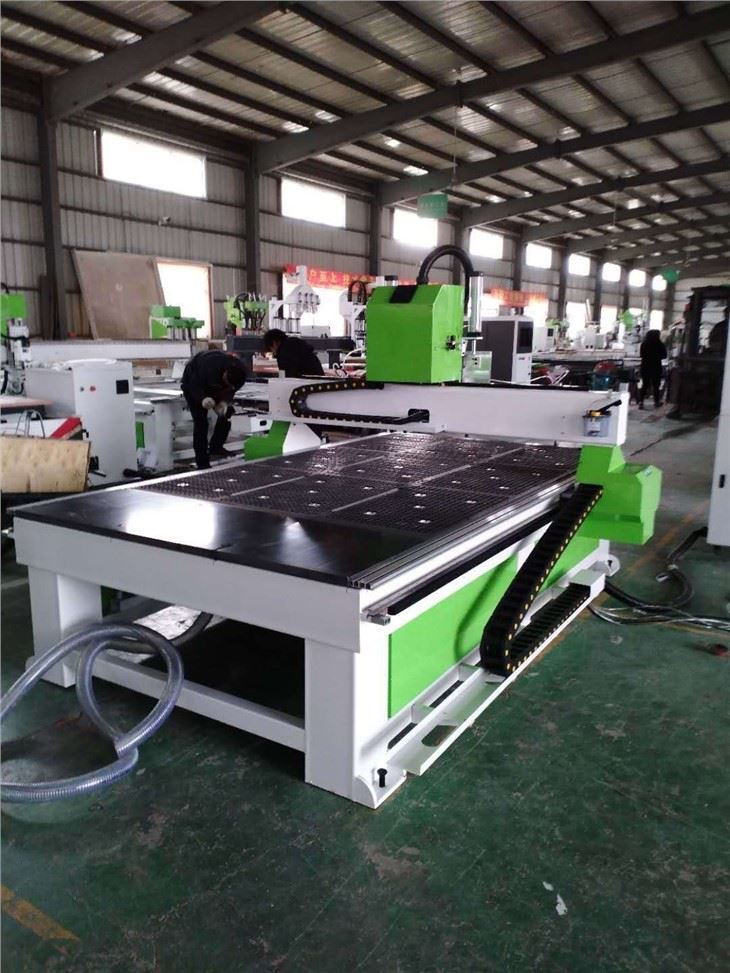

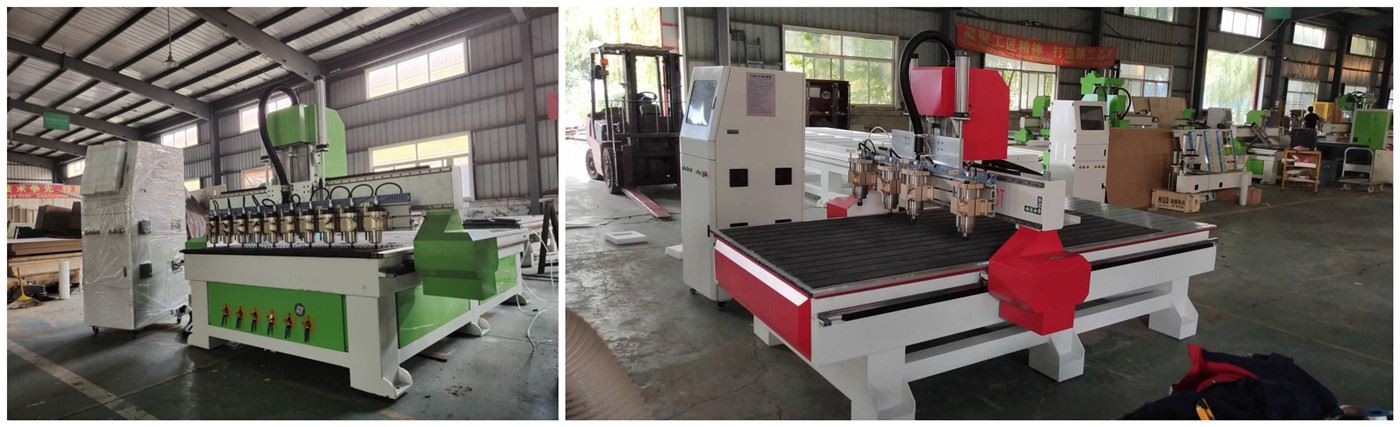

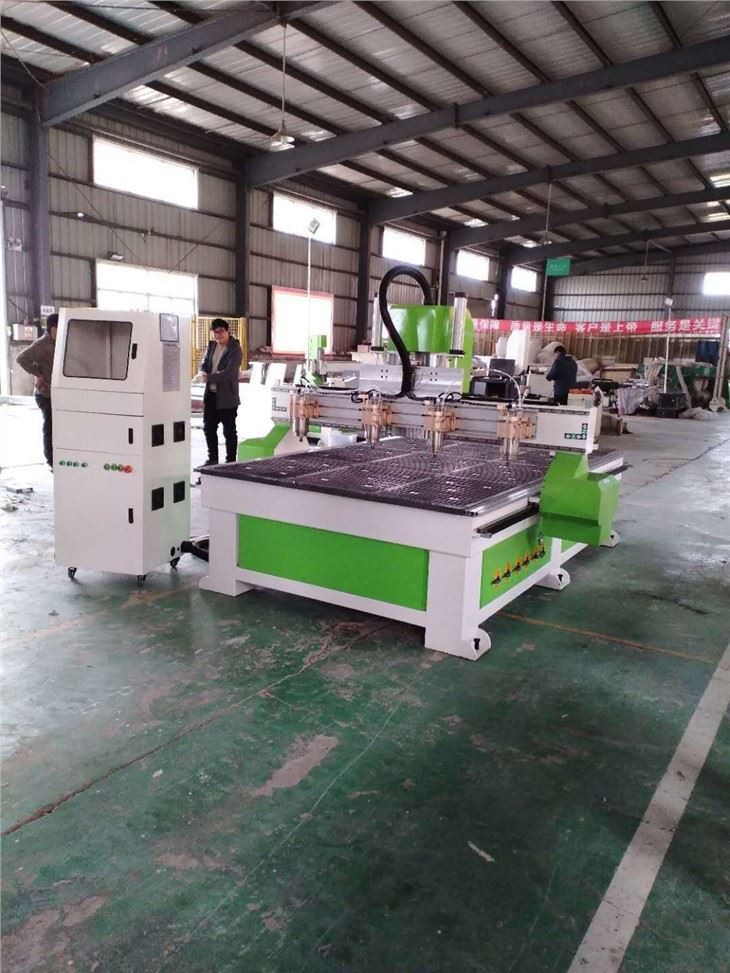

Machine Photo
Parameters
Mode | 1325 relief cnc engraving machine |
Working size | 1300*2500*200mm |
Table structure | Aluminum+PVC |
Guide rail | 20mm guide rail |
Rack | Grinding Helical rack, z axis TBL ball screw |
Spindle | 2.2kw, water cooling |
Driving | 450B Stepper motor, Leadshine 860 driving |
Voltage | 380/220v |
Control system | Nc studio |
Limit | Omron |
Engraving command | G code*.ENG/ u00*.mmg*.plt |
Others

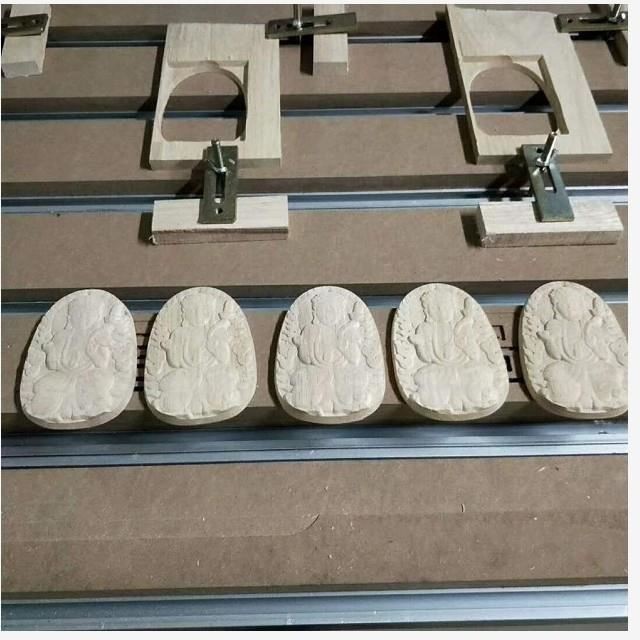

Samples
Technical Support
1. All detailed consulting service before sale.
2. 12 month quality guarantee time after sale, the machine main parts (excluding the consumable parts) broken which is not caused by man-made, we will send you a new one for free during the guarantee term (but need you help return back the old part).
3. Free training at our factory.
4. Will supply you parts at cost price.
5. 24 hours on line service each day, free technique support all lifespan.
Our staff can come to your place for training or adjust.
FAQ
A. This is our first cooperation with you, are you believable?
First we are legal China company, with complete formalities.
Second we have been in cnc business industry for more than 10 years, with long term cooperated agent and end client, and we work for exporting for 10 years, we deal all based on machine quality and honest service.
Third, we can deal from alibaba assurance which can make sure your quality and delivery, we accept all the supervision from the third party.
B. How to select the cnc router machine for our first time?
We will select suitable machine according to your detailed work, better show me your sample picture.
Then please tell me the machine size you want, we can customed for you.
Last about the configuration we will make decision according to your work and budget.
C. Some of my work can make by your cnc wood lathe, how to compared with multi spindle cnc router and your cnc wood lathe?
Cnc wood lathe have one best advantage is he can turning the wood fast with the wood lathe cutter. Then it also can make engraving.
But this 4 axis cnc router machine also make make the wood cylinder and engraving, but it is slow for make wood turning, but it have advantage at engraving work.
Because it can engraving 8 /10/12 samples at one time work.
So if you make the wooden staircase handrail and need engraving, we suggest you with the cnc wood lathe to make wood turning, then use the 4 axis cnc router for engraving. This is the best selection for your wood cylinder work.
D. How to deal?
We will make a PI according to our negociate with you about the machine details and stamp for you.
If you think is no problem, please also stamped and scaned to me.
Then you can arrange prepayment for us, after we receive prepayment, we will arrange the manufacture, when machine done, we will take pictures and videos for you, if you satisfy please arrange the balanced payment, then i will arrange ship for you.
E. How to maintain the machine?
We will through phone or video to check where is the problem. If parts broken and during gurantee term, we can send you one new but need you return back the old one, but air freight need you share.
If out of gurantee term, we will supply at cost price.
F. How to study machine?
We can teach you for free if you come to our factory, engineer can go to your place but need your charge.
If you cant come, we have detailed document to guide you or we can video or phone guide you how to use,
G. How we make the drawing for the 4 axis 3D carving machine?
Machine recognise G code, if you have G code is better, Or if you have the raw drawing, such as bmp format, we have english software for transform G code.
If have anything, suggest you buy one cnc scanner, it can scan the 3D structure, then use our software change is ok.

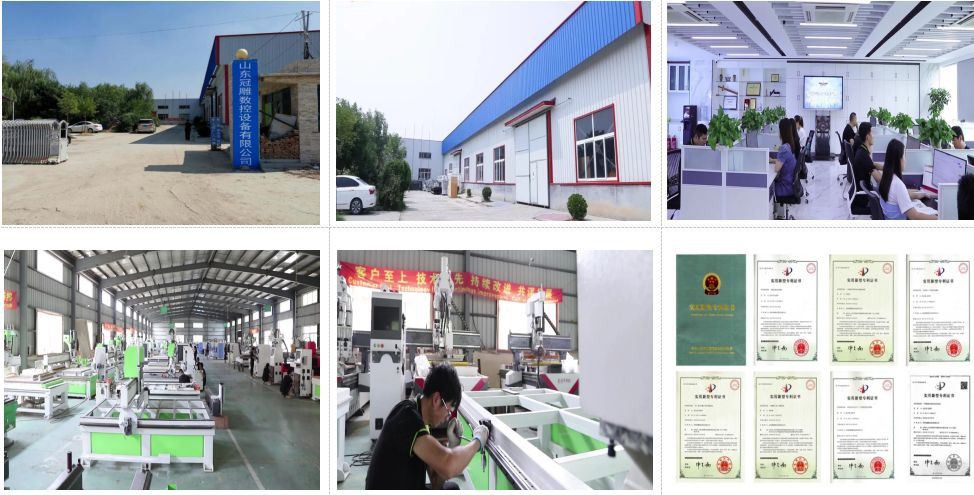

About us
