Features:
1.8mm thickness heavy duty seamless steel Structure guarantee excellent stability and avoid deforming.

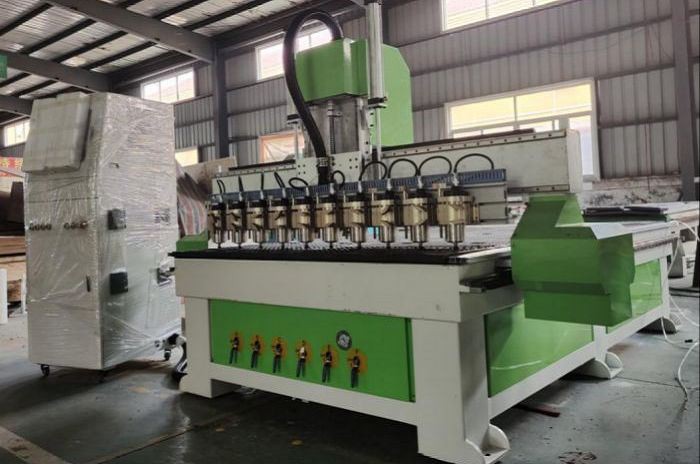

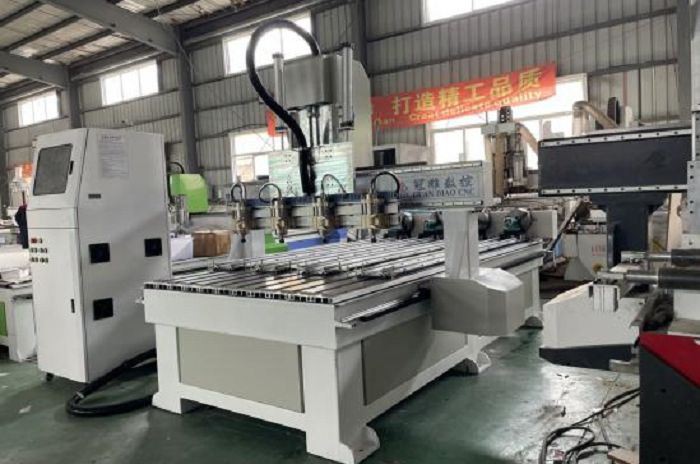

2.6 spindles can process several parts at same time to save time and improve the working efficiency.
3.Imported Servo Driving system and Electric source to achieves 3-axis Simultaneous Motion.
4.3 axis equipped with imported square linear guide, which has high precision, fast speed and wear resistance.
5.Computer online Multech control system, make full use of the motor and realize high-speed processing,
6.Be compatible with several software,such as type3, CASTMATE,ARTCAM.
7.Simple Operation and Humanization design. Memory function help realize intermittent carving.
Details
|
|
|
|
Main Features |

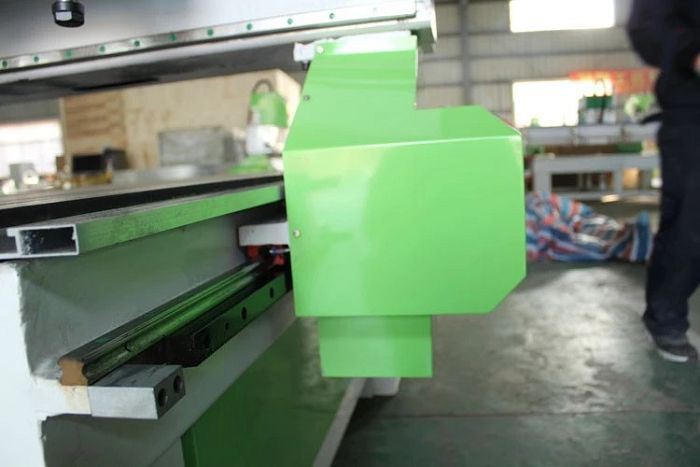

Machine Parts Y axis adopts two motor, to ensure moving more stable. And Taiwan Hiwin square guide rail and Germany brand helical rack transmission, stable running, longer using life. |
|
|
|
|

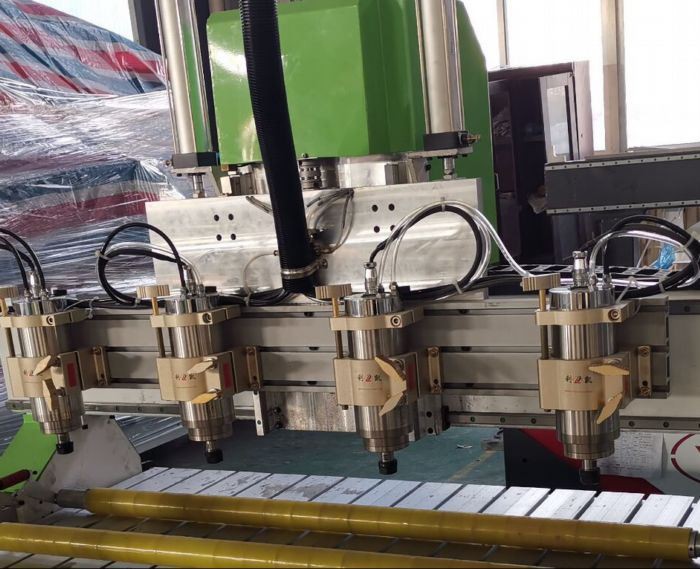

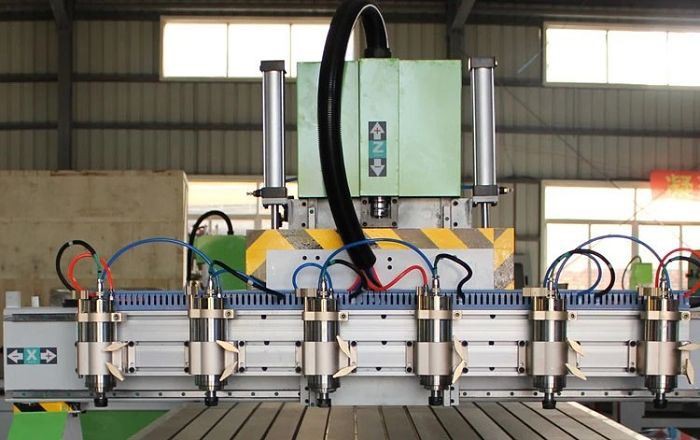

Z aixs with two pics balance cylinders Guandiao CNC use unique patent design on the relief Woodworking relief CNC machine for the Z axis head, two cylinders working with compressors ensure Z axis balance working, improve working accuracy |

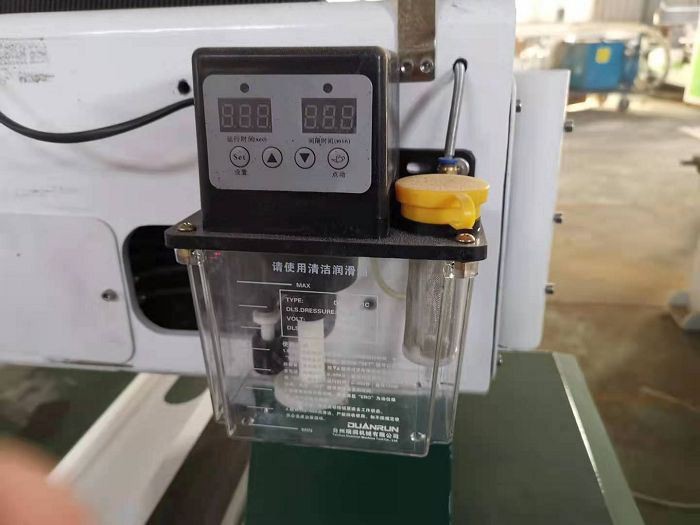

Automatic lubrication device |
Parameters
|
Mode |
1325 Woodworking relief CNC machine |
|
Working size |
1300*2500*200mm |
|
Table structure |
Aluminum+PVC |
|
Guide rail |
20mm guide rail |
|
Rack |
Grinding Helical rack, z axis TBL ball screw |
|
Spindle |
2.2kw, water cooling |
|
Driving |
450B Stepper motor, Leadshine 860 driving |
|
Voltage |
380/220v |
|
Control system |
Nc studio |
|
Limit |
Omron |
|
Engraving command |
G code*.ENG/ u00*.mmg*.plt |
Samples
FAQ
Q1: I need a cnc router, can you give me some suggestions?
A1:Sure, but to suggest you the most suitable machine, I need to know further informations such as effective processing area , materials etc.
Q2: can I process round /cylinder workpiece such as chair legs ?
A2:Of course, Only need to add a set of rotary device, you can engrave all kinds of cylinder materials.
Q3: Are you a factory or trading company?

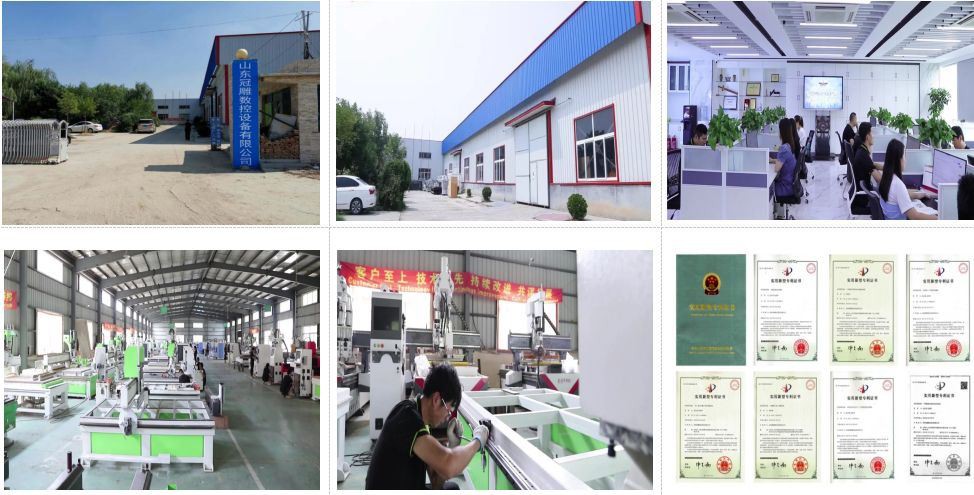

A3:We are the manufacturer and we have more than 10 years factory experience.As only the machine made by ourself ,quality can be trusted, and most important thing is we can do better service after sales. we know how to fix the problem in each parts easliy. so welcome to visit to our factory.
