Production Introduction

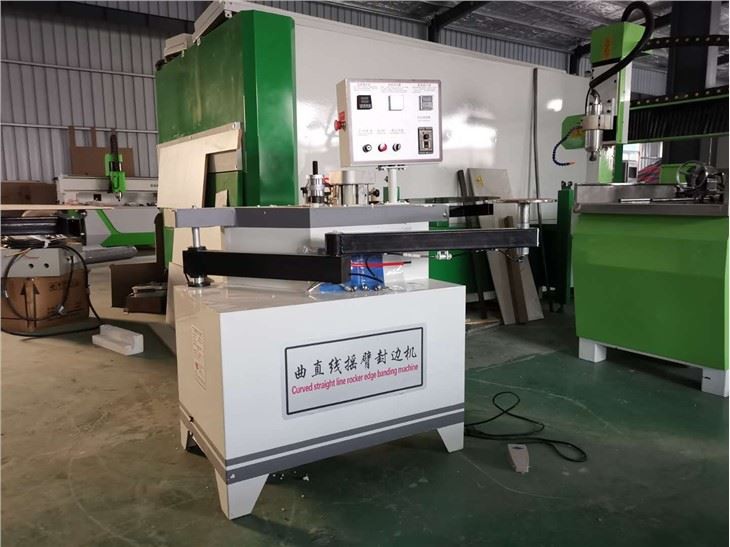

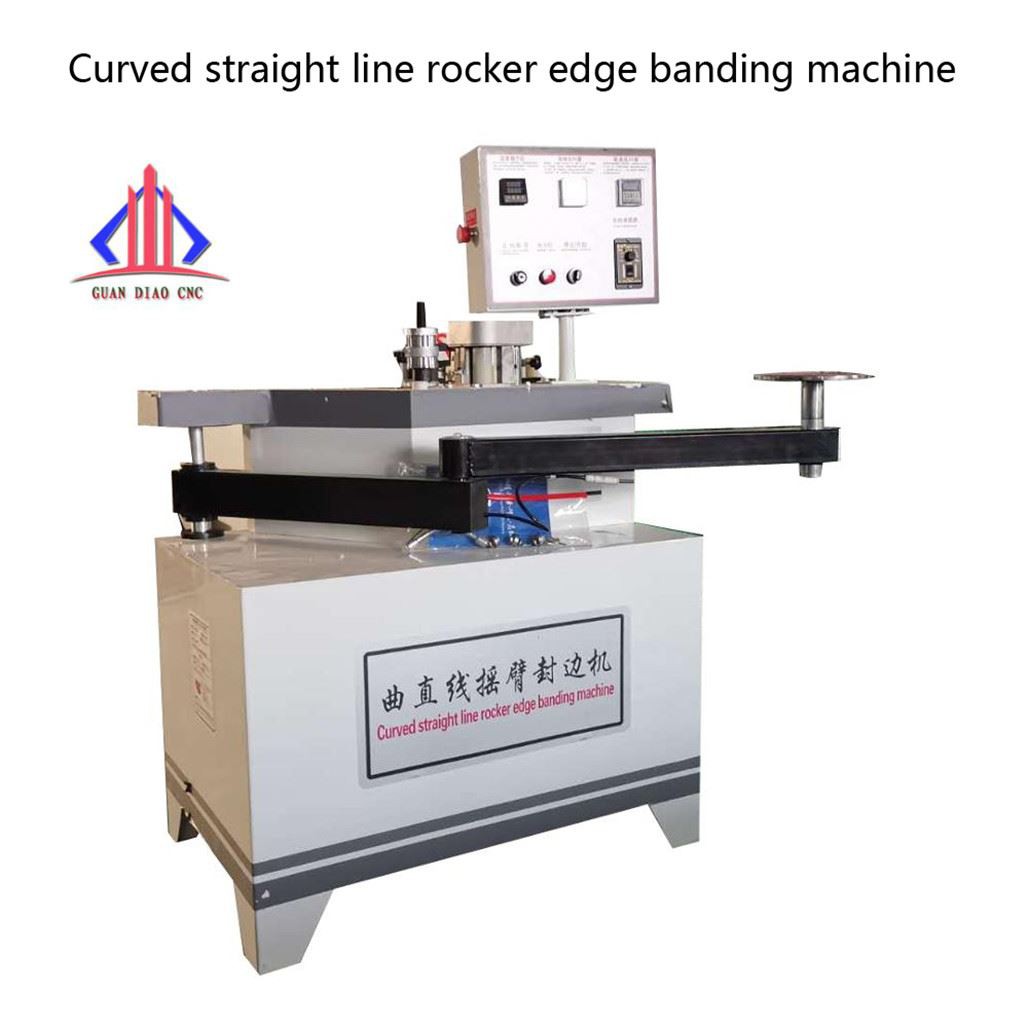

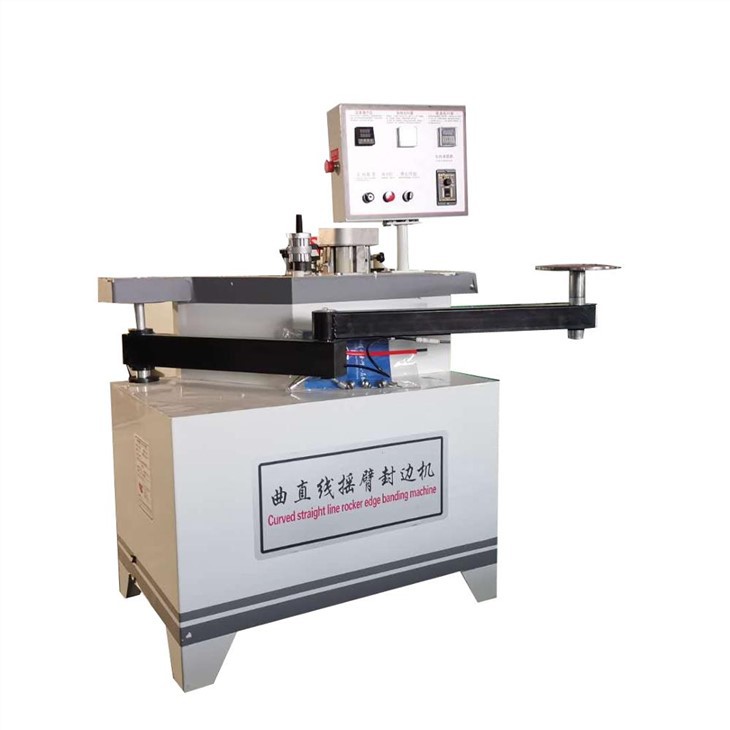

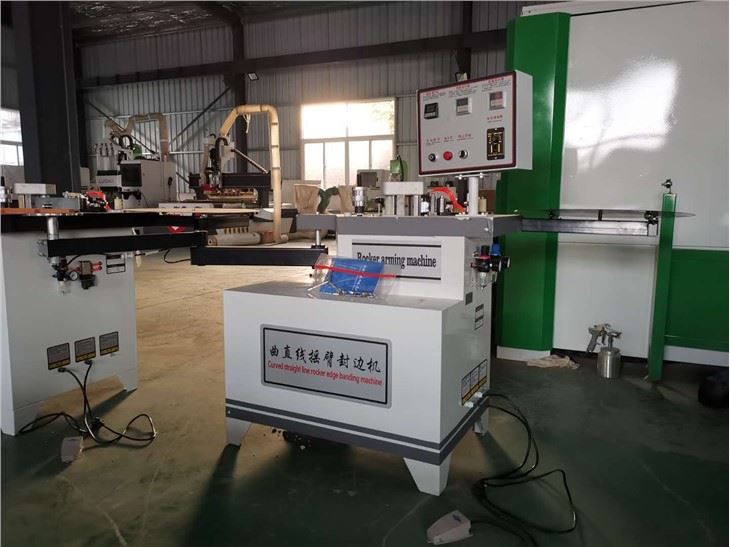

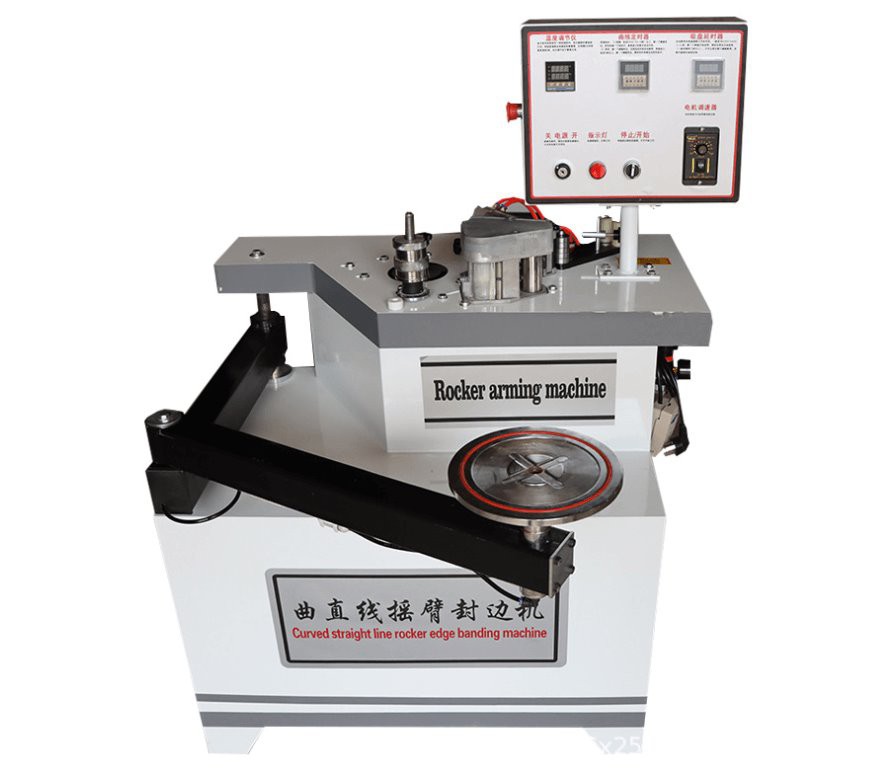

Manual edge banding machine
Manual edge banding machine, no glue leakage; The sol is not aged; Easy to clean.
| Its features are: 1. No glue leakage. Due to the transmission of the lower rubber tank, the damage of the sealing ring will cause glue leakage and affect the normal operation of the machine. There is no glue leakage in the glue tank. 2. The sol does not age. The residual glue in the lower glue tank is heated and aged for many times, which affects the bonding quality. The sol in the upper glue tank exudes from top to bottom without precipitation and residue. 3. Easy to clean. For the regular cleaning of the machine, the upper glue tank is more convenient than the lower glue tank. It can even be cleaned without stopping the machine, which does not affect the production. 4. Few faults. It is convenient to add oil to the transmission gear, reduce faults, and bring a lot of convenience to users using the machine. Glued Tape Enlarge the glue pot to heat the sol, and spread the glue evenly on the plate and edge band through the mesh thread conveying structure. The double-cylinder breaks the belt quickly, smoothly and neatly. Tape Pressure Tape After belt feeding and sticking (the sticking pulley is divided into one flat pulley and two inclined pulleys), at the same time, the steel body pinch pulley presses the edge banding belt and the plate, so that the adhesive force is stronger, and there is no glue mark on the top and bottom of the plate. |
Machine parameters
Mold | GD-WD100 |
|
voltage | 380v/220v | |
Total power | 2.2kw | |
Heating power | 1.2kw | |
Motor power | 0.18kw | |
Air pressure | 0.5-0.8Mpa | |
Edging width | 0-55mm | |
Edging thickness | 0.4-2mm | |
Edging speed | 15m/min | |
size | 94*96*90cm | |
weight | 80kg |
Edge banding machine features:
1. Simple, light, high quality and low price.
2. Insulation design of special rubber tank; The capacity is increased and the preheating time is short. Five heating rods are used to increase the glue pot without adding glue frequently to improve the work efficiency.
3. The applicable width range of edge banding belt is increased to 10mm-60mm.
4. Temperature controller: automatically control the temperature according to the sol temperature required by the edge banding belt and hot sol.
5. Governor: adjust the machine speed according to different gluing and tape pressing needs. Apply glue on both sides evenly.
6. The rubber shaft fixing frame is made of cast steel, which is more stable and does not deform in case of heat and vibration. The rubber shaft and main transmission shaft are fixed by the upper and lower fulcrums of the fixing frame, and are designed in a triangle, which makes the structure more stable, firm and durable.
7. Widened table top edge banding machine desktop ecological board edge banding machine cast iron table top design, the edge banding effect is smooth and flat. The table top is widened, and it is more convenient to seal the large plate.
Machine details

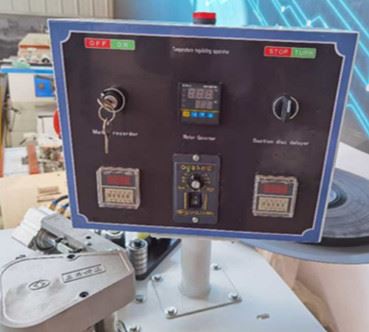

Control panel Temperature control edge banding hot melt adhesive temperature adjustable, easy to operate. |

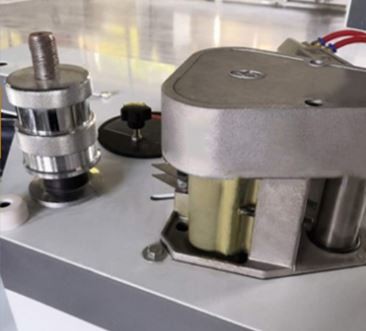

Double-sided glue The amount of glue applied can be controlled by manual adjustment of the squeegee,and the height of the edge banding is controlled by the pressure roller. |

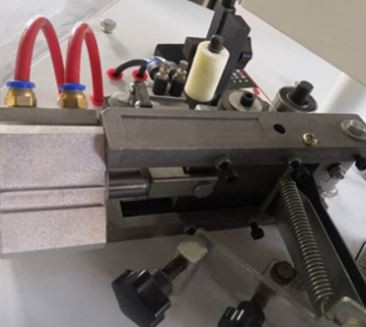

Cylinder broken belt Edge banding use time relay control time cut off time adjustable. |
High temperature glue pot Hot melt glue pot adopts high temperature resistance and uniform heating, fast heating and strong constant temperature. |

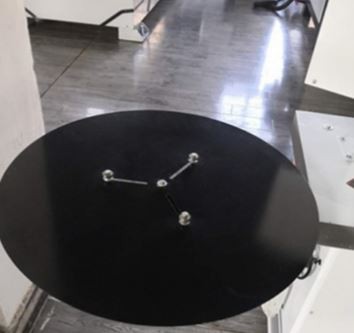

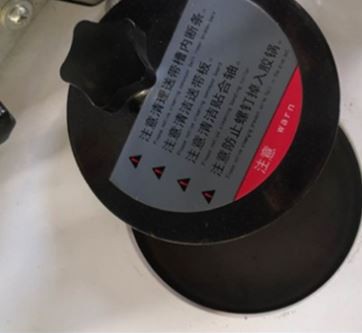

Edge banding tray Using cold heat-treated steelplate, not easy to deform. |

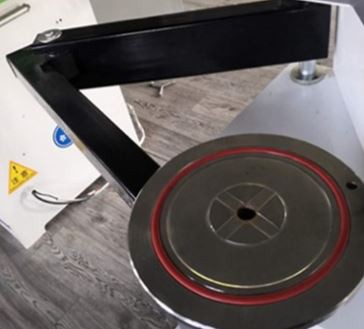

Swing arm sucker Stainless steel swing arm suction cup adds wear-resistant sealing ring suction cup 360 degree rotation convenient. |

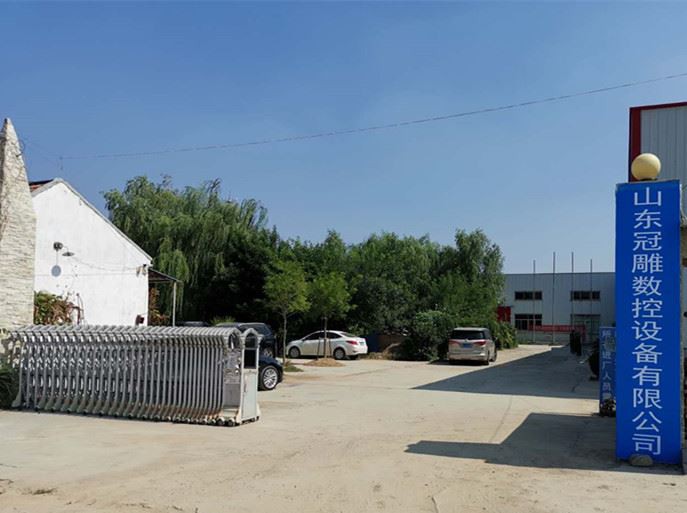

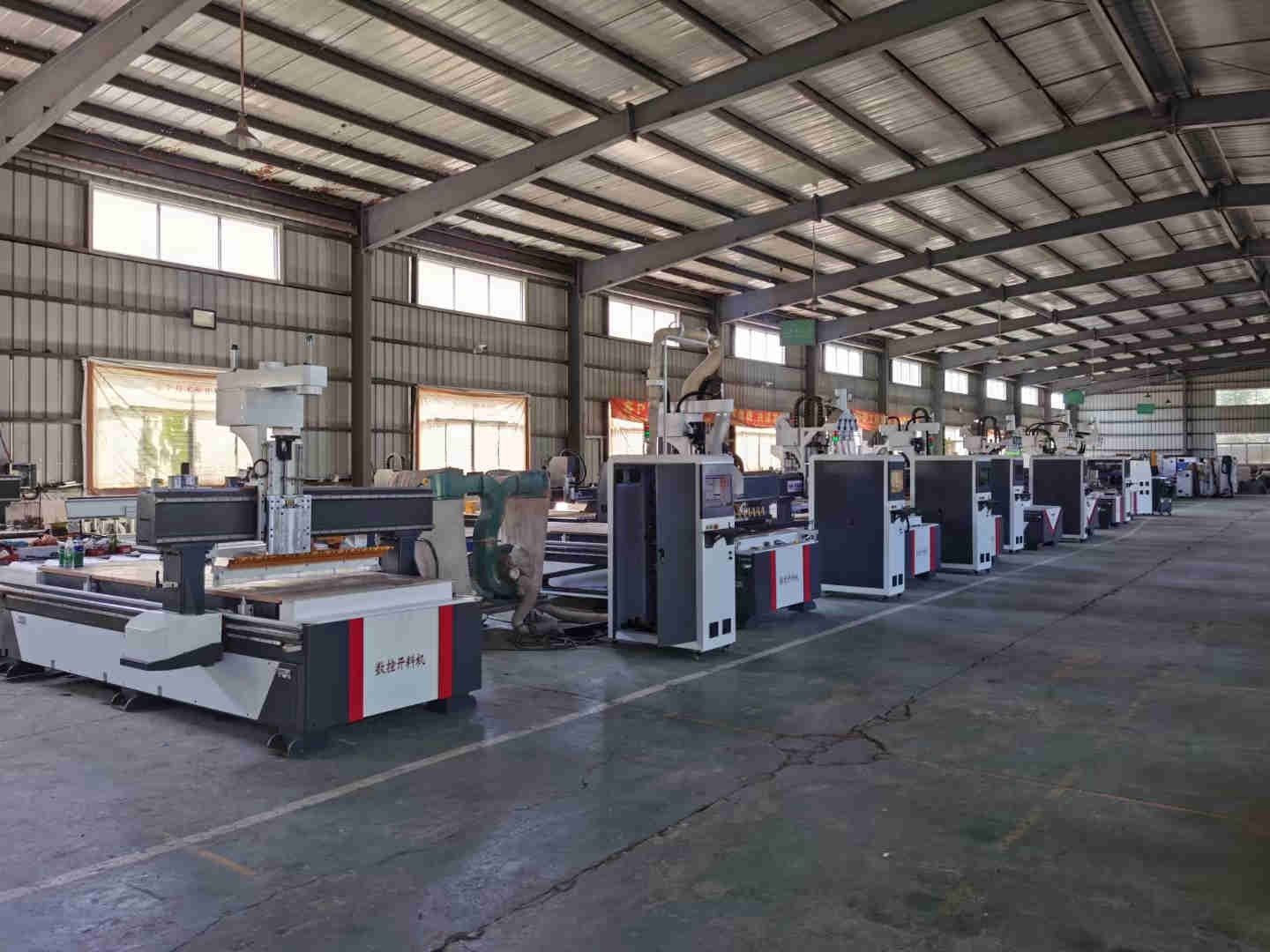

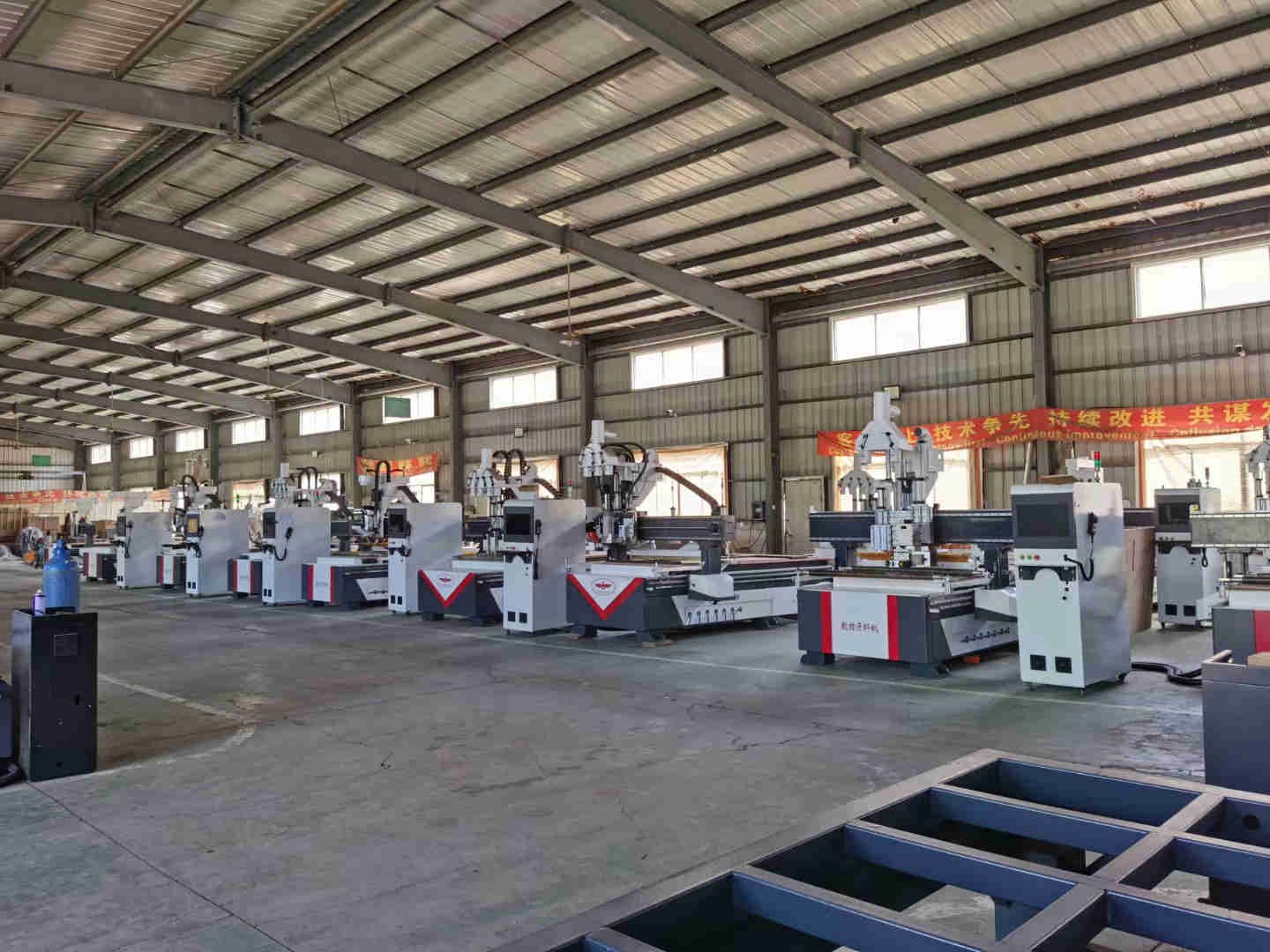

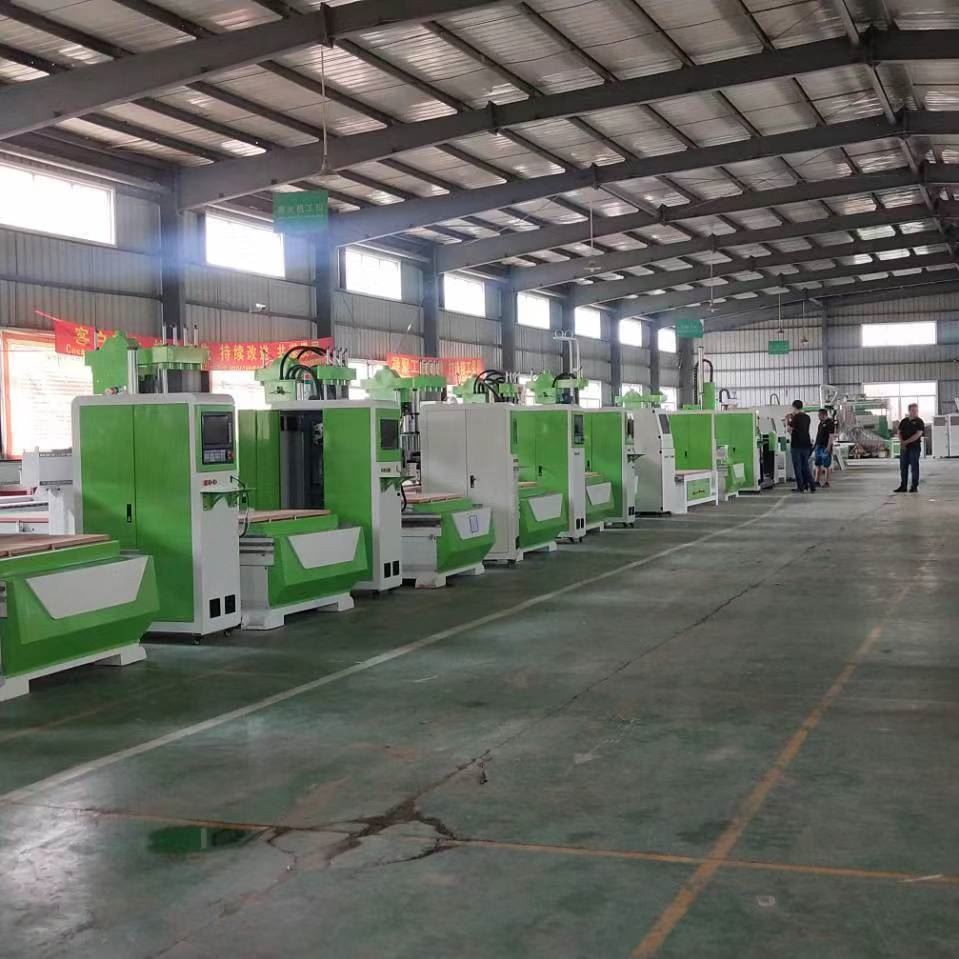

Company Profile
| Shandong Guandiao CNC Equipment Co., Ltd always adheres to the market demand-oriented, customer expectation-oriented, and constantly develop durable modern machining equipment. Products have passed ISO9001, CE, TUV and many other international certifications. | |
|
|
|
|
Packing & Shipping
|
|
Service
PRE-SALE SERVICES:
1. Introduce and Provide detailed consultation of the machine
2. Strict quality control system, warranty period.:1years
3. Provide custom-made service offening good suggest and design idea to customer
4. Welcome to visit our factory
SERVICES DURING SALES:
1. Fast delivery and 100% QC Inspection before shipmen
2. Install and debug the machine well in our factory
3. Provide safety package and shipping to clients
AFTER-SALE SERVICES:
1. Carefully train first-line operators operation knowledge
2. Engineers available to service machinery overseas timely.
3. Our sales team and senior engineer are ready for service for you.
FAQ
Q1: How to install?
A1: We adjusted machines well before we deliver. When customers receive them, you can work with them directly. For sliding table saw you just need install sliding table on machine body by 4bolts.
Q2: How to ensure the safety?
A2: There have the overload and over heat protection, it ensure working people safety.
Q3: How long the table saw machine can be used?
A3: It depends how you use your table saw, if use it in good maintenance, at least 8-10 years.
Q4: What is the Delivery time?
A4. Our delivery time is around 3-15 days. Before the machine arrive at the port, the shipping company will call you.
Q5: Where is your company located?
A5: We are Chinese company. Our city is Qingdao. It is the biggest seaport in the north of China.
Q6: Are there any requirements for the dealer?
A6: There is no special conditions to be our dealer. You buy from us and sell to your customers. We introduce customers to you.
