Products Description
The principle of the machine is mainly to use the vacuum suction generated by the vacuum pump to heat and soften PVC thermoplastic rolls, and through vacuum suction, form various shapes of sheets, etc
◇ The Advantages: Small footprint and high cost-effectiveness◇ The disadvantage is that manual operation is required to complete the entire lamination process
Multiple modes to choose from

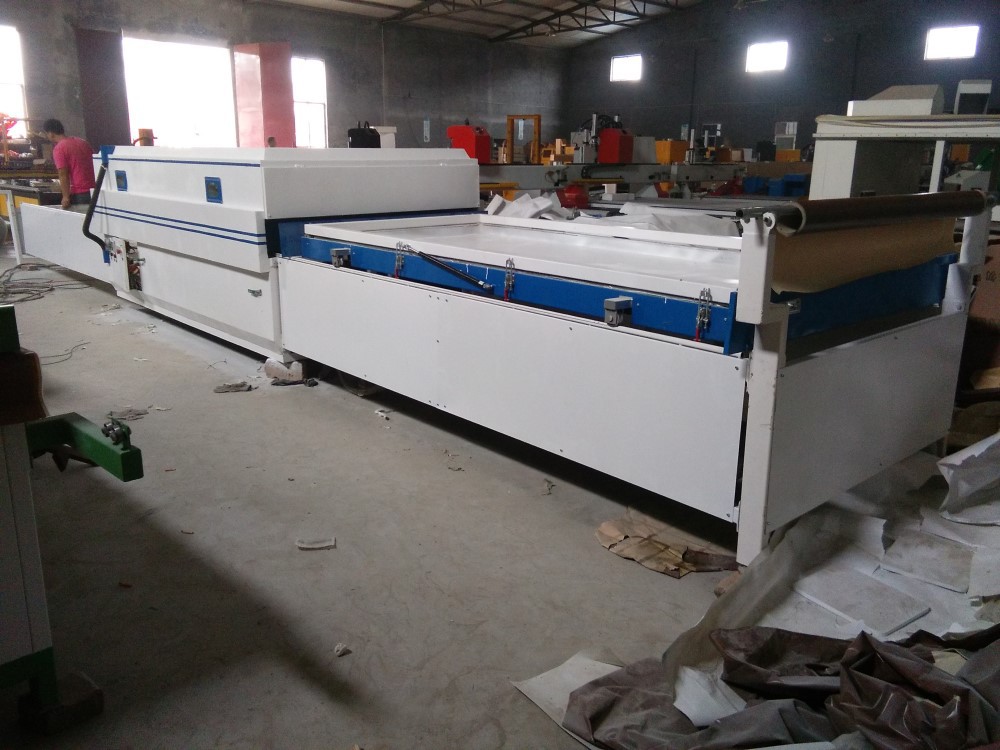

Irregular hand pushed oven

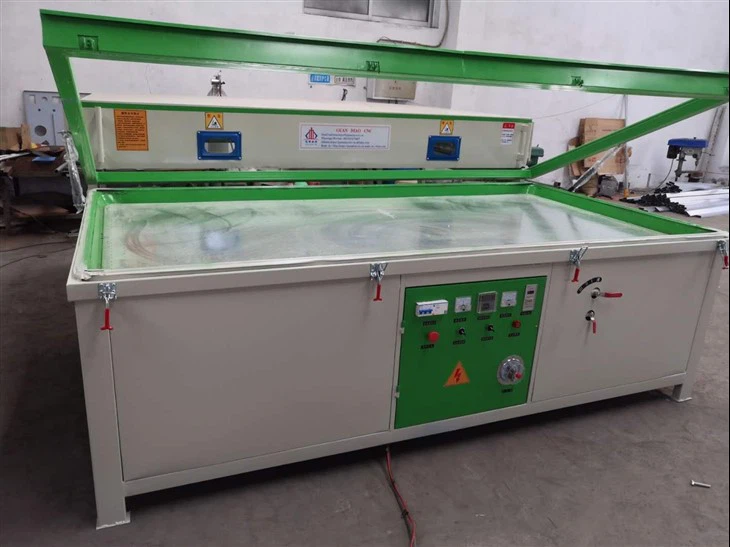

Hand table model

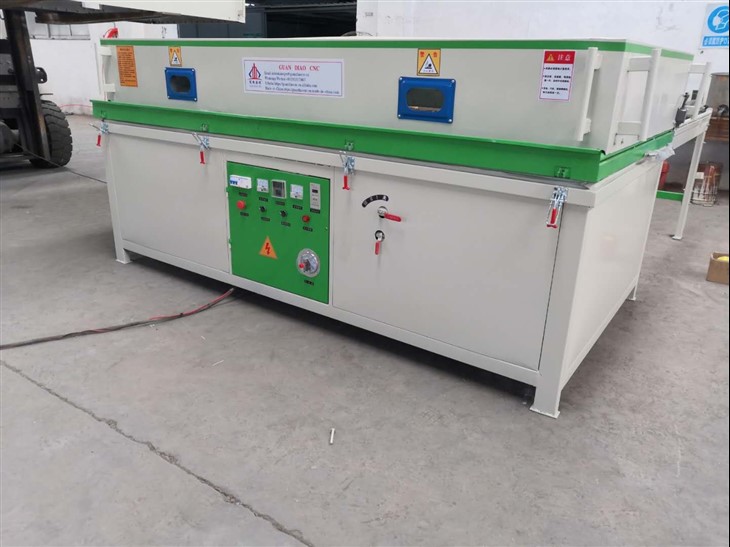

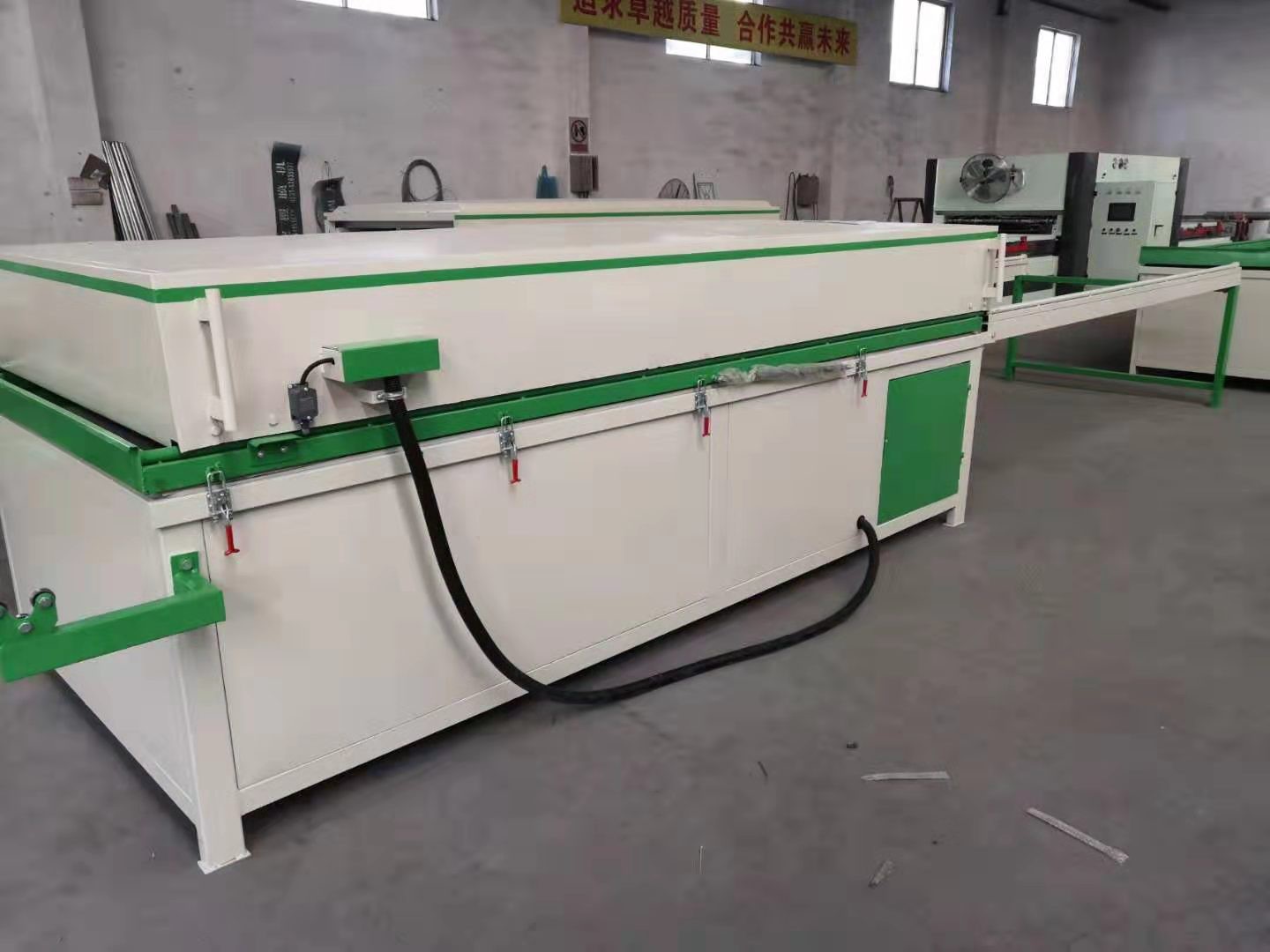

Hand oven model

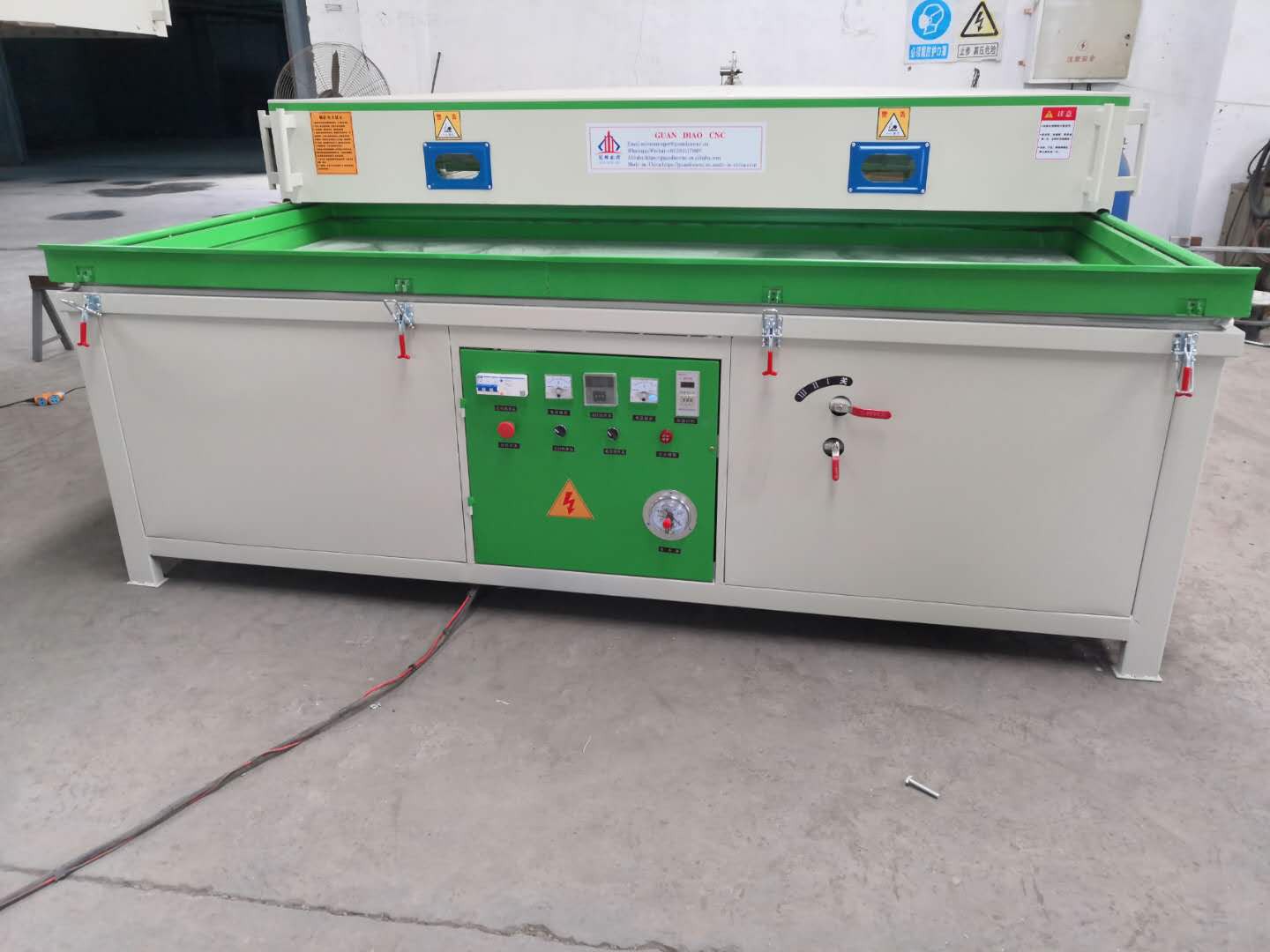

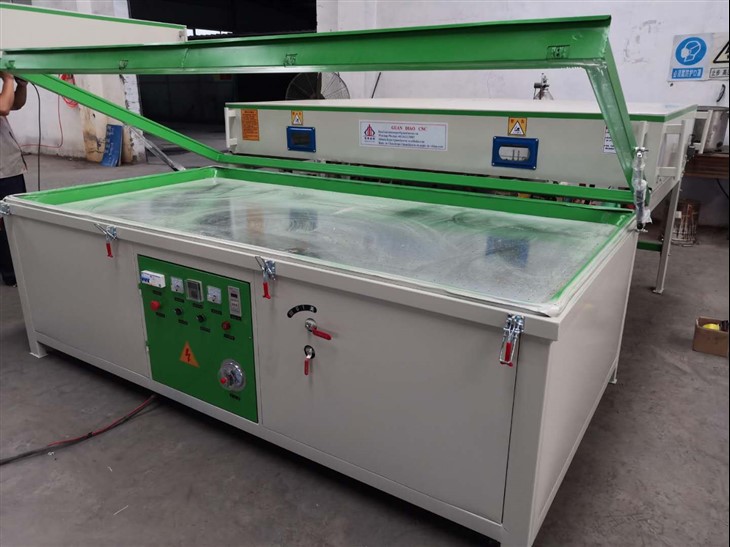

Machine Details
Use and operation of vacuum laminating machine:
1. The equipment should be operated by dedicated personnel, who should be trained to familiarize themselves with the equipment performance, master the lamination process, understand the operating methods, and pay attention to safety production.
2. Turn on the heating switch, set the temperature, vacuum degree, and preheating time according to the production process needs. After starting the vacuum pump for the first time or stopping for a long time every day, the switch should be pressed twice before starting it again, which is conducive to the normal use of the vacuum pump.
3. Grind the surface of the workpiece to be coated smooth, evenly spray PVC film special adhesive, place the prepared workpiece on the expansion pad dedicated to the suction and coating station, raise the frame for pressing the PVC film, lay the PVC film, and immediately lock the frame after putting it down. The PVC film should be flat, without damage, air leakage, and debris.
4. Enter the suction and coating station into the heating control box, and heat the PVC film according to the preheating timing. After the set time is up, the vacuum pump will automatically open for suction and coating. After the suction and coating are in place, the constant temperature will be maintained for 30 to 90 seconds (this parameter can be controlled by oneself), and then the warehouse will automatically exit. At the same time, the warehouse will have an automatic cooling function, and the workpiece can only be taken out after cooling.
Our advantage

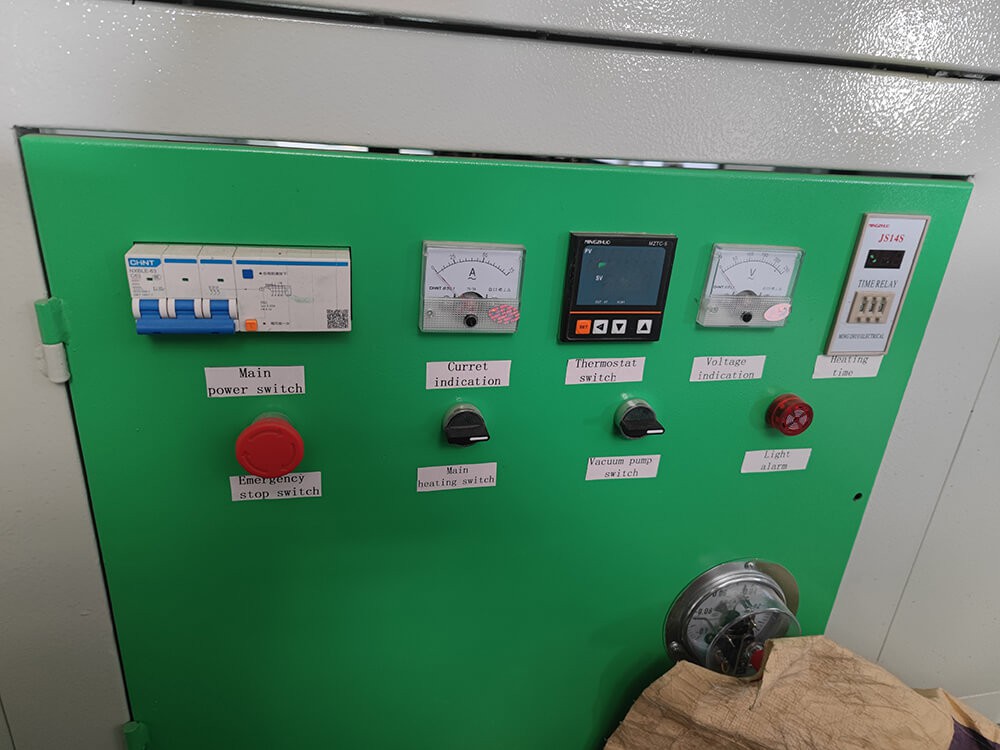

Control panel buttons
Simple， easy to operate

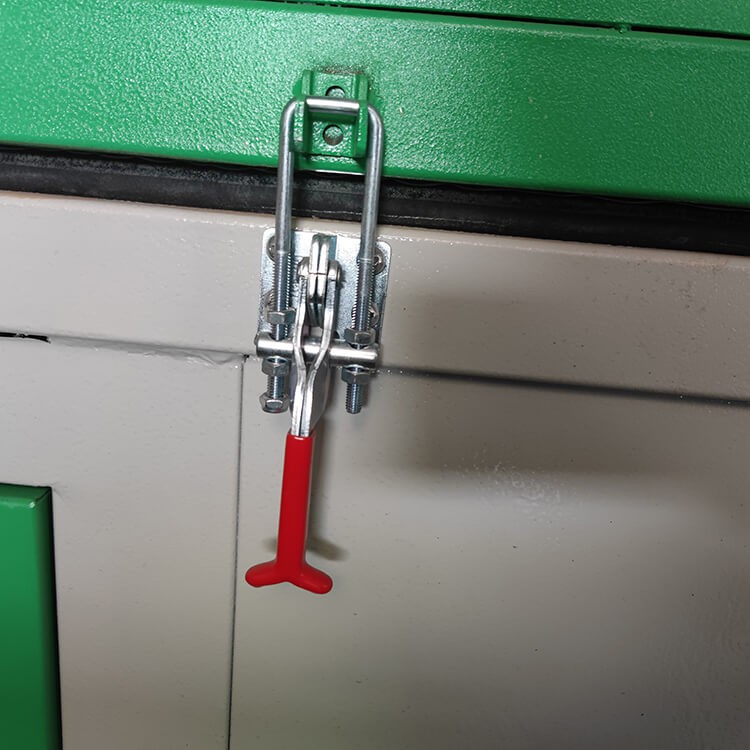

Occupancy lock buckle
Make the PVC film more evenly heated and heat up quickly

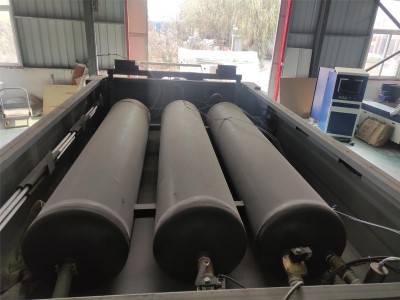

vacuum pump
Reduce the frequency of the start of the vacuum pumpGuarantee the stability of air pressure

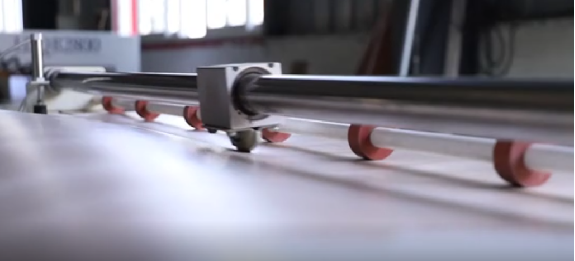

automatic cutting Film
Automatically cut PVC film according to usage size(optional)
|
|
|||
|
|
|||
