Features
★Type heavy duty Machine structure, good weight bearing capacity, not easy to deformation, the special machine bed design, can bearing more than 2000kgs materials.
★ The special designed Zaxis, can increase the stone relief accuracy, can solve the Zaxis belt or ball screw breaking problem thoroughly.
★ The water proof and dust proof system for X Y Zaxis, can protect all the parts, reduce the machine fault, enlarge the life time.
★ High-performance driven motor to ensure that the machines high speed and accuracy.
★ Using well-known domestic brands of water-cooled brushless spindle, low noise, strong cutting ability, to ensure the long time working.
Product Specification
Name | Jade cutting machine |
Woring size | 1300*2500mm |
Max feeding height | <300mm, (Customized) |
Max travelling speed | 6000-10000mm/min |
Tool diameter | ￠3, ￠4, ￠6, ￠8, ￠12.7, etc |
Transmission mode | Xy precision helical gear transmission, Z imported brand screw drive |
Software working environment | WindowsXP/7 |
Spindle power | 3.5kw4.5kw5.5kw (Optional) |
Driver motor | servo motor |
Working voltage | 220v380v (Optional) |
Engraving command | (G code) (nc), mmg, plt, eng, dxf |
Spindle rotating speed | 6000-24000rpm/min |
Control system | NC studio/DSP |

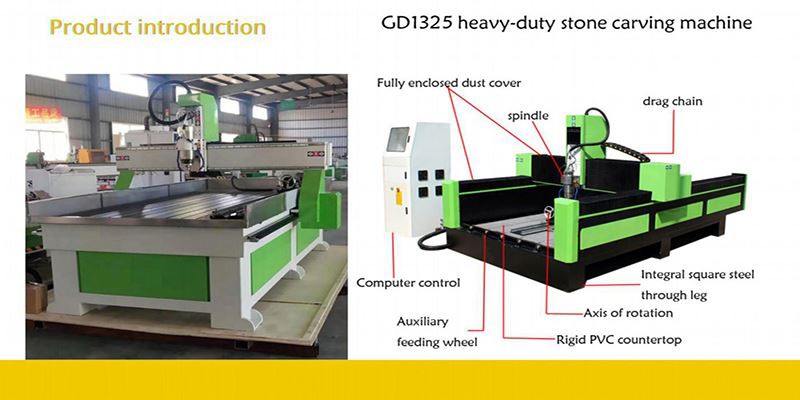

Product Detail

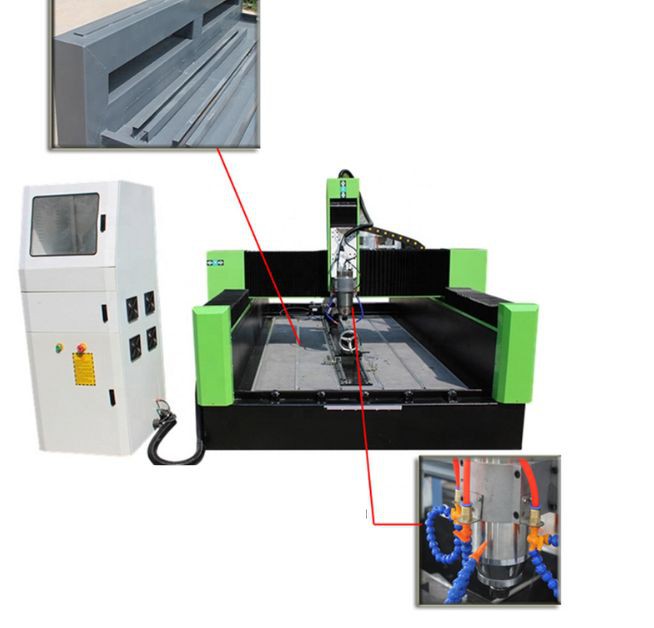

| Thickened fuselage design Design of heavy T-shaped bed Large load bearing, stable, no shaking It can effectively reduce the resonance and avoid knife breakage 2.Special spindle for stone The imported bearing is used to reinforce the slide plate, and the engraving does not shake |

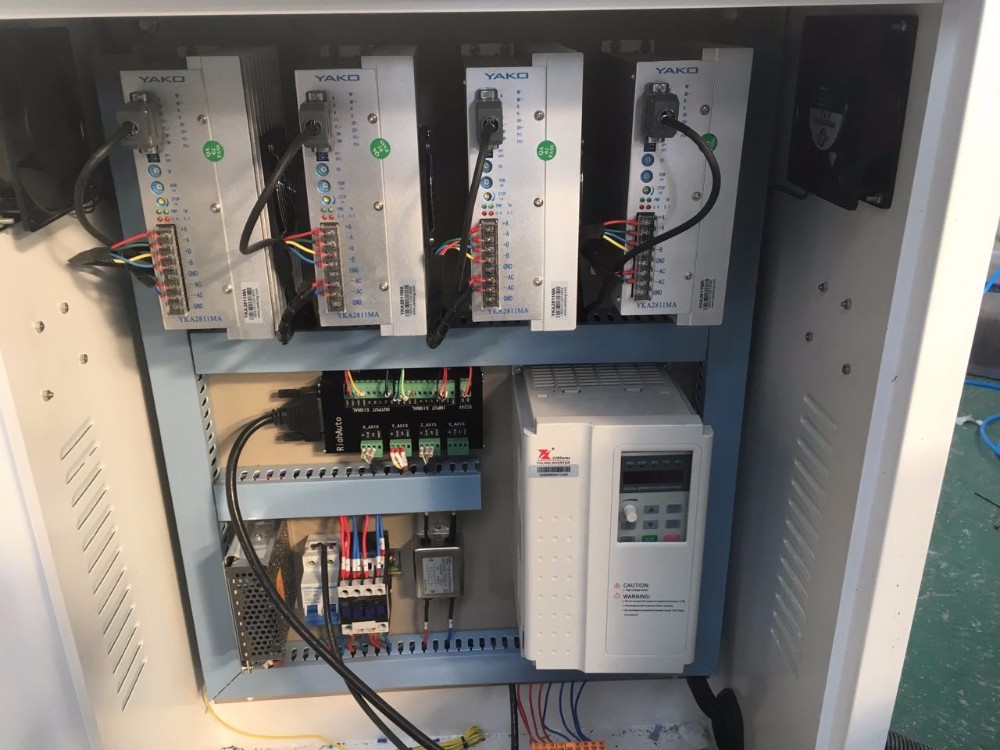

| The Electronics of the CNC RouterAll the electrical components are housed and wired in a electrical enclosure. This allows for easy access and service when needed. All wiring is tagged so that when service is required, the customer can easily navigate the cabinet. In addition, the cabinet serves as a work bench for the tools required. |

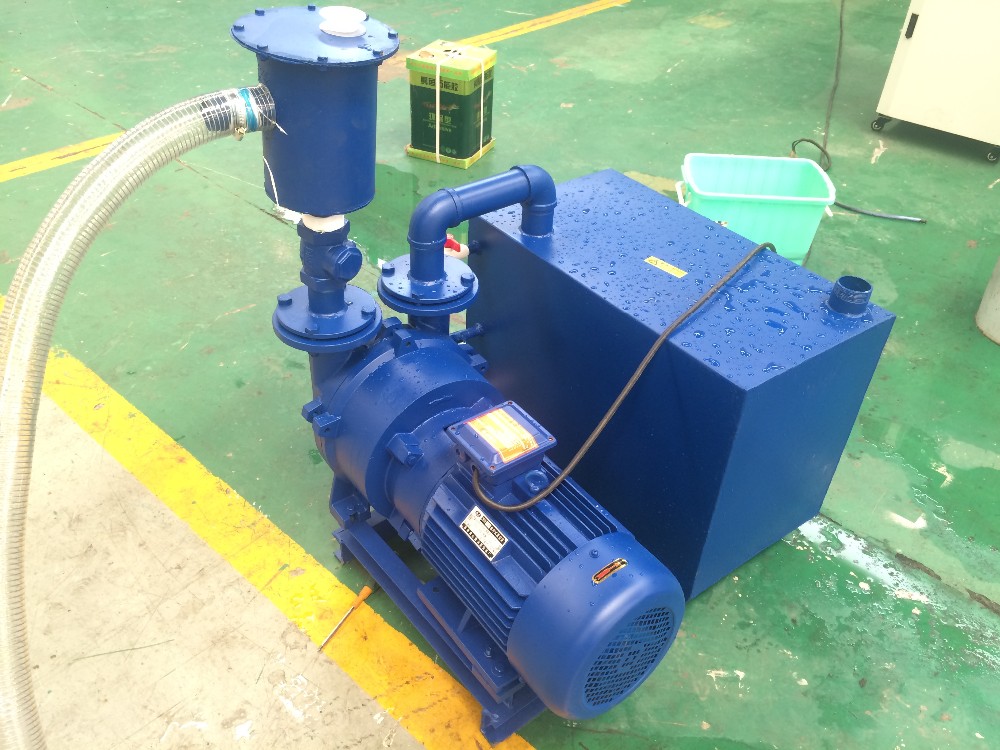

| Vacuum pumpThe machine comes with a 7.5kw vacuum pump for the sucking the stone, it is powerful enough for suck the machine on the table |
Sample
Company
Shipping
PRE-SALE SERVICE
1. Free Sample Machining Service
Send us your designed files, we will arrange free sample machining in our factory and make video to show you the process and result, or send samples to you to check the machining quality.
2. Machining Solution Design:
According to customer’s requirements, we can design the unique solution that supports higher manufacturing efficiency and better machining quality for customer.
3. Custom and OEM Service
The divisions and partnerships of GUANDIAO welcome both custom work and OEM customers. We have a broad range of capabilities and manufacturing strengths, which makes it possible for GUANDIAO to customize our existing products for OEM customers.
