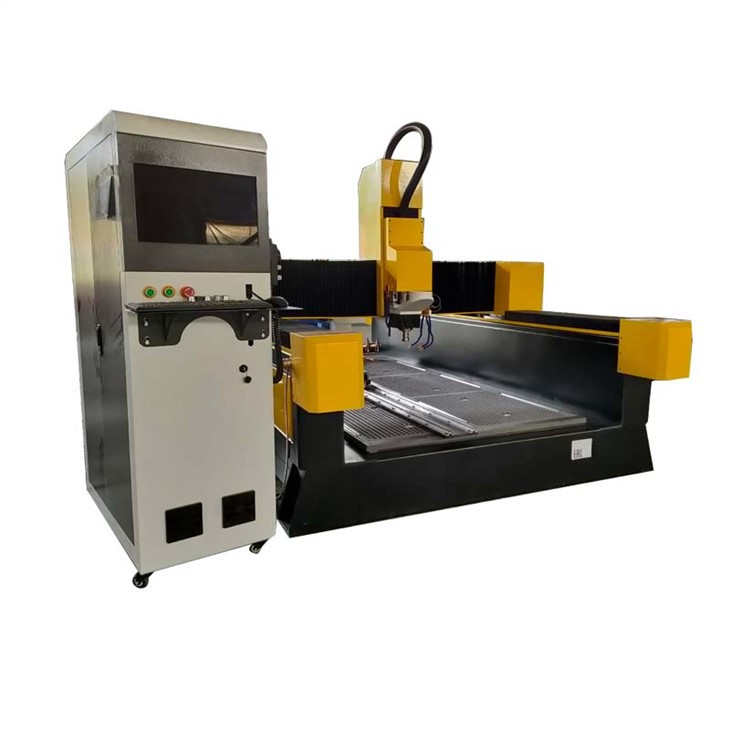

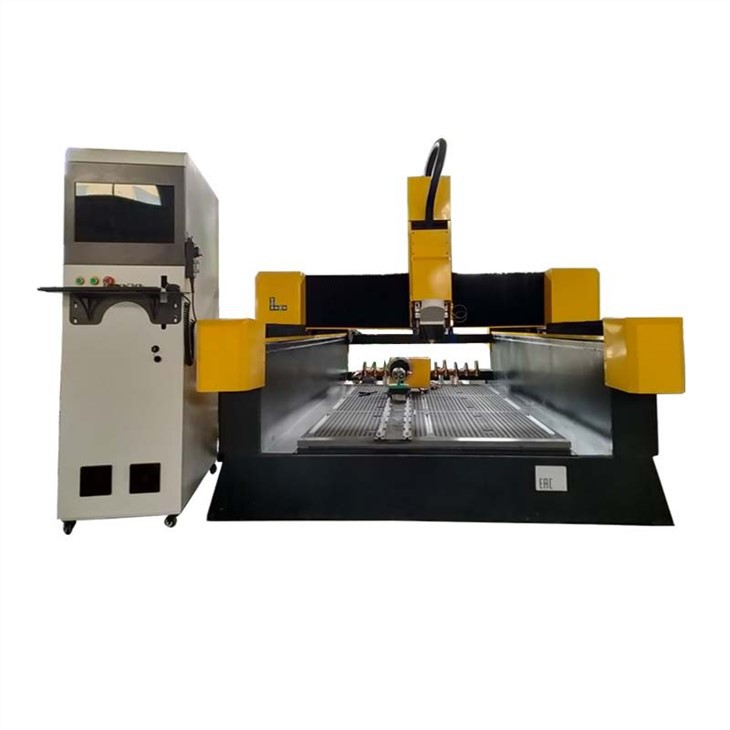

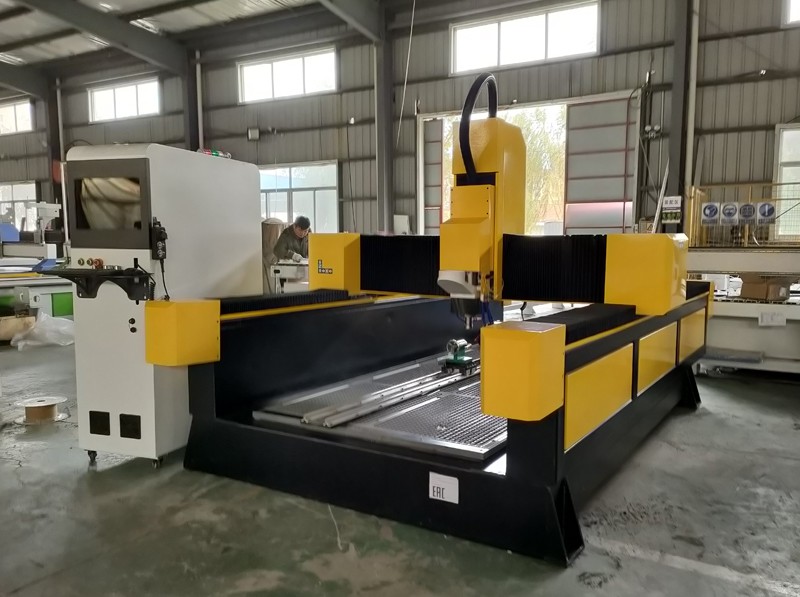

Product Description
Features of machine
★ Type heavy duty Machine structure, good weight bearing capacity, not easy to deformation, the special machine bed design, can bearing more than 2000kgs materials.
★ The special designed Z axis, can increase the stone relief accuracy, can solve the Zaxis belt or ball screw breaking problem thoroughly.
★ The water proof and dust proof system for X Y Zaxis, can protect all the parts, reduce the machine fault, enlarge the life time.
★ High-performance driven motor to ensure that the machines high speed and accuracy.
★ Using well-known domestic brands of water-cooled brushless spindle, low noise, strong cutting ability, to ensure the long time working.
★ Automatic tool calibration easy and accurate "Z" zero position for single and multiple tool changes
★ Easy to use Mach 3 controller works with all industry standard CAD/CAM software
★ High grade Hiwin square rail
★ XY axis German helical rack and pinion
★ Z axis high precision TBI ball screw
★ 900*1500mm, 1300*1800mm, 1300*2500mm, 1500*3000mm,1800*2500mm standard sizes (Special sizes available upon request.)
★ 1 spindle, 2 spindles or 3 spindles available upon request.
Machine Configuration
|
Working Area:
|
1300*2500*500mm
|
|
Spindle Power:
|
China HQD 7.5kw constant water cooling spindle
|
|
Spindle Rotating Speed:
|
0-24000rpm
|
|
Control System:
|
Taiwan Baoyuan control system
|
|
Power Supply:
|
AC380/220v±10, 50/60 HZ
|
|
Worktable:
|
Vacuum & T-slot table with water tank
|
|
Driving Syestm:
|
Japan Dongling servo motors and drivers
|
|
Transmission:
|
X,Y :Gear rack, high accuracy square guide rail, Z: ball screw TBI and hiwin square guide rail
|
|
Locating precision:
|
＜0.001mm
|
|
Operating Temperature:
|
5°C-40°C
|
|
Working Humidity:
|
30%-75%
|
|
Working Precision:
|
±0.02mm
|
|
System Resolution:
|
±0.001mm
|
|
Graphic Format Supported:
|
G code: *.u00, * mmg, * plt, *.nc
|
|
Compatible Software:
|
ARTCAM, UCANCAM ,Type3 and other CAD or CAM softwares
|
|
Optional:
|
① Taiwan Delta Servo Motor and Driver
② NC-Studio Control System ③ Rotary attachment
|
Machine Details

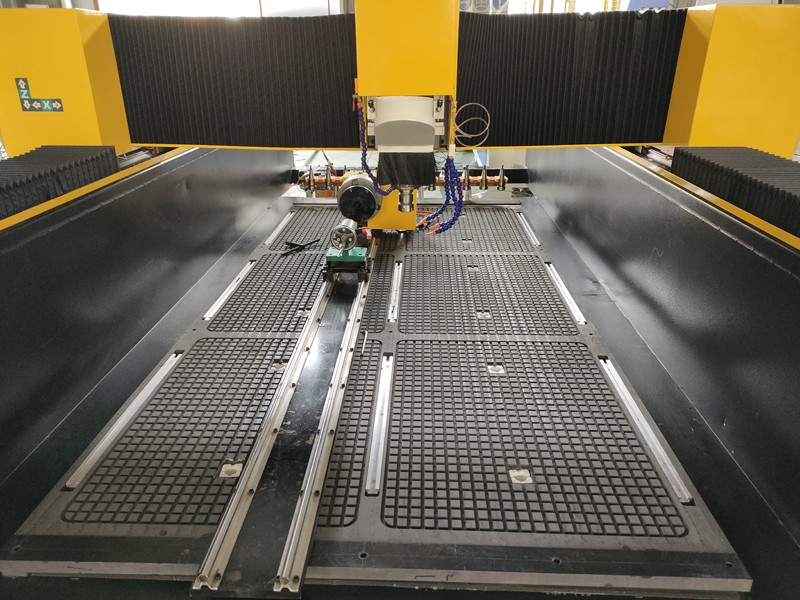

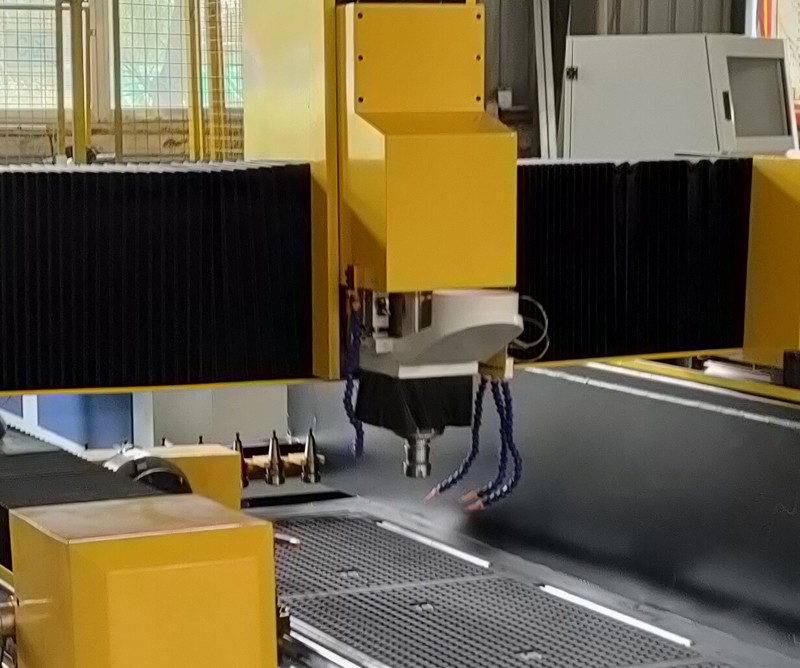

7.5kw water cooling ATC spindle Vacuum & T-slot working table

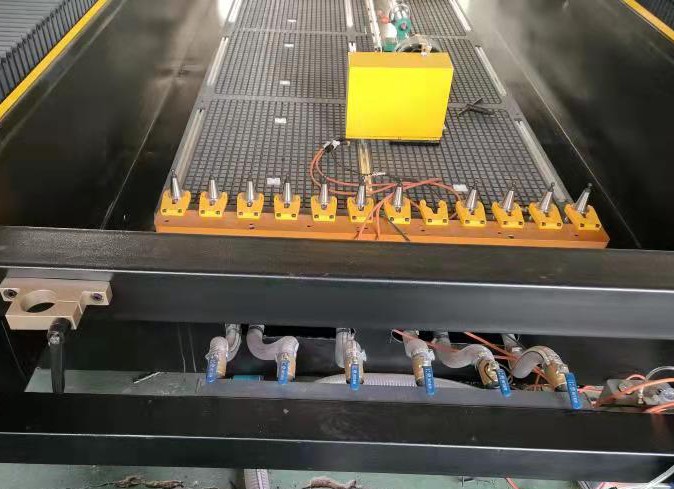

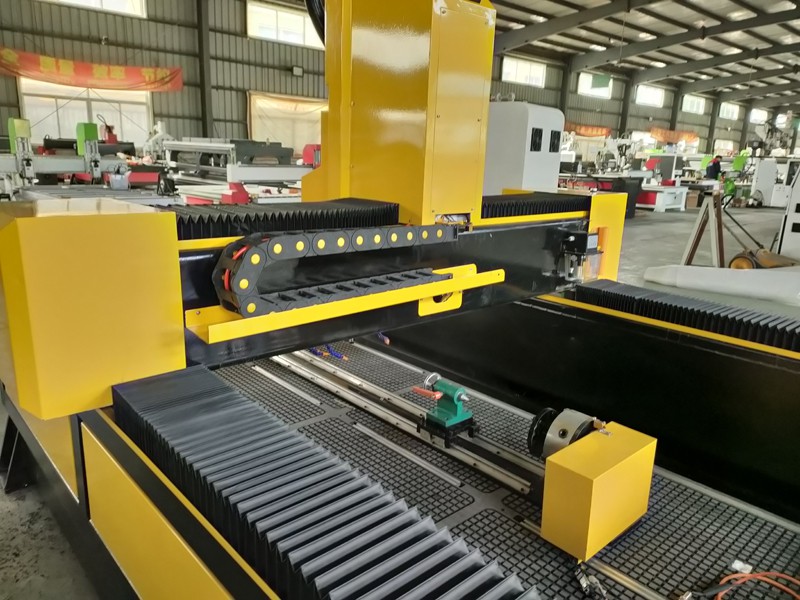

Linear type 12 auto tool changers Rotary device attachment
Applications
The ATC CNC Router for Stone is suitable for processing all kind of stone slab coutertop, such as kithen countertop, bath countertop, cabinet countertop, bar counter, table, windowsill, door sets etc. Relief engraving like stone background wall relief, European style edging etc. is available too.
Packing & Shipping

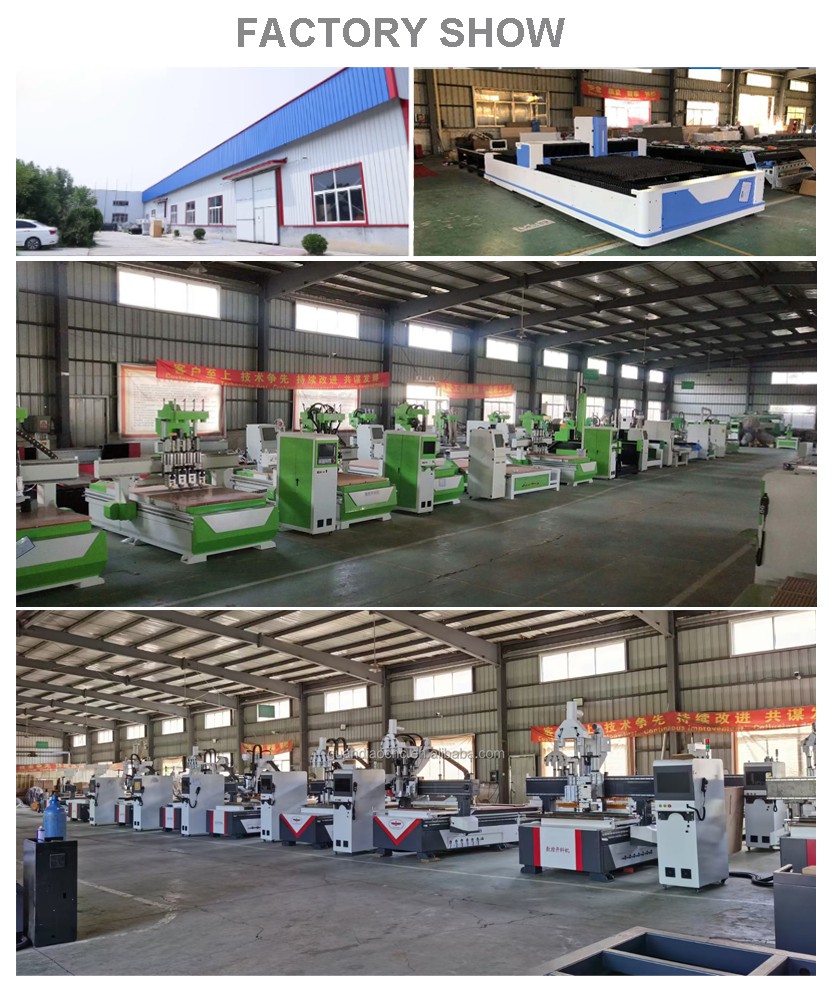

Our Company
Guandiao CNC Since 2009, it’s a high-tech enterprise producing CNC machine, focusing on the research and development and sales of industrial CNC products, Located in Jinan city (the hometown of CNC Machinery in China) ,has been steadily developing more than 10 years.We enjoy the advantage of strong international competitiveness and is a reliable partner for your long-term cooperation !
FAQ
Q1: Are you manufacturer ?
Yes,We are factory since 2009.
Q2: How can I get an accurate price?
Please tell us your cutting material and the working size.
Q3: How is your after sales service?
Our sales are online for 24-hours. We can also supply overseas install service. Also we have more than 10 countries warehouse and department.
Q4: How long is the delivery time?
Generally 7 ~ 15 days.
Q5: Can I get a machine according to my own requirements?
Sure.We accept OEM and ODM
Q6: If my machine is broken. Can you repair it for me?
Yes. We have free traning online. If there is big trouble with your machine in the warrenty time, we can repair it.
