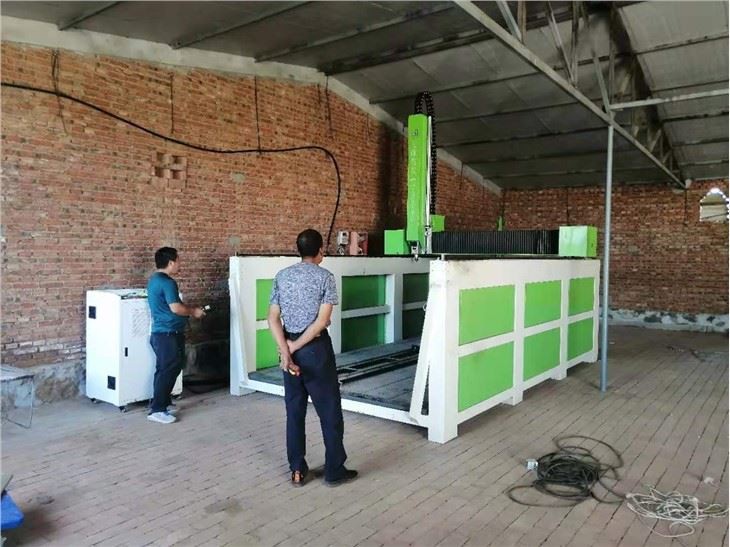

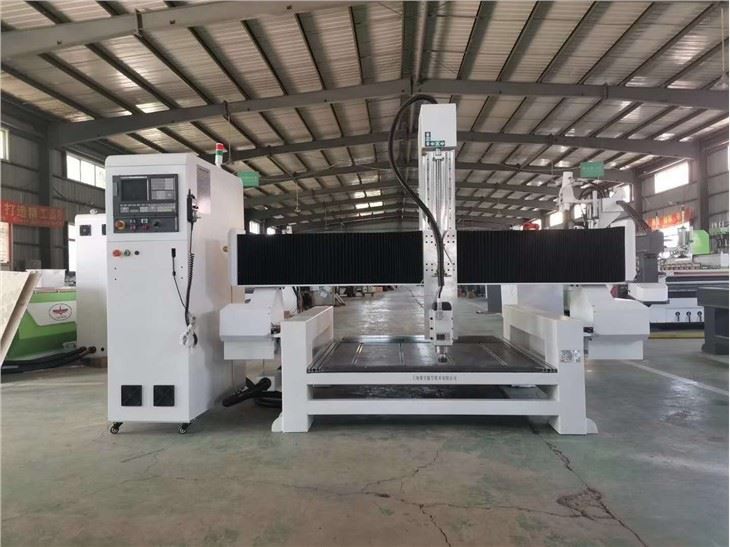

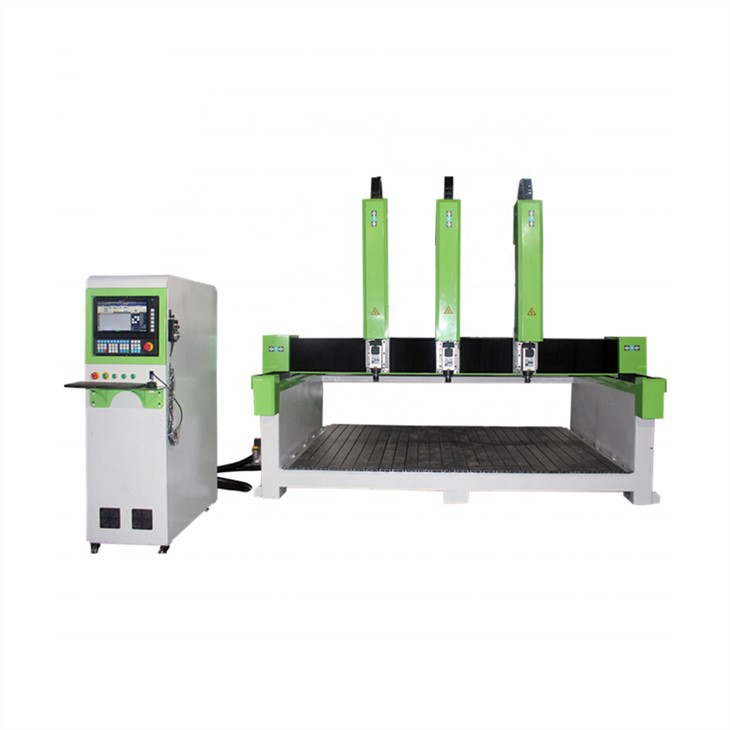

Performance characteristics:
1. The engraving machine adopts gantry structure, y guide rail support surface is stable, rack transmission mode, stable transmission, long-time high-speed operation without deformation and shaking.
2. The X, y and Z axes of the equipment adopt linear guide rail and steel structure bed, with large load-bearing redundancy and long service life. Simple operation and humanized design.
3. Compatible with type3 / ArtCAM / castmate / UG / Jingdiao / Wentai and other CAD and cam design and production software.
Model | GD1325 | GD1830 | GD2040 |
Working size(mm) | 1300*2500 | 1800*2500 | 2000*4000 |
Feeding height | 500-2000mm |
Spindle power | 3.5kw/4.5kw/5.5kw/6kw/7.5kw(optional)0-24000rpm |
Max processing speed | 30m/min |
Reposition precision | ±0.03mm |
Software | TYPE3/Artcam/Castmate/UG/CAD/CAM etc |
Control system | NC studio/Synted/DSP |
8 | Max. torque | 500N.m |
|

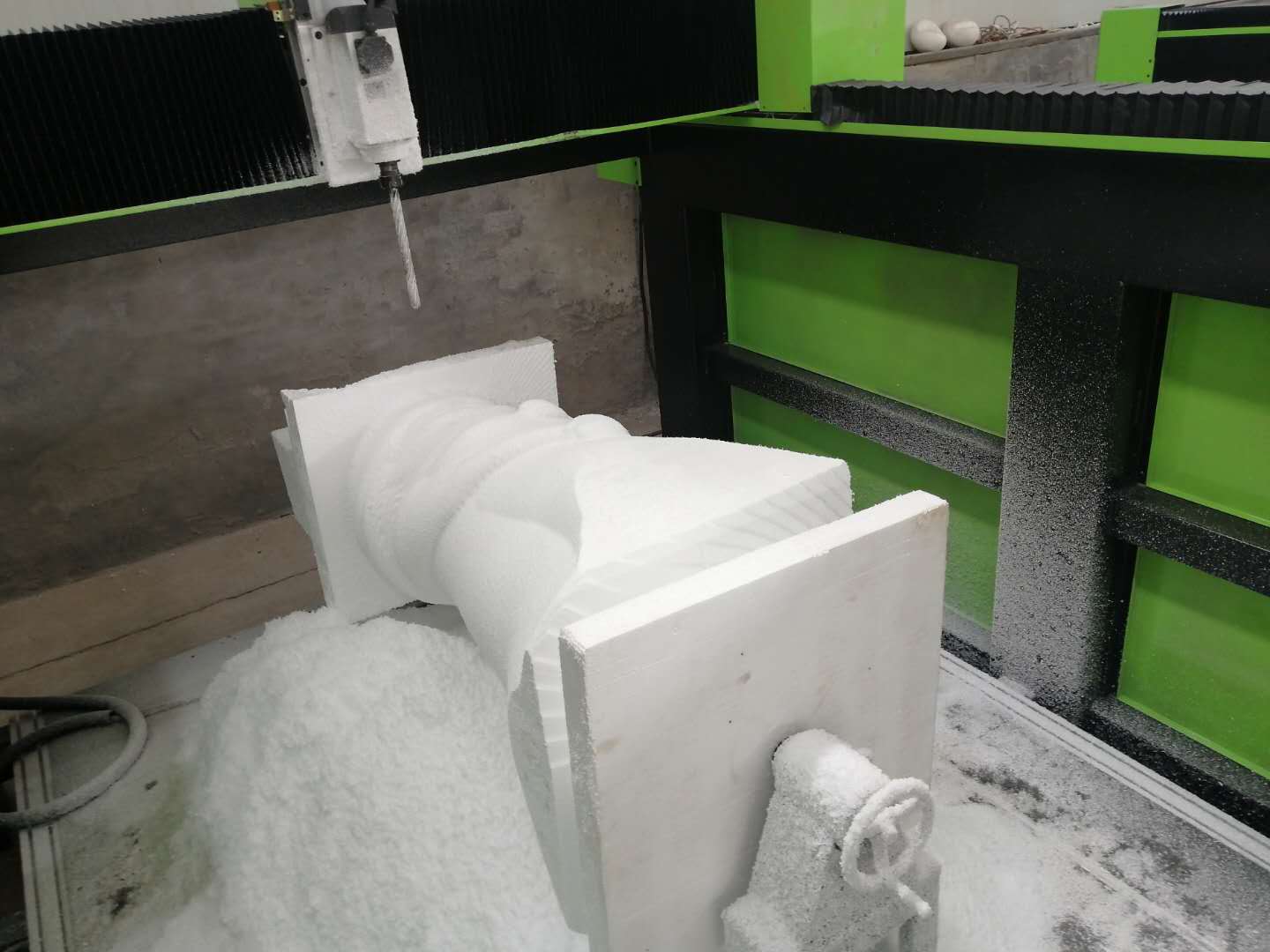

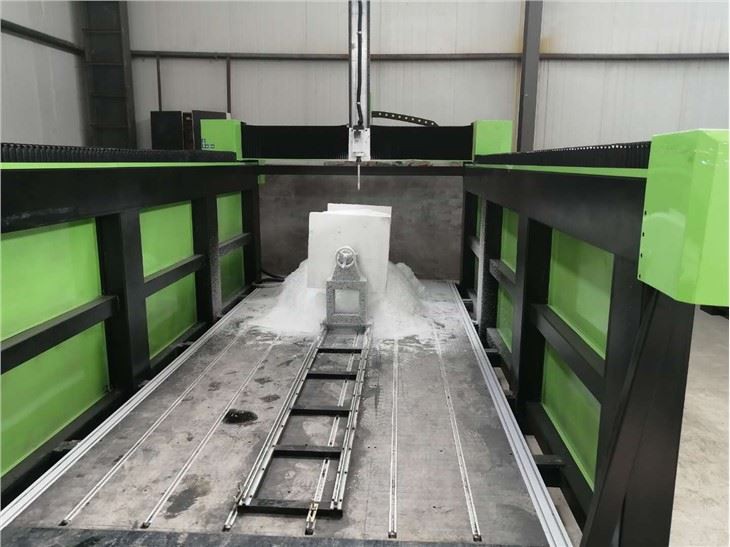

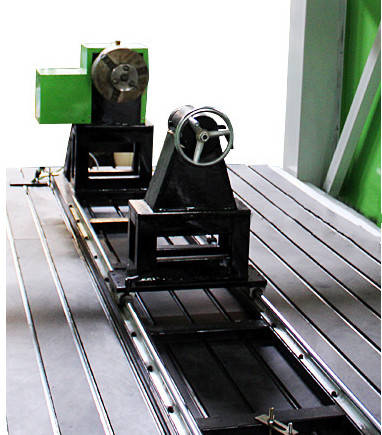

It is a multifunctional numerical control equipment, which can not only carry out cylindrical three-dimensional engraving, but also remove the rotating shaft for plane engraving

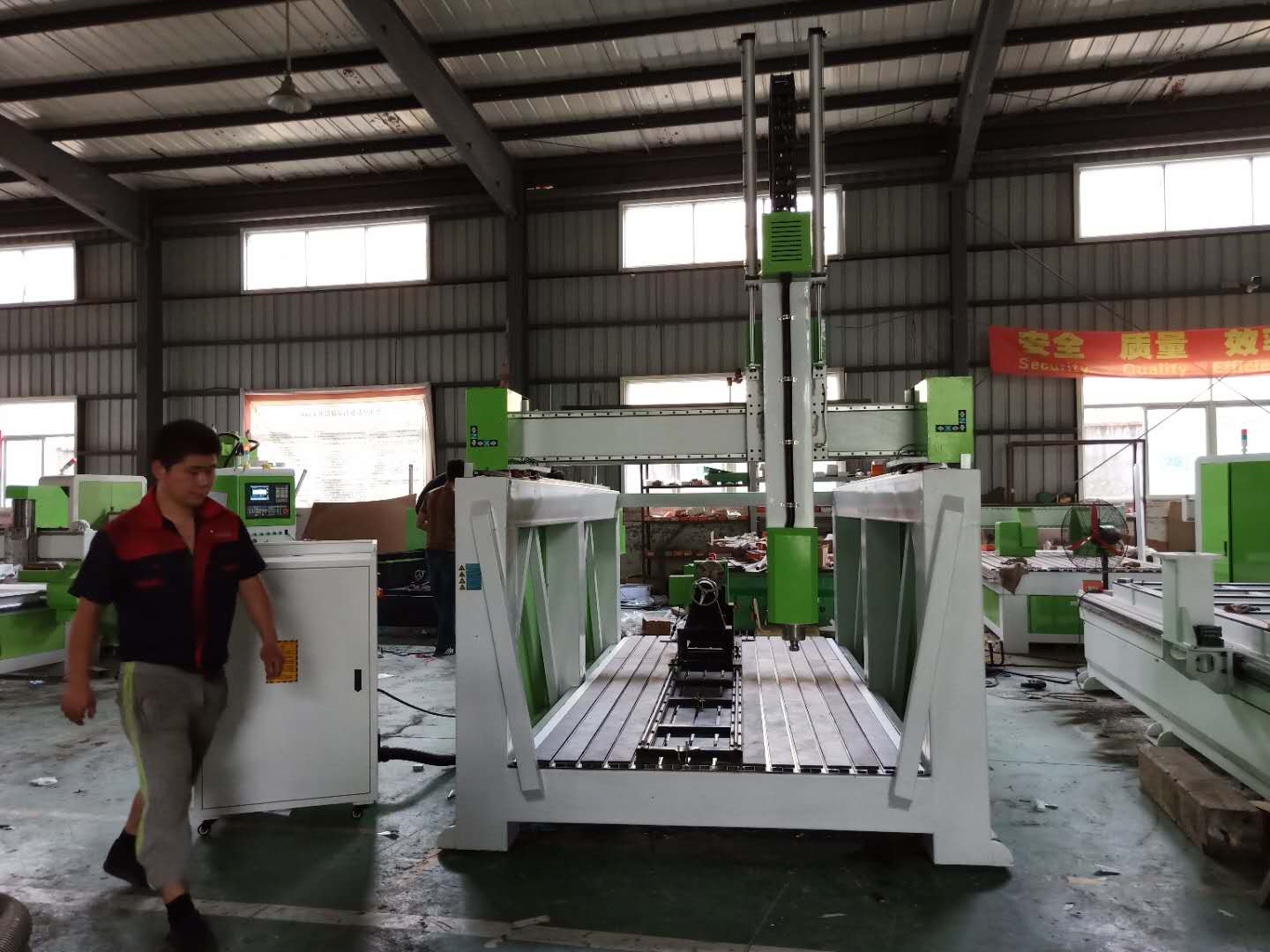

The z-axis stroke can be increased to 1m, which is suitable for processing materials with large thickness.
High torque spindle motor
The spindle is equipped with high torque spindle motor, which has fast rotation speed, small rotation vibration and low working noise.
Automatic oil filling lubrication system
It can resist the rust of parts and effectively prolong the service life of the machine
Applicable industry:

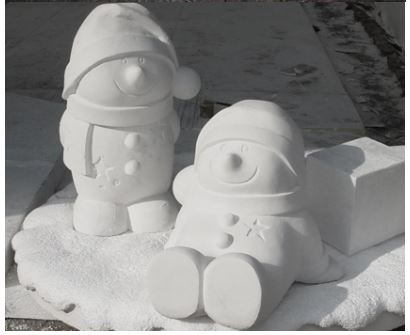

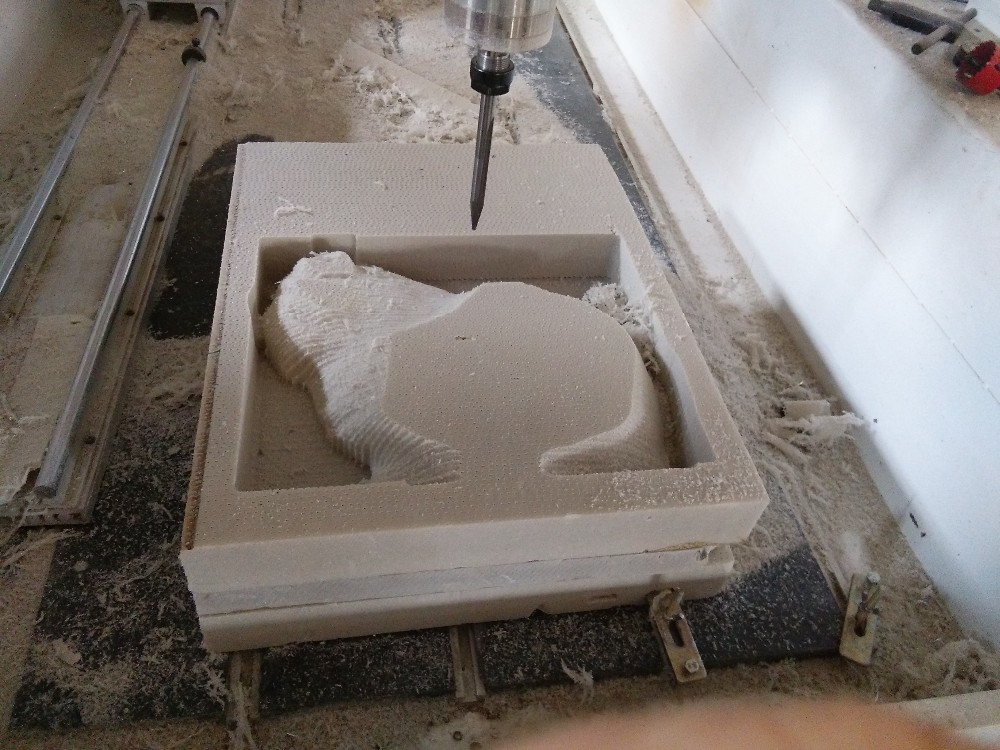

Die industry: it can engrave various moulds, lost foam, foam mould, large ship model, aviation molds, propeller, train and wooden models.
SALES AND SERVICE NETWORK

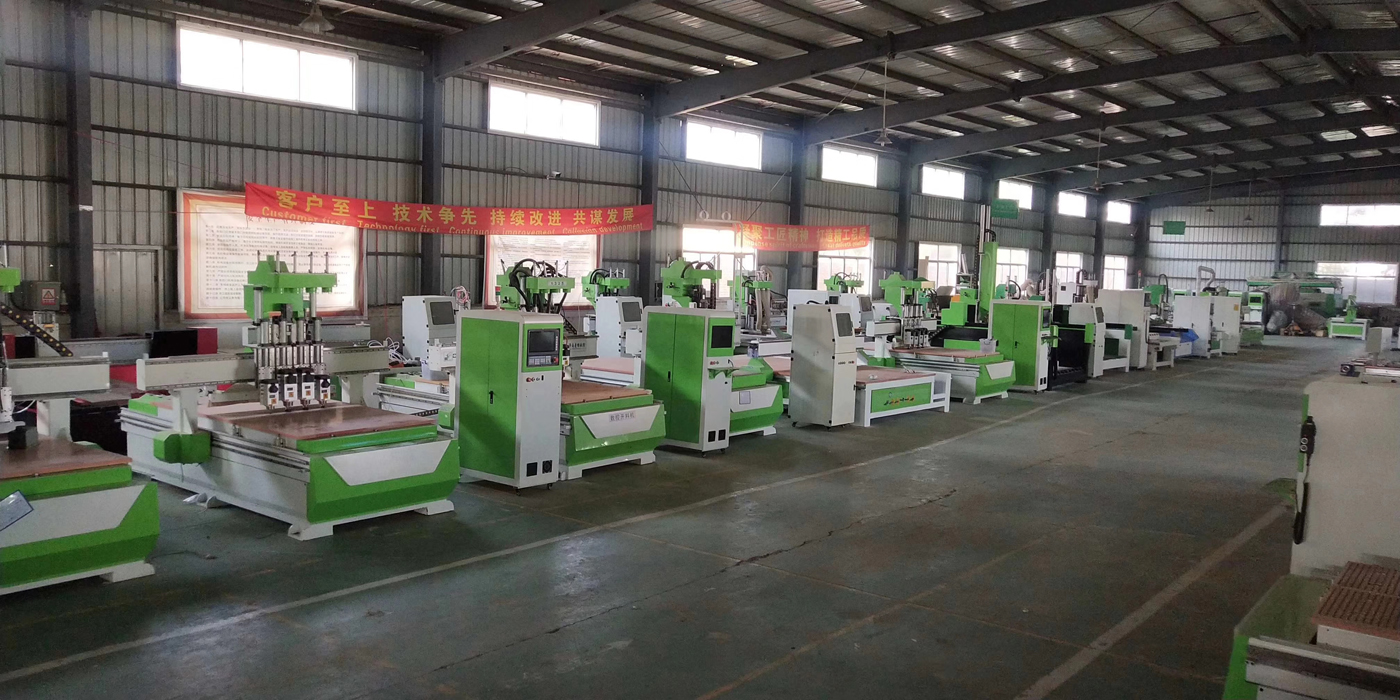

Shandong Grandio CNC Equipment Co., Ltd is an innovative enterprise engaged in research and development, production, sales and good after- sales service. The company’s main products include Panel furniture CNC cutting machine, Woodworking CNC Machining Center, CNC router, Multi-head cylinder CNC engraving machine, Styrofoam CNC router, 3D scanner, Vacuum membrane press machine,Vacuum forming machine, Laser engraving and cutting machine, etc.
