Product Induction

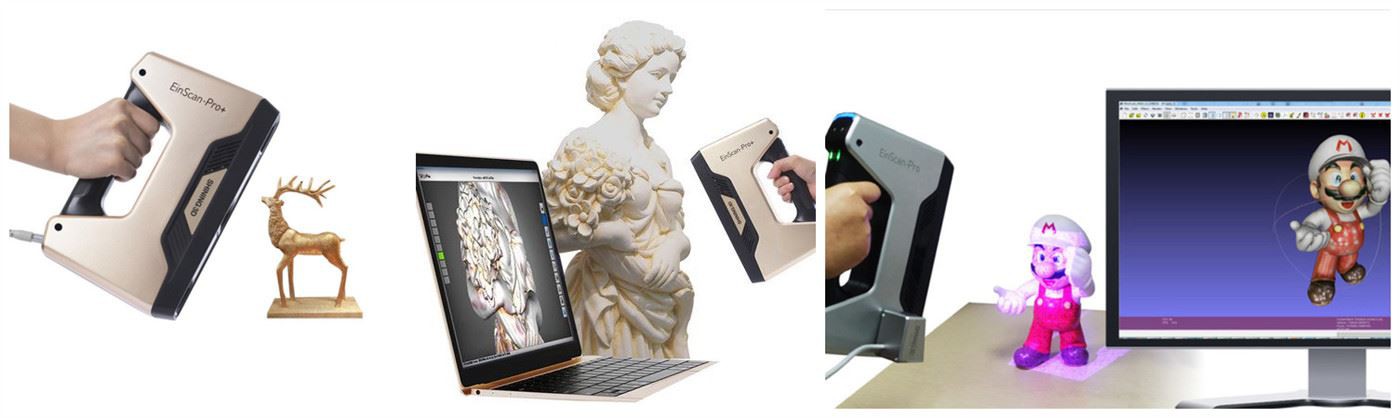

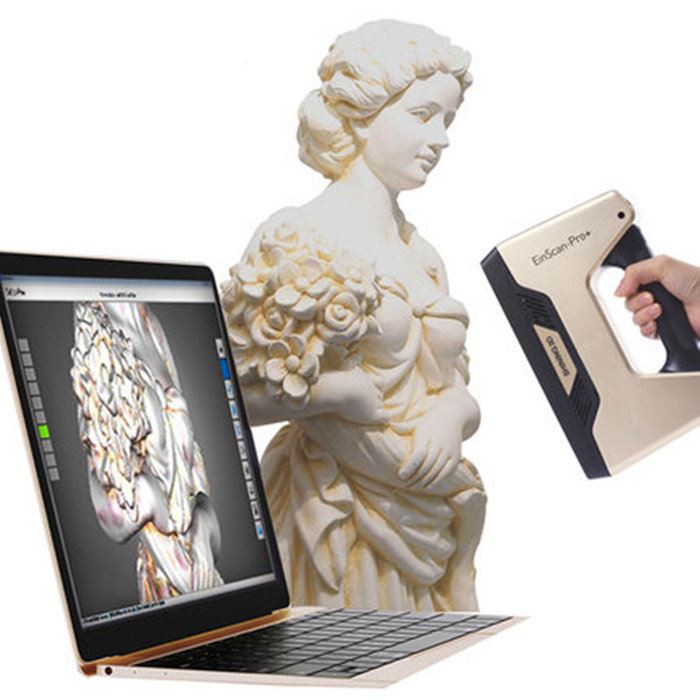

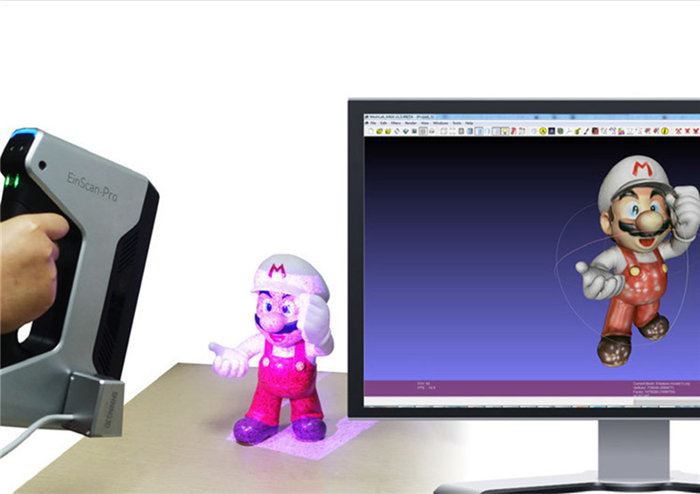

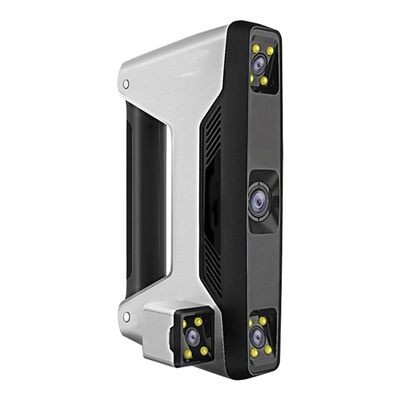

This Handhled 3D Scanner features a large wide-angle field of view, which enables fast and accurate scanning of items with better depth of field, creating its flexible operational freedom. It is equipped with a new generation of 3D sensors and optimized algorithms for better data capture, optimized hybrid stitching mechanism, and a rapid scanning process that does not harm your eye. It can be used in various ways like aiding modeling, 3d printing, and digital museum display, etc.
Features
1. The body of our Handhled 3D Scanner is compact and lightweight, portable and durable
2. With intelligent dimmable system, uneven light environment is not affected
3. After scanning can do high-speed transmission, data capture quickly, improve efficiency
4. Scanning light is not visible to the human eye, will not hurt the eyes
Product Specification
Mode | Handheld HD | Handheld rapid | Fixed automatic |
Scan accuracy | 0.1mm | 0.3mm | 0.05mm |
Scan speed | 15 frames/s | 15frames/s | <2s (single scan) |
Measuring dot | 0.2mm-2mm | 0.5mm-2mm | 0.16mm |
Scan object | 0.03-4m | 0.15-4m | 0.03-0.15m |
Alignment | Markers | Features | Turntable |
Texturn scan | No | Yes (available with color pack) | |
Single scan range | 210*150mm | ||
Light source | White light LED | ||
Date format | OBJ, STL, ASC | ||
System support | Win7, Win8, Win10, 64bits | ||
Printable data output | Support output can directly print 3D models | ||
Scan head weight (without transmission line) | 0.8kg | ||
Product Details

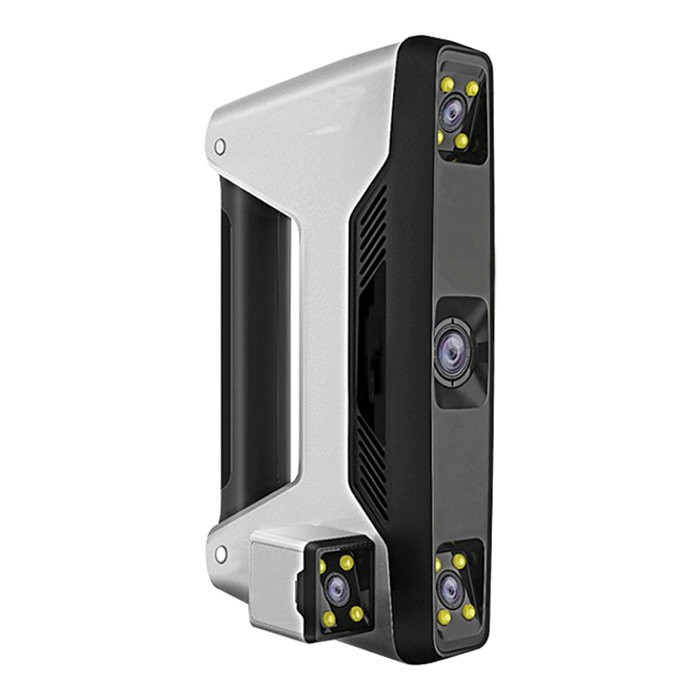

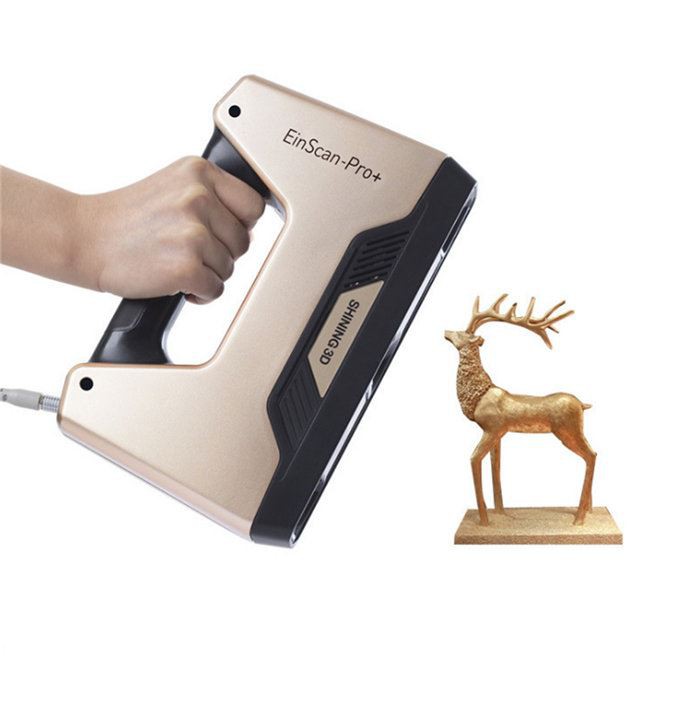

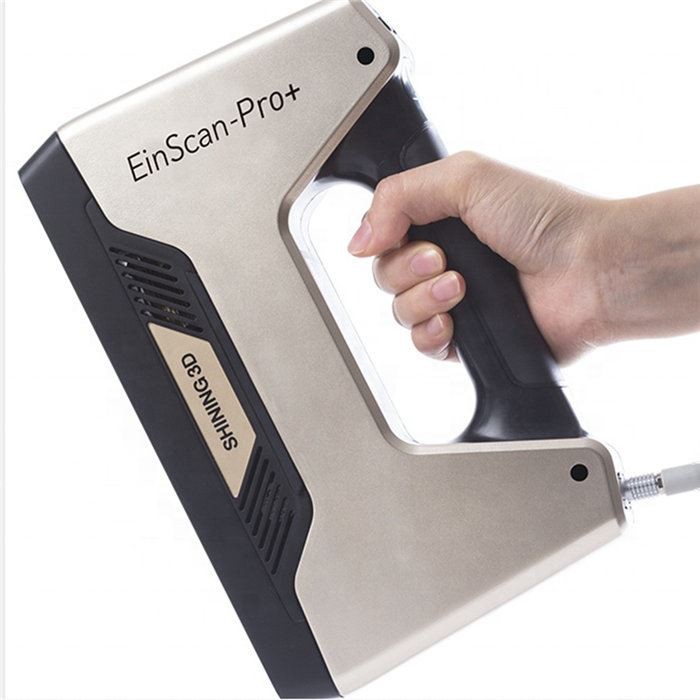

| Light body Easy operation Handheld body 3D scanner is not only light and portable but also very easy to operate. You do not need to do external clamping positioning before scanning. |

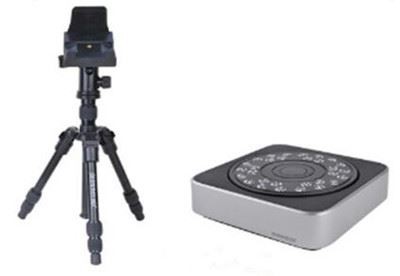

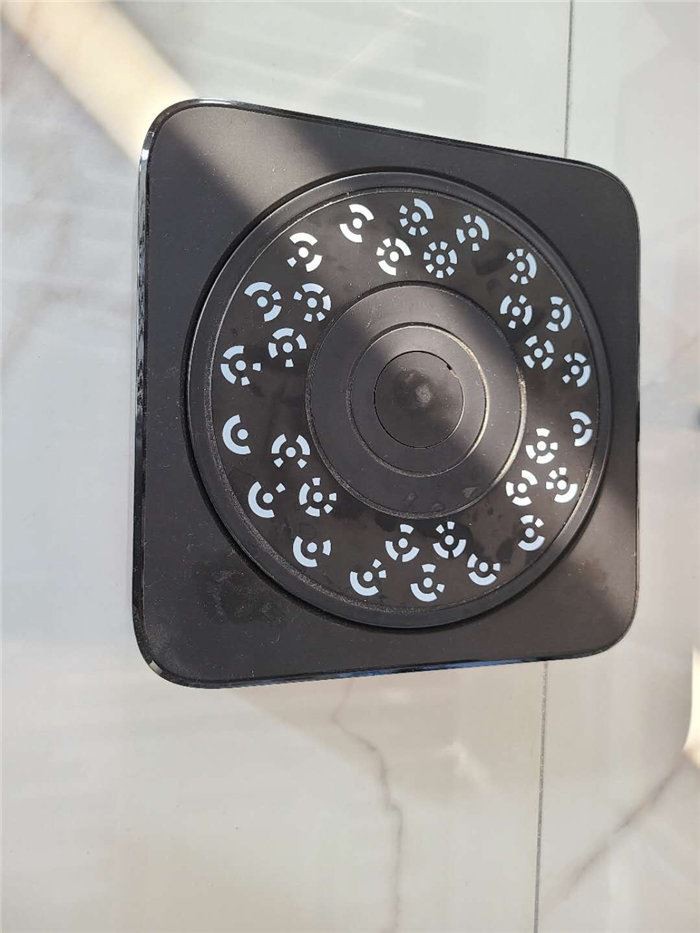

| Tripod & hand turntable (optional) Accuracy up to 0.03mm. High speed scanning: 300,000 points/s. |

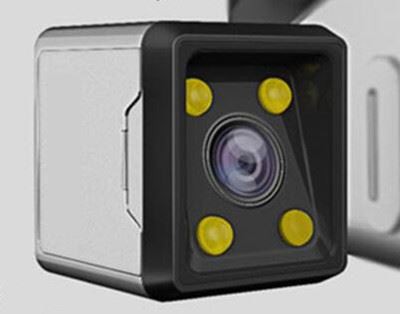

| Color pack Through this part, you can get same color as the object. Scanner with color pack, get the real color of scanner objects. |
Product Functions and Advantages
1. Fast scanning speed, high precision: single scan time less than 3 seconds, automatic stitching, stitching precision can reach 0.03mm/m (3um).
2. Excellent machine hardware: the machine hardware is excellent, original industrial serials, reliability, good durability, ensure the products ae excellent stability.
3. Scan widely: 10mm diameter objects to several meter objects, scanned precisely.
4. Non injury: raster scanning technology, no damage, no deformation of the objects suitable for all kinds of objects.
5. Easy to use and operate: interface concise, beginners in short time can be skilled operation, the package will package.
6. No harm to human body: strong adaptability to the environment, the American digital grating, high brightness, good heat dissipation; no damage to the eyes, working terms low.
7. Many splicing ways: manual splicing ways, automatic mosaic method. the automatic mosaic using a unique ICP (Iterative Closest Point) sign automatic splicing technology, all the data points are scanned for the best matching, automatic operation, high precision, fast calculation speed, so that the error on object is small. solving the problem of delamination may occur in the process of stitching. the complex objects can be viewed in different directions to get three- -dimensional data integrity.
8. Strong compatibility output format supports STL/ OBJ IGES /DXF.
3DS... With the globalization of software interface, to adapt to the international large software, as well as the domestic software. Such as: master cam, power mill, ug, pro/e, geo magic studio, JD Paint.....

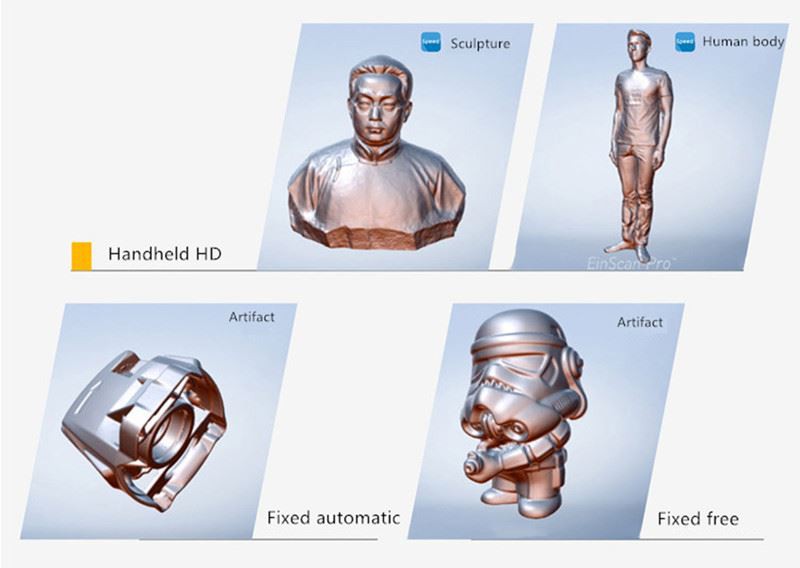

Product Application

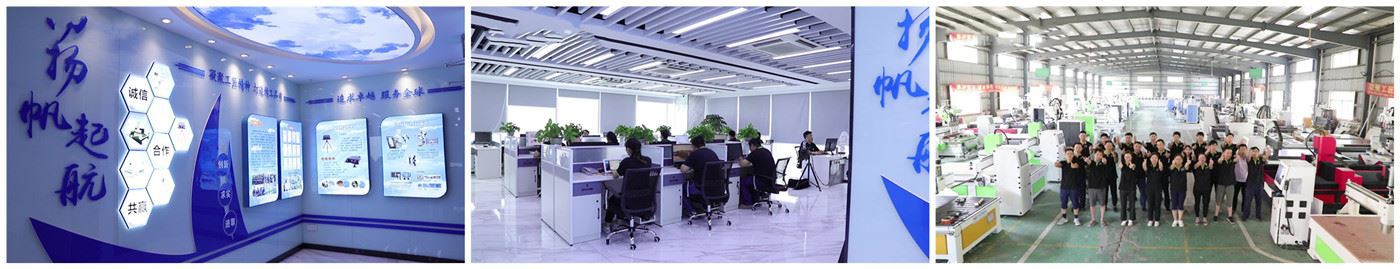

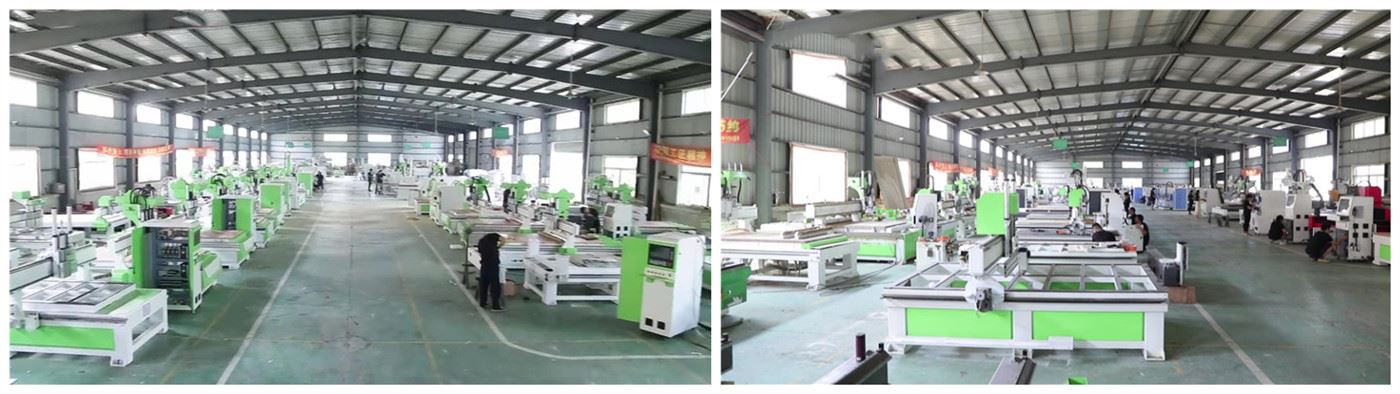

Company Factory Introduction
Shandong Guandiao CNC Equipment Co., Ltd is it’s a high-tech enterprise producing CNC machine, focusing on the research and development and sales of industrial CNC products, located in Jinan city (the hometown of CNC Machinery in China), has been steadily developing more than 10 years. We enjoy the advantage of strong international competitiveness and is a reliable partner for your long-term cooperation!
At present, the company's products are sold to major and small cities and regions in China. The company has independent import and export right, products are exported to southeast Asia, the Middle East, Africa, Europe and the United States and other places, and with its excellent quality, excellent performance and perfect after - sales service won the customer the consistent approval.
Certificate
Packing and Transportation
We have shipping agent, we can ship the machine to your nearest port. And we use standard export wooden box to package the machine.
Our Service
1. 1 years quality guaranty, the machine with main parts (excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
2. Lifetime maintenance free of charge.
3. Free training course at our plant.
4. We will provide the consumable parts at an cost price when you need replacement.
5. 24 hours on line service each day, free technical support.
6. Machine has been adjusted before delivery.
FAQ
Q1: How can I trust your company and your products?
The whole production procedure will be under regular inspection and strict quality control. The complete machine will be tested to make sure they can work very well before being out of factory. The testing video and pictures will be available before delivery.
Q2: If machine have any problem after I ordered it, what could I do?
Free parts send to you in machine warranty period if machine have any problem. Free after-sales service life for machine, please feel free contact us if your machine have any problem. We will give you 24hours service from phone and skype.
Q3: Can I visit your factory?
Yes! We greatly welcome customers to visit our factory!
Q4: What's your date of delivery?
For standard machine, about 15 working days; For customized machine, about 20 working day.
