Products Description

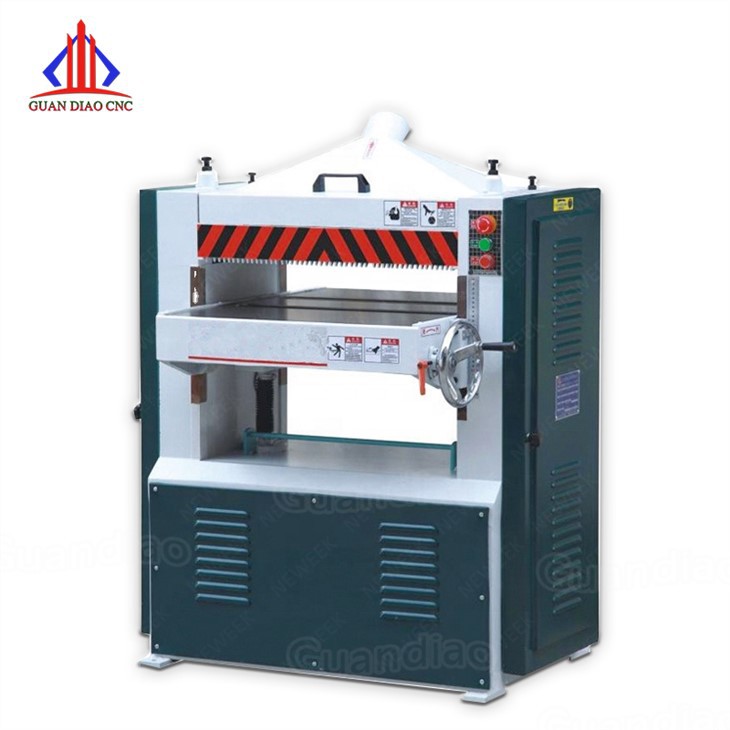

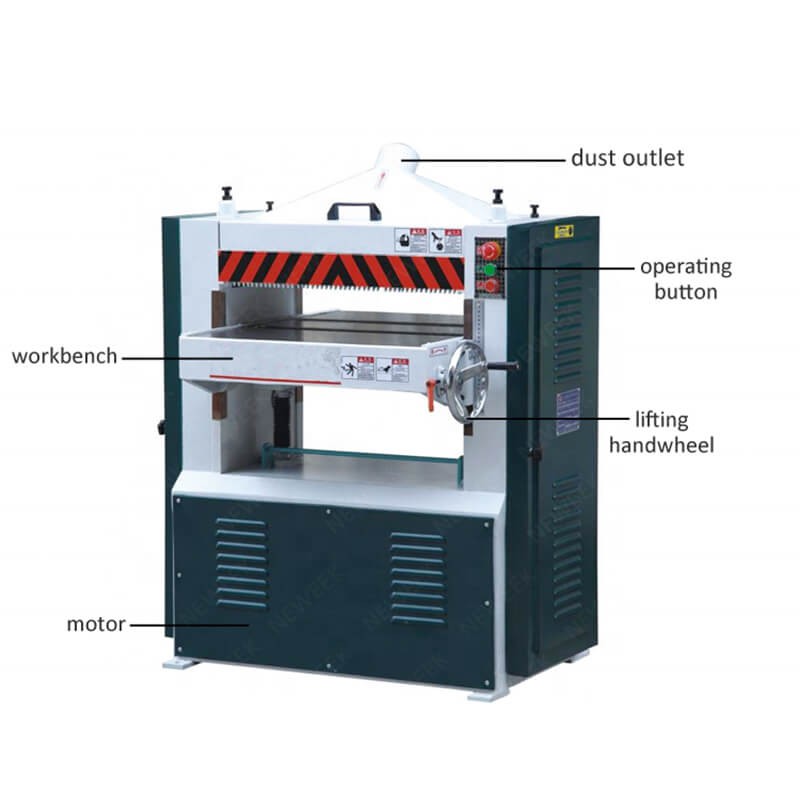

Woodworking press is used to process the opposite surface of wood surface, and plane the workpiece into a parallel plane of certain thickness, width and finish.
The machines are all equipped with upgraded motors, which have good heat dissipation and high efficiency

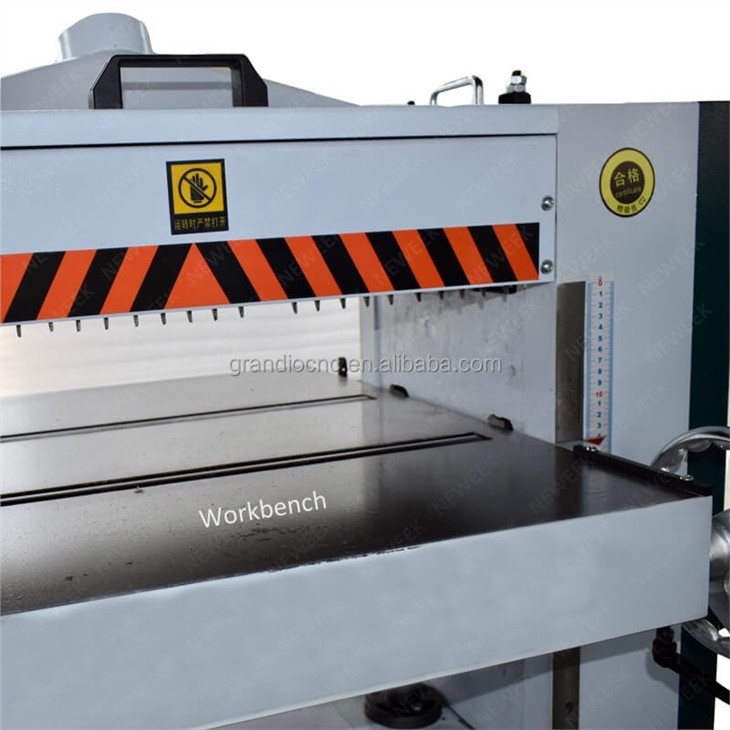

The worktable is made of high strength technology with high strength and no deformation.

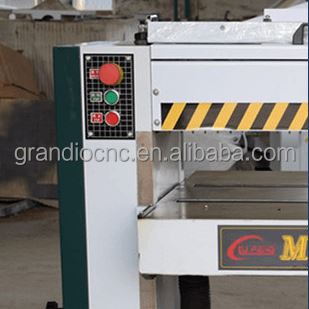

In the case where a fault occurs, press the emergency stop device stops immediately, protect the workpiece being damaged.

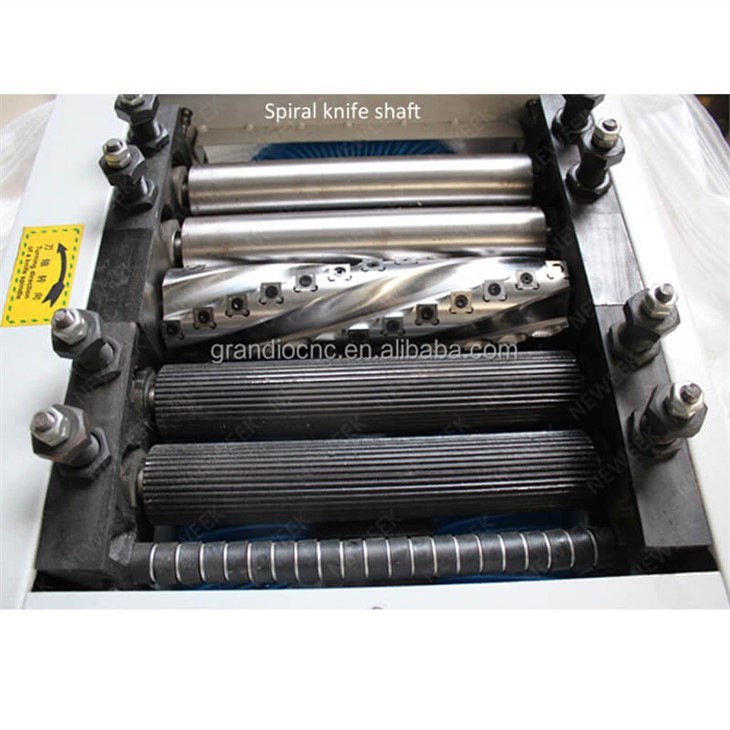

High quality spiral cutter head stable and durable
Machine Parameters
| Model | MB104 | MB105 | MB106 |
| Max planing width | 400mm | 500mm | 600mm |
| Max planing thickness | 120mm | 150mm | 150mm |
| Minimum workpiece length | 200mm | 200mm | 200mm |
| Minimum workpiece thickness | 10mm | 10mm | 10mm |
| Motor | 2.2kw | 3kw | 3kw |
| Dimensions | 700*650*870mm | 800*650*950mm | 800*650*950mm |
| Weight | 160kg | 190kg | 200kg |
Application
The press tool is divided into two types according to the number of cutter shafts and processing type
1. Single pressure trauma bed
2. Double sided pressure trauma bed
Application: Single side press planer is used for planing the opposite surface of the machined surface of the machine, and planing the workpiece into a parallel plane with a certain thickness, width and finish.
