Products Description
* The function of the front compactor is to prevent the wood from cracking in advance and compress the workpiece to prevent it from jumping; Offset the separate name and guide in wood milling. Super EOL operating and selling enterprises love each other
* The function of the rear compactor is to compact the workpiece and prevent the sawdust from falling onto the machined surface and pressing into the feed roller, so as not to affect the quality of the machined surface. Since the workpiece has a uniform thickness when the rear compactor presses against the workpiece, the rear compactor is generally integrated and the compression force on the workpiece is adjusted by the spring
Protection for a long time, lasting health

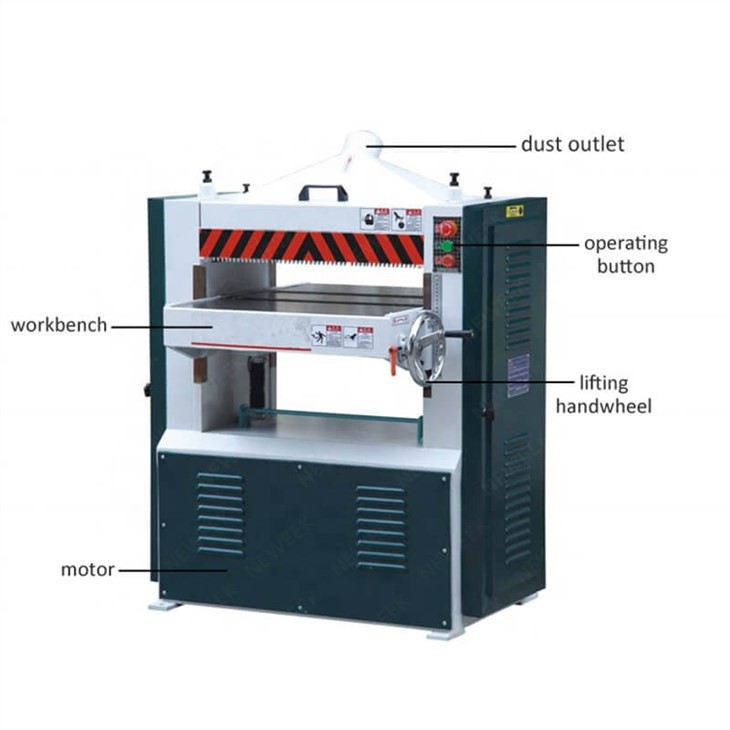

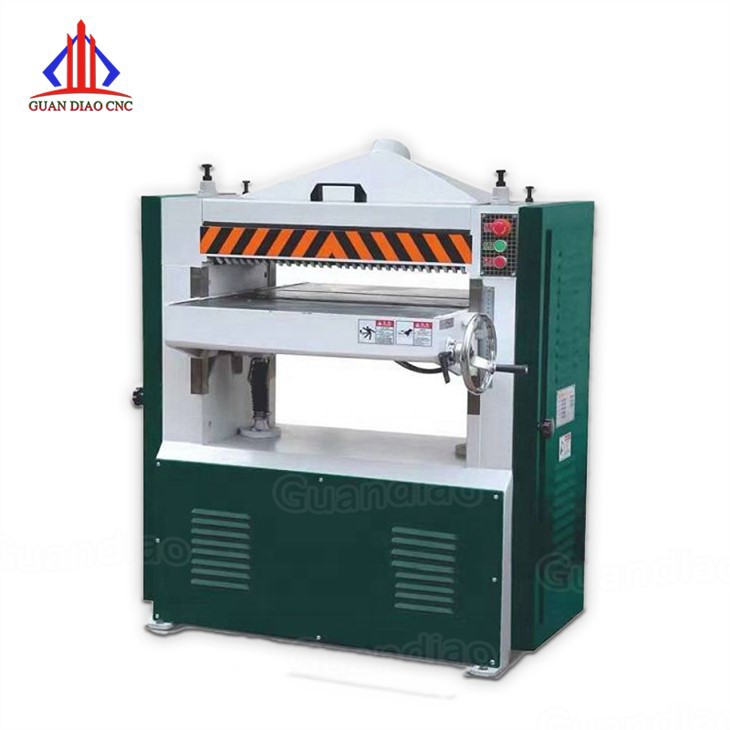

Composition of single-sided pressure trauma bed The single-sided pressure trauma bed consists of a bed, a workbench and its lifting mechanism, a cutting mechanism, a feeding mechanism, a transmission mechanism, a bed and an operating mechanism.

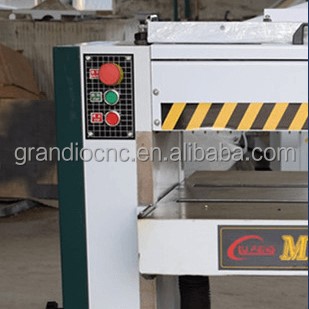

Button control, easy to operate
Thicken the body to increase the stability of the machine during operation

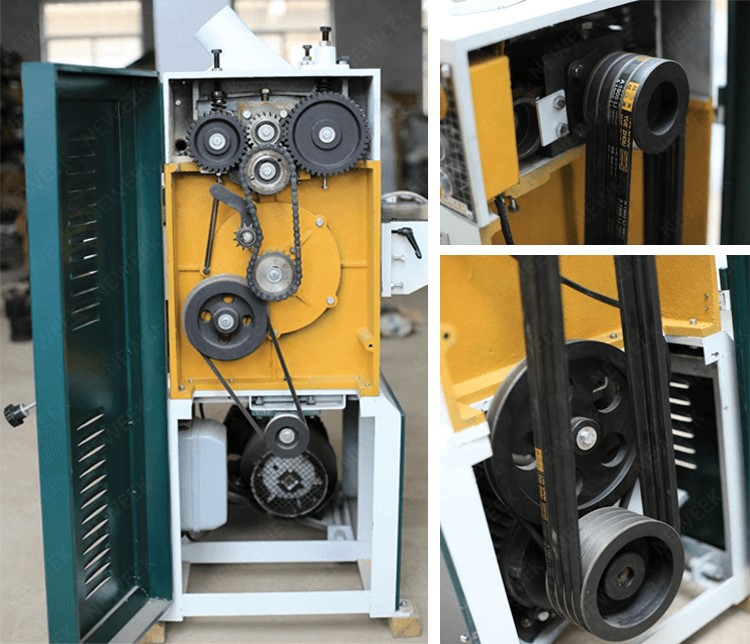

Double gear transmission makes the machine work more fine
Technical Specifications
Machine operation:
-
Preparation before startup
Before starting the machine, first check whether the planer blade is sharp, whether the clamping screw is fastened, replace the clamping blade according to the situation, whether the position of the workbench meets the requirements of cutting thickness, clean up the sundries around the machine, and prepare the raw materials to be processed. -

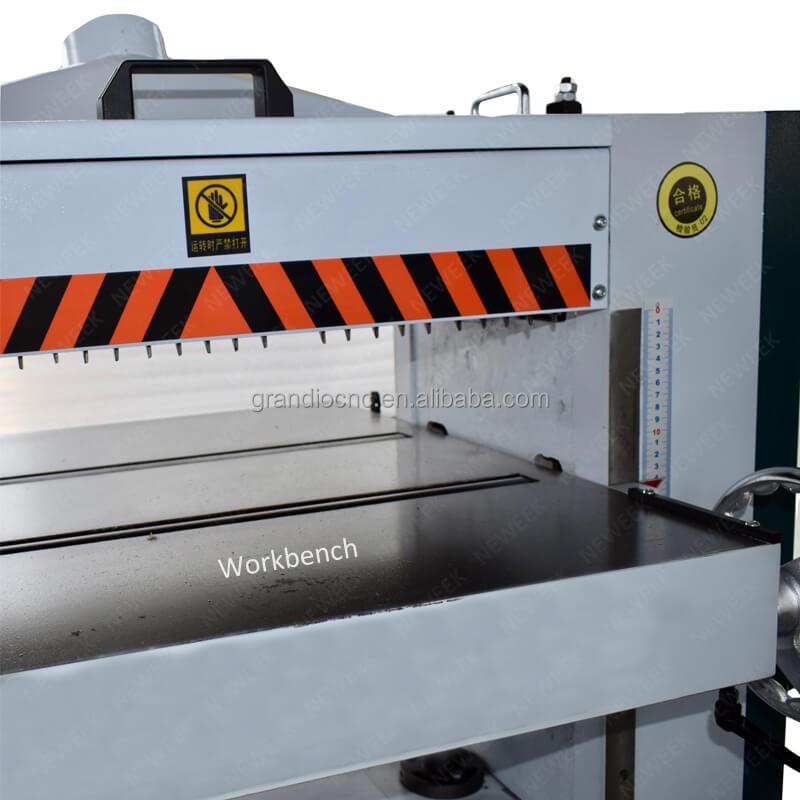

Table adjustment
When adjusting the worktable, first lower the worktable below the specified processing rule; Then start the lifting motor of the worktable or rotate the lifting handwheel to make the worktable rise from the bottom. When the pointer or reader approaches the specified value, adjust it to the specified value by fine tuning the handwheel. This value is the ruler to be reached for work. After adjustment, lock it with the locking device -
Start up
Start the motor, listen carefully to the sound of the machine tool, observe the vibration of the machine tool, and start processing the workpiece if there is no abnormality
