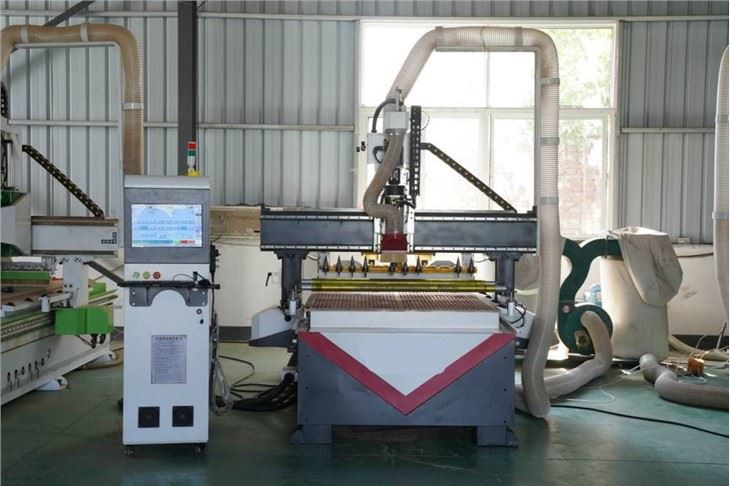

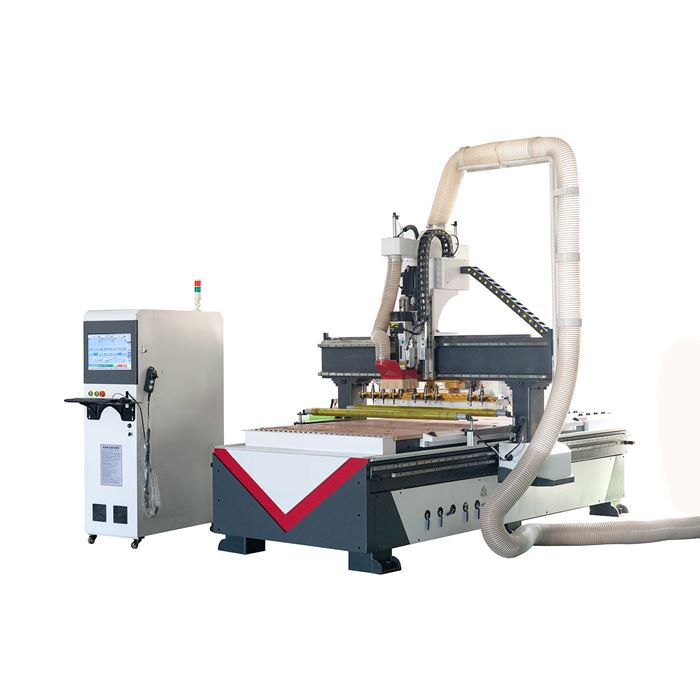

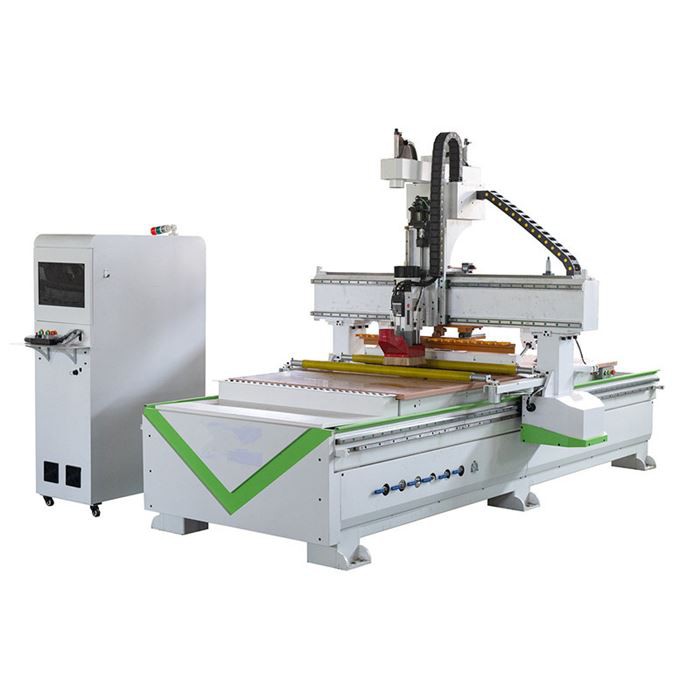

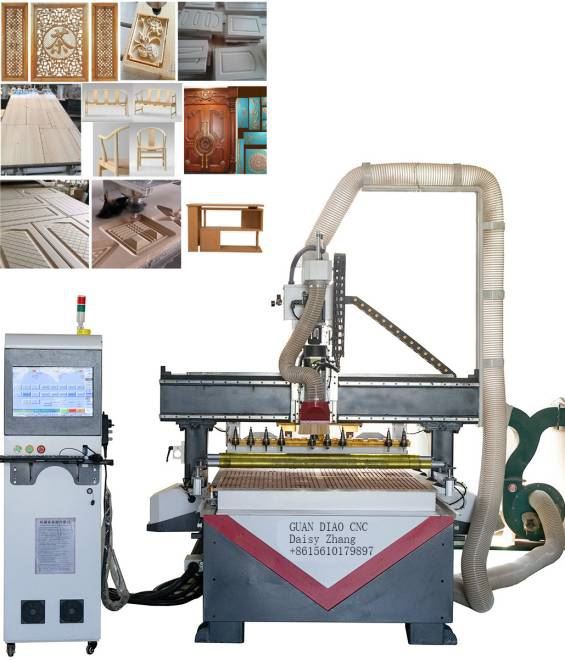

1325 ATC CNC CUTTER
Production Introduction
 |  |
Main Features
The punching efficiency is higher, the precision is higher, and the maintenance cost is low.
Imported high-power drive system
High-power drive system, faster processing speed.
Taiwan high-end CNC machine tool control system
Good stability, fast data processing speed and more accurate signal feedback.
German Rotalin high precision rack
Originally imported from Germany, Rotalin has high precision, durability and low noise.
The bed aging treatment and gantry milling processing
The machine has higher stability, high precision and long service life.
Working processing:
1. drilling: Adopts different diameter drills to drill different sizes hole on various boards.
2. grooving: With suitable tools to do grooving or slotting, it also can finish Clamex joint slots for Lamello.
3. cutting: Suitable for the regular shapes and irregular shapes cutting, also can do edging.
4. milling: Adopts different shapes CNC milling tools to achieve beautiful designs.
5. hollow-cutting: Solve production of the carved screens, separating boards, or other products that need to be hollowed cut.
6. carving/engraving: 2D carving design on wooden, composite, or other soft raw materials. If you need to do 3D design, please contact us to inquire about other 4/5 axis CNC machines for you.
Technicial parameters
| Working Size | 1300x2500x200mm(can be customized) |
Spindle Power & Speed | 9kw Atc Spindle, speed 24000rpm |
Guide Rail | Taiwan Hinwin guide rail |
Table Surface | Vacuum table+T-solt |
vacuum pump | 7.5kw vacuum pump |
inverter | Hpmont/fuling 11kw |
motor | 1200w servo motor driving |
control system | syntec/Lnc/jinke, Taiwan large screen control |
Machine details

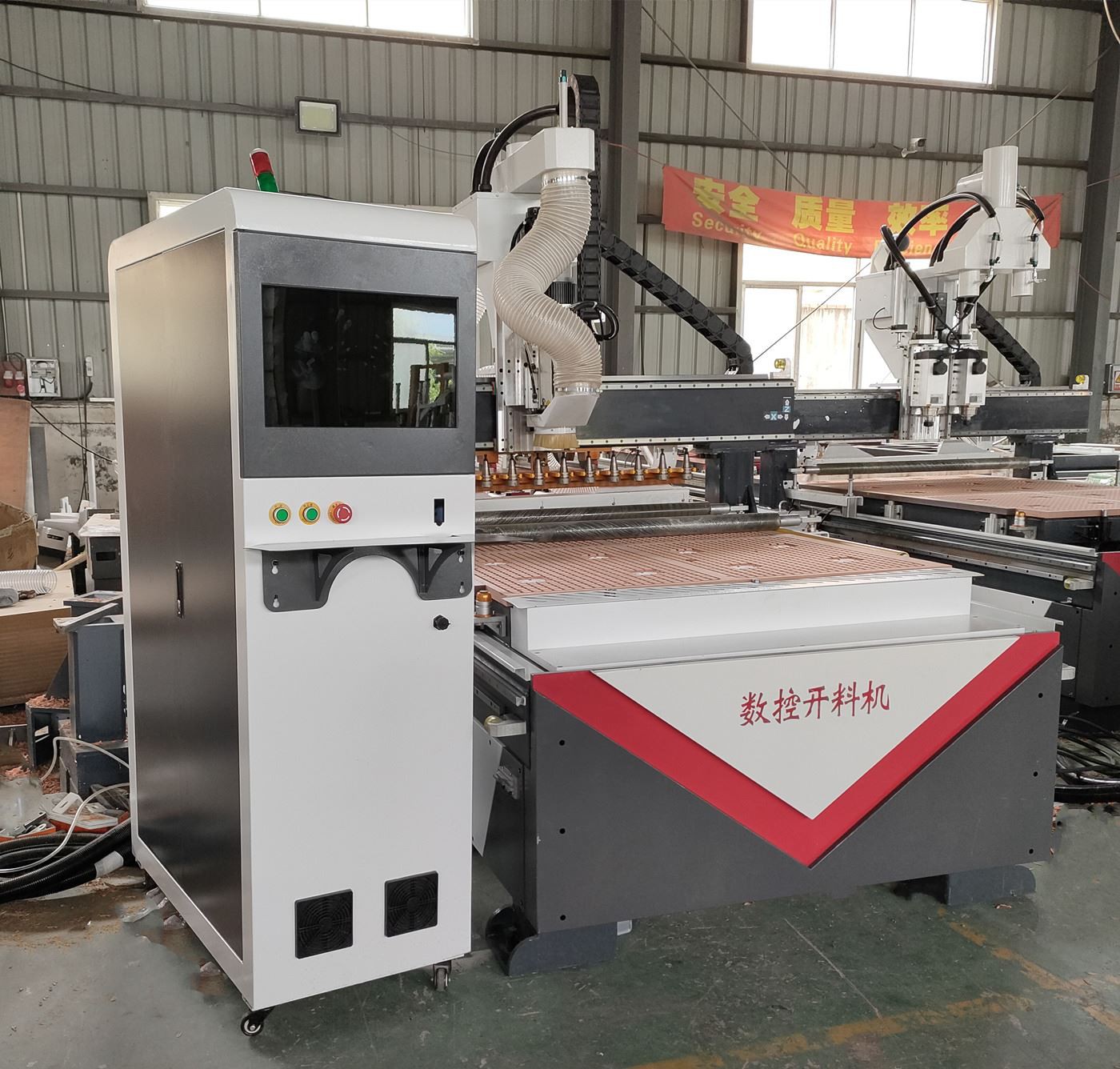

1325 ATC CNC CUTTER

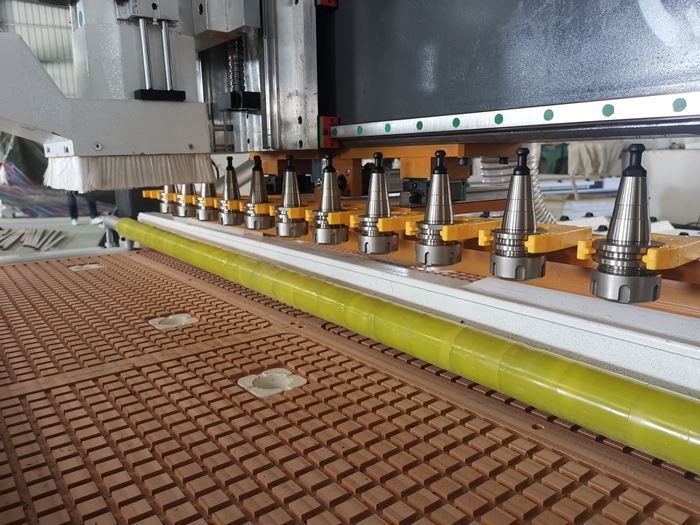

 | Machine with Linear type 8-12 tool Magazine. |

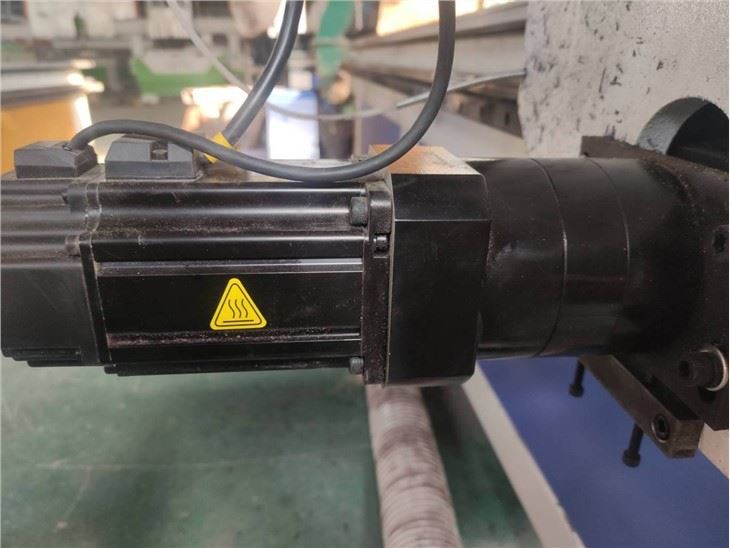

| 1.2KW pure servo motor, silde block, high quality chain. |  |

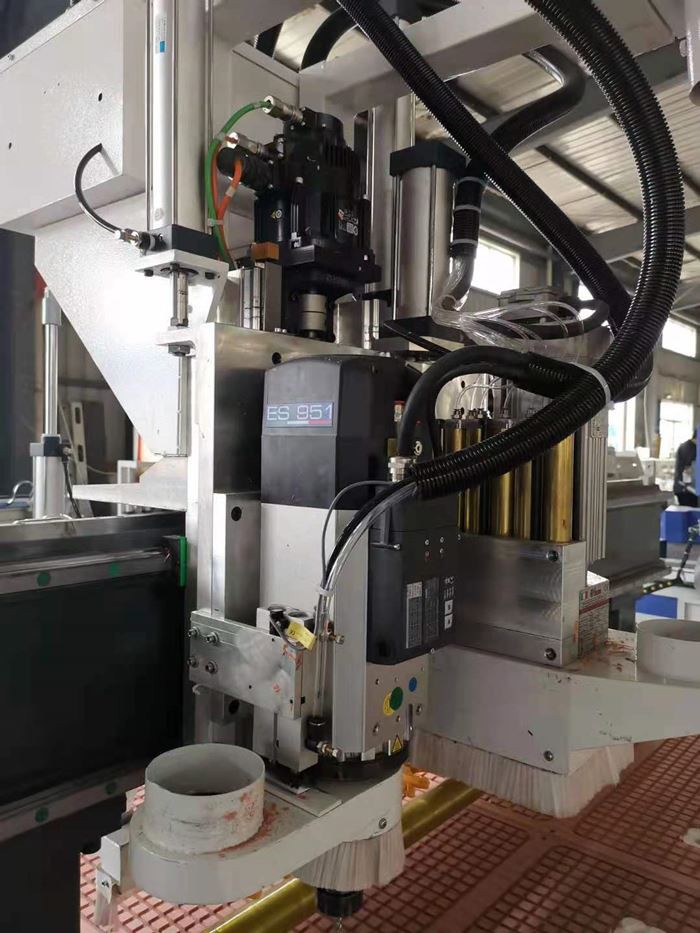

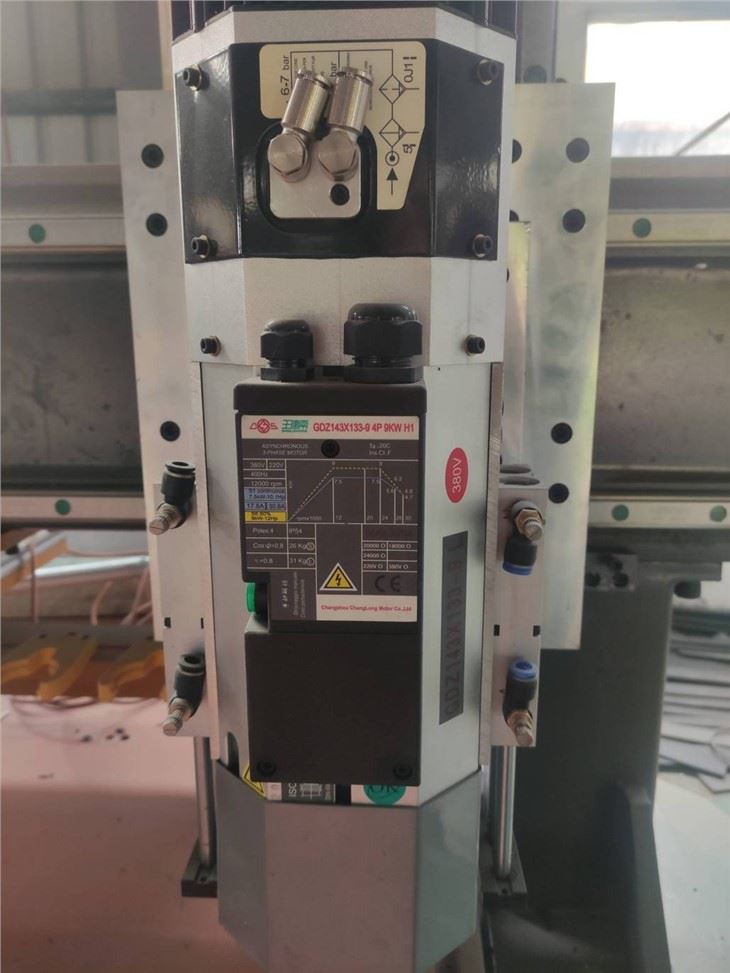

 | ATC strong power, can be widely used for different thickness materials, international famous brand, good using. |

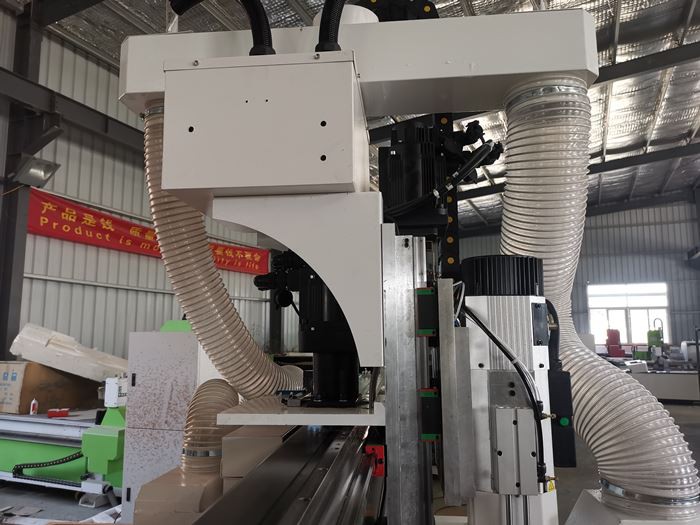

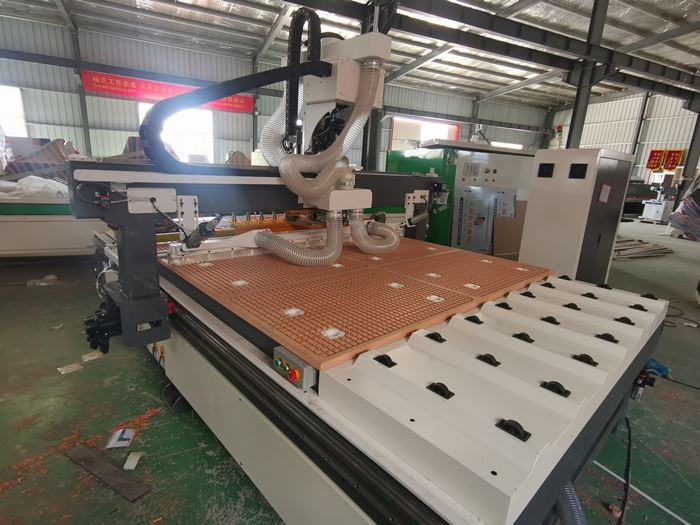

The frame adopts the gantry column structure, the machine parts are produced and assembled with extremely high precision to ensure the high performance and stability of the machine |  |

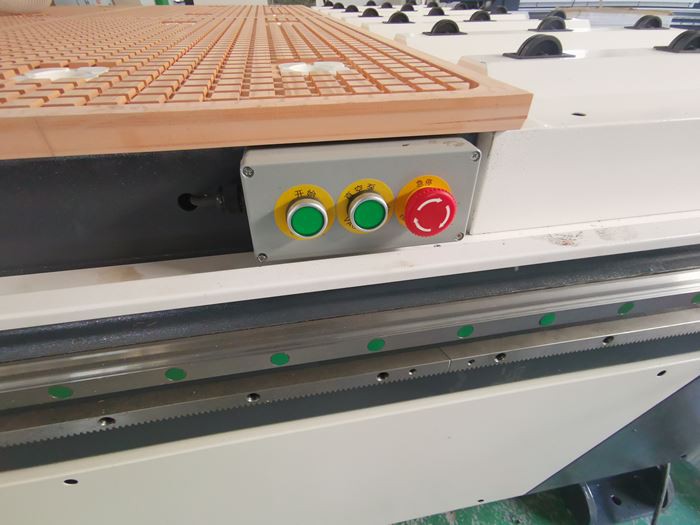

 | Emergency stop control center |
Samples
 |  |
 |  |
