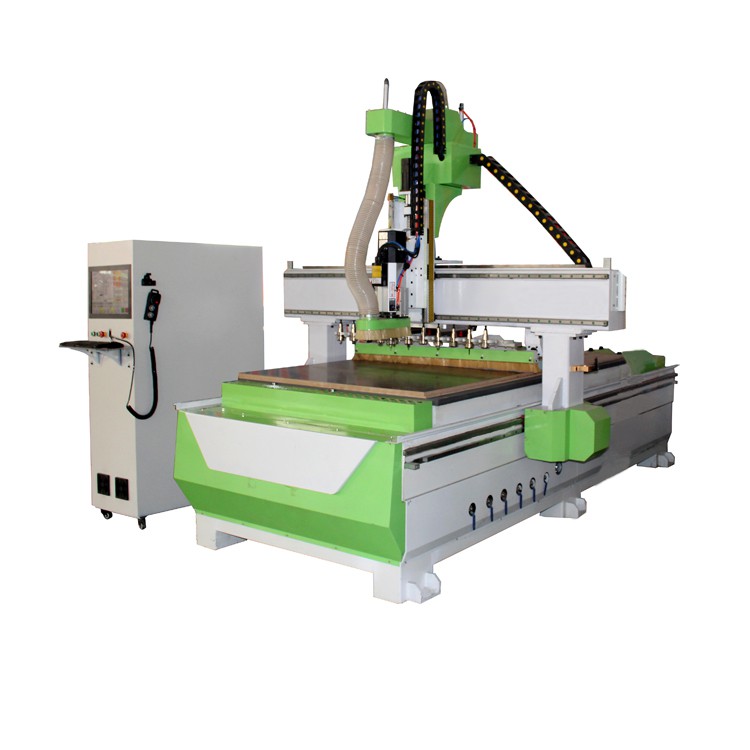

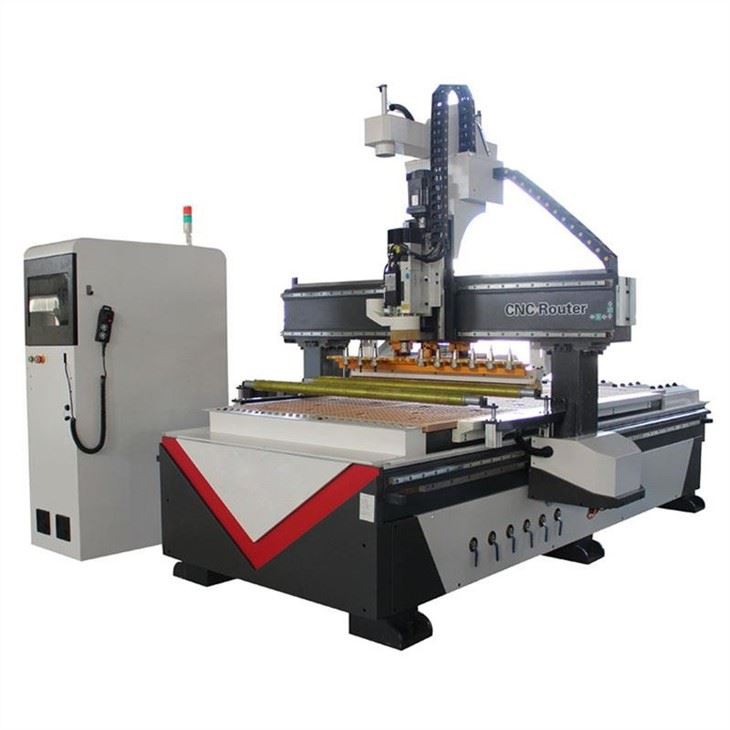

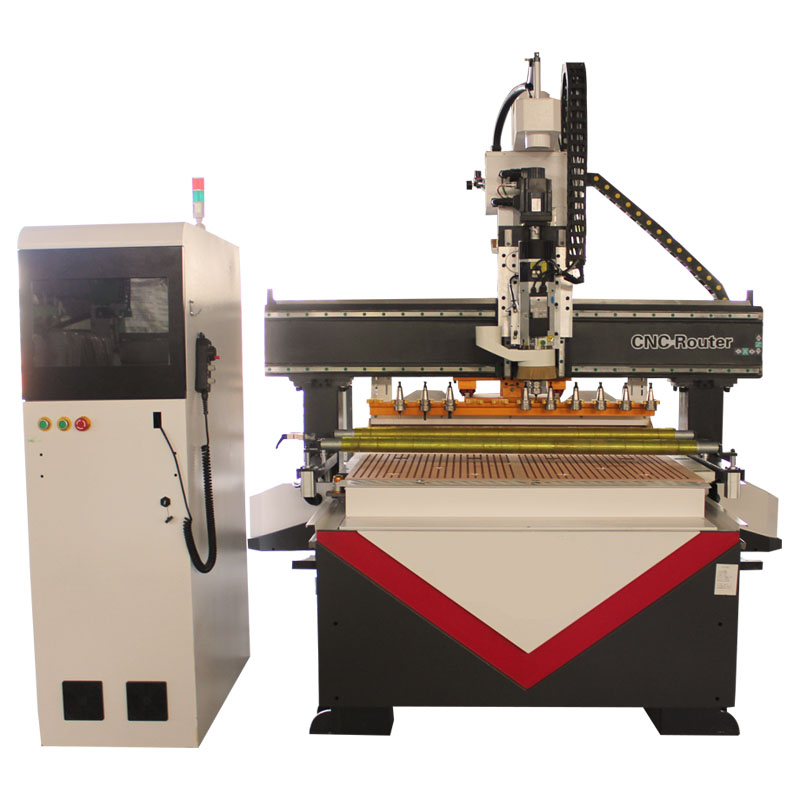

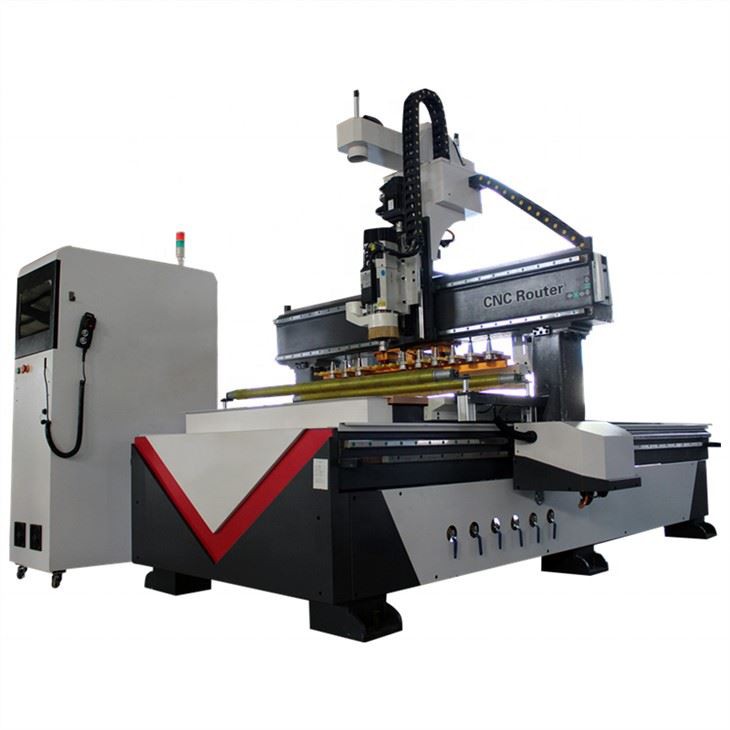

ATC CNC Router Machine 1325
Product Descrption
Features
1. ATC CNC Router Machine 1325 can cut and punch the cabinet, and can also engrave and mill the door. It is the best solution for the panel furniture industry.
2. Powerful, intelligent automatic labeling, automatic feeding, vertical hole, optimized material cutting, automatic material cutting, one-stop operation, achieving industry-leading efficiency
3.The stability is strong, all the beds are tempered, the industrial weight is designed, the square linear guide is adopted, the bearing capacity is strong, and the load of the machine tool is leading in the industry.
4. Excellent accessories, imported from abroad, imported vertical drill, new generation integrated control system,Taiwan Delta servo,or Japan Yaskawa servo motor and other high-quality accessories, strict inspection of factory precision.
Processing data
|
Number of plates processed per day |
Particle board |
45--95 pics |
|
MDF |
80--150 pics |
|
|
Multi-layer board, solid wood board |
60--110 pics |
|
|
Electricity fee |
Hour (maximum) |
380V:18℃ |
|
Efficiency |
Holing speed |
2seconds/each |
|
|
Cutting speed |
12-20meters/minute |
Technical parameter
|
Model |
GD1325 |
|
Machine size |
3350*2450*2600mm |
|
Machinable sheet size |
1220*2850mm |
|
Max. Speed |
40/40/10m/min |
|
Max. Feeding height |
50mm |
|
Transmission |
X,Y high precision rack and pinion Z ball screw |
|
Spindle power |
HQD 9KW air cooled |
|
Spindle speed |
0-18000r/min |
|
Power(without spindle) |
3.9KW(without dust collect and vacuum pump) |
|
Voltage |
380V±5% 50HZ1±1% |
|
Carving instructions |
G code:(nc),mmg,Plt,eng,dxf |
|
Control system |
Taiwan Jinke/SYNTEC |
|
Installation way |
Vacuum & T-slot |
|
Vacuum pump |
7.5kw water or 5.5kw air |
Machine Details

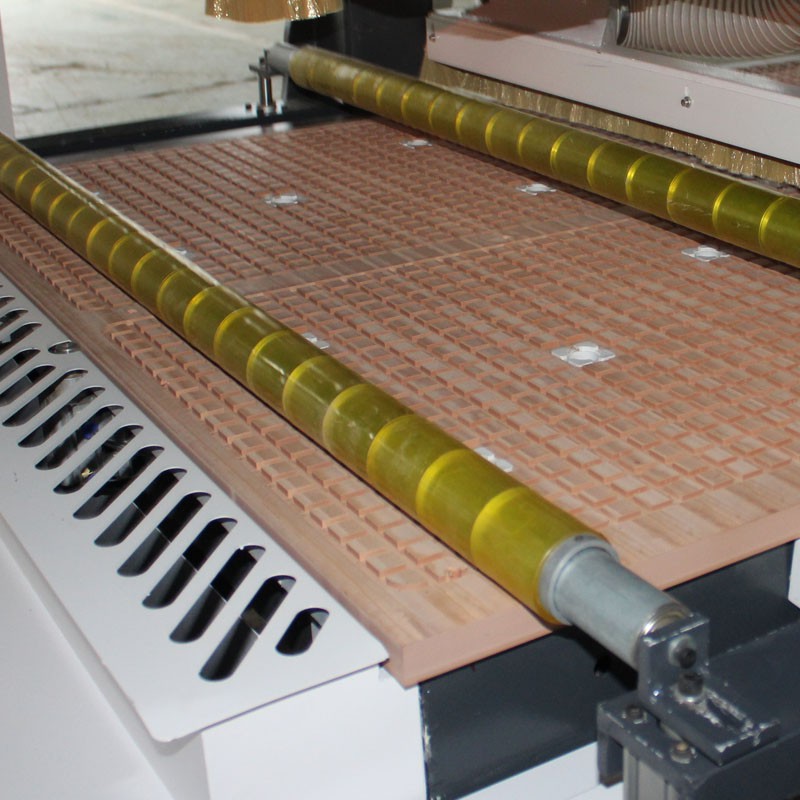

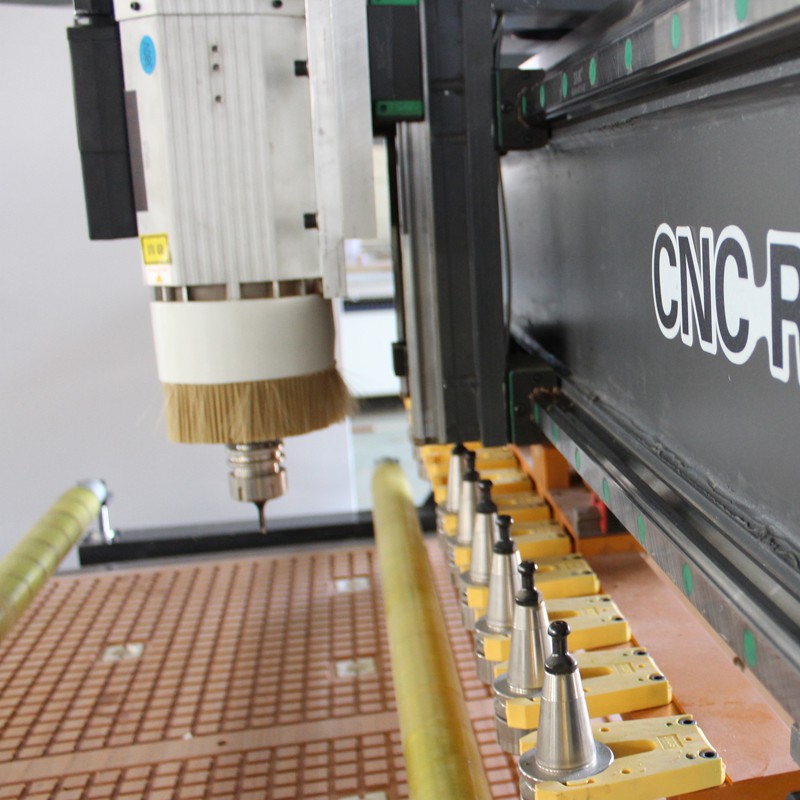

9kw HQD air cooled ATC spindle Pressue roller to hold materials

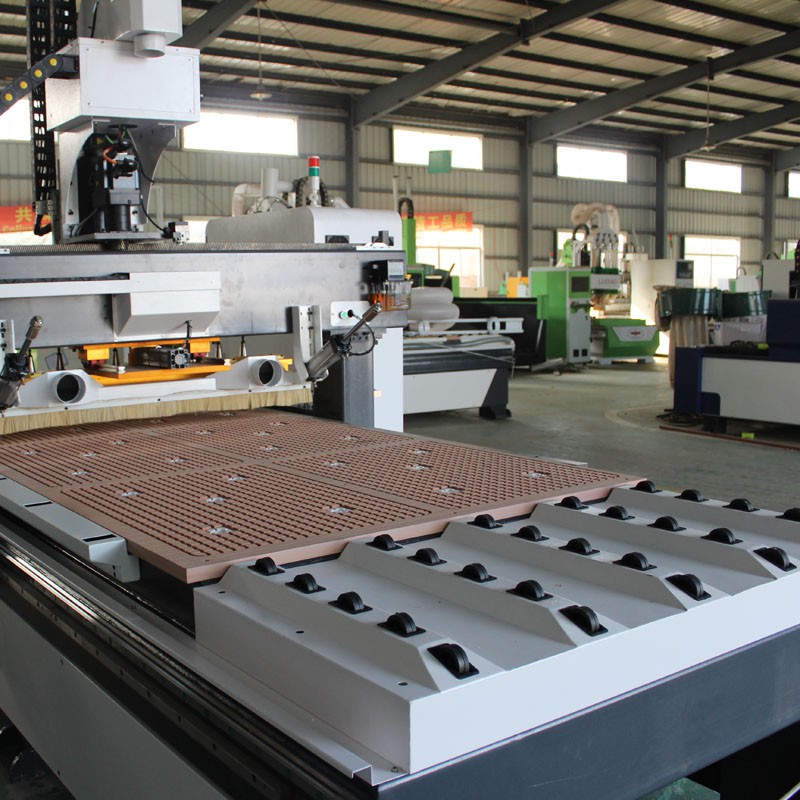

Vacuum adsorption table Loading wheel to load material

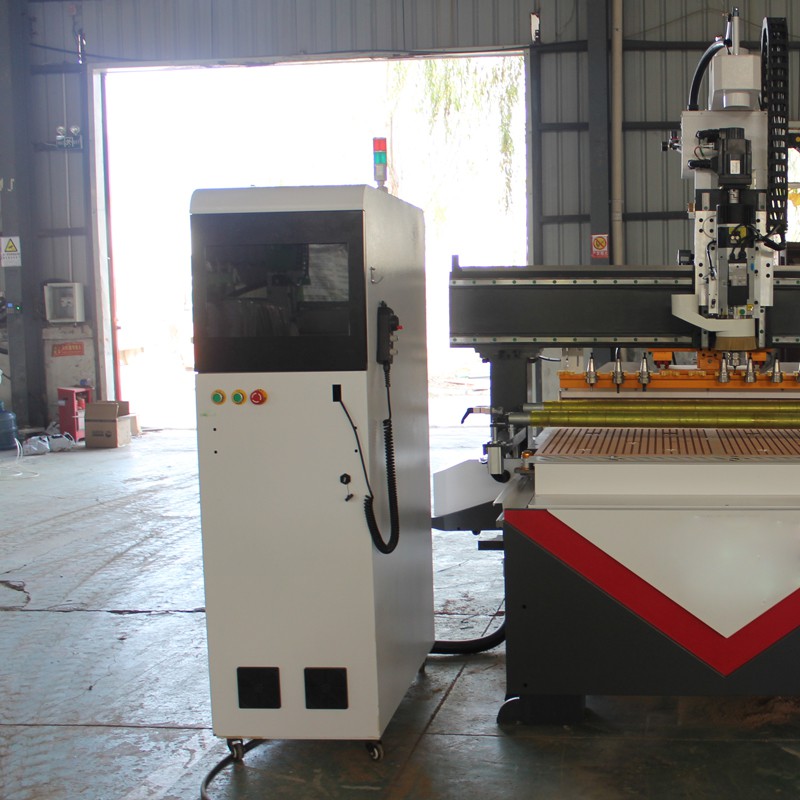

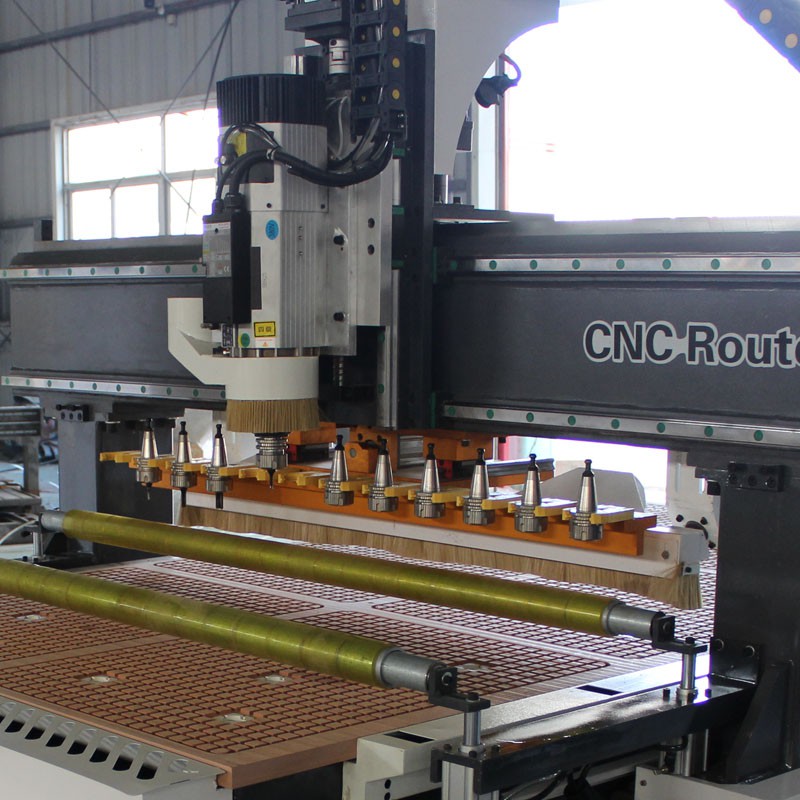

Linear type 12 tool changers Control cabinet with Syntec system

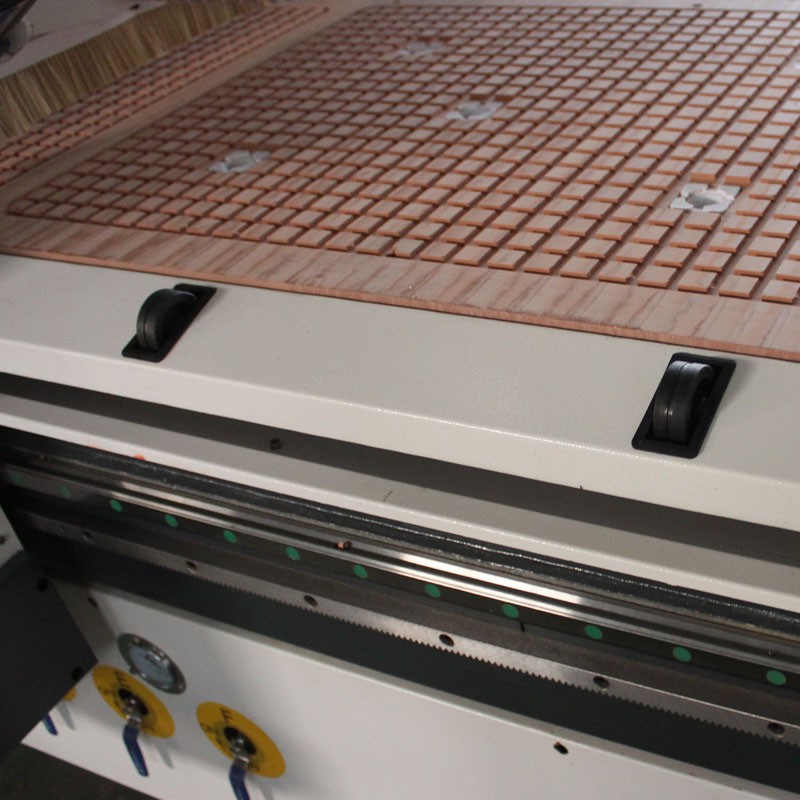

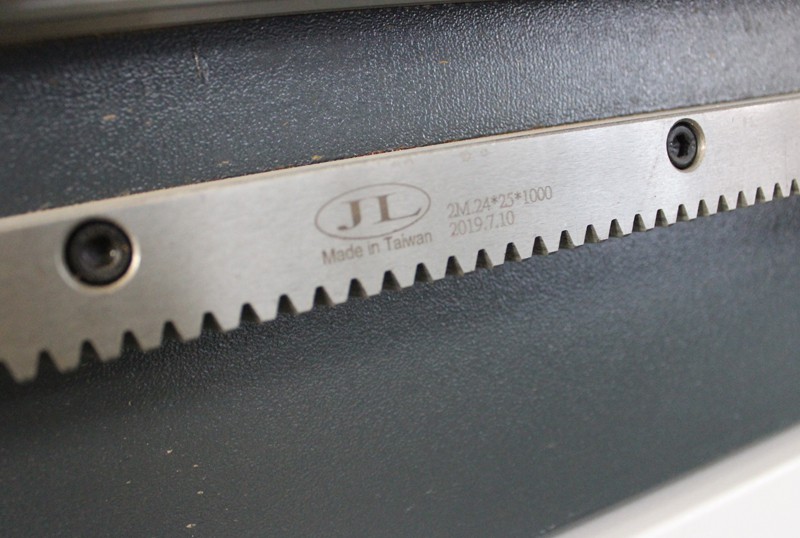

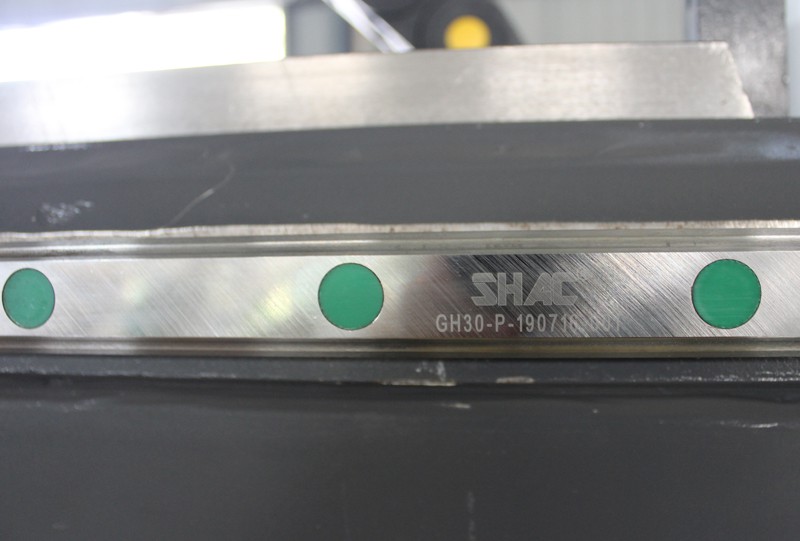

High precision rack for XY axis Taiwan Import 30mm guide rail
Application
Application:
Suitable for panel furniture, cabinet doors, office furniture, custom furniture, door industry and other industries.
Material:
multi-layer board, particle board, ecological board, MDF, wave board and other various boards.
Packing & Shipping
Packing: Strong wooden package
Shipping: 20-30 working days after get deposit
