Production Introduction
1. Customized American lidar probes can identify various color plates and black mirror panels with zero error.
2. Use the motion controller to completely solve the problem of inaccuracy and leakage during high-speed drilling of traditional PLC systems.
3. The use of military-grade motion controller + double servo (130,000 frames
per second) to ensure that the working speed of 100 meters does not lose accuracy and does not lose holes.
4. Taiwan original guide rail.
5. Support long material, short material, long slot, three-in-one hole processing mode, wood pin hole, blind hole; long slot, segment slot, a variety of suitable
for touch screen operation, easy to learn.
Production Detail
|
|

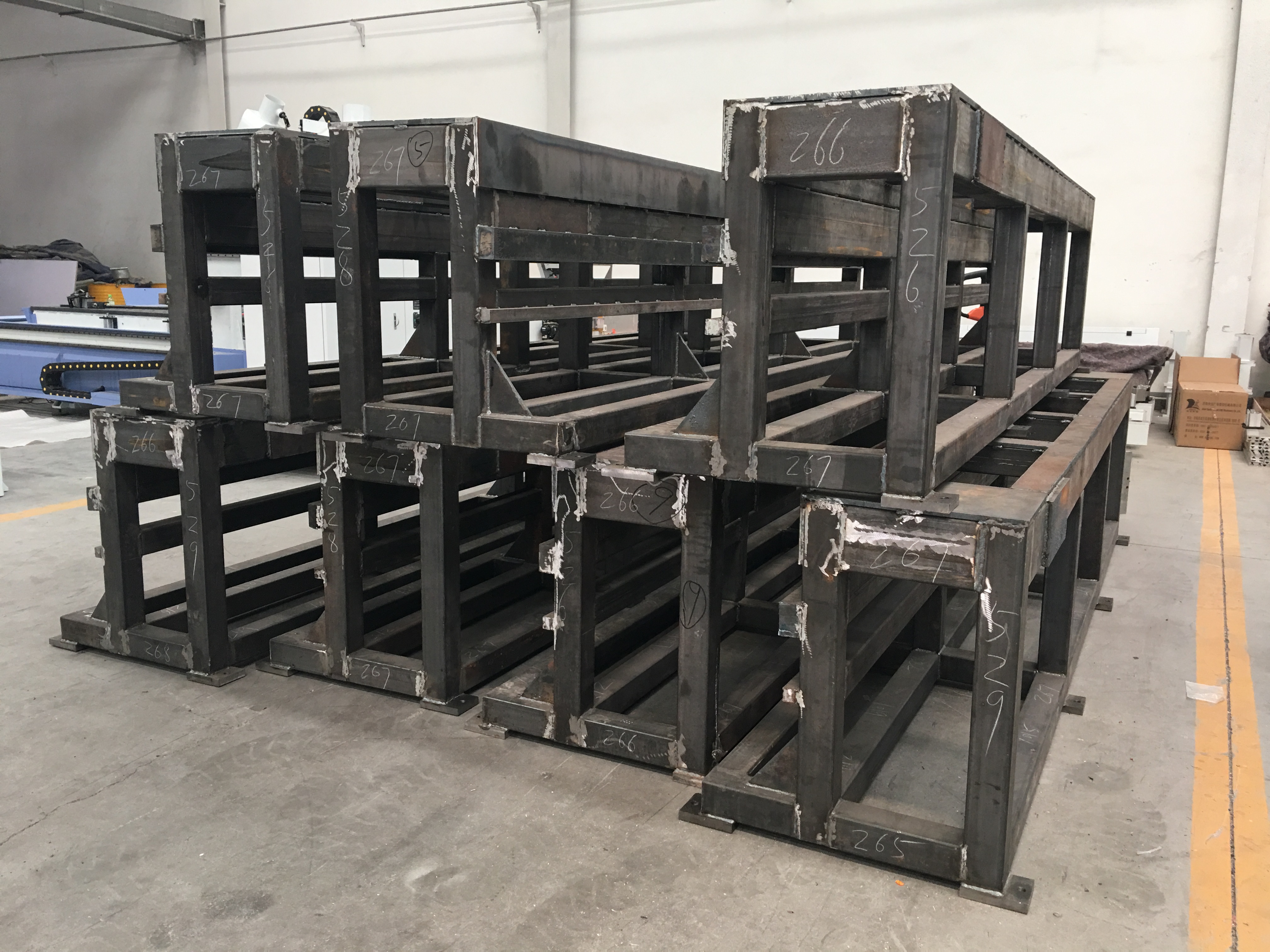

Heavy duty machine bodyMachine frame is produced by professional 5-side Milled CNC machining centers. | Electrical chassis Internal electrical order, with frequency conversion control, flexible frequency conversion adjustment, to adapt to a variety of sheet metal processing, improve the service life. |
|
|

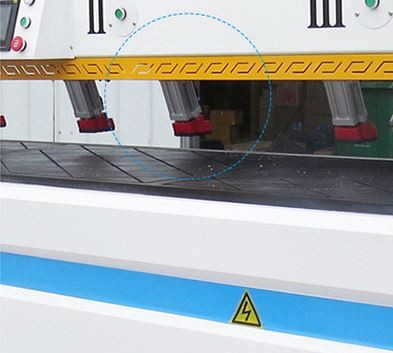

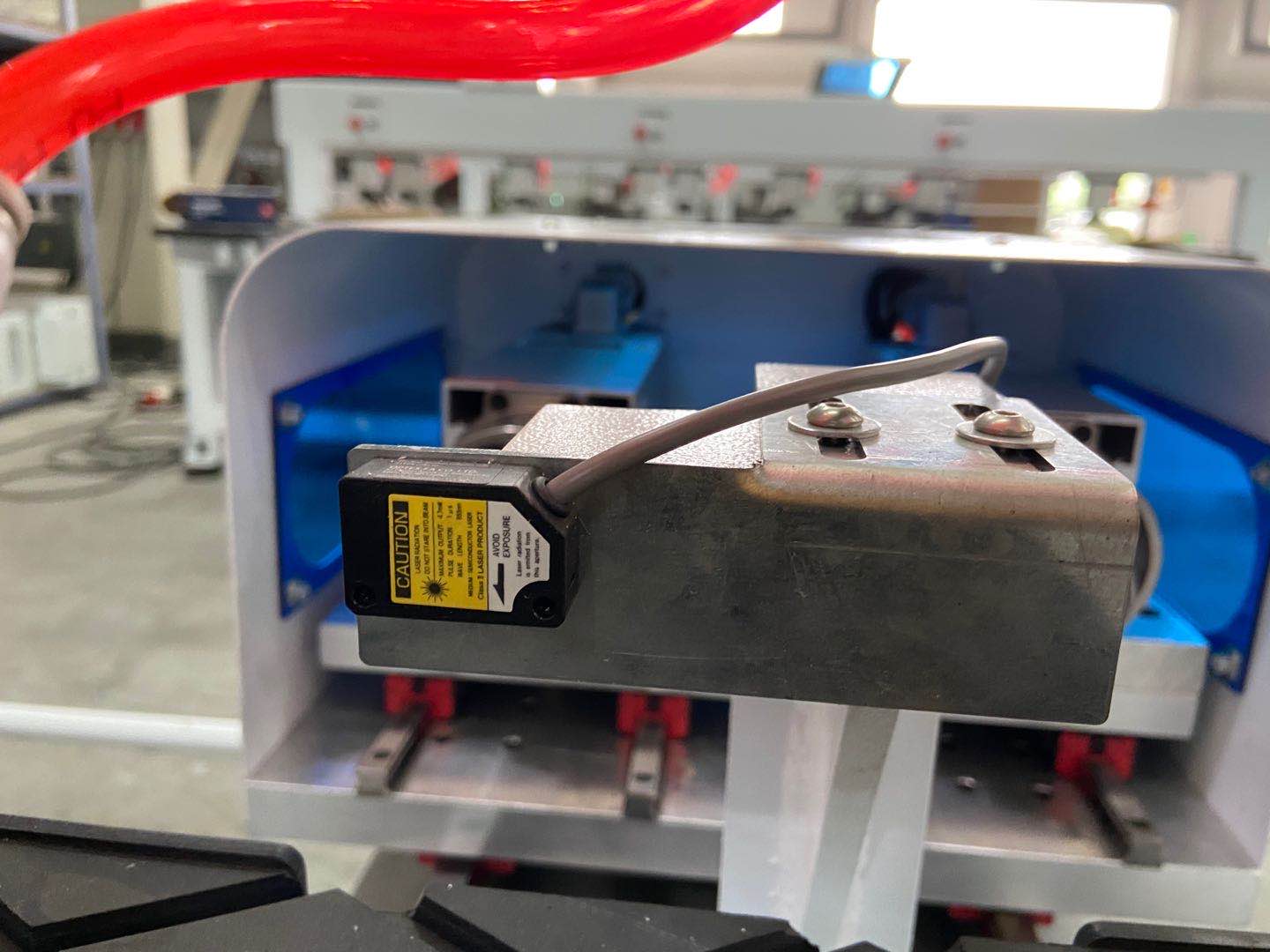

| Material cylinder pressure Movable type high pressure cylinder, can be accurately fixed pressure plate,Sheet to prevent sliding, big rubber gasket sheet does not hurt. | Red light sensorAutomatic positioning of vertical holes, horizontal holes and vertical holes 0 error. |
Production Specification
Description | Parameters |
Dimension (L*W*H) | 3350*1770*1400mm |
Working speed | 10500mm/min |
Spindle travel speed | 24000RPM/MIN |
Table Surface | Vacuum Table |
Laser Head | Banner |
Frame | Heavy welded steel tube |
Structure | Ball screw, square rail |
Control System | Motion control system |
Servo System | Double servo system |
Traveling Positioning Accuracy | ±0.02mm/300mm |
Spindle Power | 2.2KW |
Working Voltage | 380V, 50/60HZ, 3ph |
N.W. | 1200KG |
Main Function | Drilling hole/Wooden pin hole/slotting |
Optional | 3.5KW spindle/Dust Exhaust Apparatus |
Production Sample
Company
Package and shipping
FAQ
1. This is the first time I buy the machine, is it easy to operate? A: We can provide the operation manual or video for guiding. If it is hard for you learning, we can also help you by "Team viewer" online, with telephone or Whatsapp explain. 2. ARE YOU TRADING COMPANY OR MANUFACTURER ? A: We are factory. 3. Can I visit your factory? A: Yes! We greatly welcome customers to visit our factory! 4. What is your MOQ? A: Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you
